Key Features:

• Overview

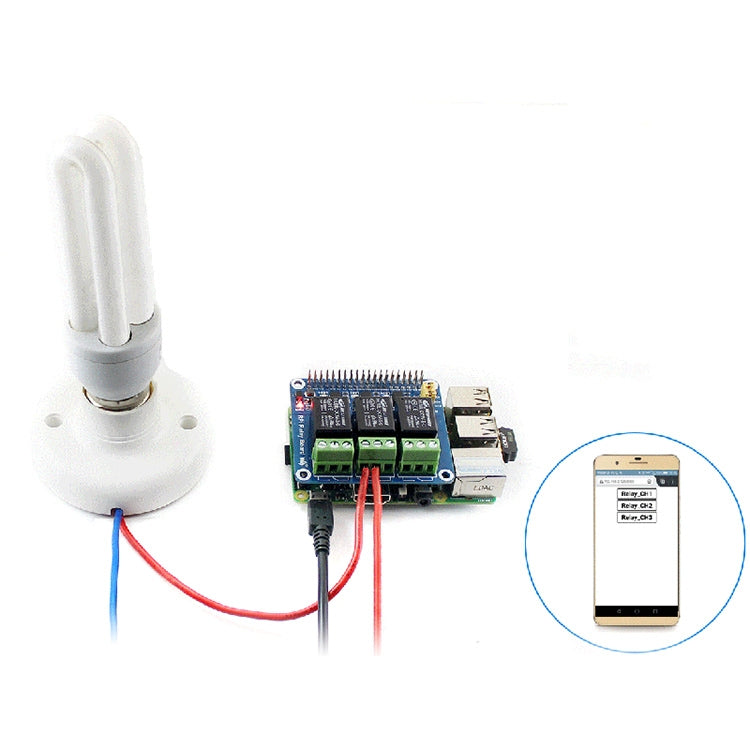

• The RPi Relay Board gives your Pi the ability to control high voltage/high current devices, easily makes normal home appliances become intelligent.
• RPi Relay Board Features
• 1. Supports Raspberry Pi A+/B+/2B/3B/3B+
• High quality relays, loads up to 5A 250V AC or 5A 30V DC
• Photo coupling isolation, prevent interference from high voltage circuit
• Onboard LEDs for indicating relays status
• Relay control jumper, allows to control the relays by custom pins other than the default pins
• Comes with development resources, including examples in wiringPi, WebioPi, shell, python, and bcm2835

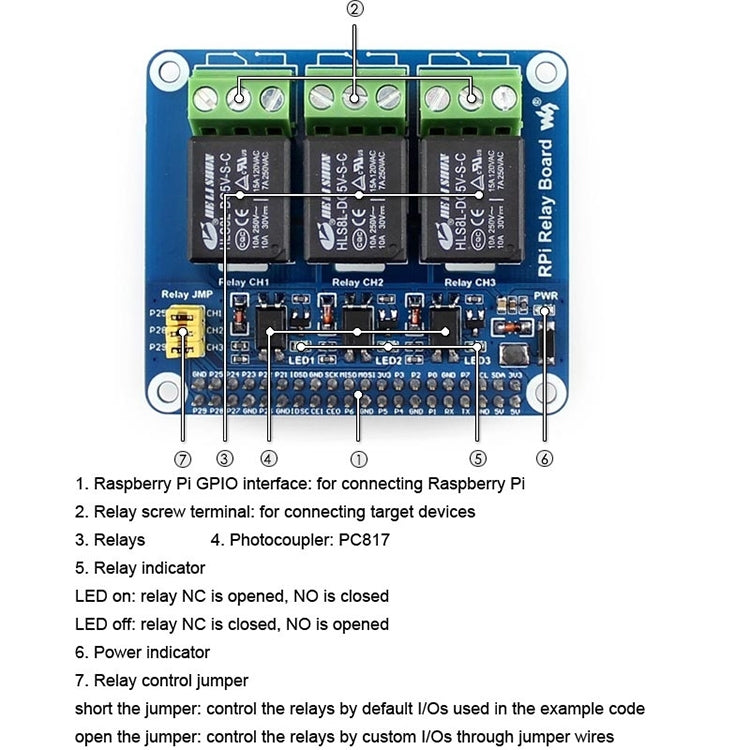

• What is on the RPi Relay Board
• 1. Raspberry Pi GPIO interface: for connecting Raspberry Pi
• Relay screw terminal: for connecting target devices
• Relays
• Photocoupler: PC817
• Relay indicator
• - LED on: relay NC is opened, NO is closed
• - LED off: relay NC is closed, NO is opened
• Power indicator
• Relay control jumper
• - Short the jumper: control the relays by default I/Os used in the example code
• - Open the jumper: control the relays by custom I/Os through jumper wires
• Package include
• - RPi Relay Board x 1
• - RPi screws pack (2pcs) x 1

Package Info: Weight: 0.08kgs / 0.18lb, Size: 8cm * 7cm * 2cm / 3.15inch * 2.76inch * 0.79inch
