Waveshare RPi Motor Driver Board – TPU

Waveshare RPi Motor Driver Board – TPU.

Key Features:

• Raspberry Pi Expansion Board, DC Motor / Stepper Motor Driver
• Features
• 1. Supports Raspberry Pi A+/B+/2B/3B/3B+
• Freescale H-bridge driver MC33886, controls DC motors to turn in both directions
• Onboard 5V regulator, provides power to Raspberry Pi
• Onboard IR receiver, used for remote control robot
• Multi protection circuit, excellent stability
• - 2A self-recovery fuse, keep your Pi safe
• - Driver chip features Short-Circuit Shutdown for Large Output Current, Undervoltage Disable Function
• - Reversed polarity protection for motor output
• - Anti-reverse diode for power supply
• Power input range: 7V~40V
• Single motor output current: up to 5A
• Power supply current for Raspberry Pi: up to 2A
• Whats on Board

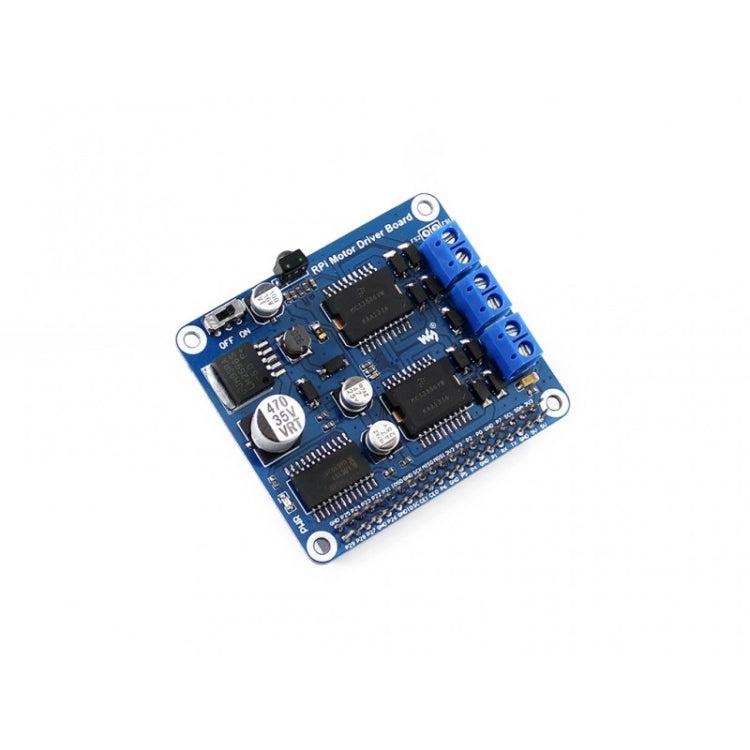

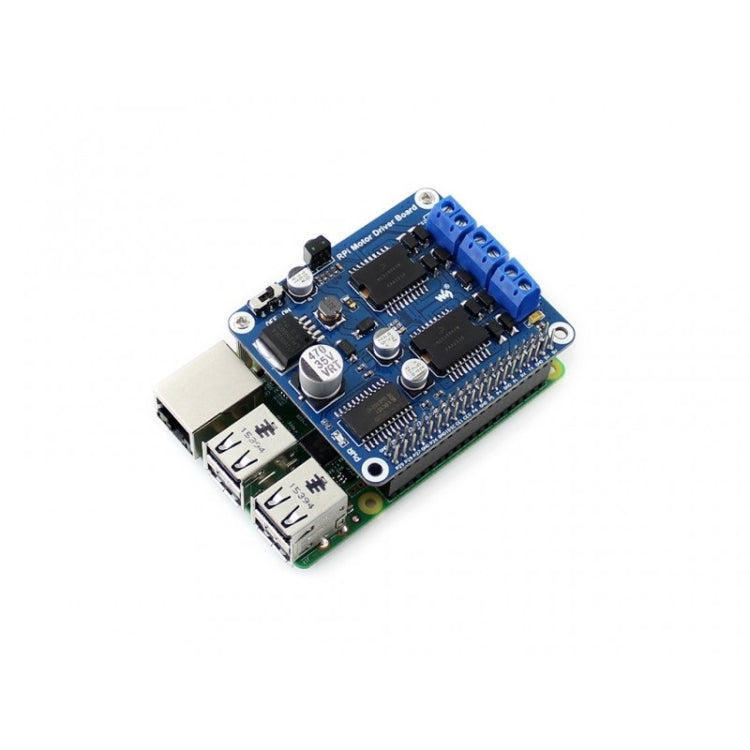

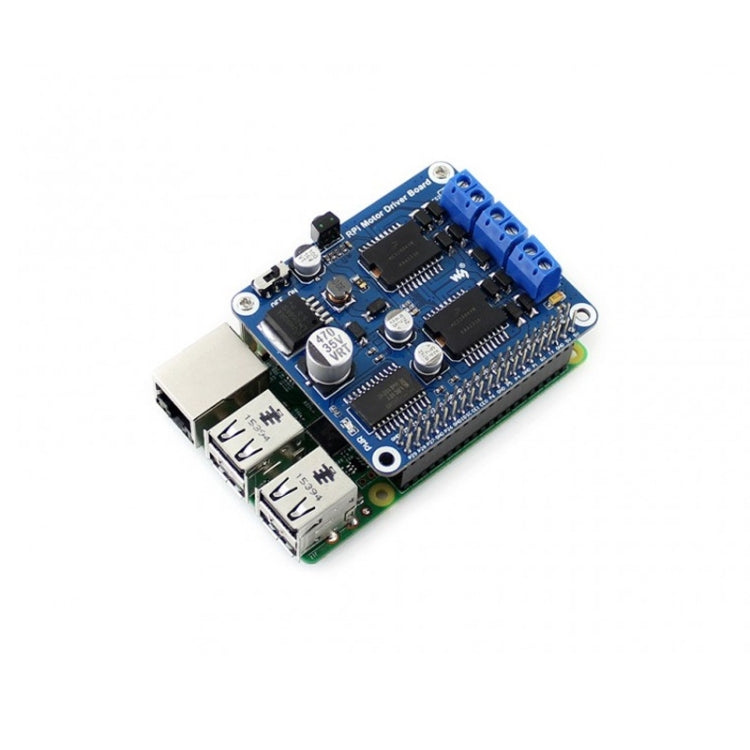

• 1. Raspberry Pi Expansion Board on board resource
• Raspberry Pi GPIO interface: for connecting Raspberry Pi
• Motor screw terminal: for connecting motors
• External power input
• 74LVC4245AD: voltage level conversion chip, buffer device
• MC33886: motor driver chip
• LM2596-5.0: 5V regulator
• Power indicator
• Raspberry Pi power selection
• OFF: Raspberry Pi powers the Motor Driver Board
• ON: Motor Driver Board powers the Raspberry Pi
• 2A self-recovery fuse
• IR receiver
• Schottky diodes: protects the motor driver
• Power supply anti-reverse diode
• Package Contents
• 1. RPi Motor Driver Board x 1
• RPi screws pack (2pcs) x 1

Package Info: Weight: 0.06kgs / 0.12lb, Size: 9cm * 8cm * 3cm / 3.54inch * 3.15inch * 1.18inch

Shipping: Shipping charges and final delivery dates are shown at checkout.
