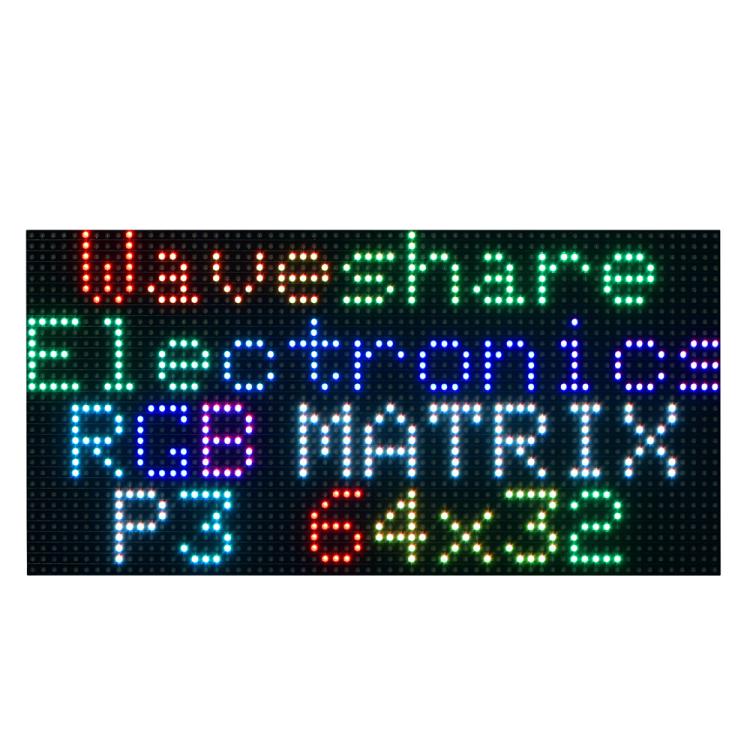

Waveshare RGB Full-color LED Matrix Panel, 3mm Pitch, 64 × 32 Pixels, Adjustable Brightness,, 20117, 33840 – TPU

Waveshare RGB Full-color LED Matrix Panel, 3mm Pitch, 64 × 32 Pixels, Adjustable Brightness,, 20117, 33840 – TPU.

Key Features:

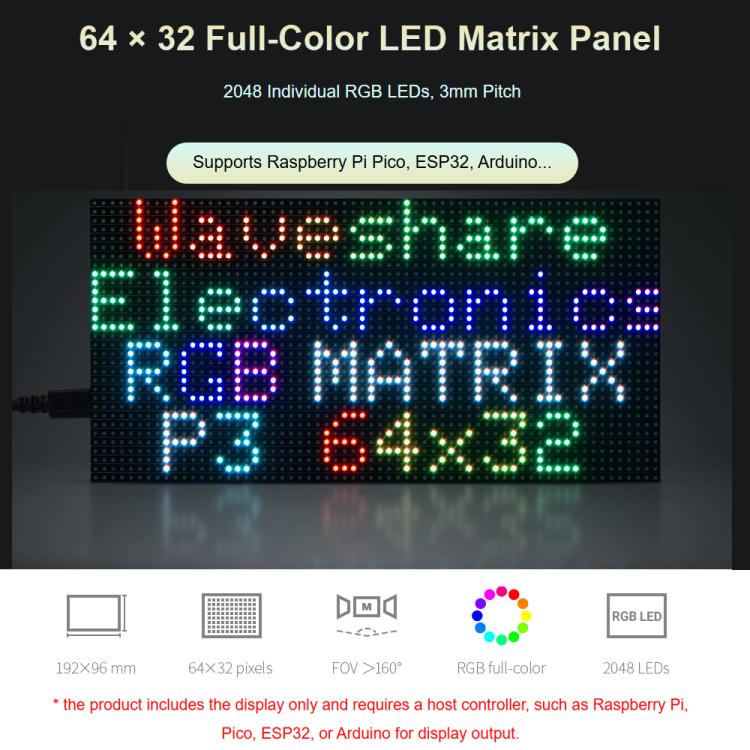

• This product is a 64 × 32 resolution RGB full-color LED dot matrix module. It integrates 2048 LEDs, features dual HUB75 interfaces, and supports cascading...
• Utilizes 2048 RGB LEDs for full-color display with adjustable brightness.
• Resolution is 64 × 32 with a pixel pitch of 3mm, capable of displaying text, color images, or animations.

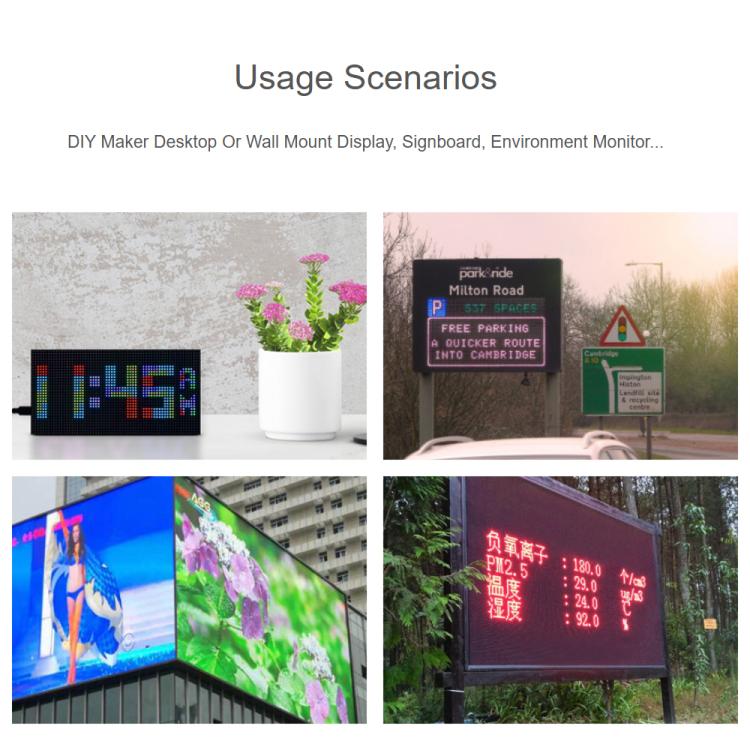

• Dimensions are 192 × 96 (mm), offering a moderate size ideal for DIY desktop or wall-mounted display applications.

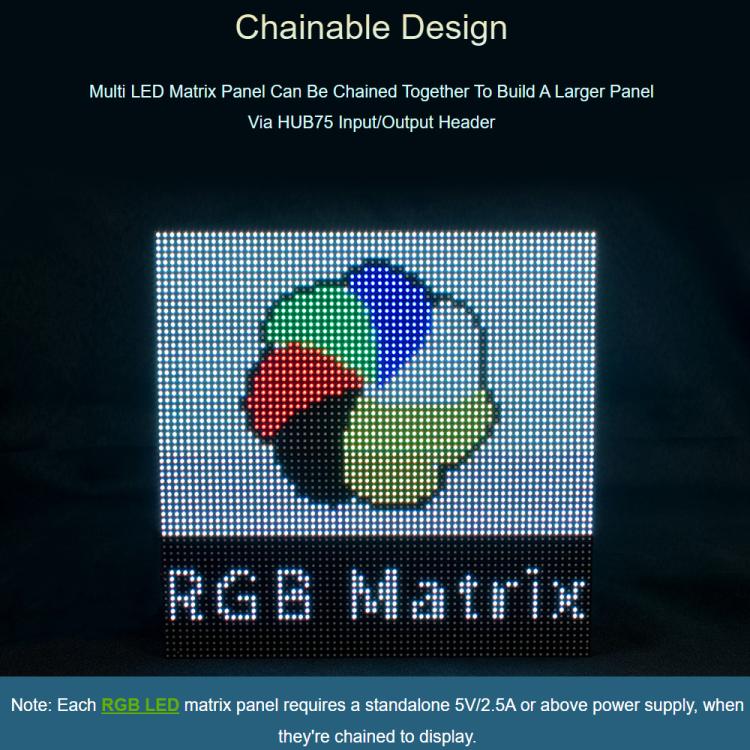

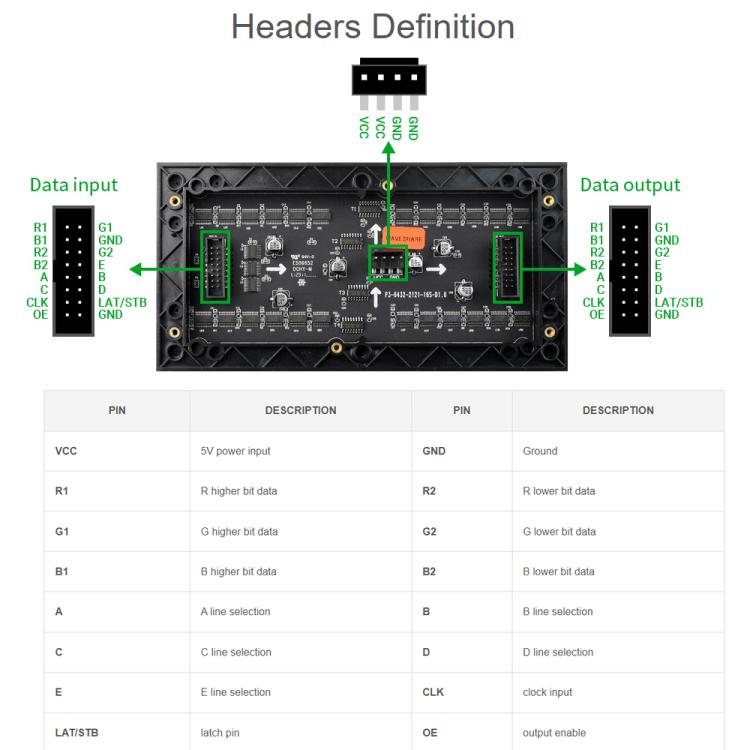

• Onboard two HUB75 interfaces: one for input (to connect a controller) and one for output (to cascade multiple screens).

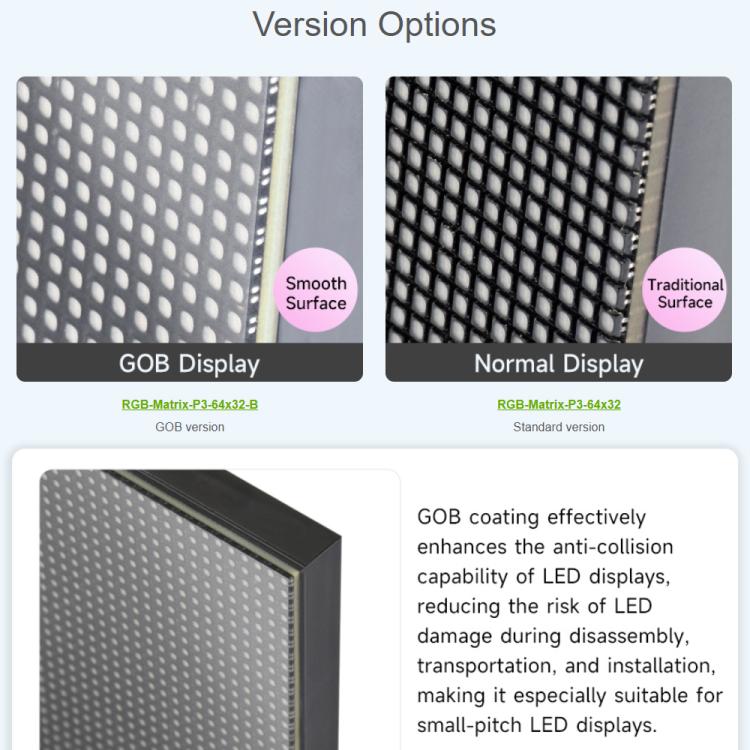

• GOB technology achieves resistance to impact, water, moisture, and dust.
• This is a bare screen requiring a main control board (such as Raspberry Pi Pico, ESP32, or Arduino) for display.
• Parameters:

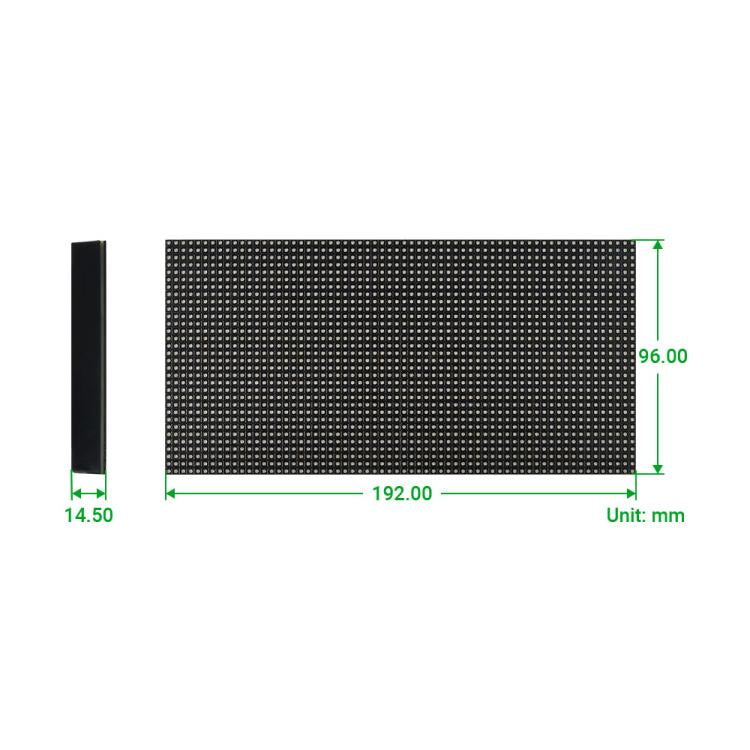

• Product Dimensions: 192 × 96 (mm)
• Resolution: 64 × 32 (2048 DOTS)
• Pixel Pitch: 3mm
• Pixel Composition: 1R1G1B
• Viewing Angle: Greater than or equal to 160 degrees
• Control Method: Synchronous Control
• Drive Method: 1/16 Scan
• Interface Type: HUB75
• Supply Voltage: 5V / 2.5A (VH4 socket input)
• Power Consumption: Less than or equal to 12W

Package Info: Weight: 0.48kgs / 1.07lb, Size: 24cm * 14cm * 6cm / 9.45inch * 5.51inch * 2.36inch
