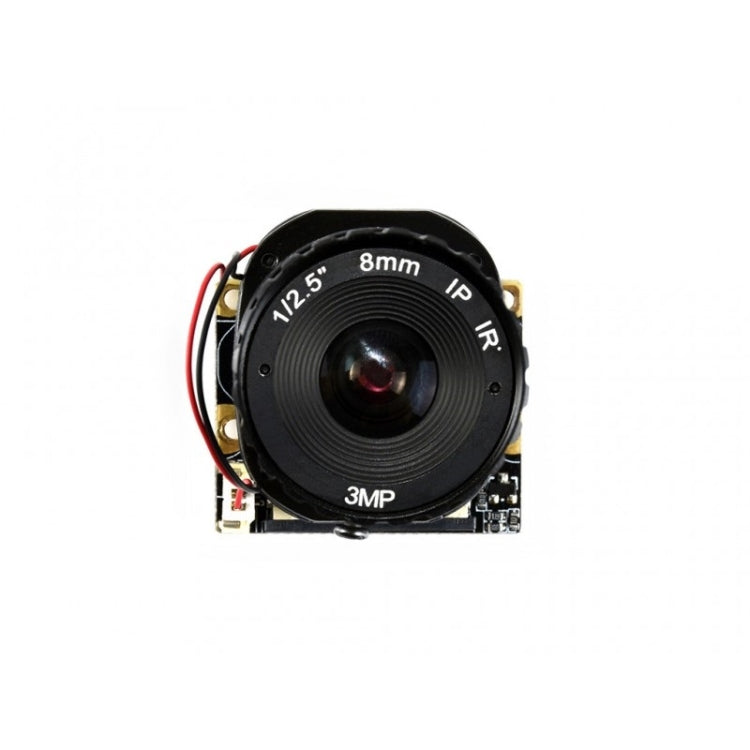

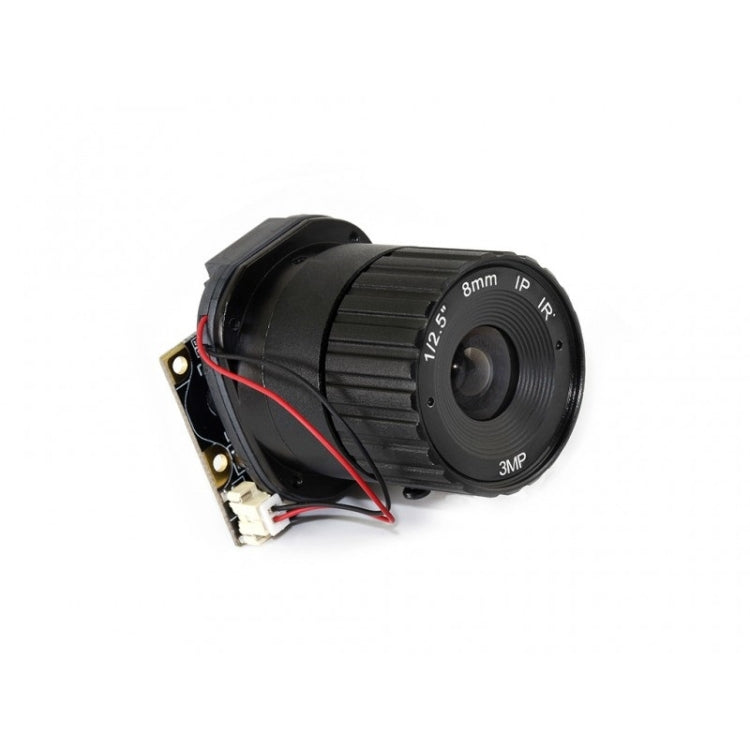

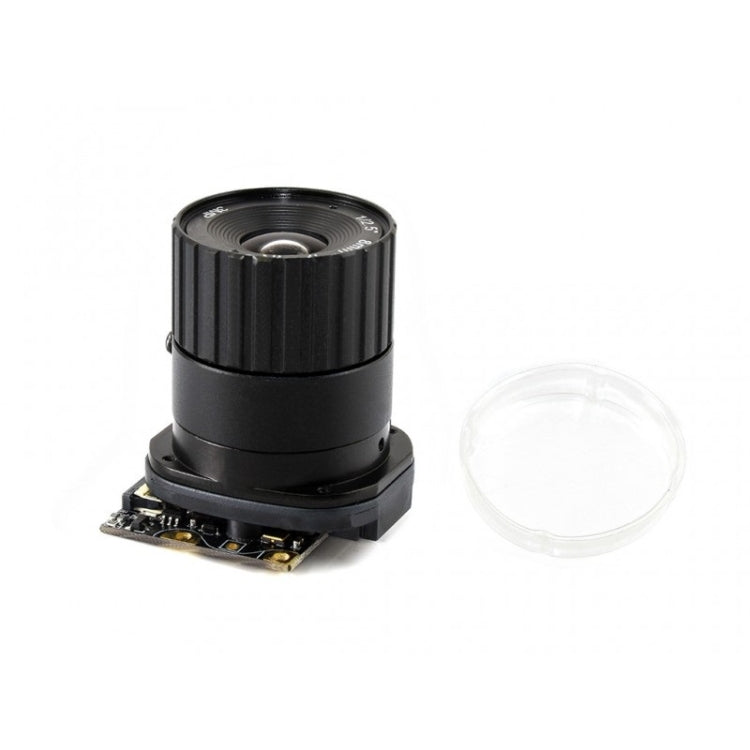

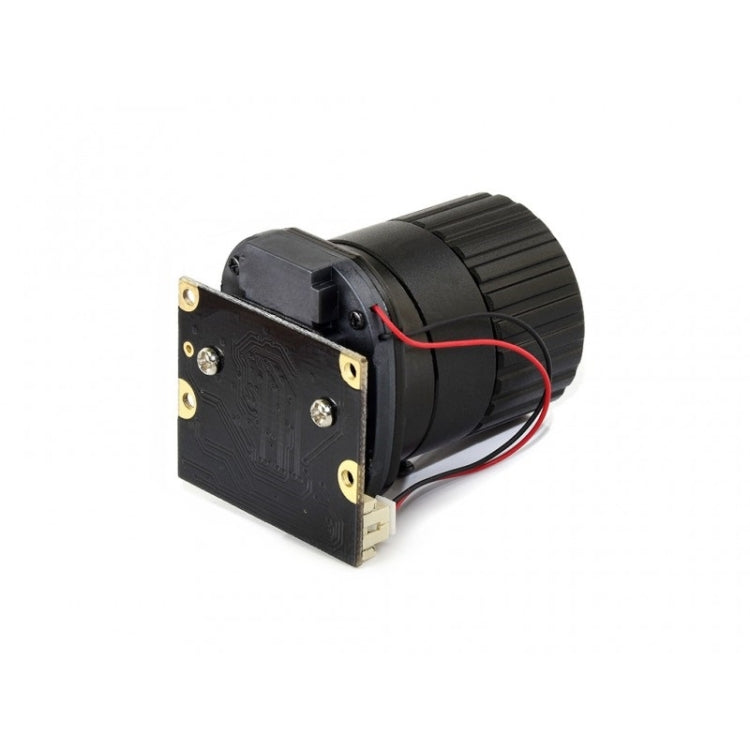

Waveshare Raspberry Pi Camera Module, Embedded IR-CUT, Supports Night Vision, Type B – TPU

Waveshare Raspberry Pi Camera Module, Embedded IR-CUT, Supports Night Vision, Type B – TPU.

Key Features:

• Features
• Raspberry Pi camera, supports all revisions of the Pi
• Embedded removable IR-CUT filter, eliminating color distortion in the daylight
• Comes with infrared LED, supports night vision
• 5 megapixel OV5647 sensor
• Adjustable focus distance
• Camera specifications
• - CCD size: 1/4 inch
• - Aperture (F): 1.2
• - Focal Length: 8mm
• - Angle of View (diagonal): 40 degree
• - Sensor best resolution: 1080p
• 4 screw holes
• - Used for attachment
• - Provides 3.3V power output
• - Supports connecting infrared LED and/or fill flash LED
• Dimension: 31mm x32mm
• Note: To use the camera with Raspberry Pi Zero / Zero W / Zero WH, you need to buy a specific cable: Raspberry Pi Zero v1.3 Camera Cable
• Note: The actual image pixels is 5MP, which depends on the sensor, so it doesnt matter that there is a 3MP silk mark on the camera.
• Package Contents
• RPi IR-CUT Camera (B) x1

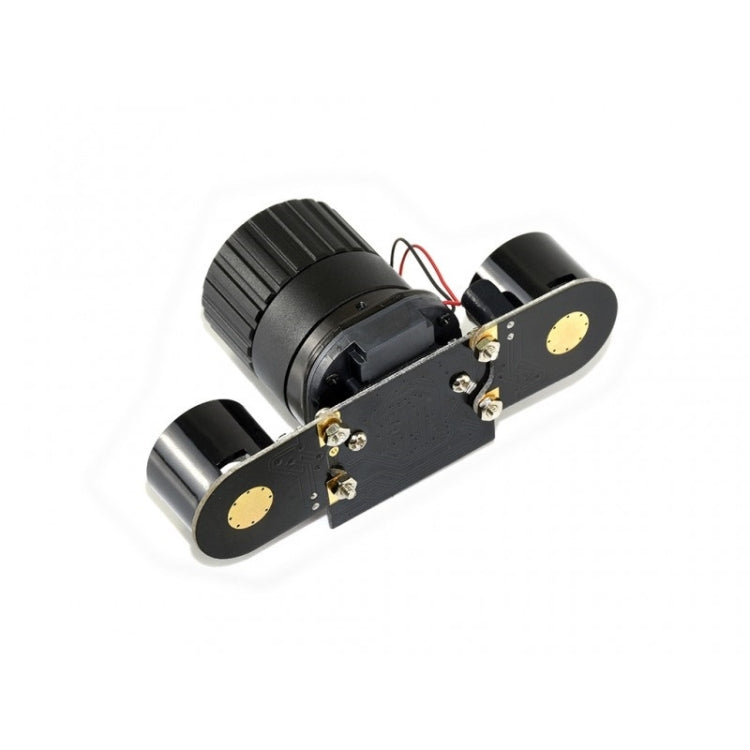

• Infrared LED Board (B) x2
• 15-pin FFC (opposite sides contact) x1

Package Info: Weight: 0.07kgs / 0.14lb, Size: 6cm * 6cm * 2cm / 2.36inch * 2.36inch * 0.79inch

Shipping: Shipping charges and final delivery dates are shown at checkout.
