Waveshare PoE UPS Base Board for Raspberry Pi CM4, Gigabit Ethernet, Dual HDMI, Quad USB2.0, PoE UPS Base Board – TPU, 4K

Waveshare PoE UPS Base Board for Raspberry Pi CM4, Gigabit Ethernet, Dual HDMI, Quad USB2.0, PoE UPS Base Board – TPU, 4K.

Key Features:

• Features
• PoE UPS Base For CM4: Uninterruptible power supply, powering the CM4 while recharging

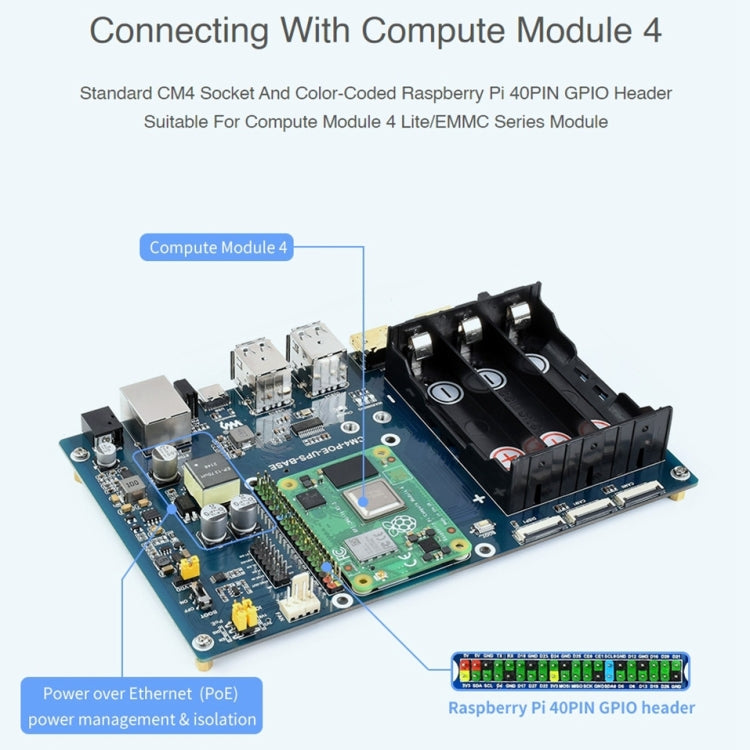

• Connecting With Compute Module 4: Standard CM4 socket and color-coded Raspberry Pi 40PIN GPIO header. Suitable For Compute Module 4 Lite/EMMC Series Module

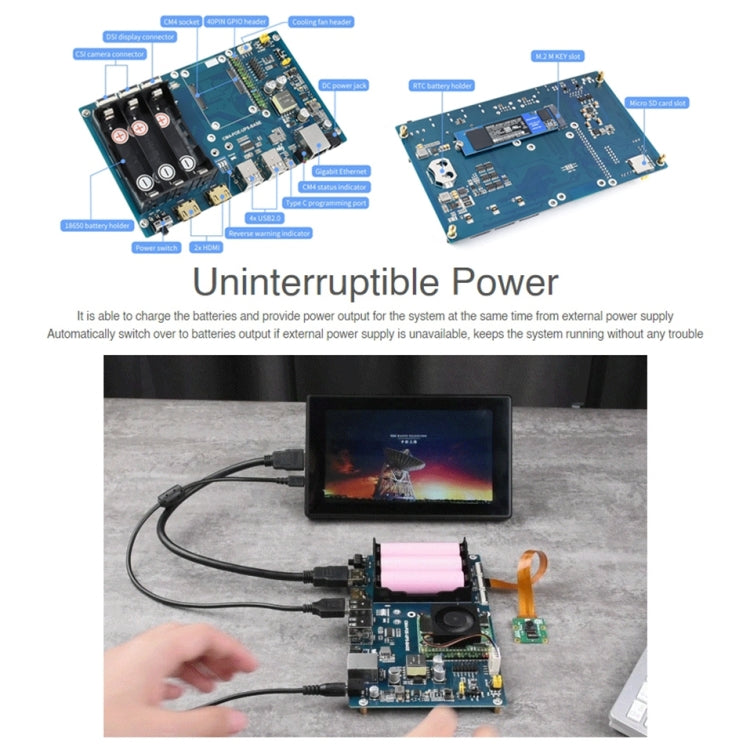

• Uninterruptible Power: It is able to charge the batteries and provide power output for the system at the same time from external power supply. Automatically...

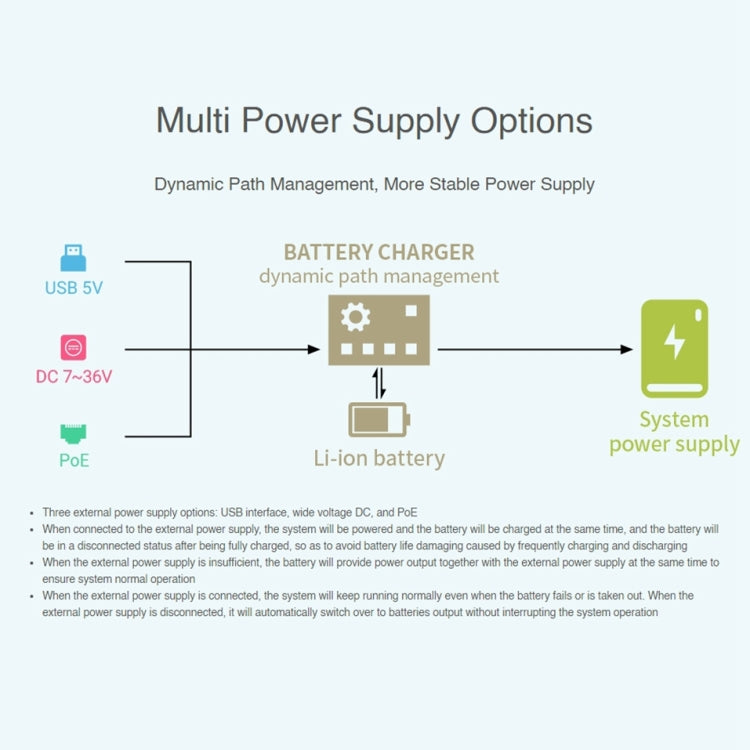

• Multi Power Supply Options:
• - Three external power supply options: USB interface, wide voltage DC, and PoE
• - When connected to the external power supply, the system will be powered and the battery will be charged at the same time, and the battery will be in a...
• - When the external power supply is insufficient, the battery will provide power output together with the external power supply at the same time to ensure...
• - When the external power supply is connected, the system will keep running normally even when the battery fails or is taken out. When the external power...

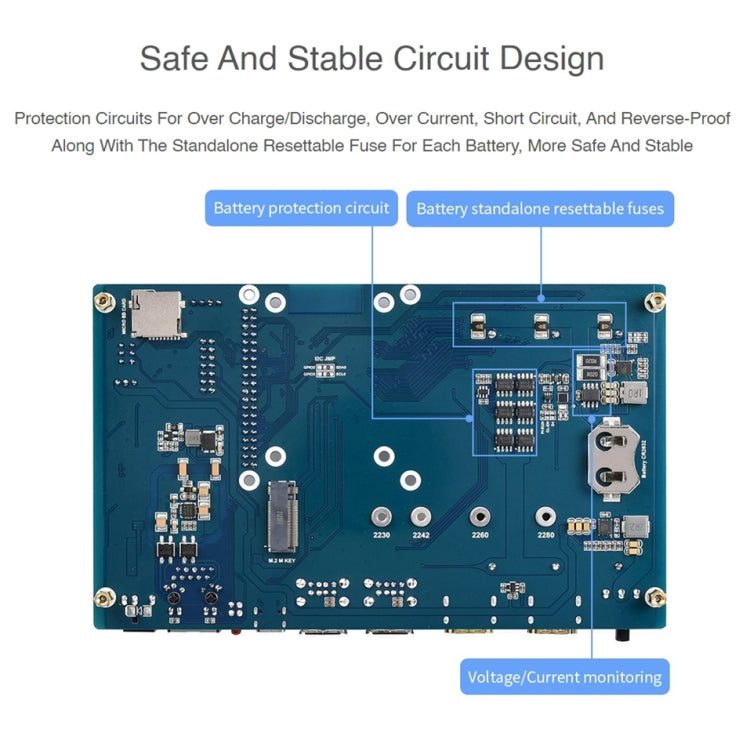

• Safe And Stable Circuit Design: Protection circuits for over charge/discharge, over current, short circuit, and reverse-proof
• along with the standalone resettable fuse for each battery, more safe and stable

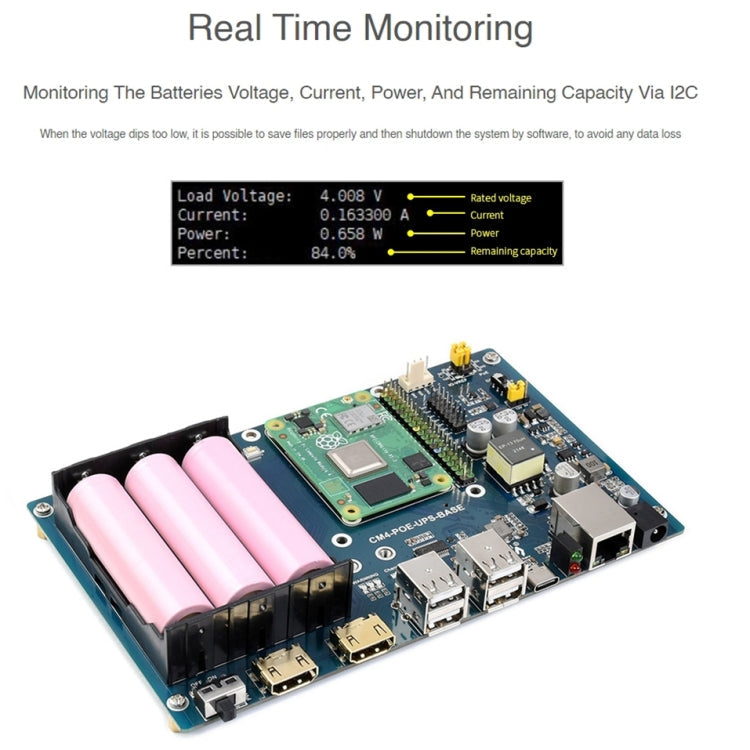

• Real Time Monitoring: Monitoring the batteries voltage, current, power, and remaining capacity via I2C. (When the voltage dips too low, it is possible to...
• Note: The 18650 batteries are not included
• Specifications
• CM4 socket: Suitable for all variants of Compute Module 4
• Battery support: Parallel 18650 Li-ion battery x 3 (NOT included)
• Networking: Gigabit Ethernet RJ45 connector, integrates 802.3af-compliant PoE circuit (5V/2.5A)
• USB: USB 2.0 Type A ?? 4
• Connector:
• - Raspberry Pi 40PIN GPIO header
• - M.2 M KEY slot, for connecting NVME SSD, or communication module with PCIE M.2 M KEY interface
• Display: MIPI DSI port x 1 (22pin 0.5mm FPC connector)
• Camera: MIPI CSI-2 port x 2 (22pin 0.5mm FPC connector)
• Video: HDMI x 2, supports 4K 30fps output
• RTC: Real-time clock with battery socket and ability to wake Compute Module 4
• Storage: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
• Fan: Allows speed adjustment and measurement, 5V / 12V
• Indicator:
• - M.2 status LED
• - CM4 status LED
• Power input7-36V

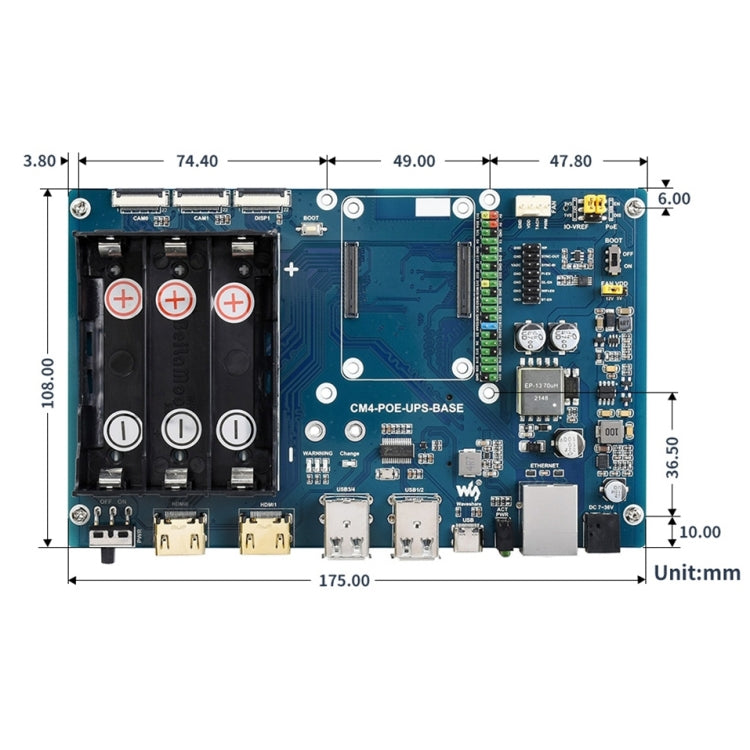

• Dimensions: 175.0 x 108.0mm

Package Info: Weight: 0.17kgs / 0.37lb, Size: 15cm * 12cm * 3cm / 5.91inch * 4.72inch * 1.18inch
