Waveshare Photo Interrupter Sensor, Speed Measuring – TPU

Waveshare Photo Interrupter Sensor, Speed Measuring – TPU.

Key Features:

• Overview
• 1. Infrared detection, eliminating the interferences of external stray light
• Schmitt trigger, stable wave form and signals

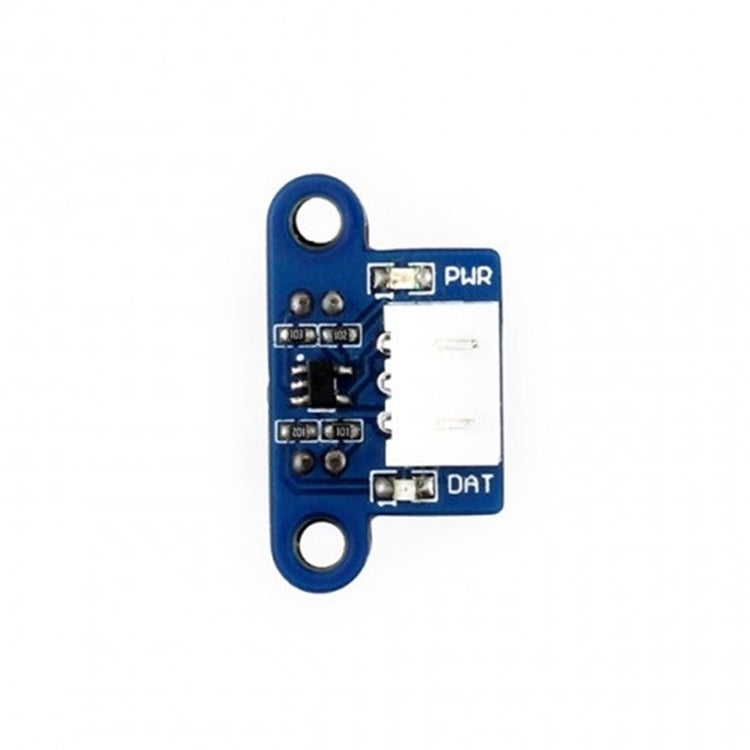

• Signal output indicator (while breaking the beam, outputs low level, the indicator lights up)
• Specifications
• 1. Power: 3.3V ~ 5V
• Dimension: 26.8mm × 15mm × 18.7mm
• Mounting holes size: 3mm
• Gap width: 6mm
• Applications

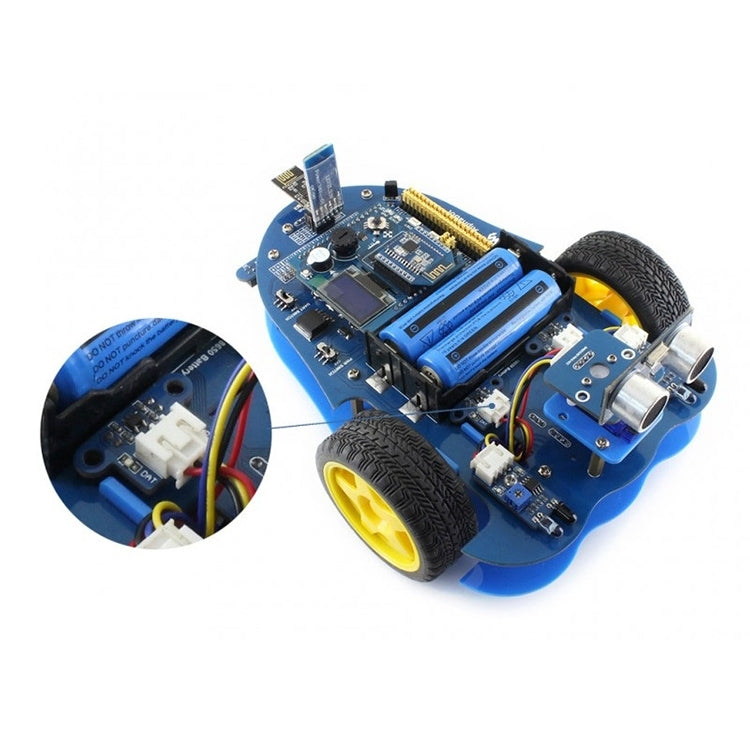

• - Motor speed detection
• - Pulse counter
• How to Use

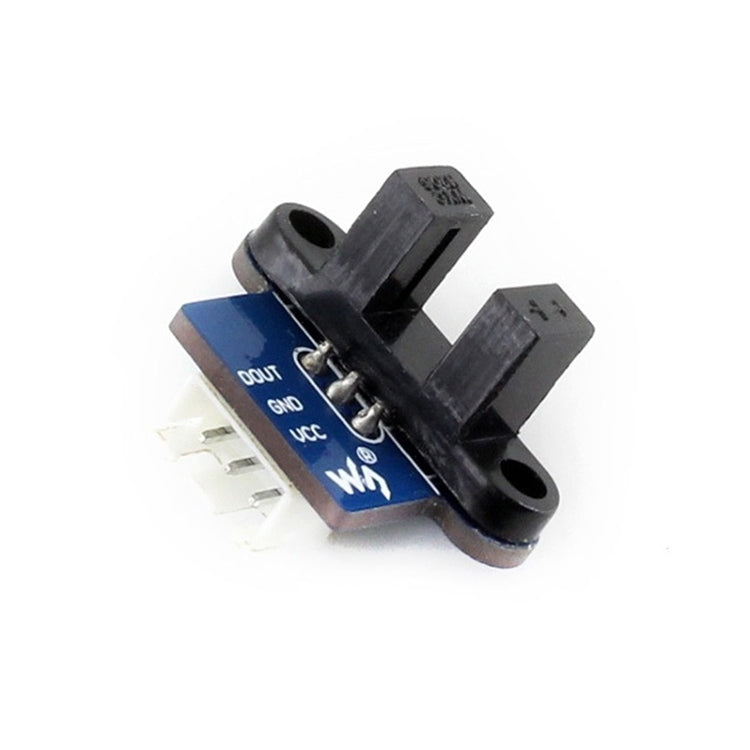

• In the case of working with a MCU:
• - VCC ? 3.3V ~ 5V
• - GND ? GND
• - DOUT ? MCU.IO (digital output)

Package Info: Weight: 0.01kgs / 0.03lb, Size: 6cm * 4cm * 4cm / 2.36inch * 1.57inch * 1.57inch

Shipping: Shipping charges and final delivery dates are shown at checkout.
