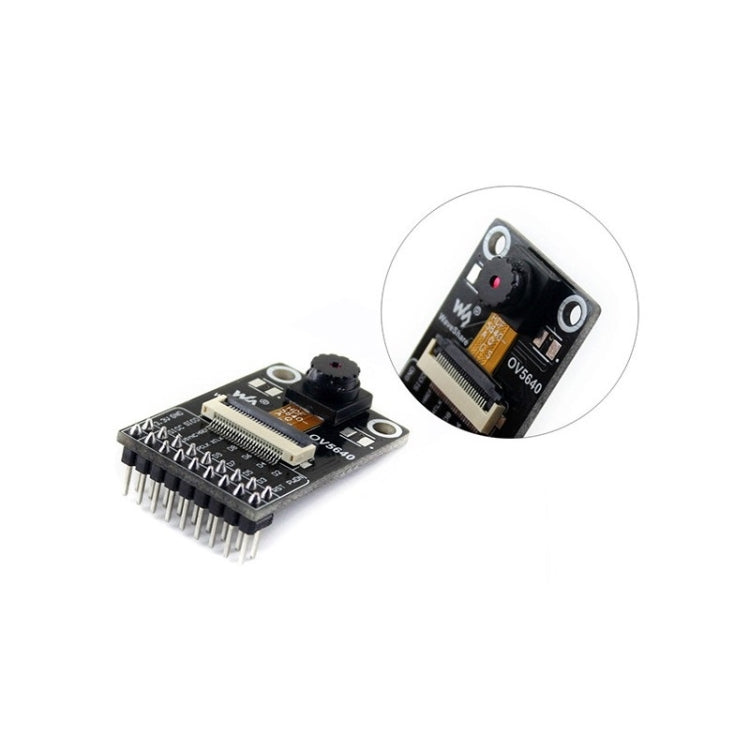

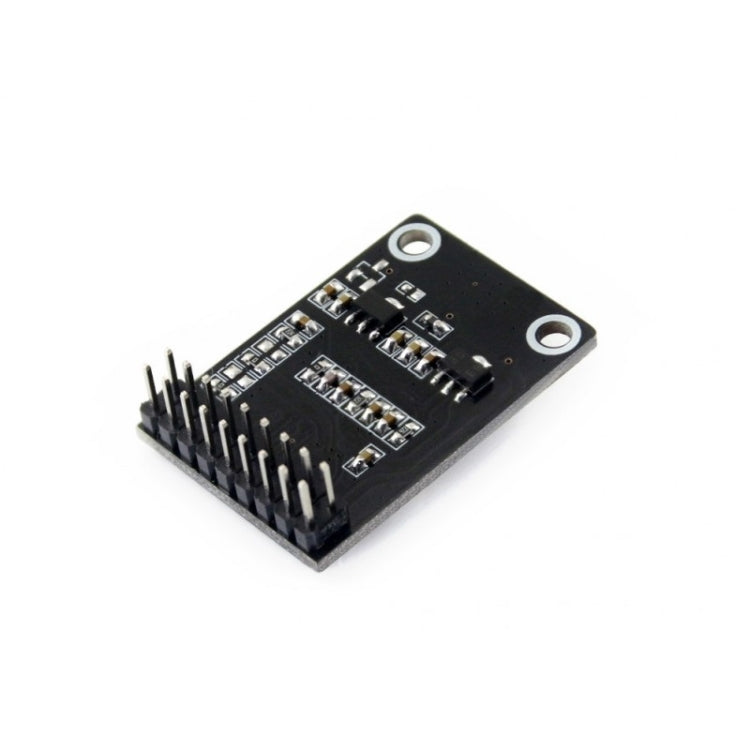

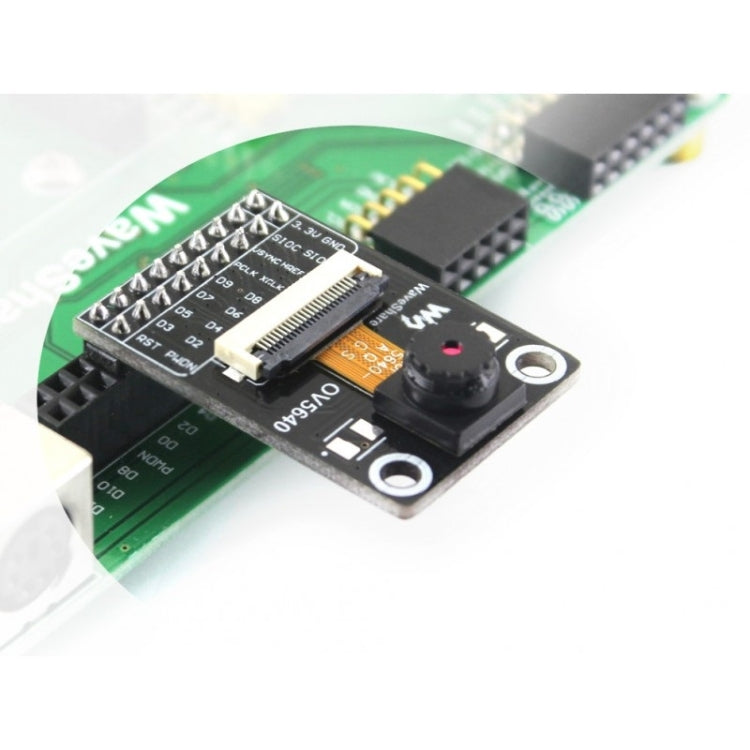

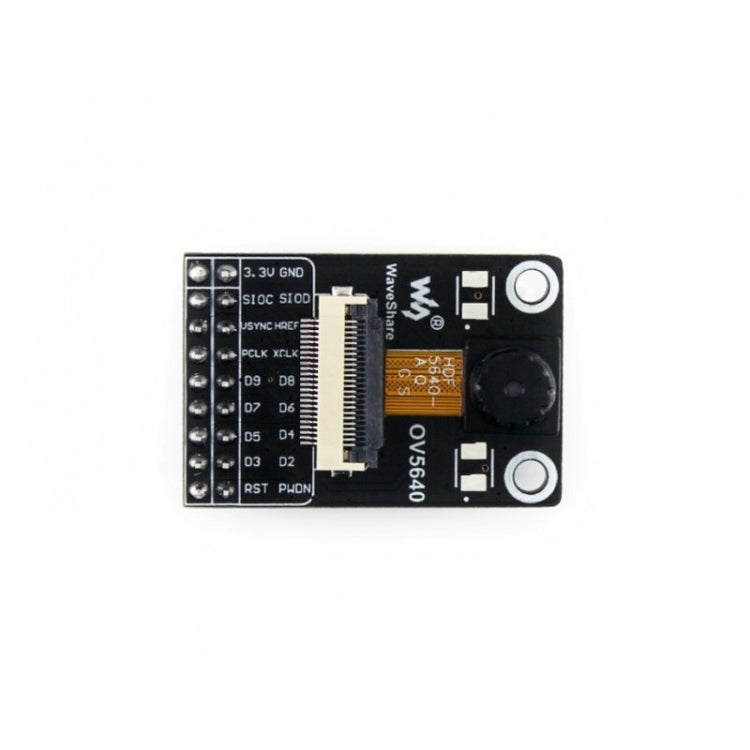

Waveshare OV5640 Camera Module Board (A), 5 Megapixel (2592x1944), Based on OV5640 Image Sensor – TPU

Waveshare OV5640 Camera Module Board (A), 5 Megapixel (2592x1944), Based on OV5640 Image Sensor – TPU.

Key Features:

• Features
• 1.Pixels: 5 megapixel
• Resolution: 2592x1944
• Sensor: OV5640
• 1 1.4um x 1.4um pixel with OmniBSI technology, high sensitivity, low crosstalk, low noise
• 2 Automatic image control functions: AEC, AWB, ABF, ABLC, etc.
• 3 Image quality controls: color saturation, hue, gamma, sharpness, lens correction, etc.
• 4 Supports image scaling, panning, windowing, etc.
• Lens:
• 1 CCD size: 1/4inch
• 2 Aperture (F): 2.8
• 3 Focal Length: 2.8mm
• 4 Diagonal: 63 degree
• Output Formats:
• 1 YUV(422/420)/YCbCr422
• 2 RGB565/555/444
• 3 CCIR656
• 4 RAW RGB
• 5 Compressed Data
• Operating Voltage: 3.3V
• Control Interface: SCCB (I2C compatible)
• Data Interface: DVP 8-bit

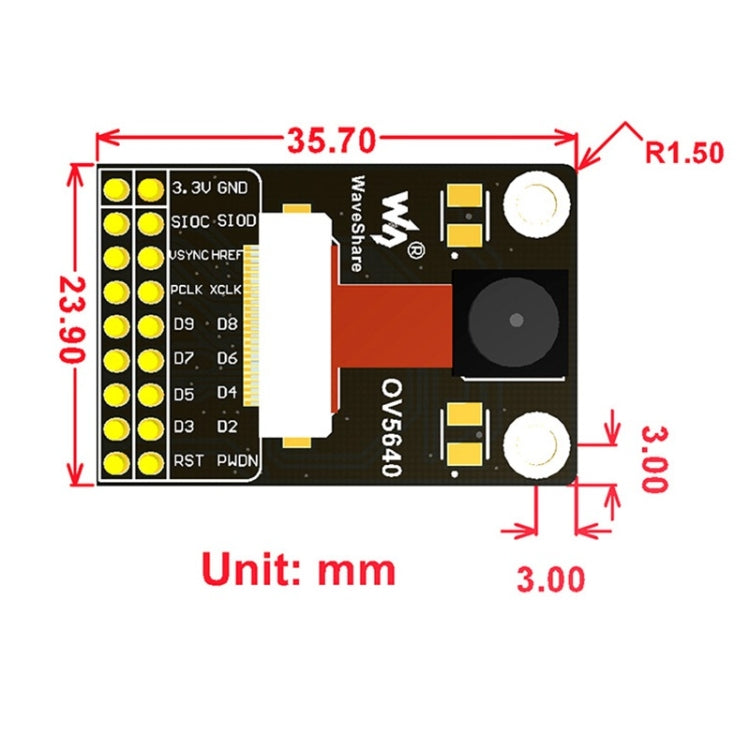

• Dimension: 35.70mm × 23.90mm

Package Info: Weight: 0.01kgs / 0.03lb, Size: 6cm * 4cm * 1cm / 2.36inch * 1.57inch * 0.39inch
