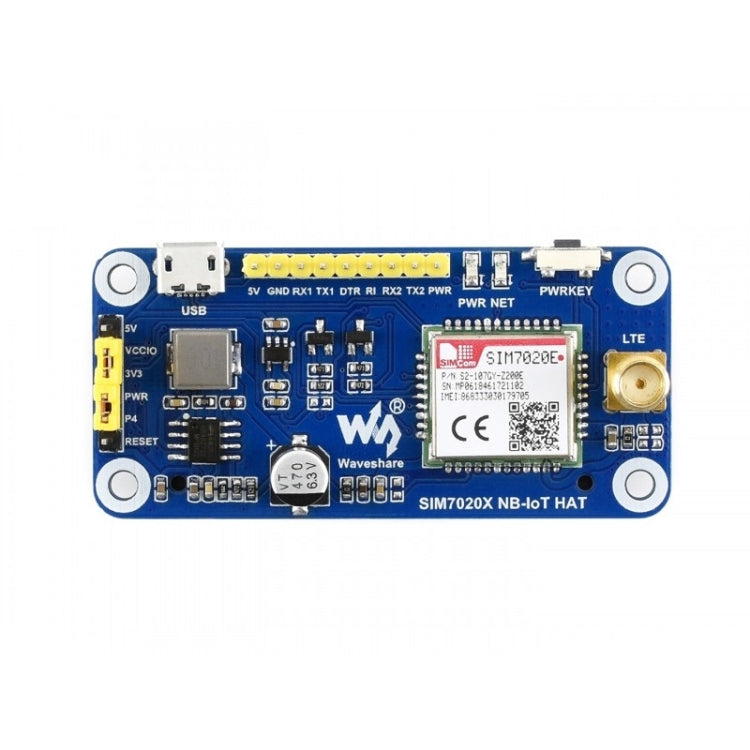

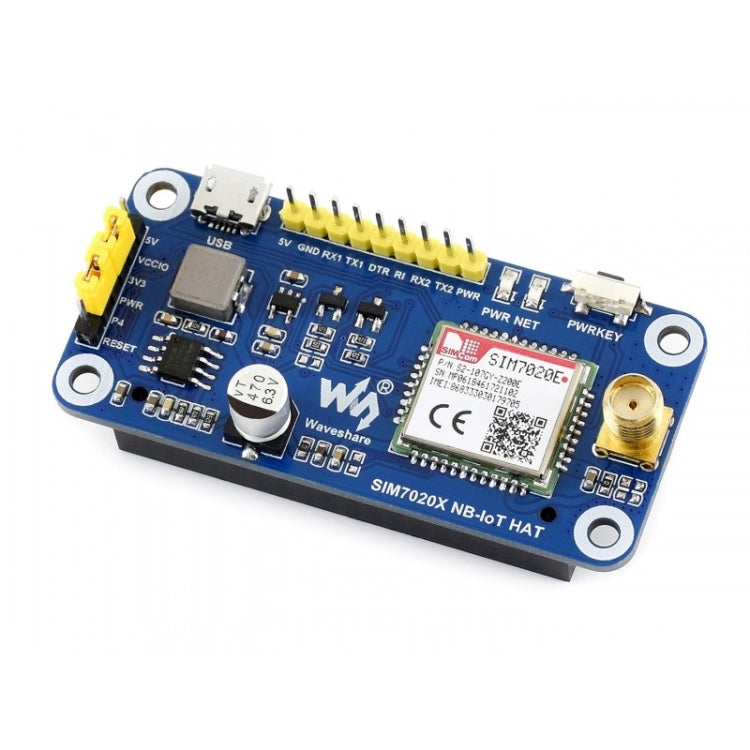

Waveshare NB-IoT HAT for Raspberry Pi, for Europe, Asia, Africa, Australia, NB-IoT HAT – Card Slot

Waveshare NB-IoT HAT for Raspberry Pi, for Europe, Asia, Africa, Australia, NB-IoT HAT – Card Slot.

Key Features:

• NB-IoT HAT for Raspberry Pi, Based on SIM7020E, B1/B3/B5/B8/B20/B28 Bands
• Applicable Region
• SIM7020E is mainly applicable in Europe, Asia, Africa, Australia.
• Please check the supported bands according to your local service provider when placing order.
• Overview
• This is an NB-IoT (NarrowBand-Internet of Things) HAT for Raspberry Pi, controlled via serial AT commands, supports communication protocols like...
• Features

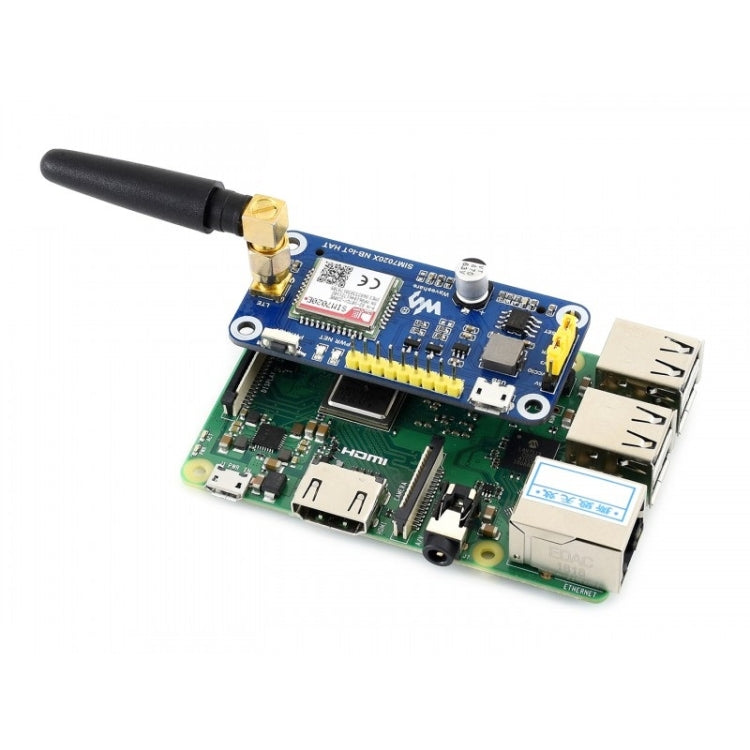

• Raspberry Pi connectivity, compatible with any revision
• Support communication protocols such as LWM2M/COAP/MQTT/TCP/UDP/HTTP/HTTPS, etc.
• Onboard USB interface, for power supply OR debugging
• Breakout UART control pins, to connect with host boards like Arduino/STM32
• Onboard voltage translator, 3.3V by default, allows to be switched to 5V via onboard jumper

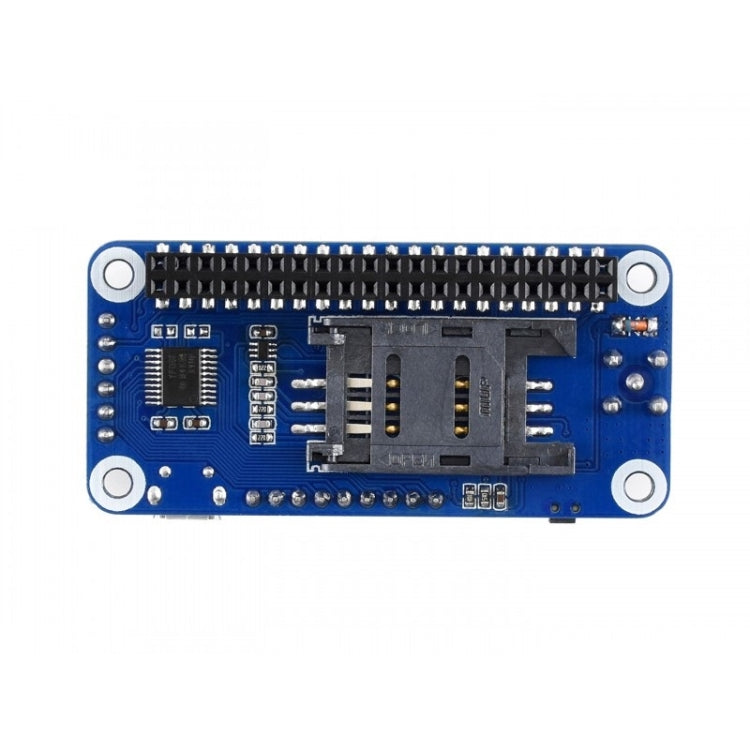

• SIM card slot, supports NB-IoT specific card
• 2x LED indicators, easy to monitor the working status
• Baudrate: 300bps~921600bps (115200bps by default)
• Control via AT commands (V.25TER, 3GPP TS 27.007, and SIMCOM AT Commands)
• Come with development resources and manual (examples for Raspberry Pi/Arduino/STM32/Python)
• Communications Specifications
• Band
• - FDD-LTE B1/B3/B5/B8/B20/B28
• Data rate
• - Uplink=<62.5Kbps
• - Downlink=<26.15Kbps
• SMS
• - Text mode and PDU mode (depends on the NB card)
• General Specifications
• Power supply: 5V
• Logic level: 5V/3.3V (3.3V by default)
• Overall current (idle mode): ~18mA
• Single module current (VBAT=3.3V):
• - Idle mode: 5.6mA
• - Sleep mode: 0.4mA
• - PSM mode: 5uA
• - eDRX mode: 70uA (eDRX=655.36s)

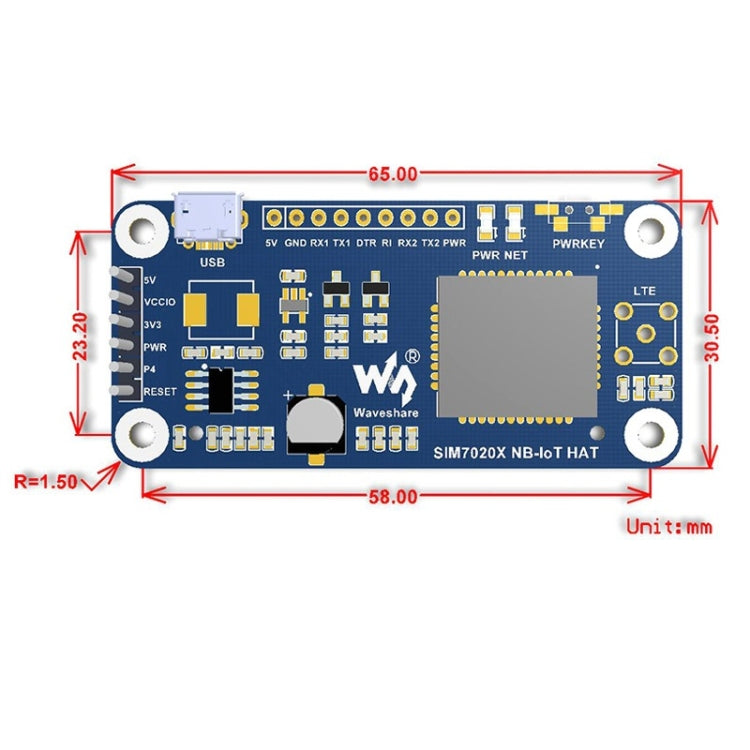

• Dimension: 30.5mm x 65.0mm
• Package Contents
• SIM7020E NB-IoT HAT x1

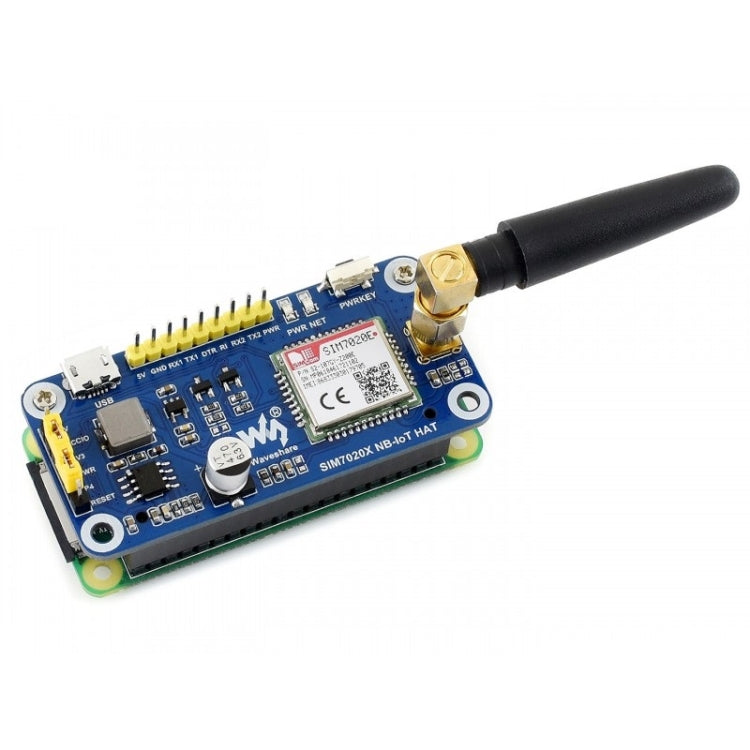

• Antenna x1
• USB type A plug to micro plug cable x1
• RPi screws pack (2pcs) x1
• Note: The Raspberry Pi is NOT included.

Package Info: Weight: 0.10kgs / 0.22lb, Size: 10cm * 6cm * 2cm / 3.94inch * 2.36inch * 0.79inch
