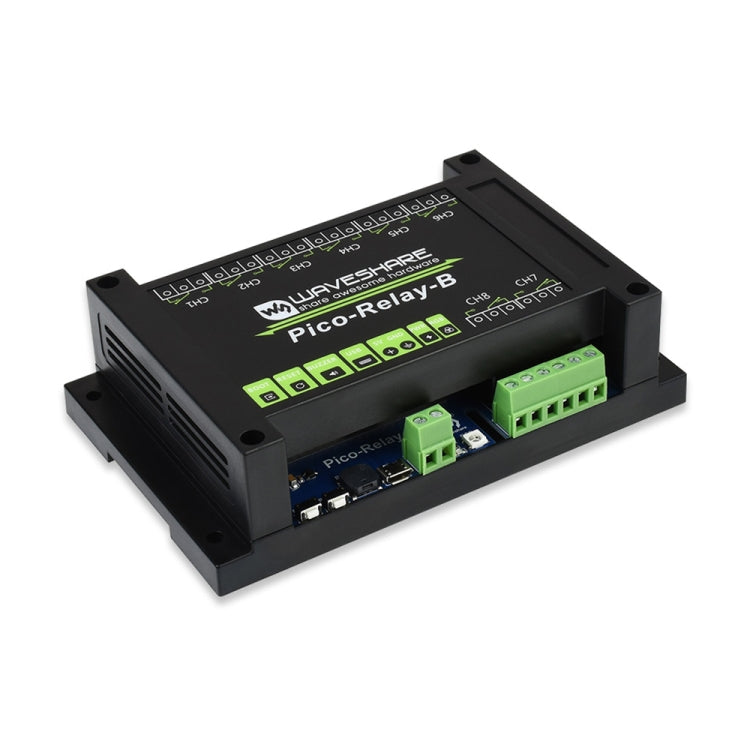

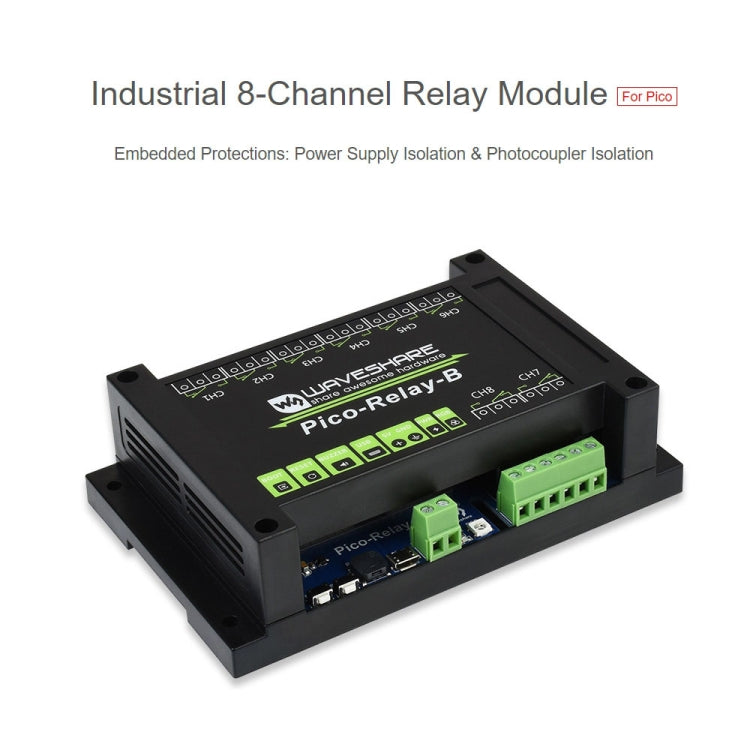

Waveshare Multi Protection 8-Channel Industrial Relay Module for Raspberry Pi Pico, 20218 – Durable Build, Easy to Use

Waveshare Multi Protection 8-Channel Industrial Relay Module for Raspberry Pi Pico, 20218 – Durable Build, Easy to Use.

Key Features:

• Features

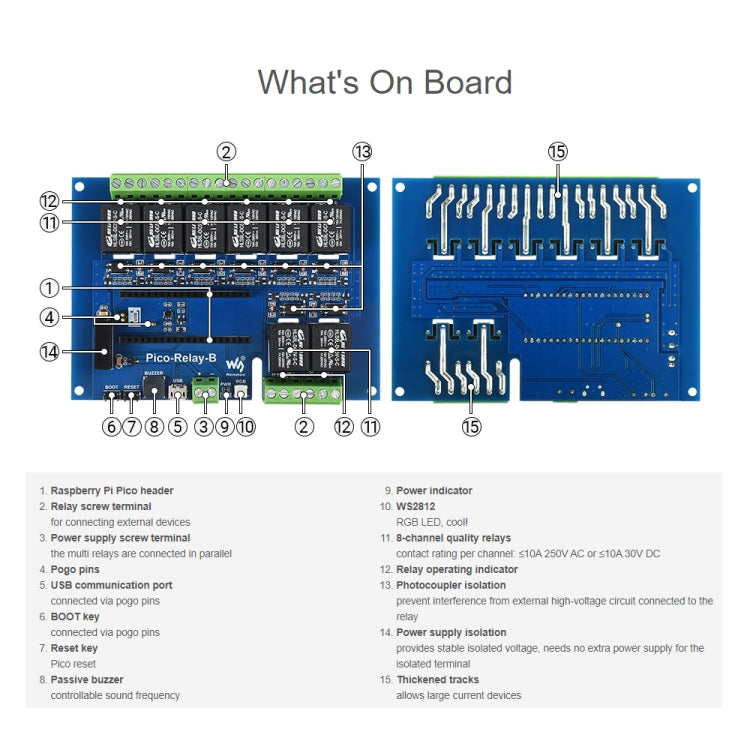

• Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
• Onboard photocoupler isolation, prevent interference from external high-voltage circuit connected to the relay
• High quality relay, contact rating: 10A 250V AC or Less than or equal 10A 30V DC

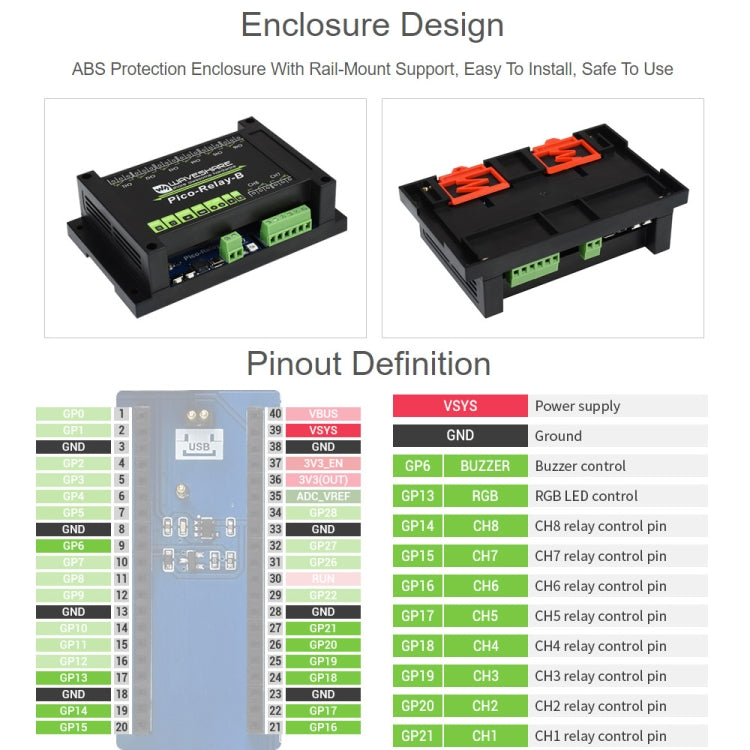

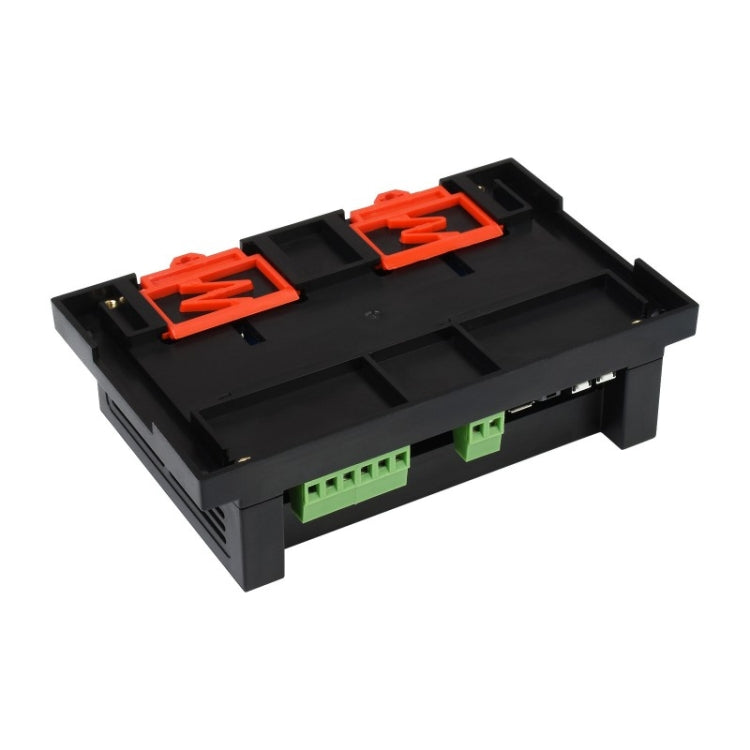

• ABS protection enclosure with rail-mount support, easy to install, safe to use
• Breakout USB port and BOOT pin, make it easy to debug without disassembling the enclosure
• PWR indicator, RGB LED, and passive buzzer outside the enclosure
• Come with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
• Specification
• Operation voltage: 5V
• Relay channel: 8CH
• Communication protocol: USB
• Contact form: 1NO 1NC
• Communication interface: Micro USB

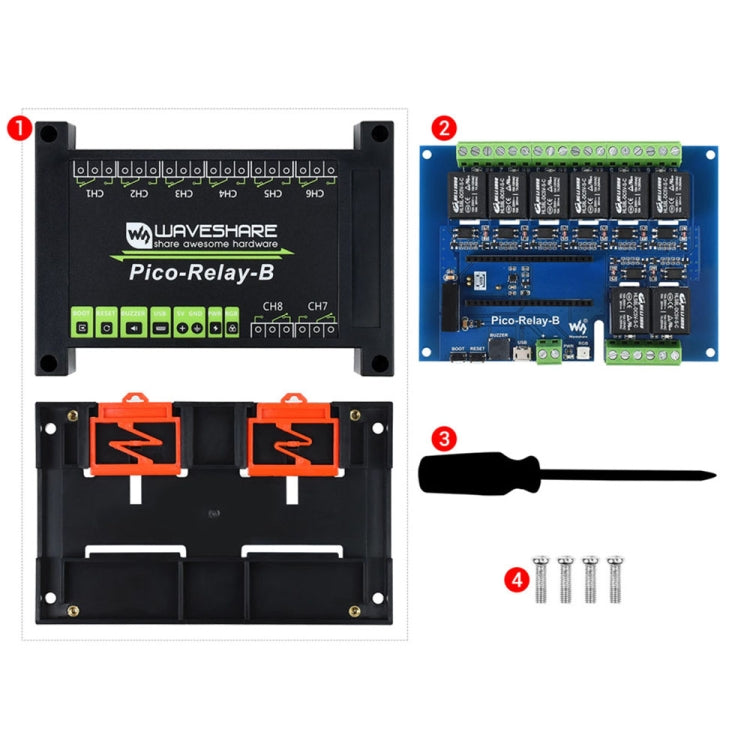

• Package List
• ABS protection enclosure (top and bottom) x 1

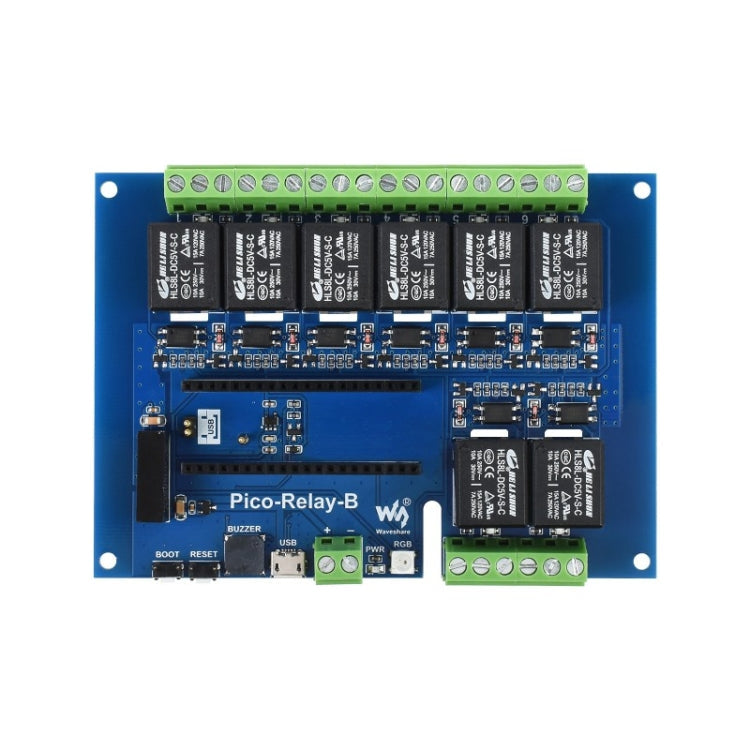

• Pico-Relay-B x 1
• Screwdriver x 1
• Screws pack x 1

Package Info: Weight: 0.32kgs / 0.70lb, Size: 16cm * 12cm * 5cm / 6.3inch * 4.72inch * 1.97inch
