Waveshare JetBot AI Kit Accessories, Add-ons for Jetson Nano to Build JetBot, US Plug, Add-ons for Jetson Nano – TPU

Waveshare JetBot AI Kit Accessories, Add-ons for Jetson Nano to Build JetBot, US Plug, Add-ons for Jetson Nano – TPU.

Key Features:

• Overview
• Smart robot is always the favorite project of electronic enthusiasts, however, a robot will be "not that smart" if it is not AI-based.

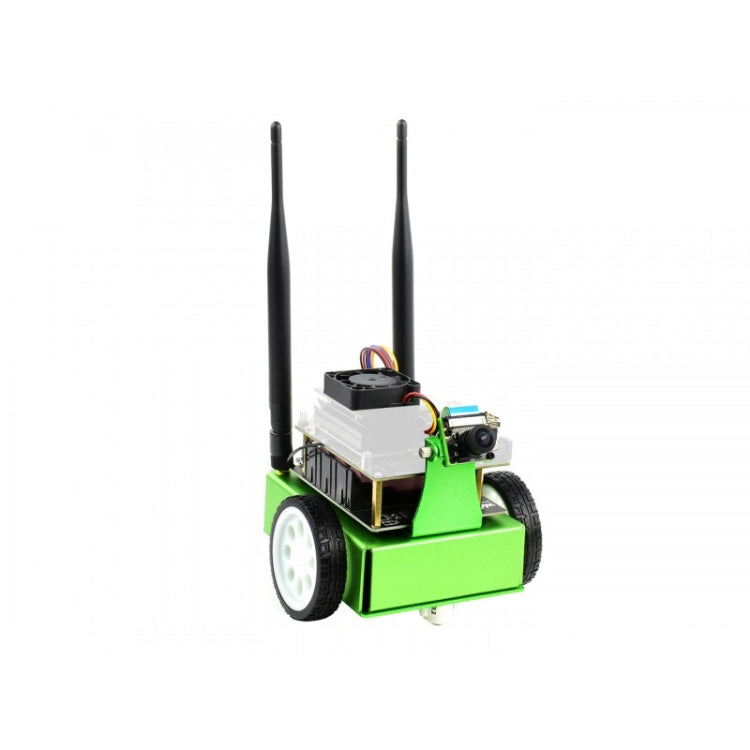

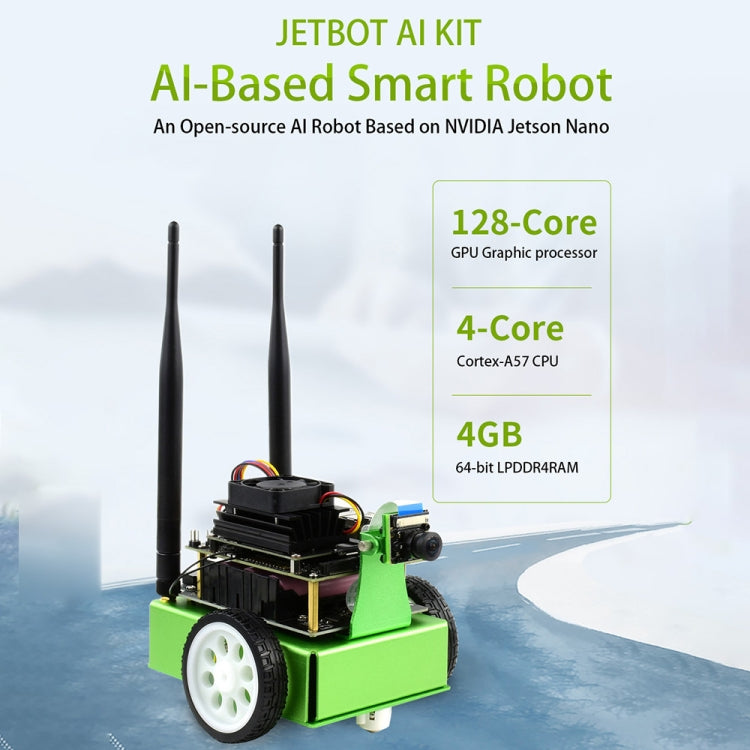

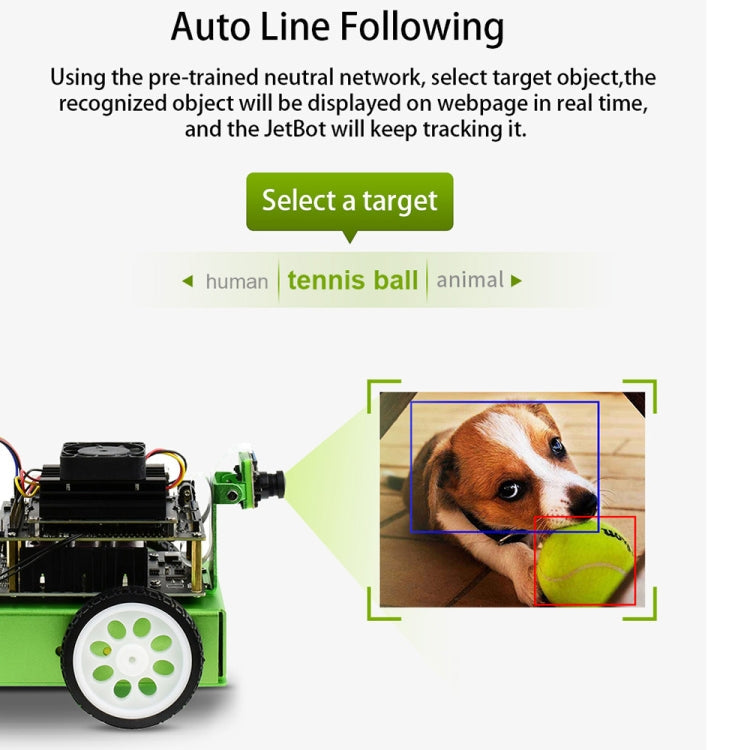

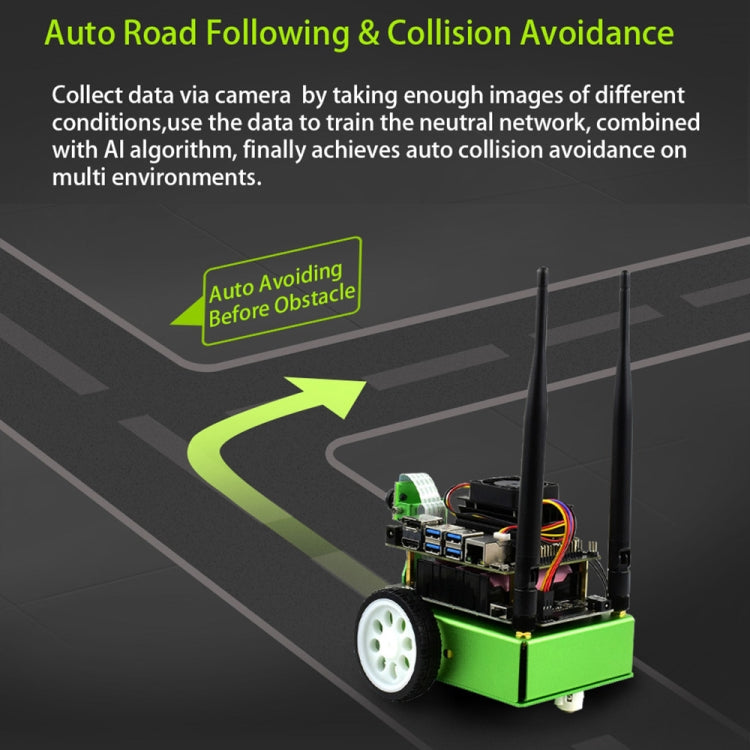

• Welcome the JetBot, an actual smart robot powered by Jetson Nano. With the intelligent eye (front camera), facial recognition, object tracking, auto line...
• If you have got a Jetson Nano on your desk right now, combined with our open source codes and tutorials, these add-ons would be the ideal choice for you to...
• Features
• Adopts 3x 18650 batteries (NOT included), high battery capacity, up to 12.6V voltage output, more powerful driving force.
• Integrates S-8254AA + AO4407A lithium battery protection circuit, provides protections for over-charge, over-discharge, over-current, and short circuit.
• Onboard APW7313 voltage regulator, provides stable 5V voltage for the Jetson Nano.
• Onboard TB6612FNG dual H-bridge motor driver.
• Onboard 0.91inch 128×32 pixels OLED, allows to display robot IP address, RAM, battery life, etc.
• Onboard ADS1115 AD acquisition chip for monitoring the battery in real time.
• Weight: 773g

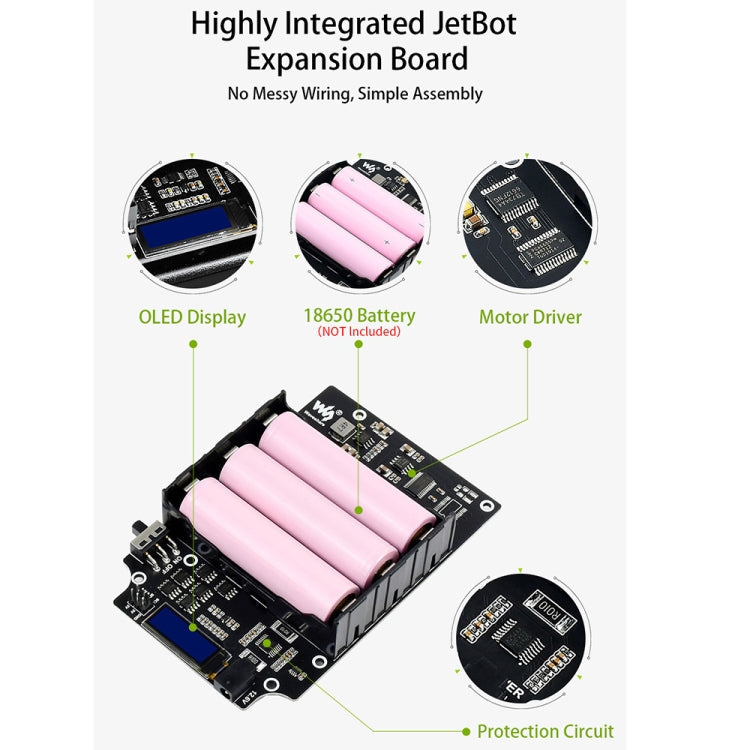

• What is on the JetBot Expansion Board
• S-8254AA: Lithium battery protector, provides protections for over-charge, over-discharge, over-current, and short circuit
• ADS1115: 16-bit AD acquisition chip, monitoring the battery in real time
• AO4407A:: P-Channel MOSFET for protection circuit
• APW7313:: 5V power regulator for powering the Jetson Nano
• PCA9685: PWM controller, I2C interface, for IO expansion
• TB6612FNG: dual H-bridge motor driver
• 0.91inch OLED: SSD1306 driver chip, 128×32 pixels
• Battery charger input: charging the 3x 18650 batteries
• Power switch
• 18650 battery holder
• Motor connector (bottom side)
• Jetson Nano communication header: I2C interface and power supply

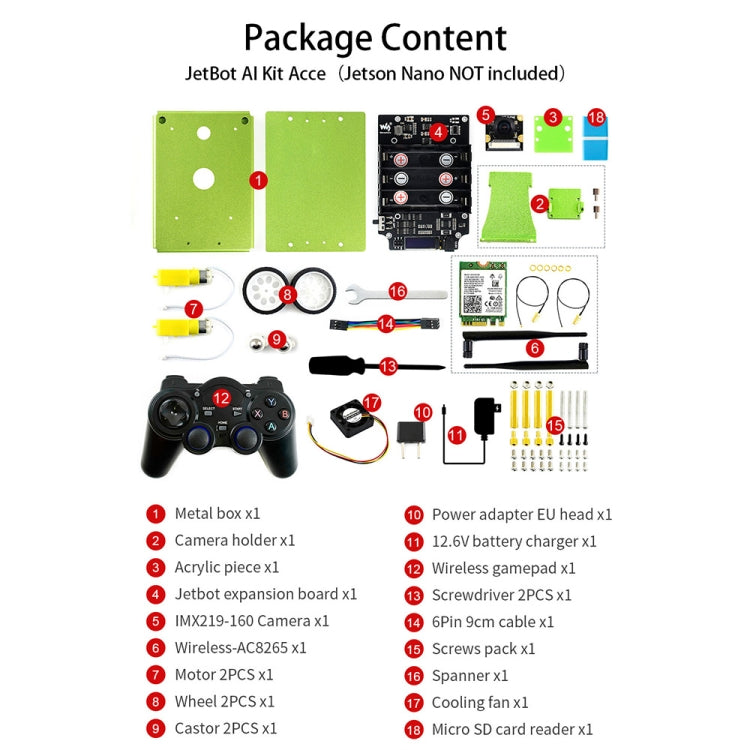

• Packing List
• Metal box x1
• Camera holder x1
• Acrylic piece x1
• Jetbot expansion board x1

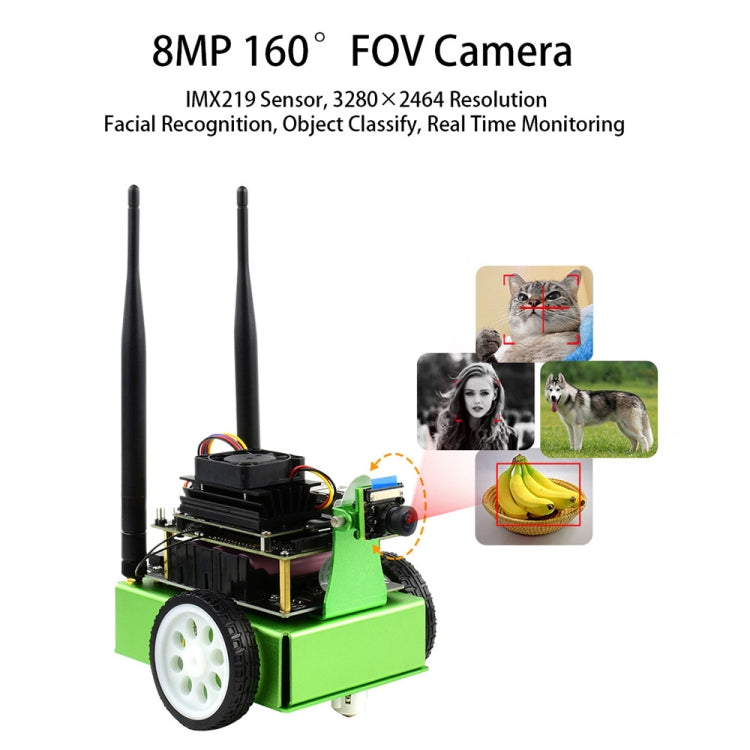

• IMX219-160 Camera x1

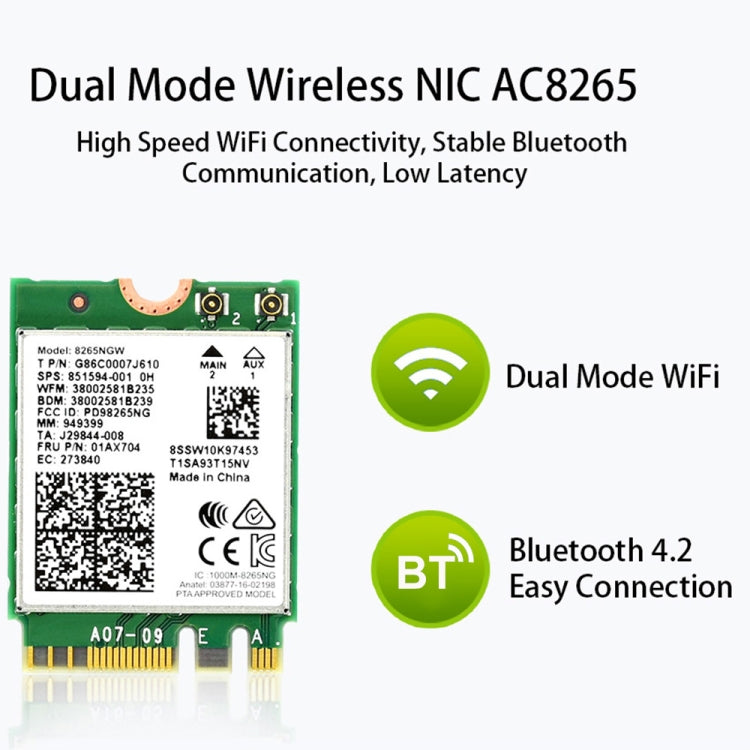

• Wireless-AC8265 x1
• Motor 2PCS x1
• Wheel 2PCS x1
• Omni-direction wheel 2PCS x1
• Power adapter EU head x1
• 12.6V battery charger x1

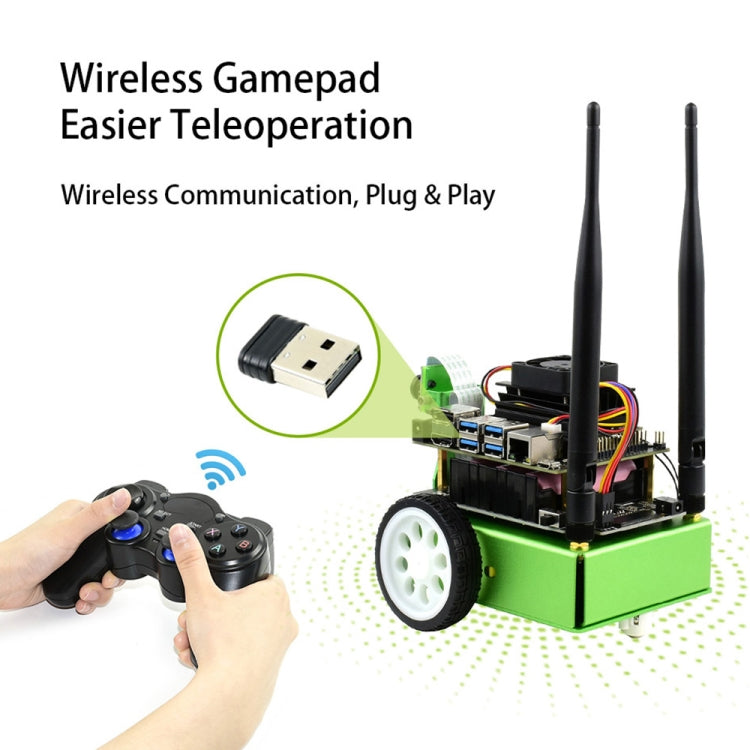

• Wireless gamepad x1
• Screwdriver 2PCS x1
• 6Pin 9cm cable x1
• Screws pack x1
• Spanner x1
• Cooling fan x1
• Micro SD card reader x1

Package Info: Weight: 1.04kgs / 2.30lb, Size: 22cm * 16cm * 4cm / 8.66inch * 6.3inch * 1.57inch
