Waveshare Isolated RS485 CAN HAT For Raspberry Pi – TPU

Waveshare Isolated RS485 CAN HAT For Raspberry Pi – TPU.

Key Features:

• Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards

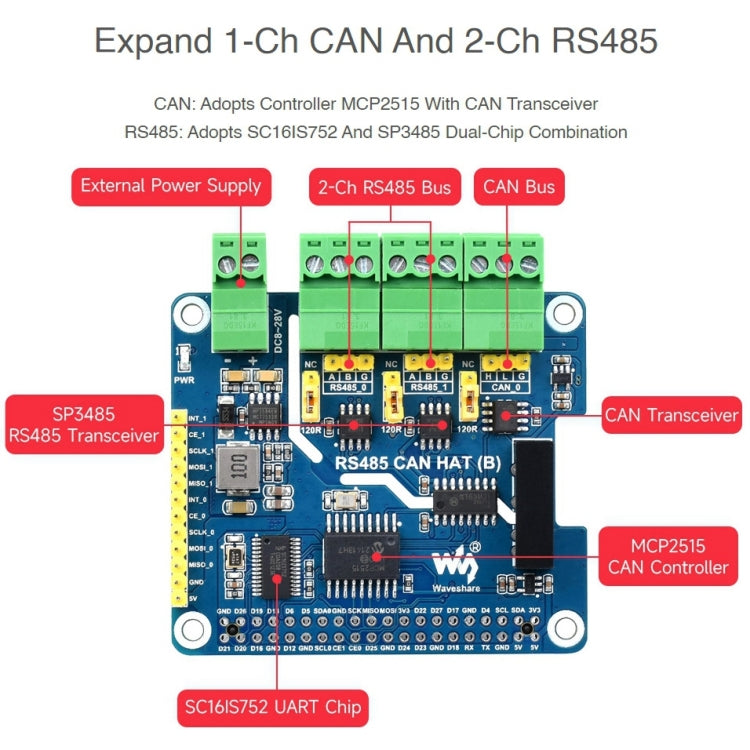

• 1-Ch CAN, adopts MCP2515 controller and CAN transceiver, converts SPI to CAN
• 2-Ch RS485, adopts SC16IS752+SP3485 dual-chip combination, converts SPI to RS485
• Onboard power conversion circuit, supports 8~28V wide voltage power supply, can power the Raspberry Pi at the same time
• Onboard unibody power supply isolation, providing stable isolated voltage, no extra power supply required for the isolated terminal
• Onboard unibody digital isolation, for isolating the signal, reliable and jamproof, low power consumption
• Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
• Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance
• Onboard 120Ω terminal resistor, configured by jumper
• Onboard terminals and pin headers, more convenient connection

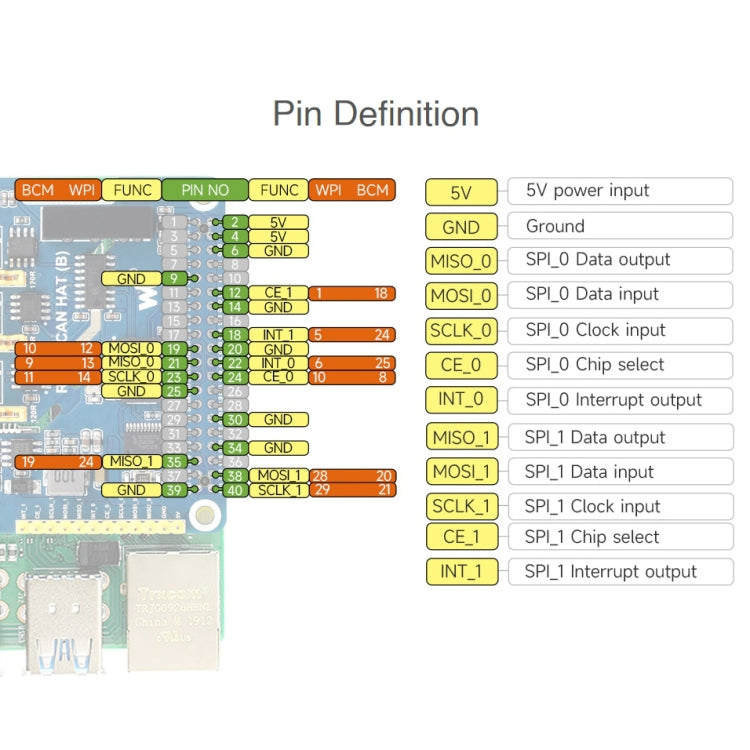

• Breakout SPI control pins, for connecting with host control boards

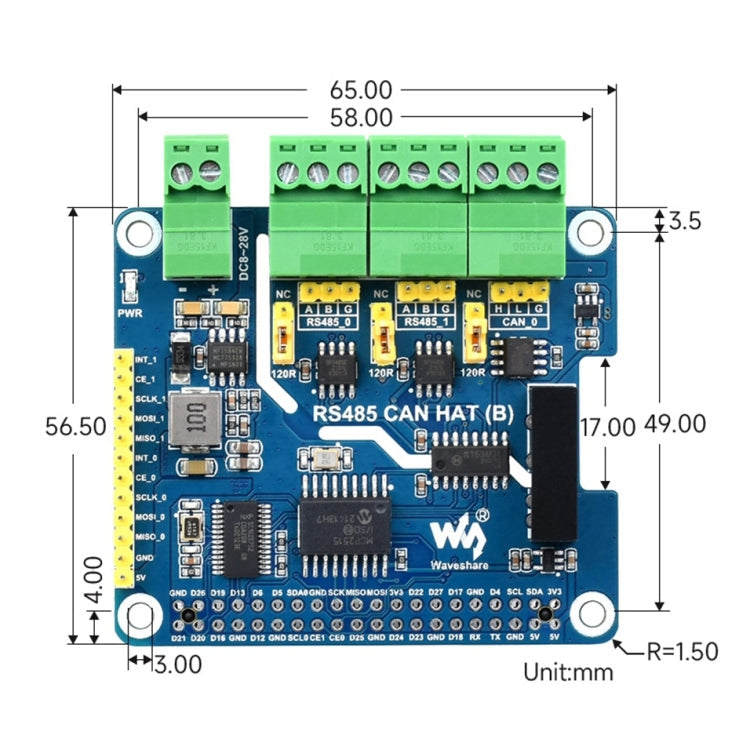

Package Info: Weight: 0.20kgs / 0.45lb, Size: 8cm * 6cm * 3cm / 3.15inch * 2.36inch * 1.18inch
