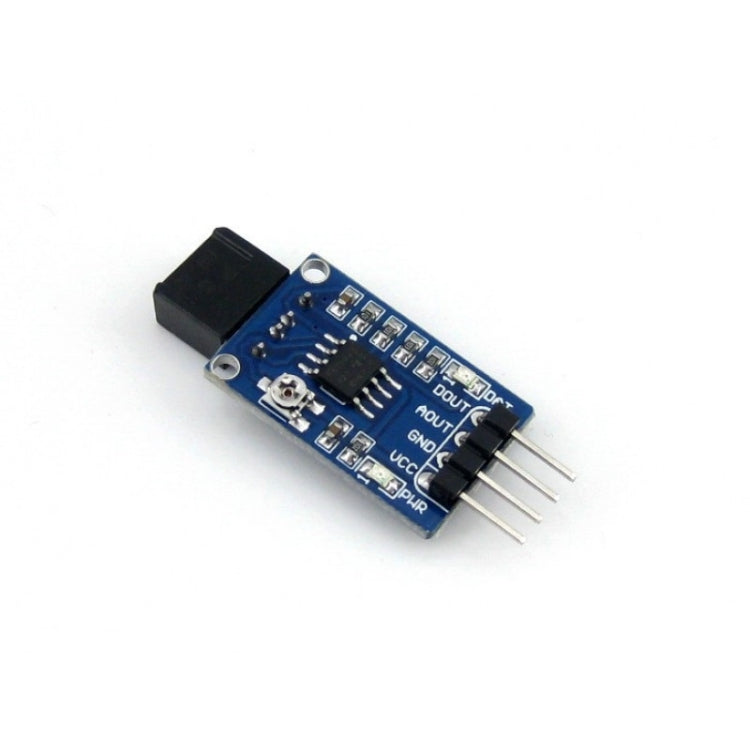

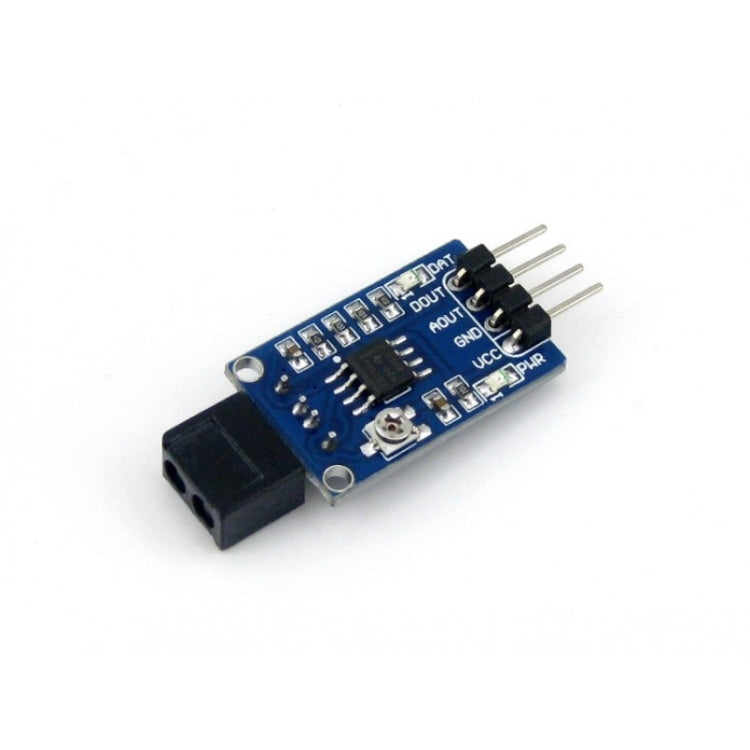

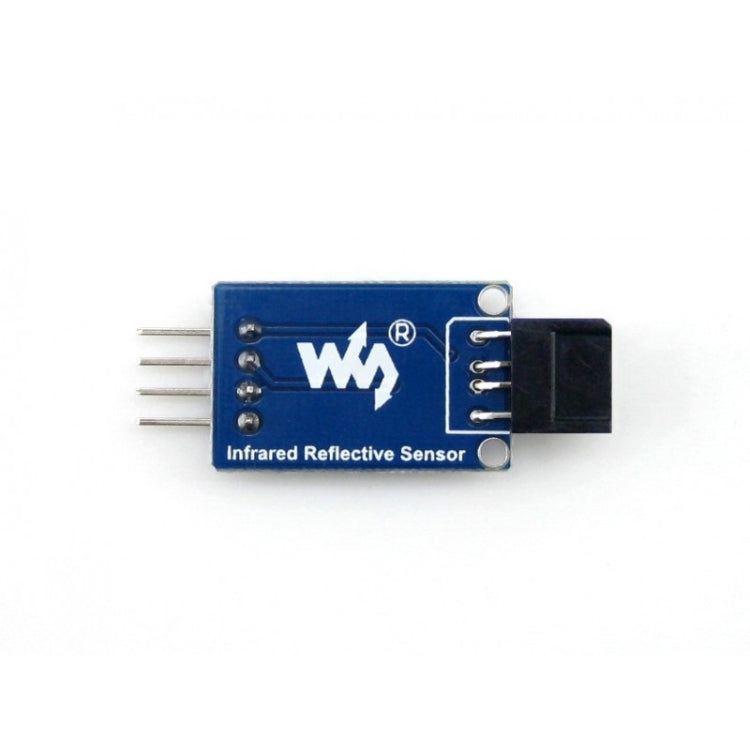

Waveshare Infrared Reflective Sensor, IR – TPU

Waveshare Infrared Reflective Sensor, IR – TPU.

Key Features:

• Overview
• 1. Reflective infrared Transceiver
• Features wide range voltage comparator LM393
• Adjustable sensitivity
• Signal output indicator
• Specifications
• 1. Power: 3.0V ~ 5.3V
• Dimension: 25mm * 15.9mm
• Mounting holes size: 2.0mm
• Applications
• 1. Robot path tracking
• Obstacle-avoiding car
• Pipeline counter
• How to Use

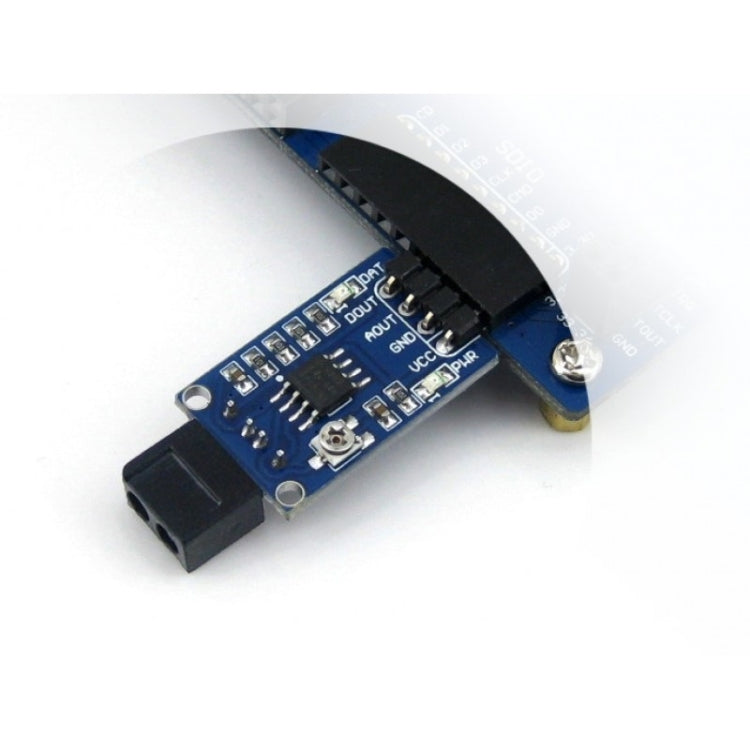

• In the case of working with a MCU:

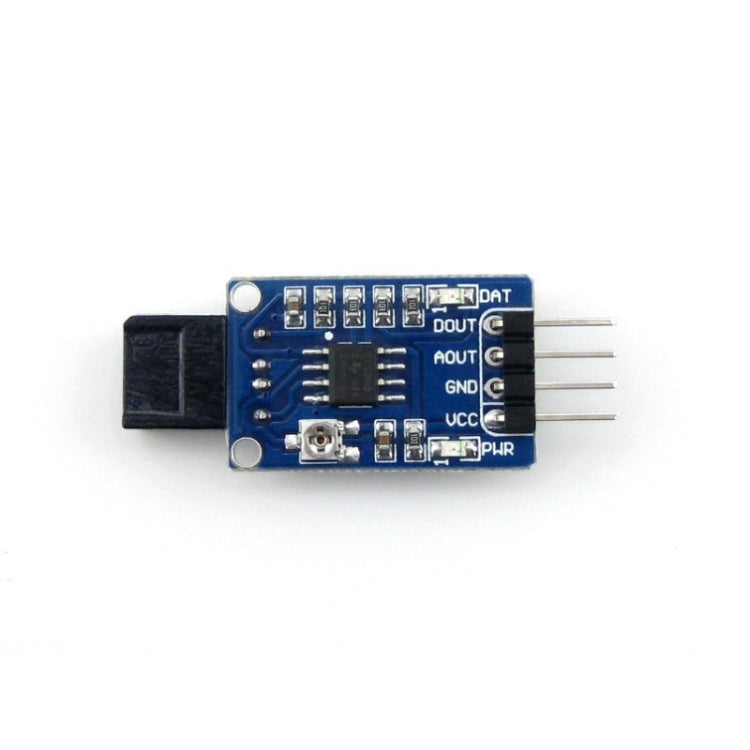

• Pinouts
• VCC: 3.0V ~ 5.3V
• GND: Power supply ground
• AOUT: MCU.IO (analog output)
• DOUT : MCU.IO (digital output)
• Package Contents
• 1. Infrared Reflective Sensor x1
• 4-pin custom connector jumper wire x1

Package Info: Weight: 0.01kgs / 0.02lb, Size: 5cm * 3cm * 1cm / 1.97inch * 1.18inch * 0.39inch
