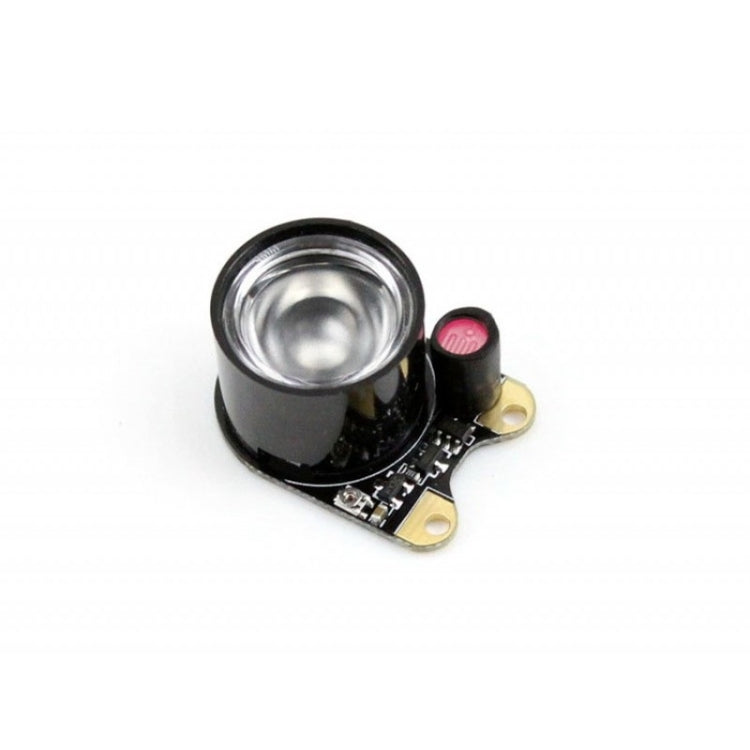

Waveshare Infrared LED Board (B), Wide Field of View – Durable Build, Easy to Use

Waveshare Infrared LED Board (B), Wide Field of View – Durable Build, Easy to Use.

Key Features:

• Features
• 1. 3W high-power 850 infrared LED

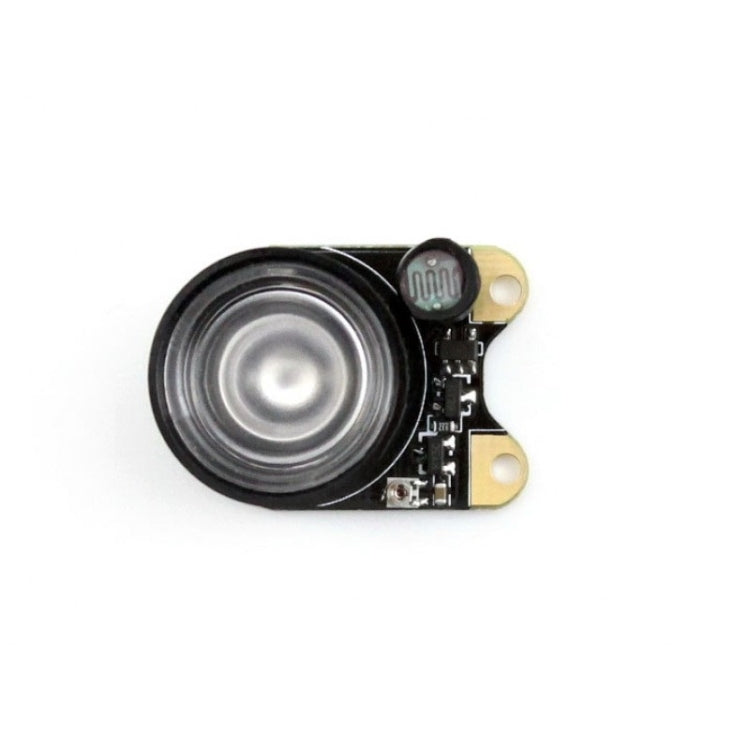

• Onboard photoresistor, the ambient light detector
• Onboard adjustable resistor, for controlling the ambient light threshold of toggling the infrared LED
• Allows adding night vision function to cameras which feature embedded infrared filter :
• a) 100 degree field of view, two pieces of LED is required to get wider field of view
• b) Supported devices : RPi Camera (E), RPi Camera (F), RPi Camera (H)
• How to Use

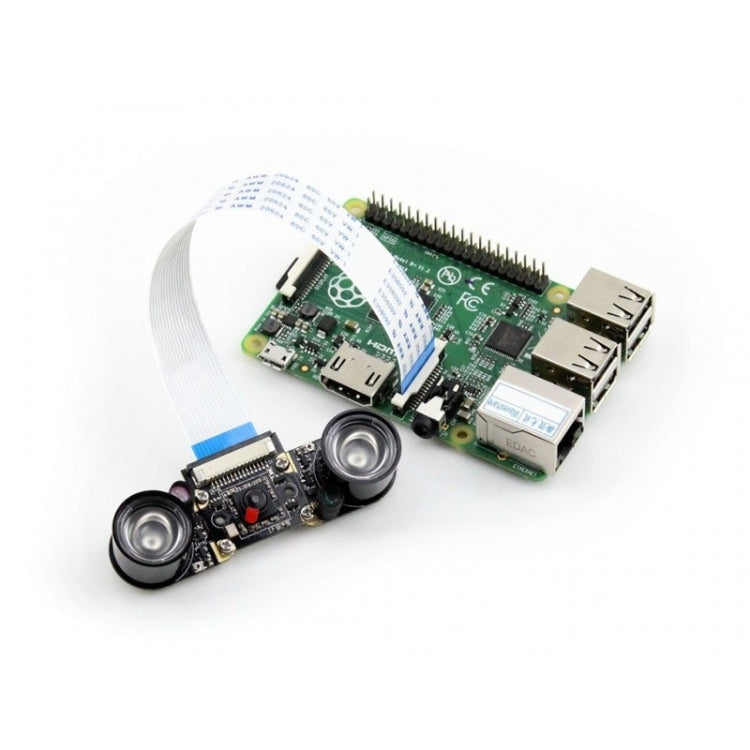

• 1. Connect the Infrared LED Board to the camera PCB by screws

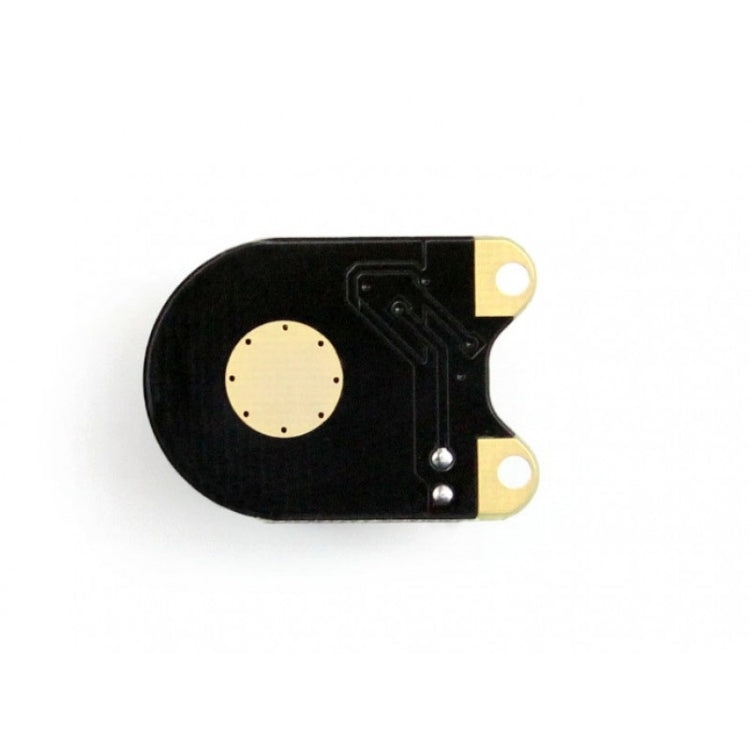

• The screw holes are used for both attachment and power supply
• Adjust the adjustable resistor to set a proper ambient light threshold, which toggles the infrared LED automatically
• When ambient light is lower than threshold value, the infrared LED is on, vice versa
• Note :
• 1. Limited by the Raspberry Pi power supply, the 3W high-power infrared LED might cause the Pi to increase heating, heat sinks are suggested.
• Ideal imaging distance is within 3m. When the distance goes up to 6m, the night vision camera can just capture blurry outlines.

Package Info: Weight: 0.03kgs / 0.06lb, Size: 6cm * 5cm * 4cm / 2.36inch * 1.97inch * 1.57inch
