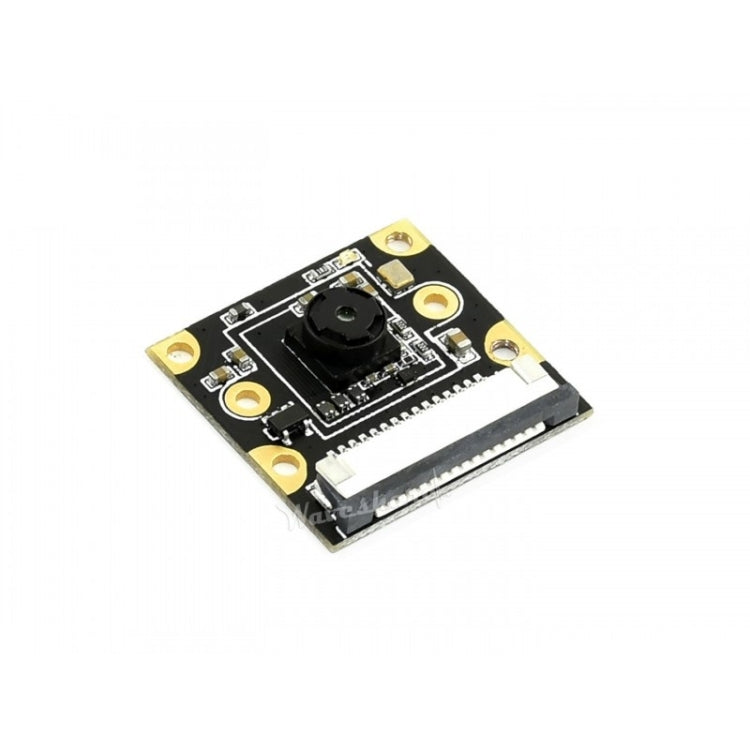

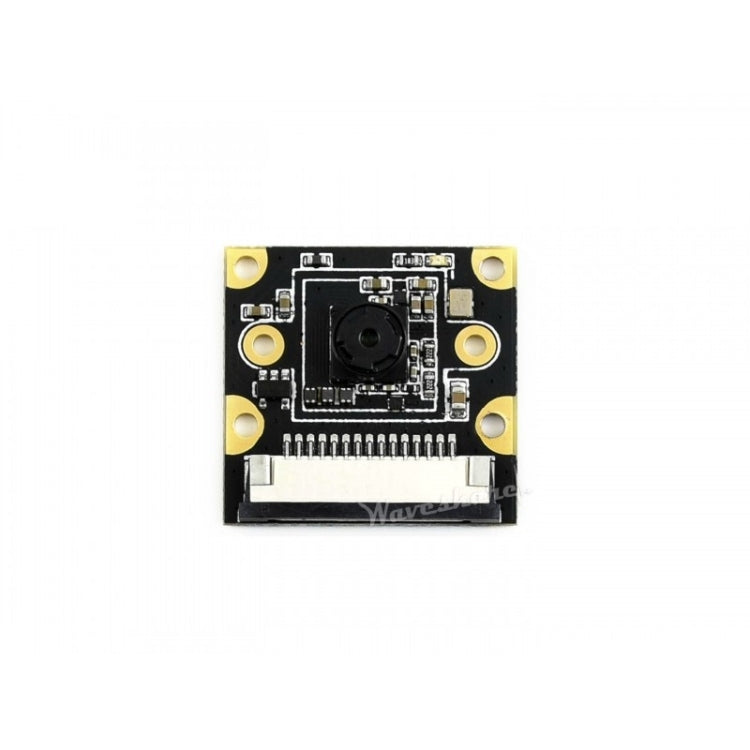

Waveshare IMX219-77IR 8MP 77 Degree FOV Infrared Camera, Applicable for Jetson Nano – TPU

Waveshare IMX219-77IR 8MP 77 Degree FOV Infrared Camera, Applicable for Jetson Nano – TPU.

Key Features:

• Features

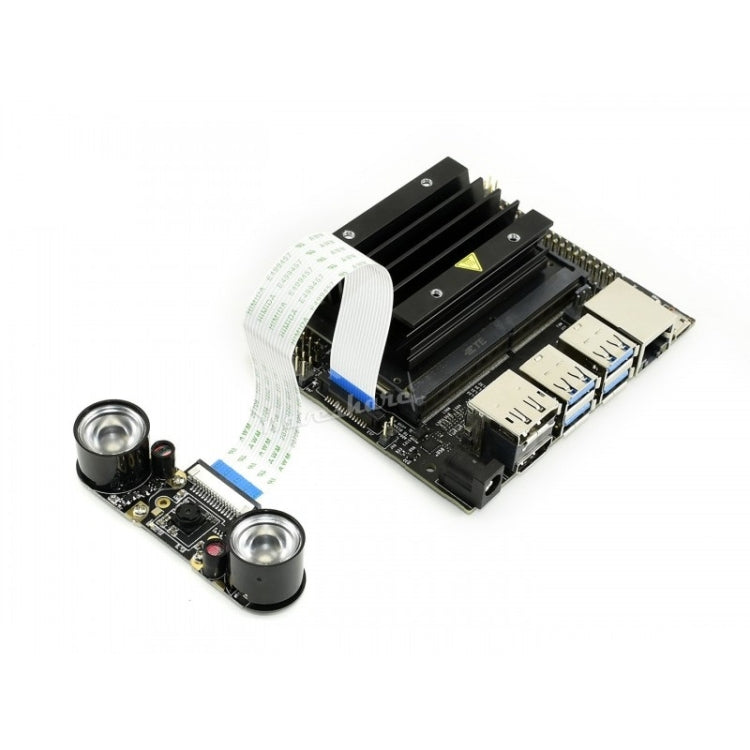

• Supports NVIDIA Jetson Nano Developer Kit
• Supports night vision when works with infrared LEDs
• 8 Megapixels
• Sensor: IMX219
• Resolution: 3280 × 2464
• Lens specifications:
• - CMOS size: 1/4inch
• - Aperture (F): 2.0
• - Focal Length: 2.96mm
• - Angle of View (diagonal): 77 degree
• - Distortion: <1%
• - Lens dimensions: 6.5mm × 6.5mm
• 4 screw holes
• Used for attachment
• Provides 3.3V power output

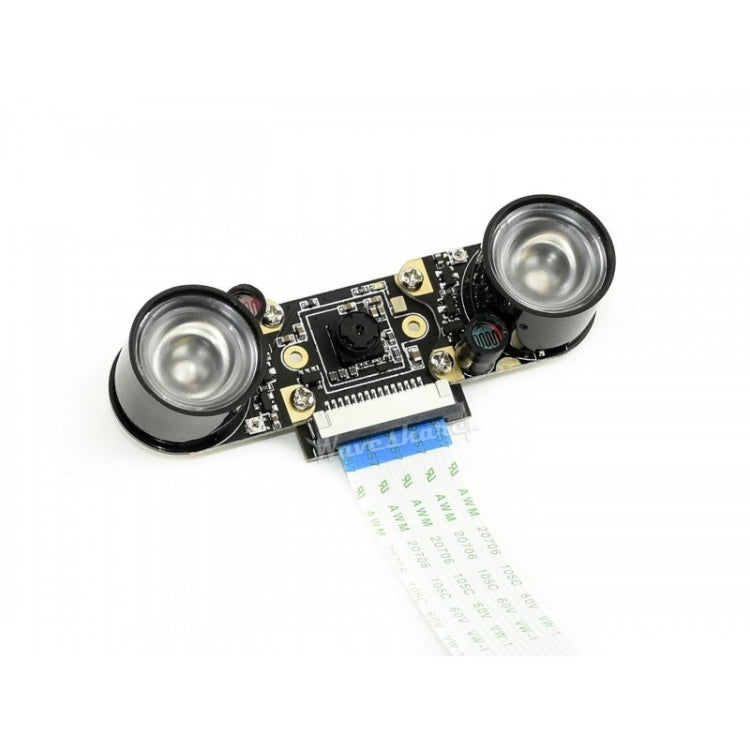

• Supports connecting infrared LED and/or fill flash LED
• Dimension: 25mm x 24mm
• Weight: 31g
• Packing List
• IMX219-77IR Camera x1
• Infrared LED Board (B) 2PCS x1
• 15-pin FFC (opposite sides contact) x1

Package Info: Weight: 0.04kgs / 0.08lb, Size: 10cm * 6cm * 3cm / 3.94inch * 2.36inch * 1.18inch
