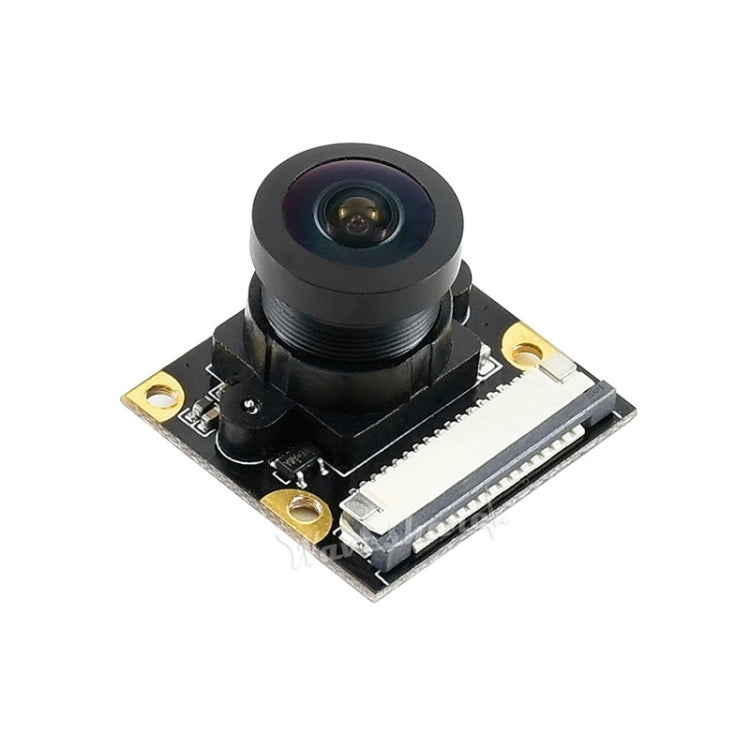

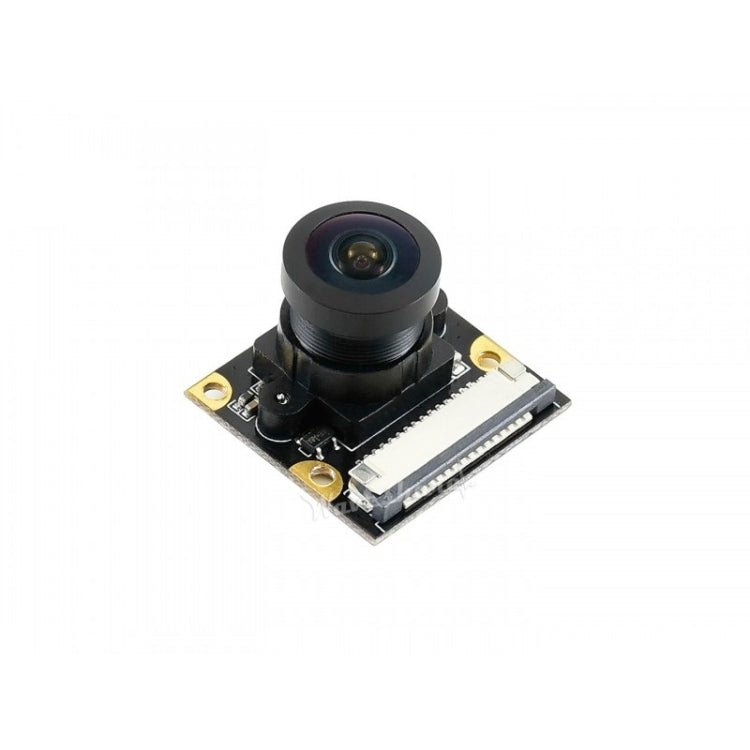

Waveshare IMX219-160IR 8MP 160 Degree FOV Infrared Camera, Applicable for Jetson Nano – TPU

Waveshare IMX219-160IR 8MP 160 Degree FOV Infrared Camera, Applicable for Jetson Nano – TPU.

Key Features:

• Features

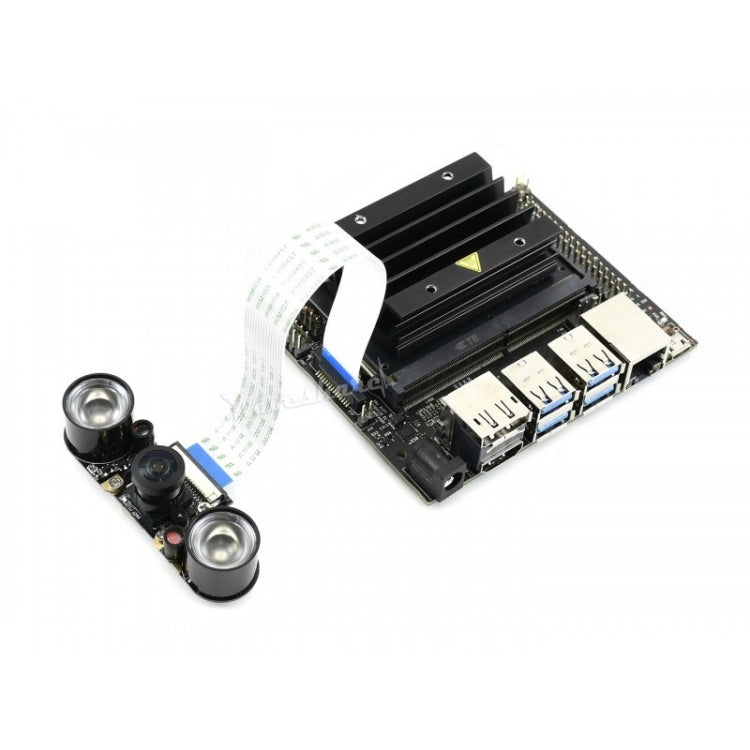

• Supports NVIDIA Jetson Nano Developer Kit

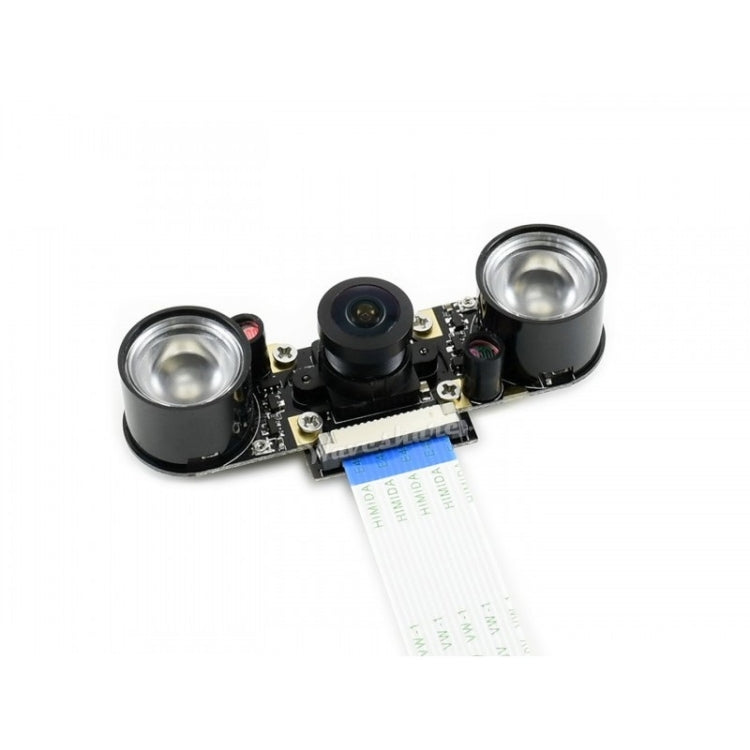

• Supports night vision when works with infrared LEDs
• 8 Megapixels
• Sensor: IMX219
• Resolution: 3280 × 2464
• Lens specifications:
• - CMOS size: 1/4 inch
• - Aperture (F): 2.35
• - Focal Length: 3.15mm
• - Angle of View (diagonal): 160 degree
• - Distortion: <14.3%
• 4 screw holes
• Used for attachment
• Provides 3.3V power output
• Supports connecting infrared LED and/or fill flash LED
• Dimension: 25mm x 24mm
• 12 . Weight: 31g
• Packing List:
• IMX219-160IR Camera x1

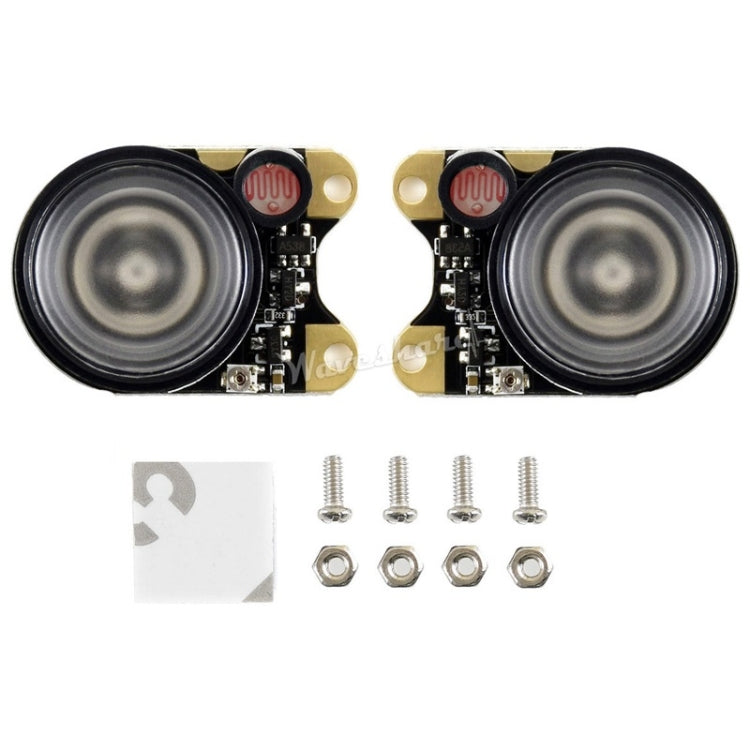

• Infrared LED Board (B) 2PCS x1
• 15-pin FFC (opposite sides contact) x1

Package Info: Weight: 0.05kgs / 0.10lb, Size: 10cm * 6cm * 3cm / 3.94inch * 2.36inch * 1.18inch

Shipping: Shipping charges and final delivery dates are shown at checkout.
