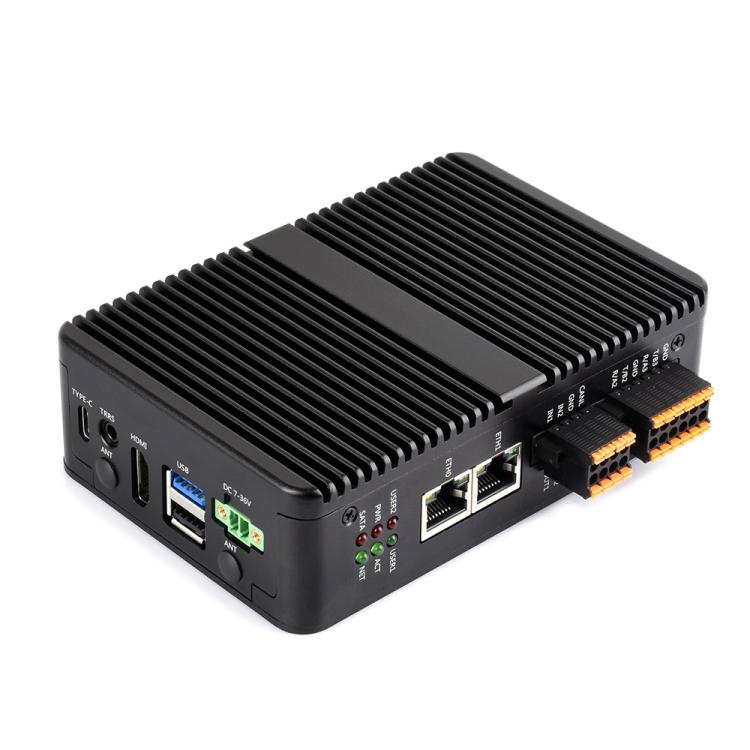

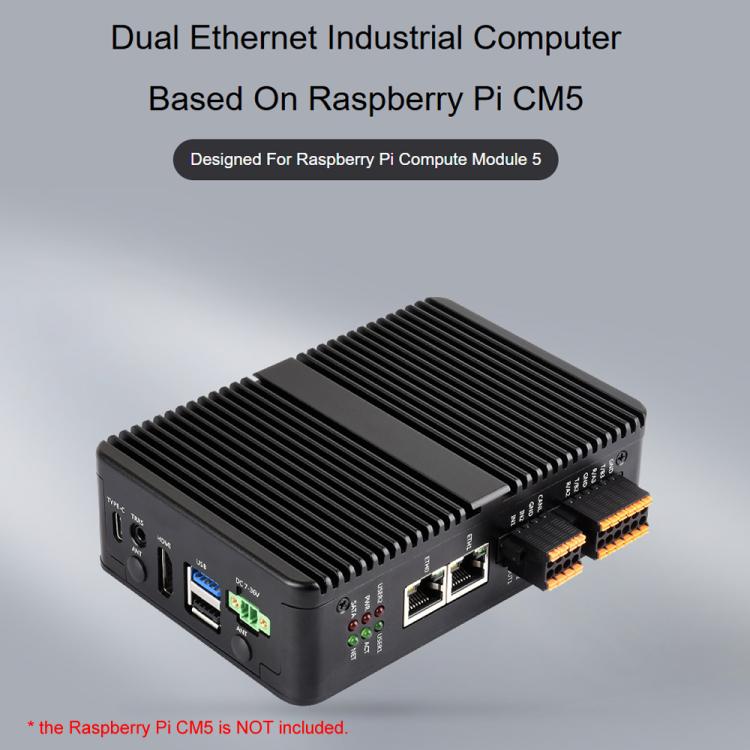

Waveshare Gigabit/2.5G Dual Ethernet Industrial Computer Based On Raspberry Pi CM5, 4 x RS485, 2×RS485+2×RS232 – Card Slot, TPU, 4K

Waveshare Gigabit/2.5G Dual Ethernet Industrial Computer Based On Raspberry Pi CM5, 4 x RS485, 2×RS485+2×RS232 – Card Slot, TPU, 4K.

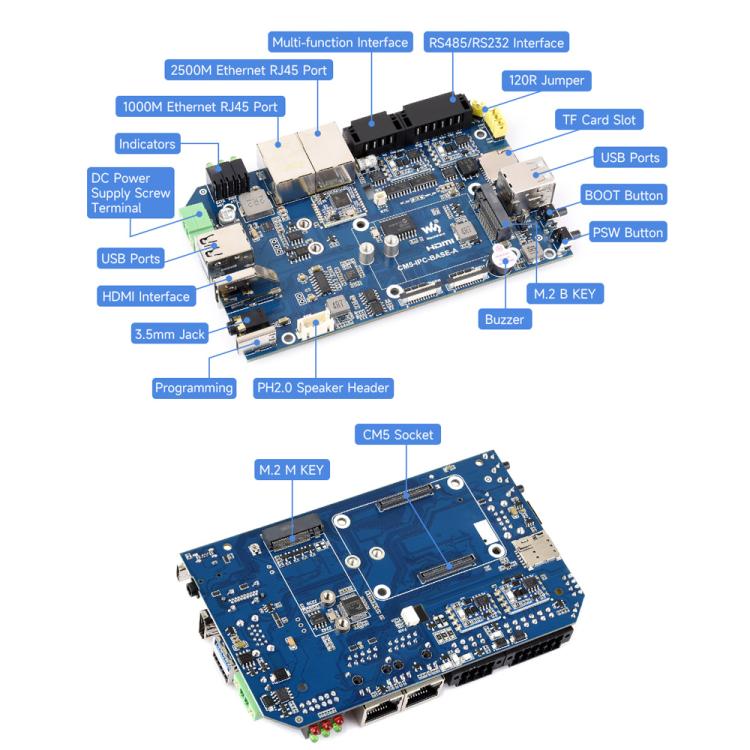

Key Features:

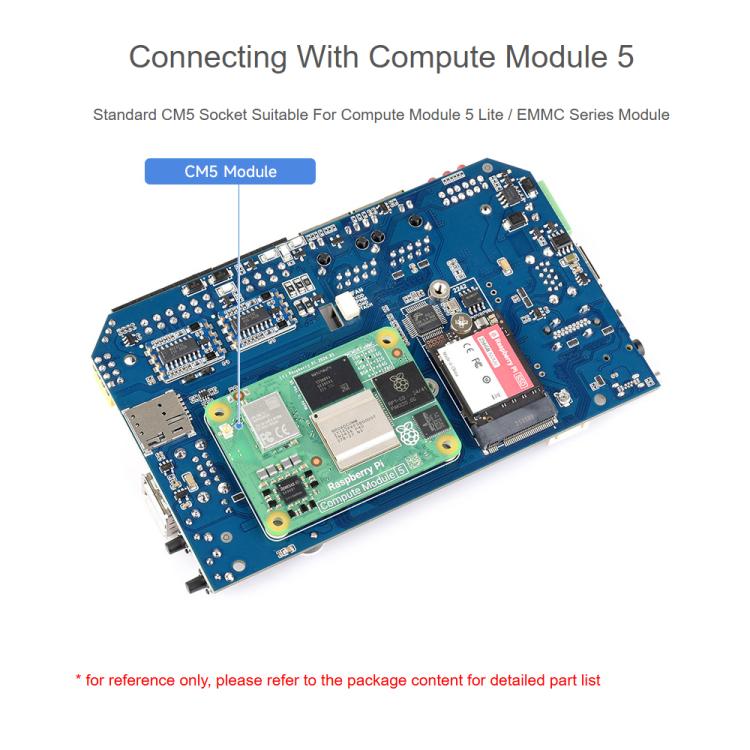

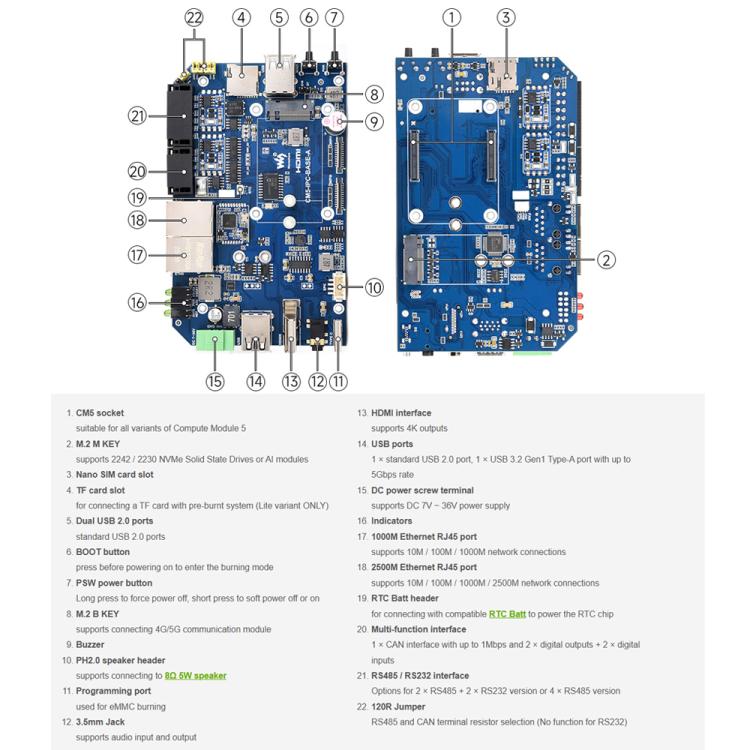

• CM5 socket: Compatible with all versions of Compute Module 5

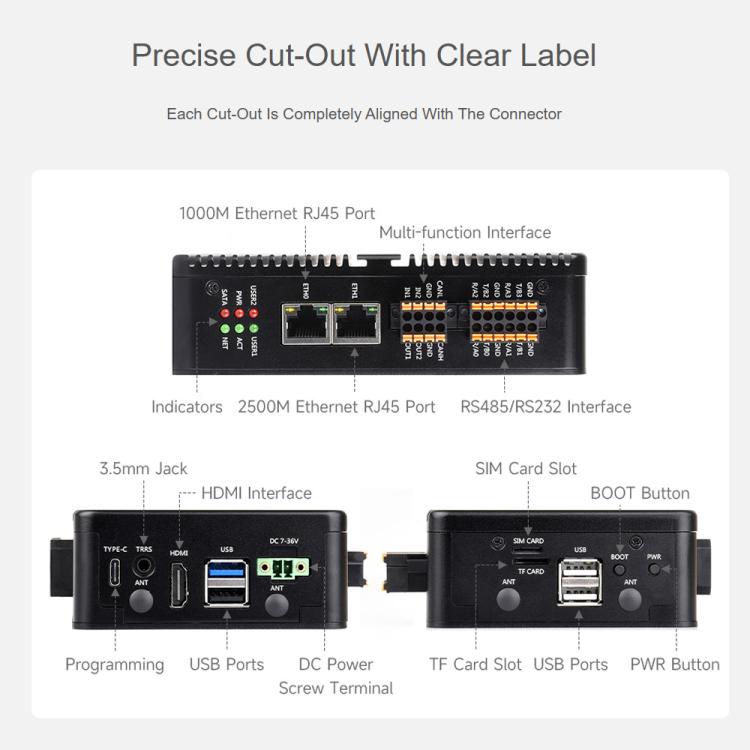

• Networking: 1000M Ethernet RJ45 interface, 2500M Ethernet RJ45 interface
• USB: USB 3.2 Gen1 x 1; USB 2.0 interfaces x 3
• Video: HDMI interface x 1, supports 4K output

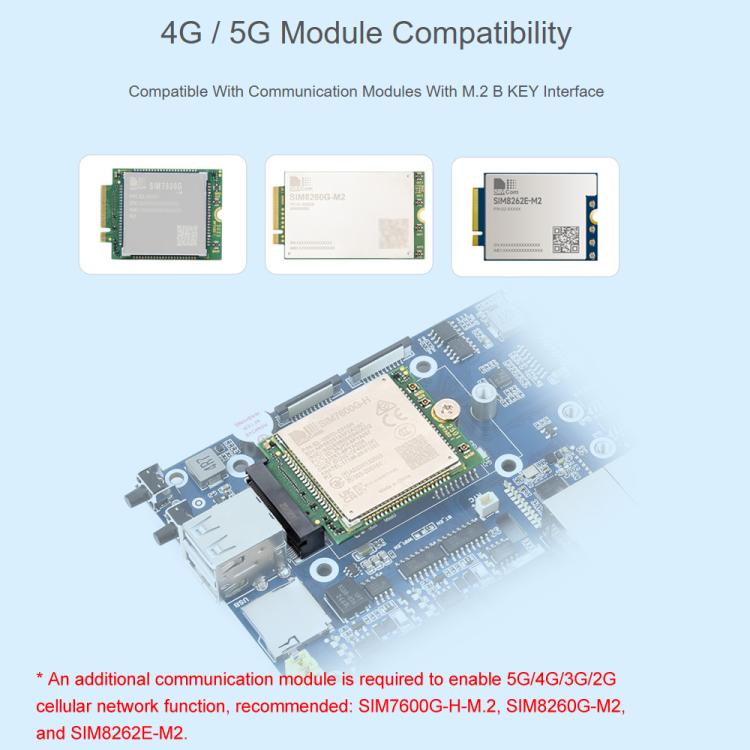

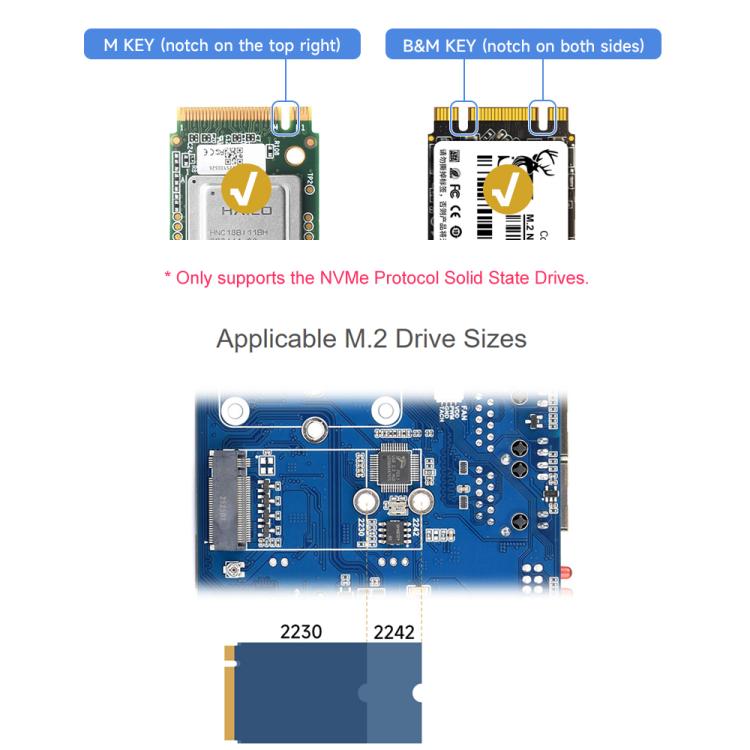

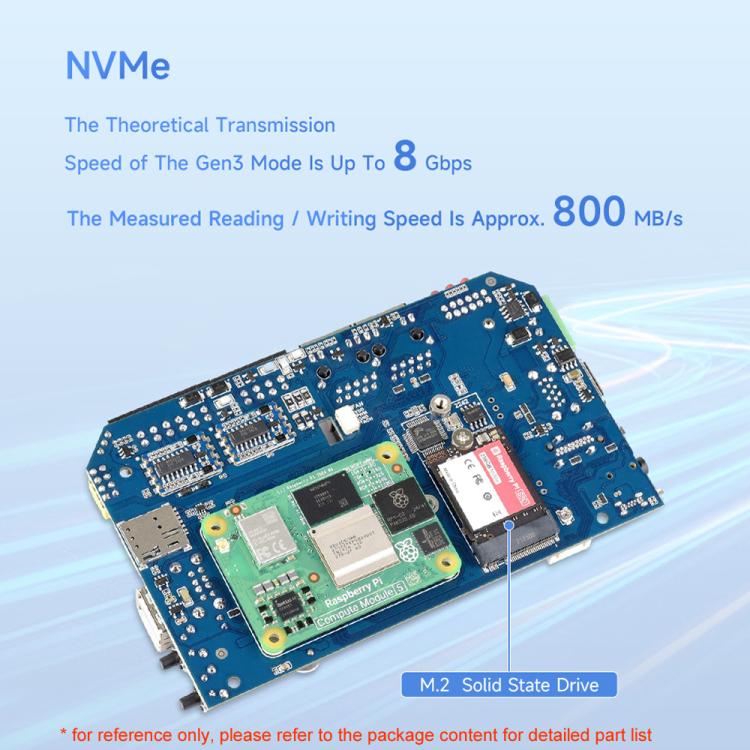

• M.2: M.2 M KEY (PCIe Gen2/3 x 1, 2230 / 2242); M.2 B KEY, supports connection to 4G / 5G communication modules
• Storage: On-board Micro SD card slot (for CM5 versions without eMMC)

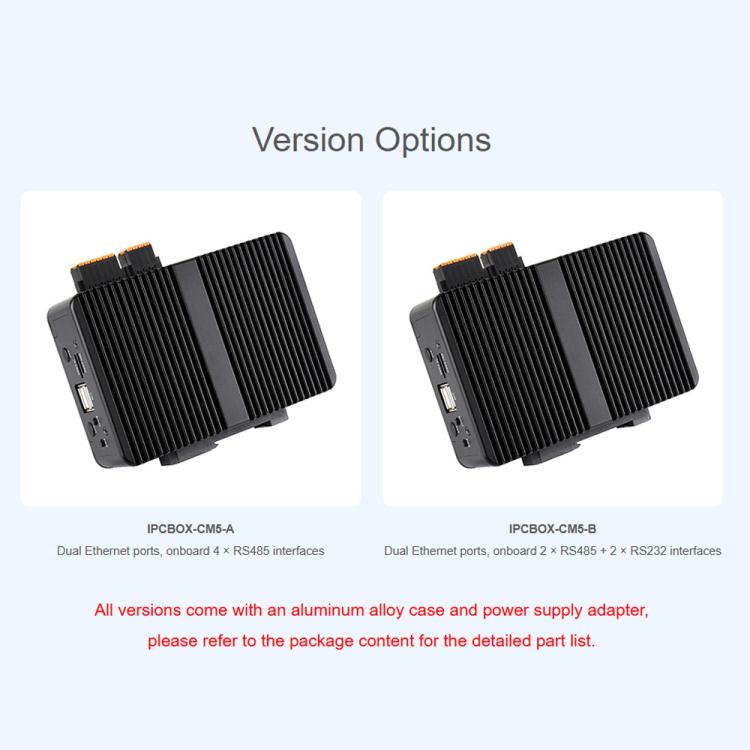

• Serial interfaces: 2 x RS485 + 2 x RS232 or 4 x RS485 versions optional; 1 x CAN supports 1Mbps communication rate
• Digital input/output: 2 x digital outputs + 2 x digital inputs
• Audio: 3.5mm headphone jack (supports microphone), PH2.0 speaker interface
• Fan interface: 5V, 4PIN JST-SH PWM fan connector
• Buzzer: Single-channel controllable buzzer
• Other: On-board EEPROM and encryption chip
• Power input: 7V to 36V wide voltage (terminal block), 5V 5A (Type-C)

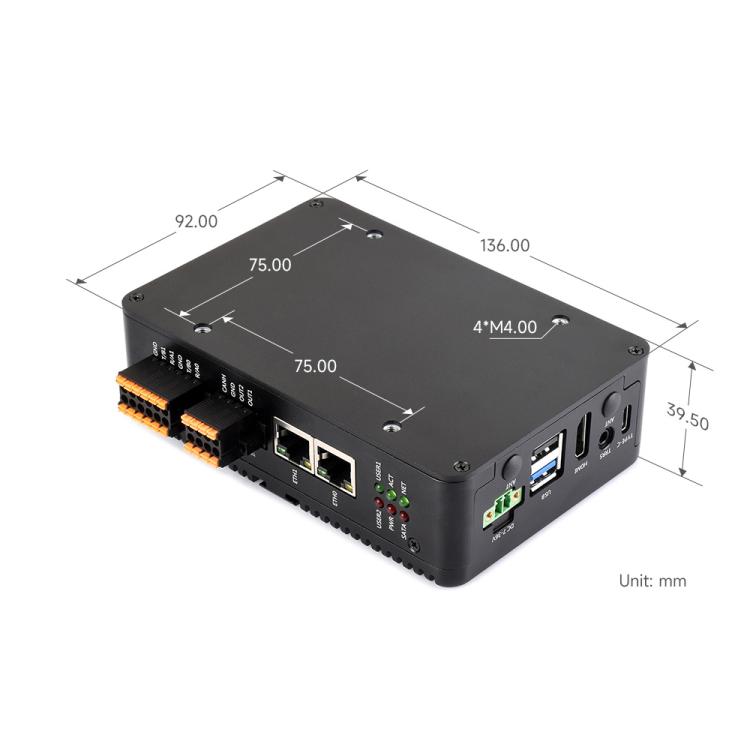

• Dimensions: 136.00 x 92.00 x 39.50 mm

Package Info: Weight: 0.78kgs / 1.73lb, Size: 18cm * 14cm * 6cm / 7.09inch * 5.51inch * 2.36inch
