Waveshare General 1.5 inch 128x128 16-bit High Color RGB OLED Display Module, 14747 – Durable Build, Easy to Use

Waveshare General 1.5 inch 128x128 16-bit High Color RGB OLED Display Module, 14747 – Durable Build, Easy to Use.

Key Features:

• 5 inch RGB OLED display module, 128x128 pixels, 16-bit high color, SPI interface
• Overview
• This is a general RGB OLED display Module, 1.5inch diagonal, 128x128 pixels, 16-bit high color (65K colors), with embedded controller, communicating via SPI...
• Features
• 128x128 high resolution, 65K colors, clearly displays colorful images
• Support 4-wire SPI OR 3-wire SPI interface, configured via onboard resistor
• Come with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
• Specifications
• Driver: SSD1351
• Interface: 4-wire SPI, 3-wire SPI
• Display color: RGB, 65K colors
• Resolution: 128x128
• Viewing angle: >160 degree
• Operating voltage: 3.3V / 5V

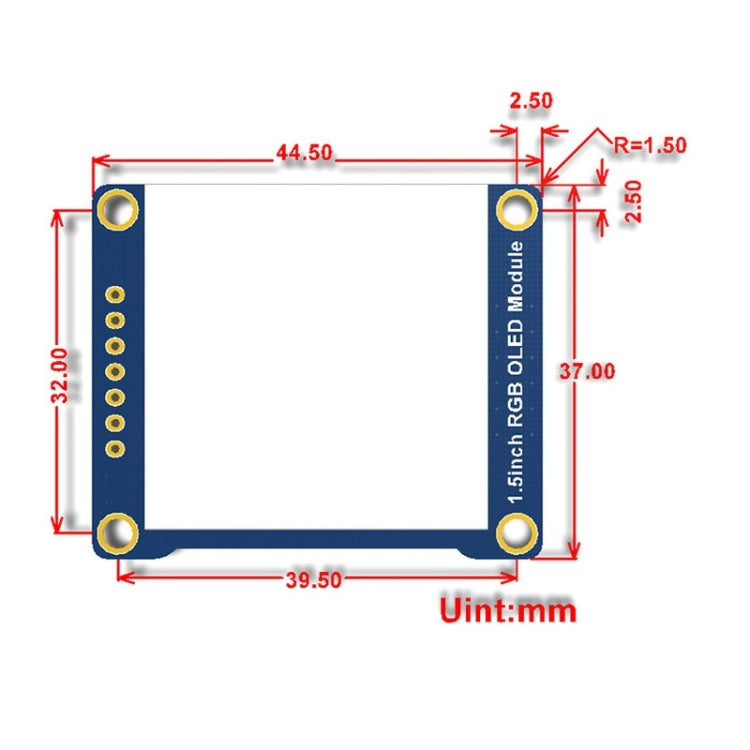

• Dimension: 44.5 x 37 (mm)
• Package Contents
• 1.5 inch RGB OLED Module x1
• PH2.0 7Pin x1

Package Info: Weight: 0.03kgs / 0.07lb, Size: 6cm * 4cm * 2cm / 2.36inch * 1.57inch * 0.79inch

Shipping: Shipping charges and final delivery dates are shown at checkout.
