Waveshare Flexible RGB Full-color LED Matrix Panel, 2.5mm Pitch, 96x48 Pixels, Adjustable Brightness Bendable PCB, 23709 – TPU

Waveshare Flexible RGB Full-color LED Matrix Panel, 2.5mm Pitch, 96x48 Pixels, Adjustable Brightness Bendable PCB, 23709 – TPU.

Key Features:

• Pixel: 96 x 48=4608 dots
• Pitch: 2.5mm
• Pixel format: 1R1G1B
• Viewing angle: greater than 140 degrees
• Control mode: synchronous
• Drive: 1/16 scan
• Connector: HUB75
• Power supply: 5V / 2.5A (VH4 connector input)
• Power: within 20W

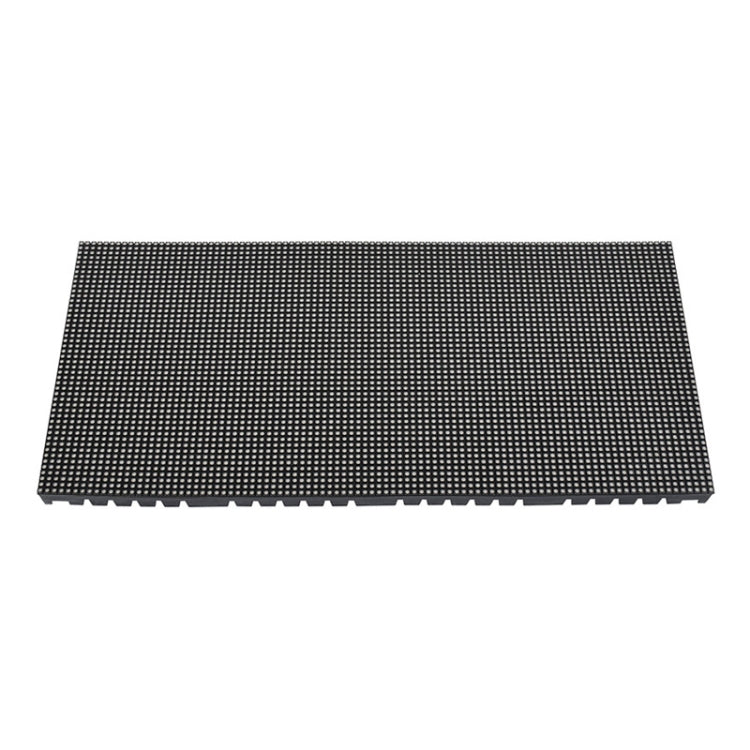

• Size: 24 x 12cm
• Features:
• 4608 independent RGB led, full color display, brightness adjustable

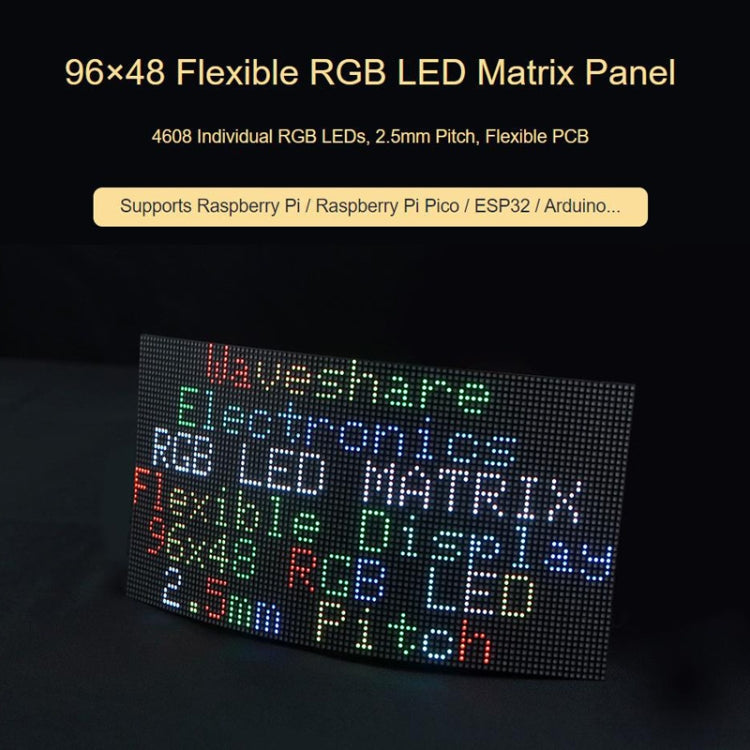

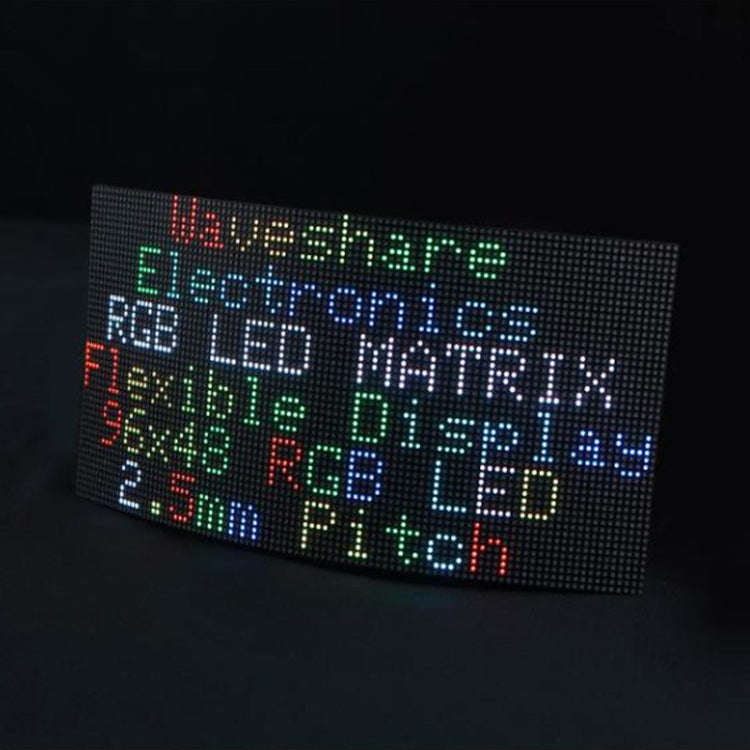

• 96x48 pixels, 2.5mm pitch, allows displaying text, color image or animation
• 240x120mm size, moderate size, suitable for DIY desktop display or wall mount display

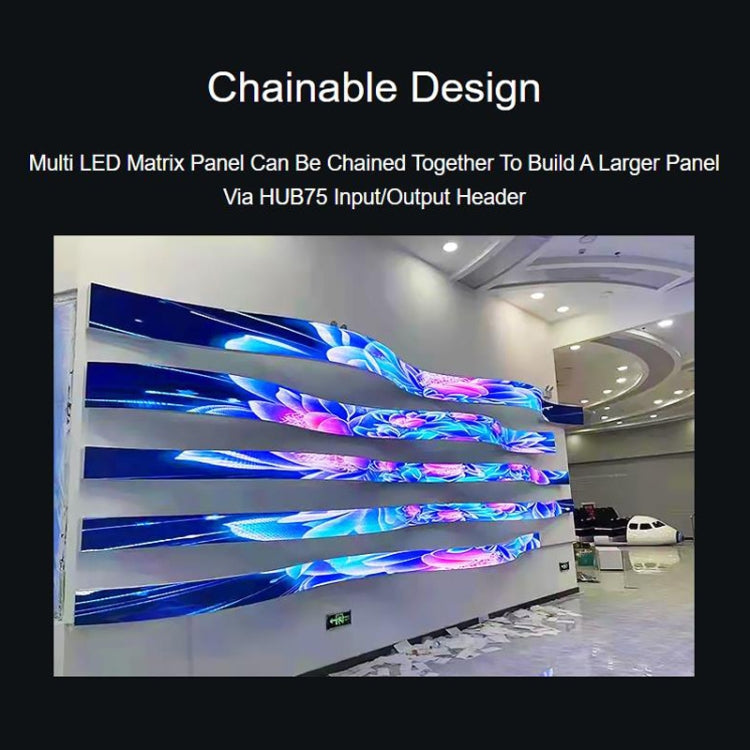

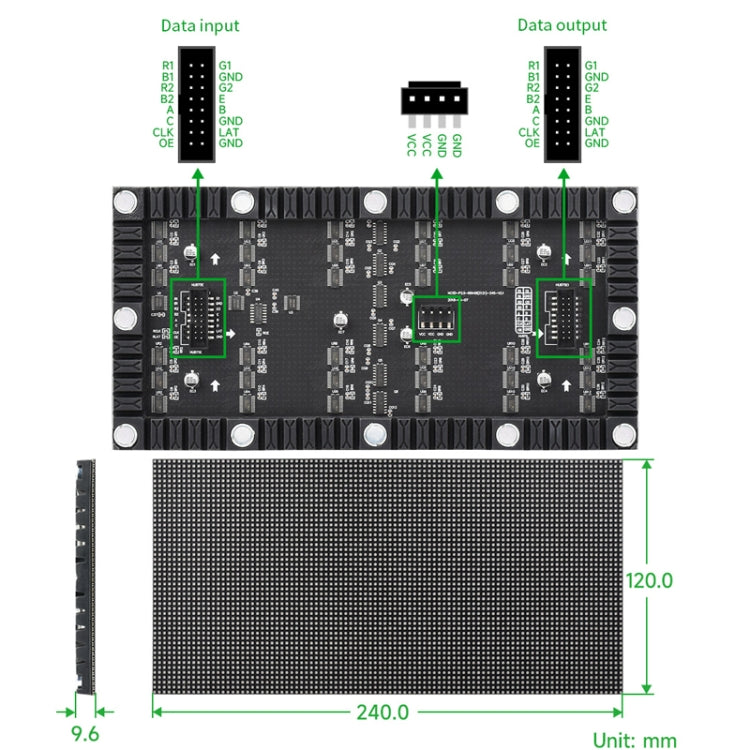

• Two HUB75 headers on board, 1 for controller data input, 1 output, chain support

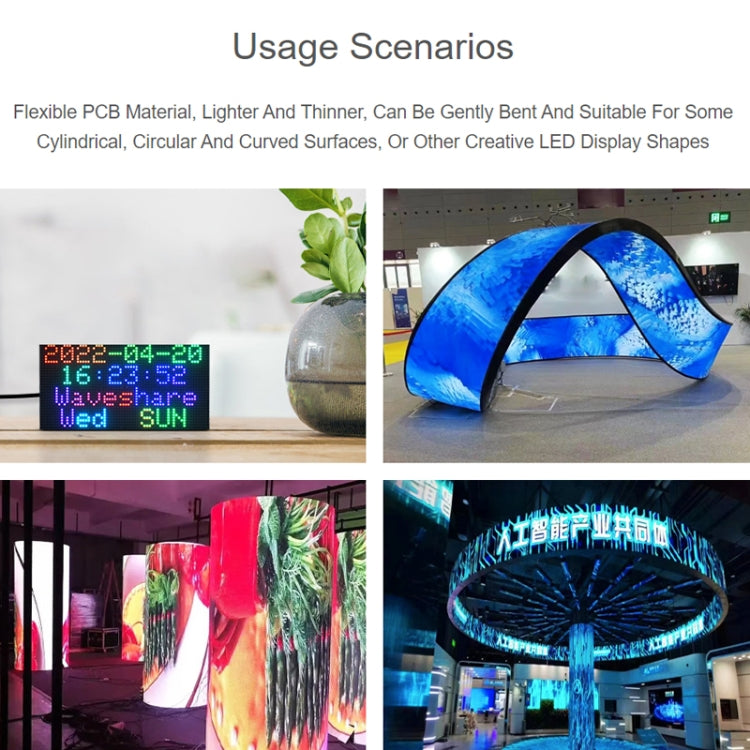

• Flexible PCB material, can be gently bent, suitable for some application scenarios such as cylinders, spheres and other curved surfaces
• Provide open source development resources (for Raspberry Pi / Raspberry Pi Pico / ESP32 / Arduino, etc.)

Package Info: Weight: 0.38kgs / 0.83lb, Size: 26cm * 14cm * 2cm / 10.24inch * 5.51inch * 0.79inch
