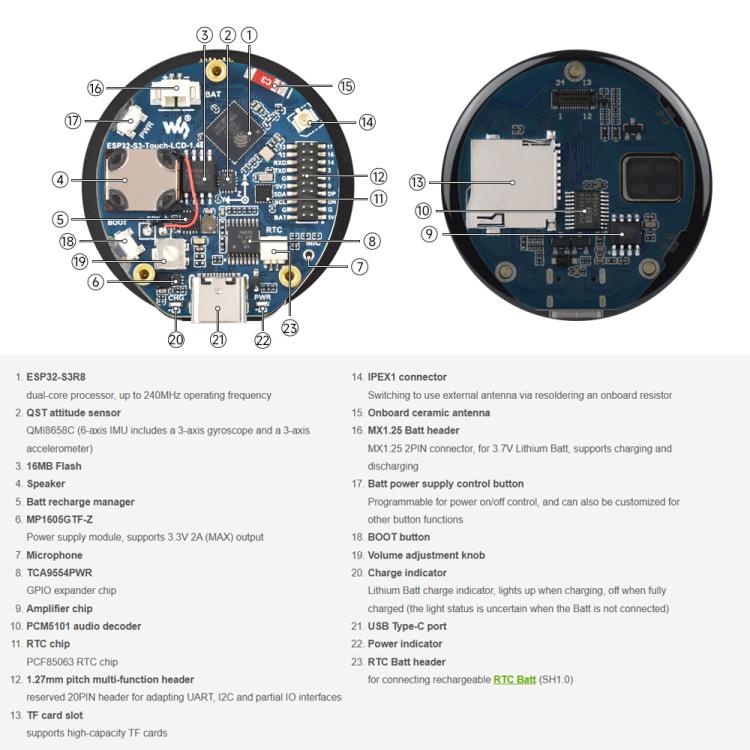

Key Features:

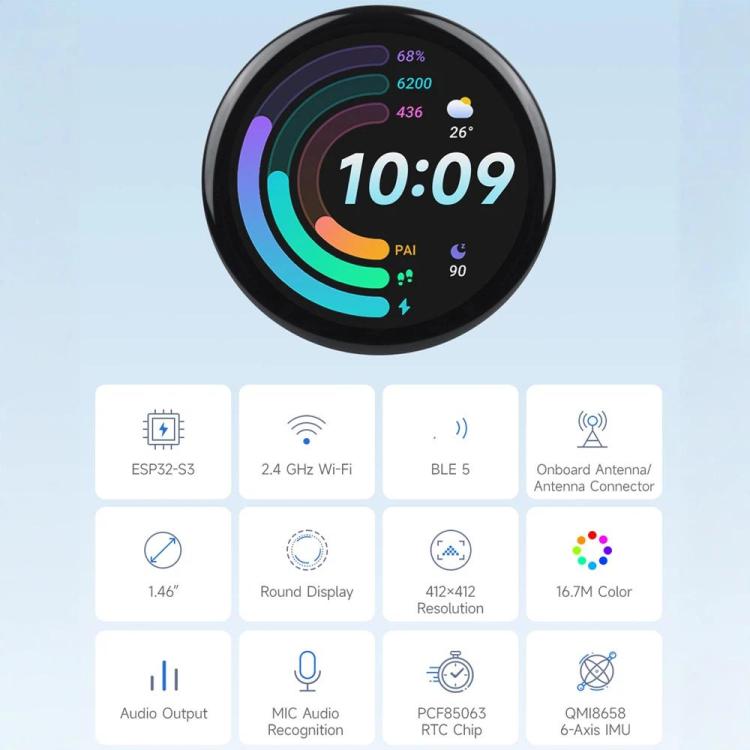

• This product is a microcontroller development board supporting 2.4GHz Wi-Fi and Bluetooth BLE 5. Integrated with high-capacity Flash and PSRAM, it features...
• Equipped with ESP32-S3R8 high-performance Xtensa 32-bit LX7 dual-core processor, operating at up to 240MHz
• Supports 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE) with onboard antenna
• Built-in 512 KB SRAM and 384 KB ROM, stacked with 8 MB PSRAM and 16 MB onboard Flash
• Type-C interface enhances user convenience and device compatibility

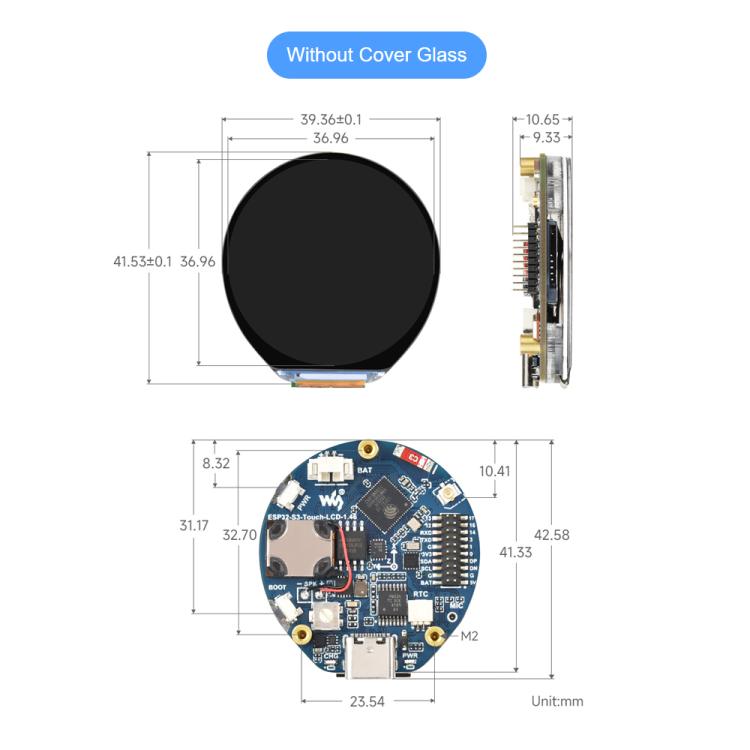

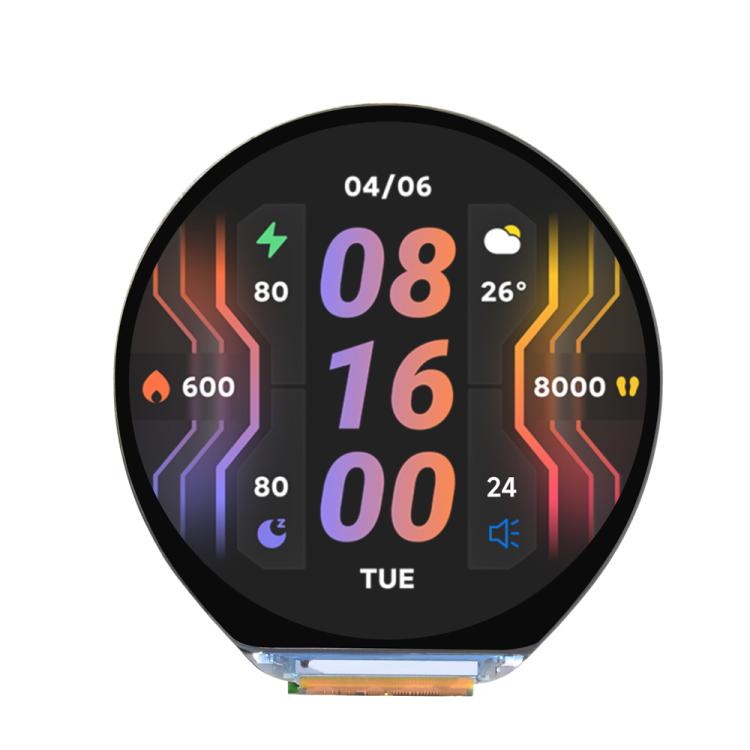

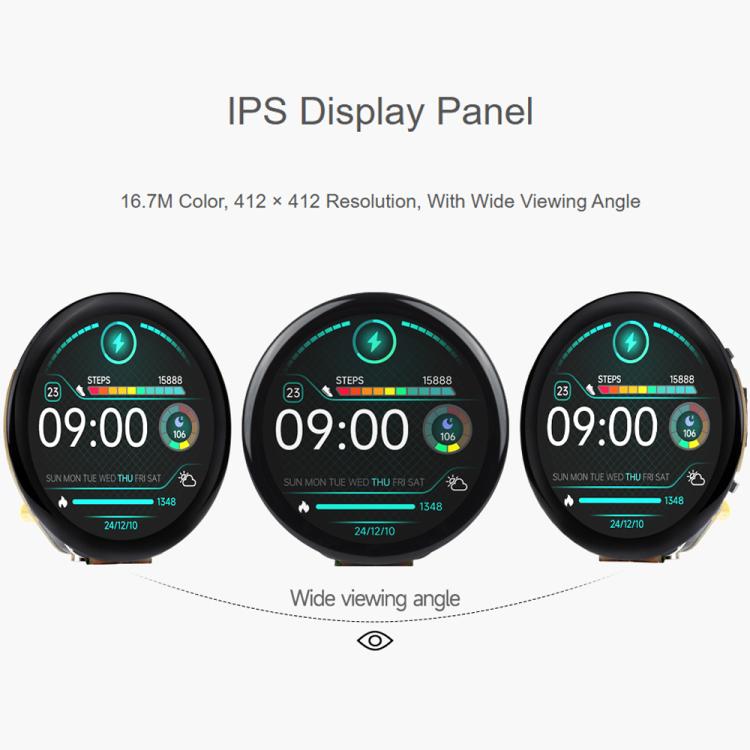

• Onboard 1.46-inch LCD screen with 412 × 412 resolution and 16.7M colors

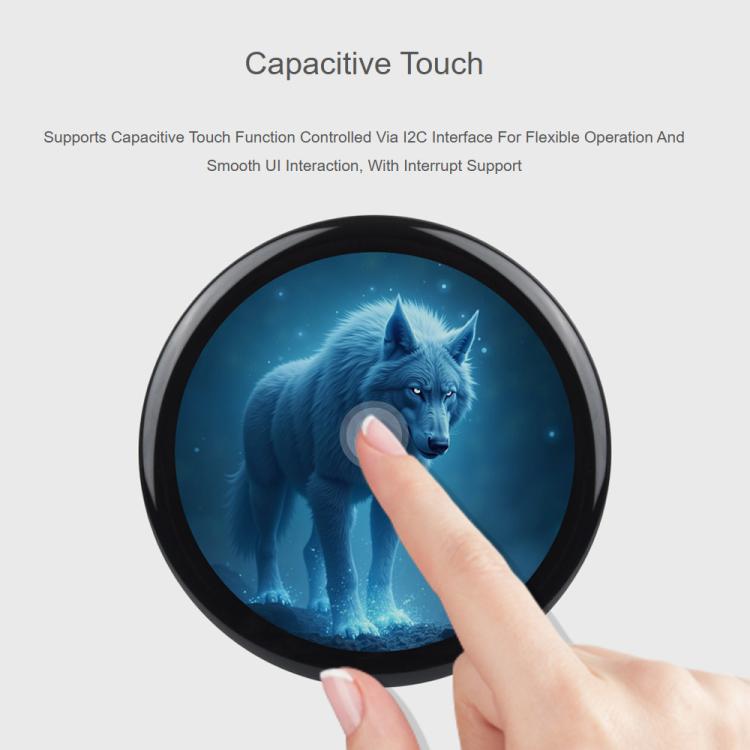

• Supports I2C interface for touch control with interrupt capability

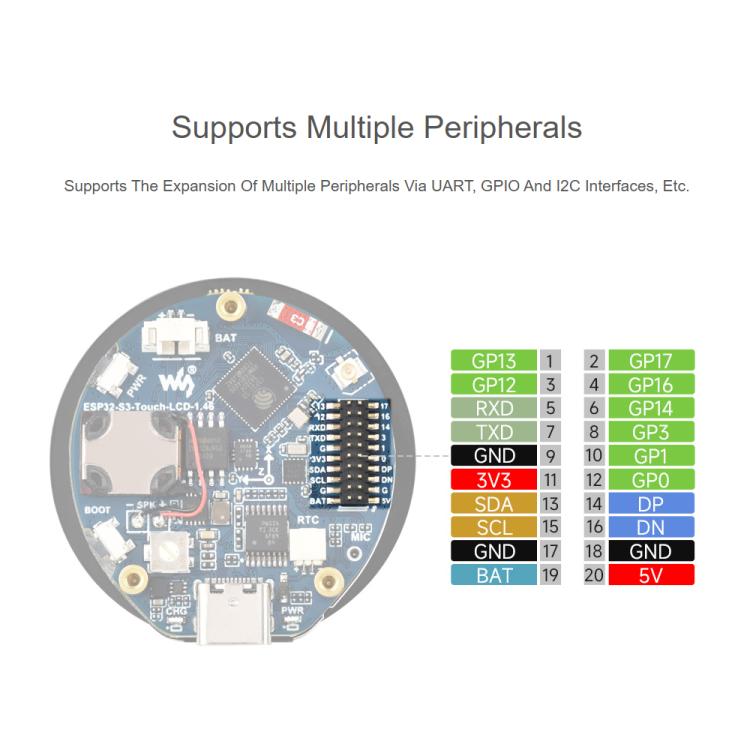

• Exposed UART, I2C, and partial IO interfaces
• Onboard QMI8658 6-axis IMU (3-axis accelerometer + 3-axis gyroscope) for angle/acceleration detection
• Onboard PCF85063 RTC chip enables uninterrupted power via external battery, maintaining RTC functionality during main battery replacement
• Two customizable side buttons (PWR and BOOT) for user-defined functions
• Onboard 3.7V MX1.25 lithium battery charge/discharge interface
• Micro SD card slot for storage expansion and high-speed data transfer, facilitating data logging/media playback while streamlining circuit design
• Flexible clock control and multi-power modes enable precise low-power operation across scenarios
• Multiple exposed GPIO pins remappable to various functions for custom development

Package Info: Weight: 0.38kgs / 0.85lb, Size: 10cm * 8cm * 5cm / 3.94inch * 3.15inch * 1.97inch
