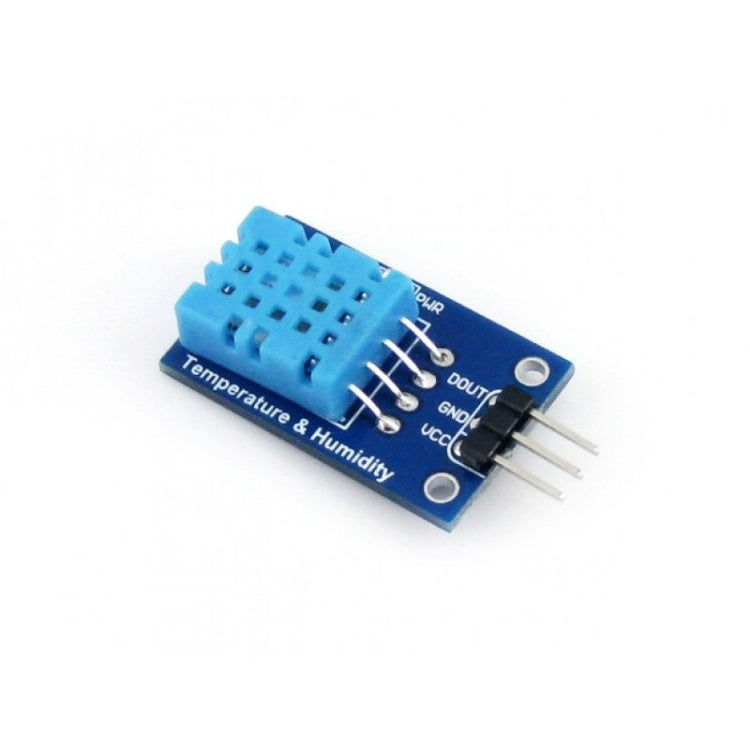

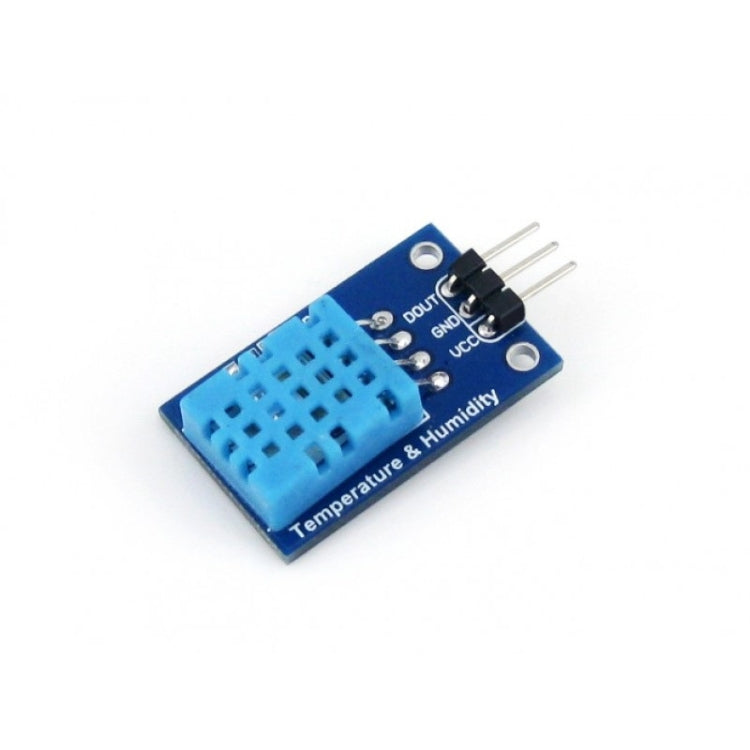

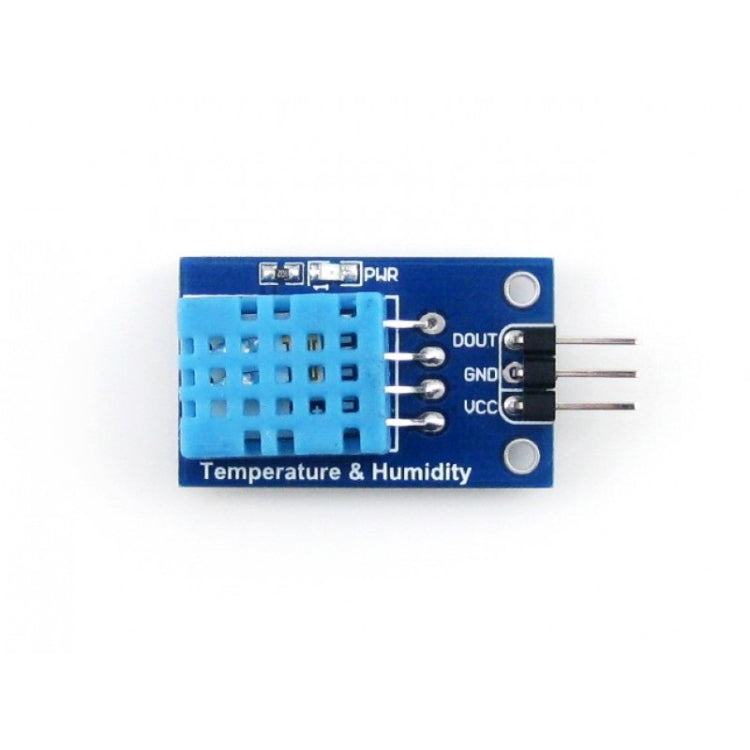

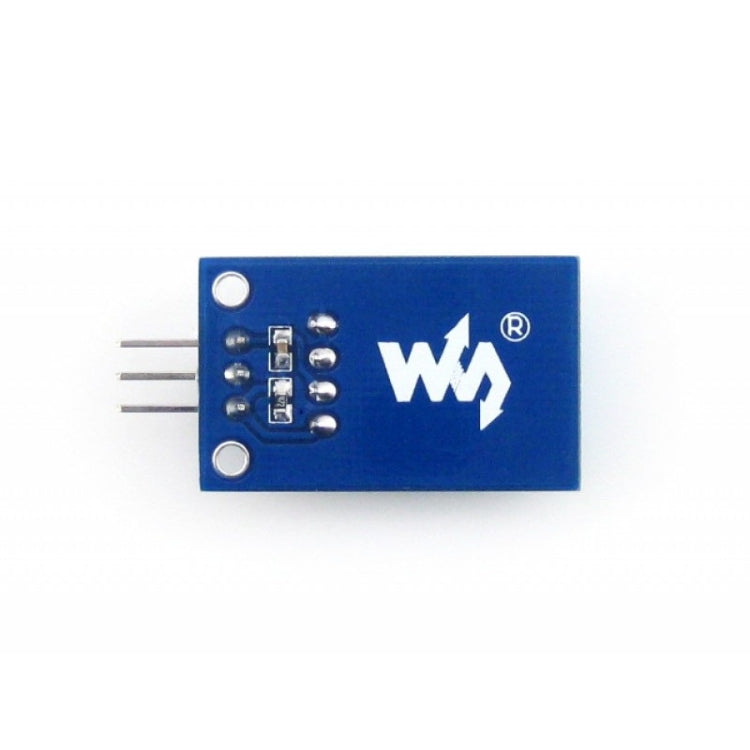

Waveshare DHT11 Temperature-Humidity Sensor, DHT11 – Durable Build, Easy to Use

Waveshare DHT11 Temperature-Humidity Sensor, DHT11 – Durable Build, Easy to Use.

Key Features:

• Temperature-Humidity Sensor, DHT11 Onboard
• Overview
• This is a calibrated digital temperature and humidity module with onboard sensor DHT11. It can be used for detecting ambient temperature and humidity,...
• Specifications
• Temperature
• - Resolution : 1 degree C
• - Accuracy : +/-2 degree C
• - Measuring range : 0 degree C ~ 50 degree C
• Humidity
• - Resolution : 1%RH
• - Accuracy : +/-5%RH (0~50 degree C)
• - Measuring range : 20%RH ~ 90%RH (25 degree C)
• Operating voltage : 3.3V ~ 5.5 V
• Recommended storage condition
• - Temperature : 10 degree C ~40 degree C
• - Humidity : 60%RH or below
• Applications
• Weather station
• Humidity controller
• Test & detection device

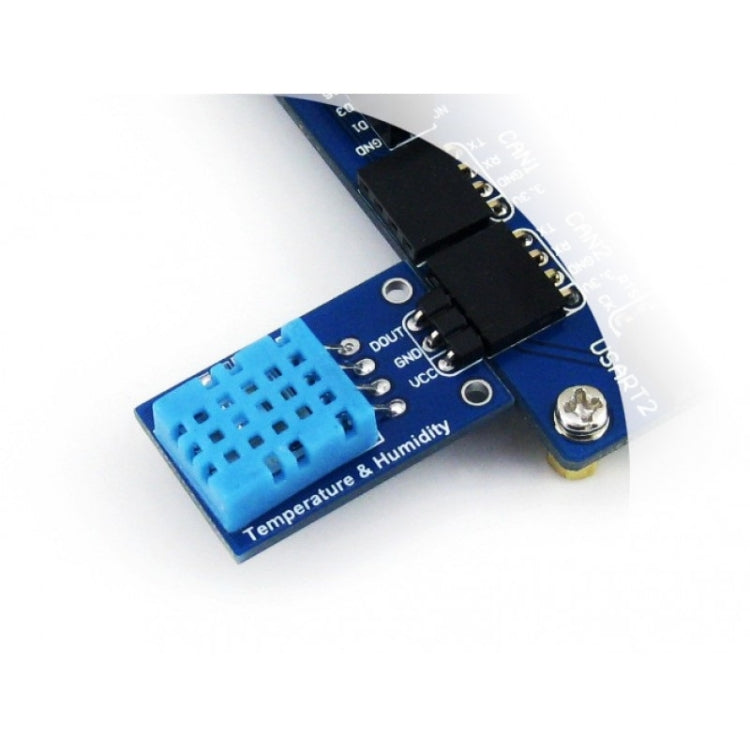

• How to Use
• In the case of working with a MCU:
• VCC: 3.3V ~ 5.5V
• GND: GND
• DOUT: MCU.IO
• Package Contents
• DHT11 Temperature-Humidity Sensor x1
• 3-pin custom connector jumper wire x1

Package Info: Weight: 0.01kgs / 0.03lb, Size: 4cm * 3cm * 1cm / 1.57inch * 1.18inch * 0.39inch
