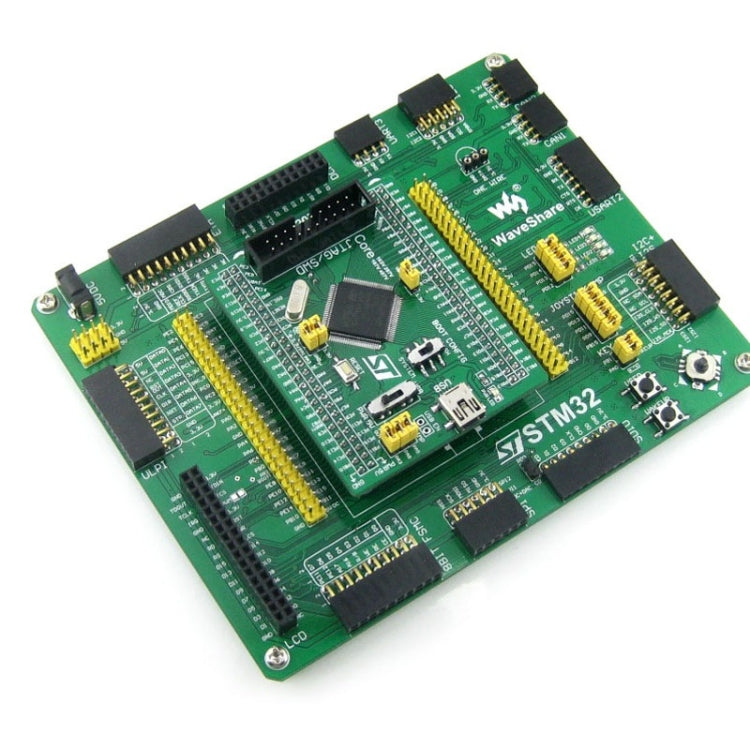

Waveshare Core405R, STM32F4 Core Board – 4K

Waveshare Core405R, STM32F4 Core Board – 4K.

Key Features:

• Overview

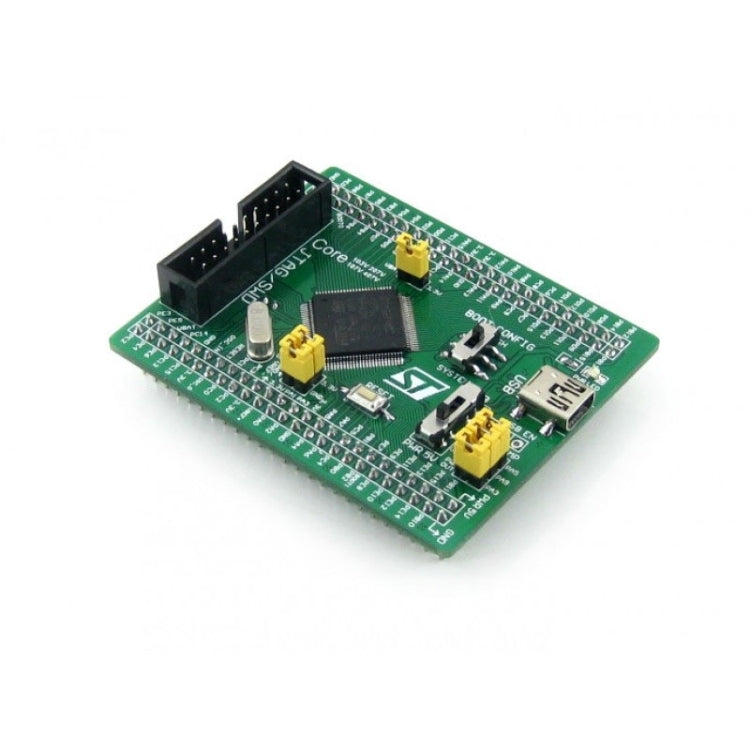

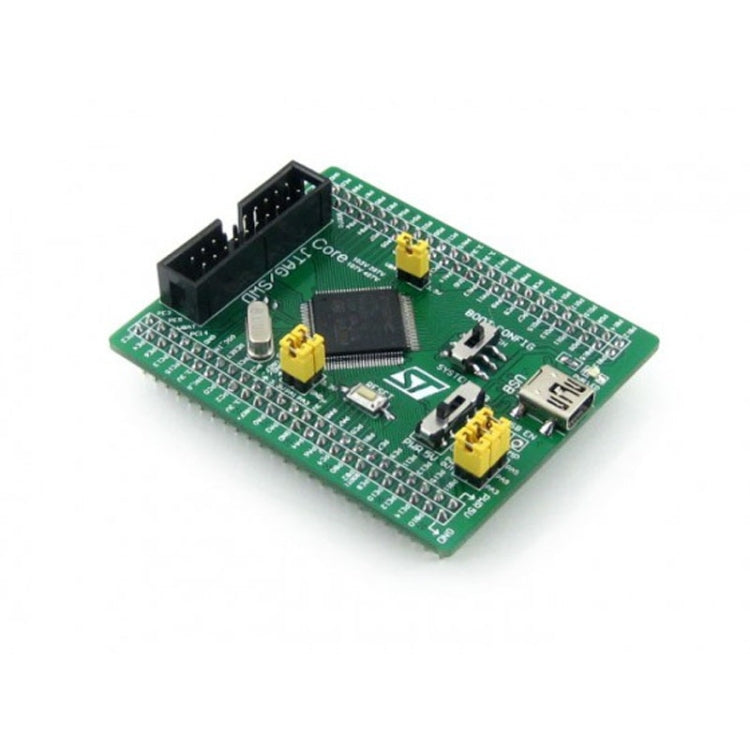

• Core405R is an STM32 MCU core board designed for STM32F405RGT6, supports further expansion. It is ideal for starting application development with STM32F family.
• Minimal ready-to-run system, integrates clock circuit, USB control circuit, USB connector, 3. etc.

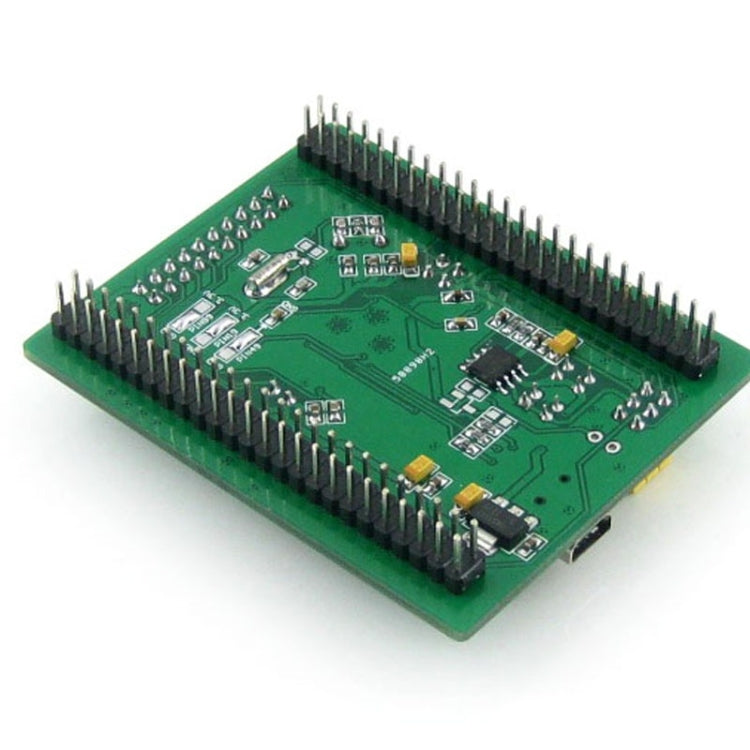

• All the I/O ports are accessible on the pin headers

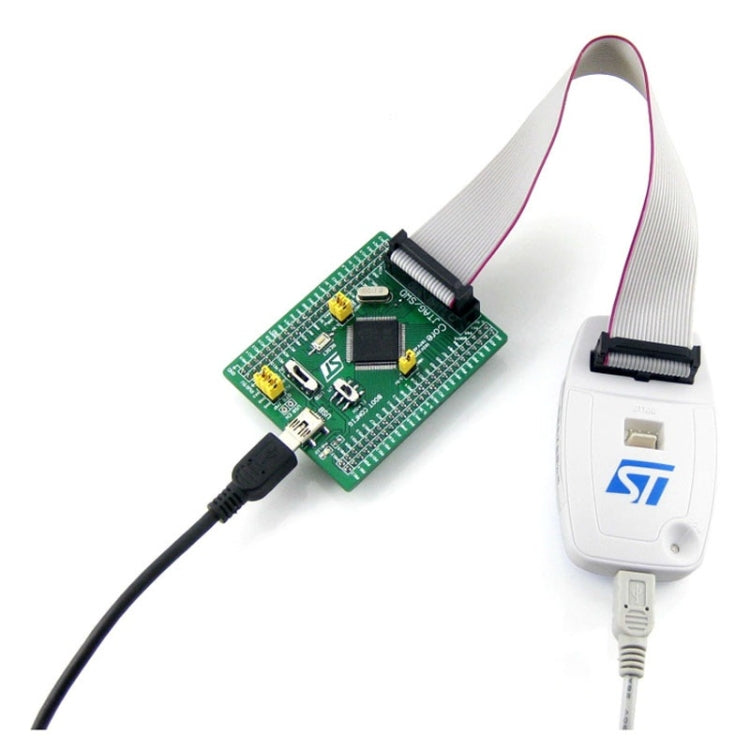

• JTAG/SWD programming/debugging interface
• 2.54mm header pitch, allowed to be plugged-in your application board
• What has On Board
• STM32F405RGT6: The high performance STM32 MCU which features:
• - Core: Cortex-M4 32-bit RISC
• - Operating Frequency: 168MHz, 210 DMIPS/1.25 DMIPS/MHz
• - Operating Voltage: 1.8V-3.6V
• - Package: LQFP64
• - Memories: 1MB Flash, 192+4kB SRAM
• - MCU communication Interfaces:
• -- 3 x SPI, 4 x USART, 2 x UART, 2 x I2S, 3 x I2C, 1 x SDIO, 2 x CAN
• --1 x USB 2.0 HS/FS device/host/OTG controller with dedicated DMA, on-chip full-speed PHY
• --1 x USB HS ULPI (external PHY required)
• - AD & DA converters: 3 x AD (12-bit, 1μs, shares 16 channels); 2 x DA (12-bit)
• - Debugging/Programming: supports JTAG/SWD (serial wire debug) interfaces, supports IAP
• AMS1117-3.3: 3.3V voltage regulator
• MIC2075-2: onboard USB power management device
• Power supply switch, powered from 5Vin or USB connection
• Boot mode selection, for configuring BOOT0 pin
• Power indicator
• VBUS LED
• Reset button
• 8M crystal
• 32.768K crystal, for internal RTC with calibration
• JTAG/SWD interface: for debugging/programming
• USB connector, used for establishing USB communication between PC and the STM32 development board
• MCU pins expander, VCC, GND and all the I/O pins are accessible on expansion connectors for further expansion
• 5Vin pinheader, 5V power supply is required when using USB HOST/OTG
• USB jumper
• - Short the jumper when using USB
• - Open the jumper to disconnect from related I/O port
• VBAT selection jumper
• - Short the jumper to use system power supply
• - Open the jumper to connect the VBAT to external power, such as battery
• Package Contents
• Core405R x 1
• USB type A to Mini-B cable x 1
• Software CD x 1

Package Info: Weight: 0.12kgs / 0.26lb, Size: 10cm * 8cm * 3cm / 3.94inch * 3.15inch * 1.18inch
