Waveshare Core1262-868M Anti-Interference SX1262 LoRa Module, EU868 Band – Durable Build, Easy to Use
£12.99
Waveshare Core1262-868M Anti-Interference SX1262 LoRa Module, EU868 Band – Durable Build, Easy to Use.
Key Features:
- About The Product

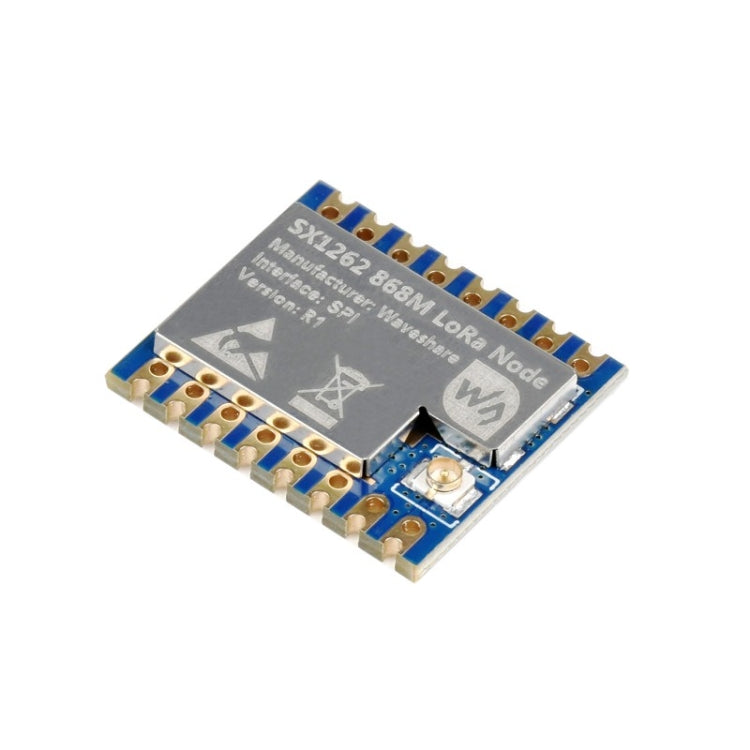

- The Core1262-868M is a LoRa core module which incorporates new-generation SX1262 chip. It has featuress including mini size, long range transmission, high...
- New-generation SX1262, higher power efficiency and longer transmission distance than the traditional SX1278

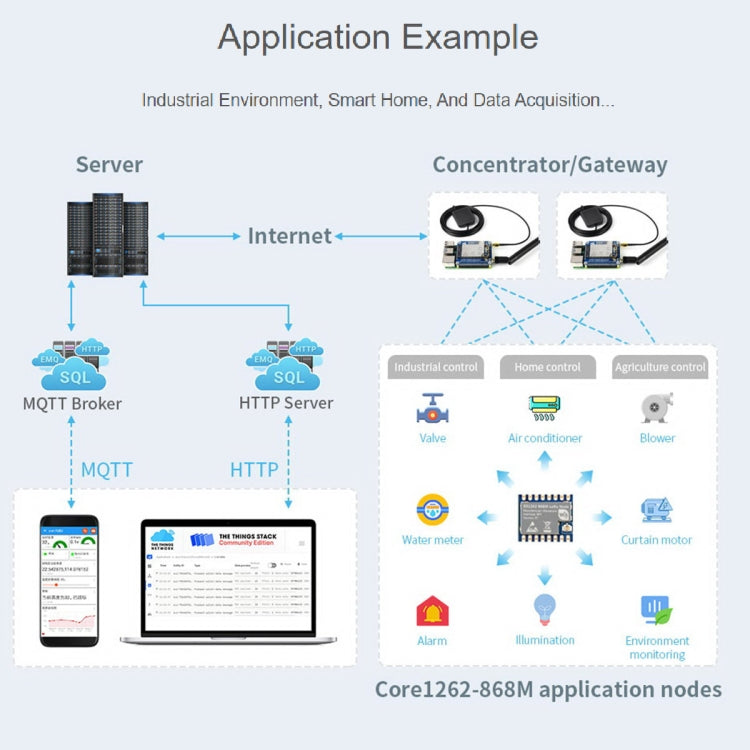

- EU868 band, combined with LoRa gateway, quick connection to cloud servers like TTN server
- Comes with rich development resources and manual (examples for STM32, Raspberry Pi Pico)
- Specifications
- RF chip: SX1262
- Frequency range: EU868 (863~870MHz)
- Modulation: LoRa/(G)FSK
- Data rate: 0.018~62.5Kbps (LoRa), 0.6~300Kbps ((G)FSK)
- Emit power: More than 14dBm 3.3V
- Spreadind factor: SF5 ~ SF12
- Operating voltage: 3.3V
- Module power consumption: Emitting current: 45mA 14dBm;
- receiving current: 5.3mA 125KHz

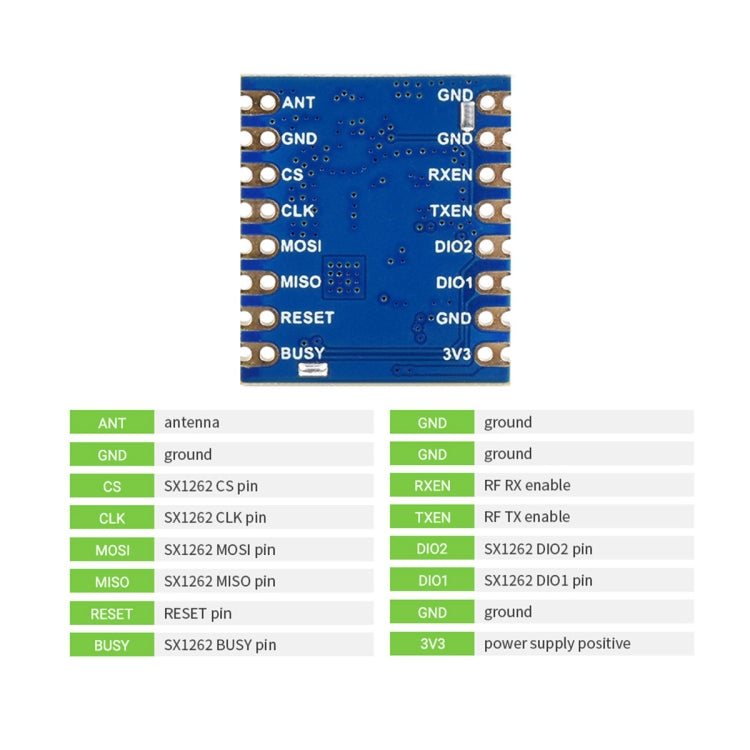

- Communication bus: SPI
- Operating temperature: -40 ~ 85 degree C

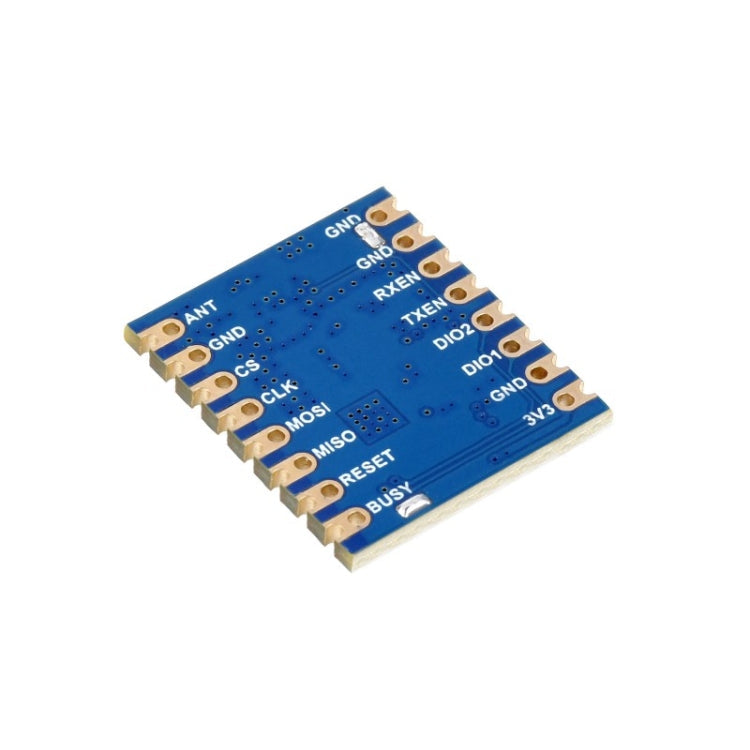

- Connector: Castellated edge / solder holes
- Dimensions: 21.00 x 52.00mm
Package Info: Weight: 0.02kgs / 0.05lb, Size: 15cm * 12cm * 1cm / 5.91inch * 4.72inch * 0.39inch
