Waveshare BME280 Environmental Sensor, Temperature, Humidity, Barometric Pressure, Environmental – Durable Build, Easy to Use

Waveshare BME280 Environmental Sensor, Temperature, Humidity, Barometric Pressure, Environmental – Durable Build, Easy to Use.

Key Features:

• BME280 Environmental Sensor, Temperature, Humidity, Barometric Pressure
• Overview

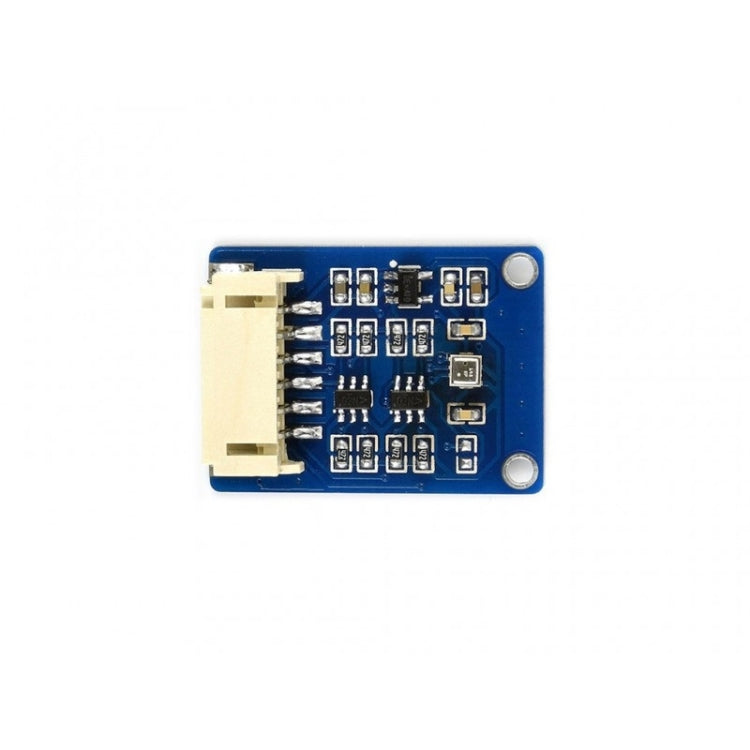

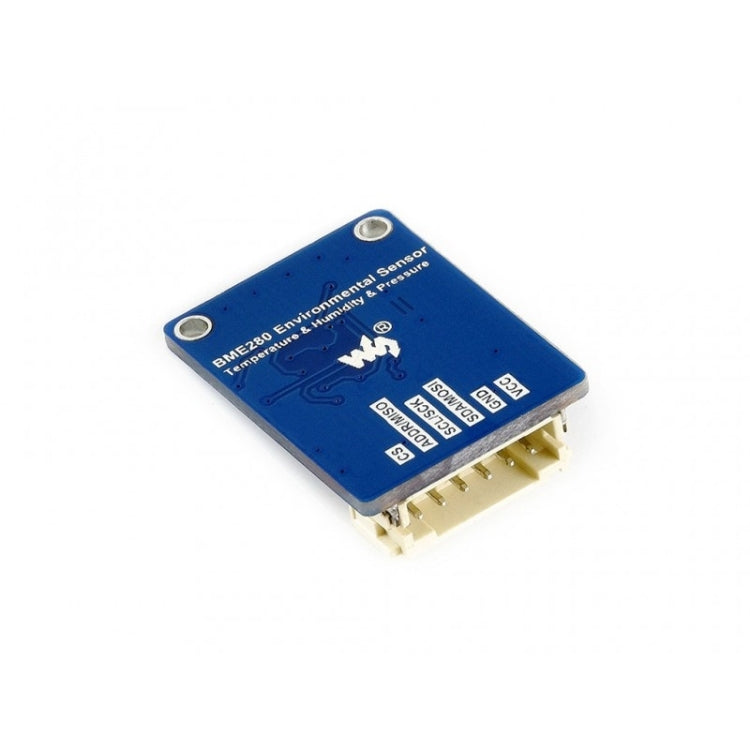

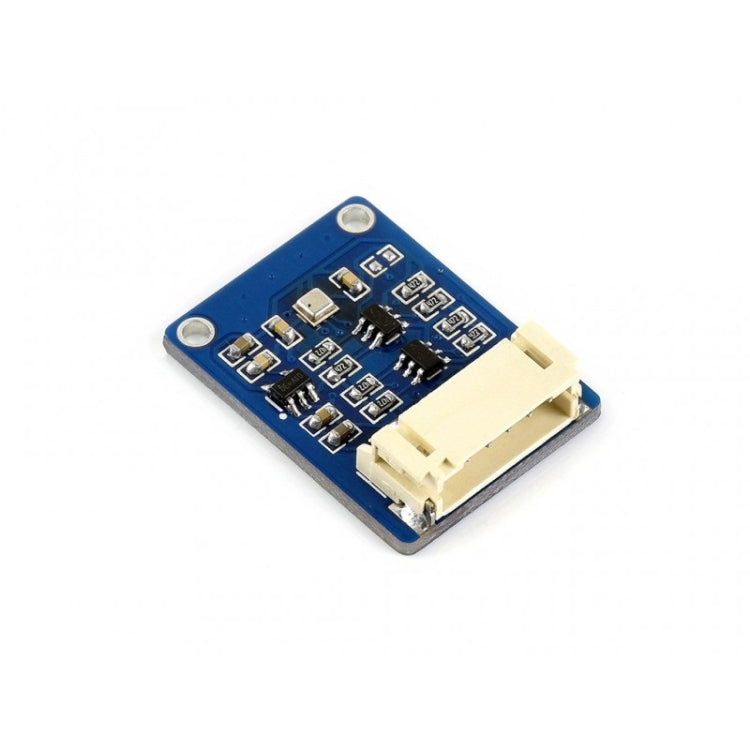

• A tiny sensor breakout with BME280 onboard, sensing environmental temperature, humidity, and barometric pressure. It supports both I2C and SPI interfaces,...
• Due to its ultra small form factor, low power consumption, high precision with stability, the BME280 Environmental Sensor is suited for applications such as...
• Features
• Supports I2C (default), configurable slave address
• Supports SPI, switch to SPI via I/O setting
• Onboard voltage level translator, compatible with 3.3V/5V operating voltage
• Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
• Specifications
• Operating voltage: 3.3V/5V
• Communication interface: I2C/SPI
• Temperature sensing: -40~85°C (resolution 0.01degree C, accuracy +/-1 degree C)
• Humidity sensing: 0~100%RH (resolution 0.008%RH, accuracy +/-3%RH, response time 1s, delay =<2%RH)
• Barometric pressure sensing: 300~1100 hPa (resolution 0.18Pa, accuracy +/-1hPa)
• Power consumption: <0.1mA@1Hz (H,P,T)
• Dimension: 27mm x 20mm
• Mounting hole size: 2.0mm
• Package Contents
• BME280 Environmental Sensor x1

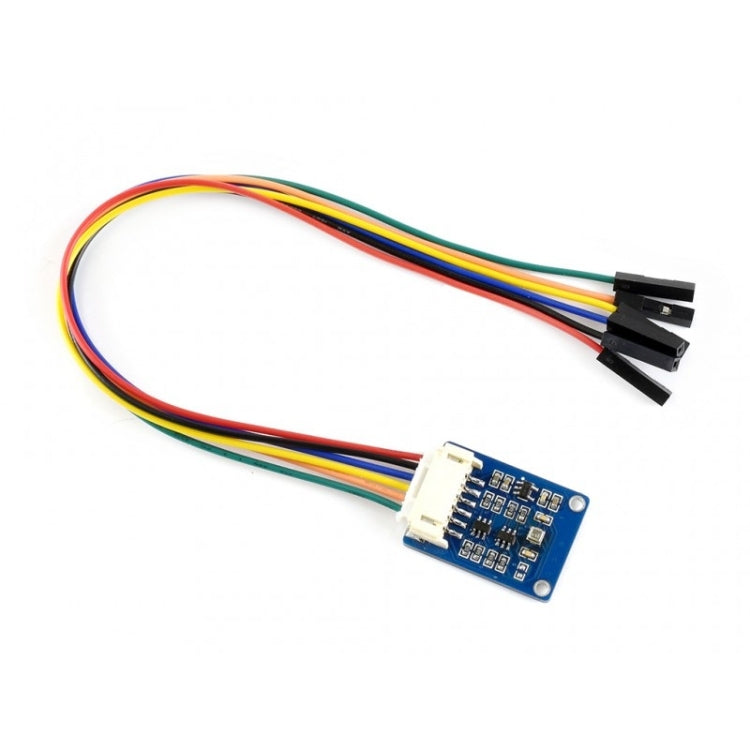

• PH2.0 6PIN wire 20cm x1

Package Info: Weight: 0.02kgs / 0.04lb, Size: 5cm * 3cm * 1cm / 1.97inch * 1.18inch * 0.39inch

Shipping: Shipping charges and final delivery dates are shown at checkout.
