Waveshare Adapter Board for Arduino & Raspberry Pi – Durable Build, Easy to Use

Waveshare Adapter Board for Arduino & Raspberry Pi – Durable Build, Easy to Use.

Key Features:

• Overview
• Arduino is a massive ecosystem, if there is a way for the Raspberry Pi GPIO interface to adapt to Arduino pinouts, it is possible to use the Pi together...
• What is more, the ARPI600 also support XBee modules, make it easy to add wireless feature to your great project.
• Supported Pi
• 1. Raspberry Pi 1 Model A+
• Raspberry Pi 1 Model B+
• Raspberry Pi 2 Model B
• Raspberry Pi 3 Model B
• Raspberry Pi 3 Model B+
• ARPI600 Features

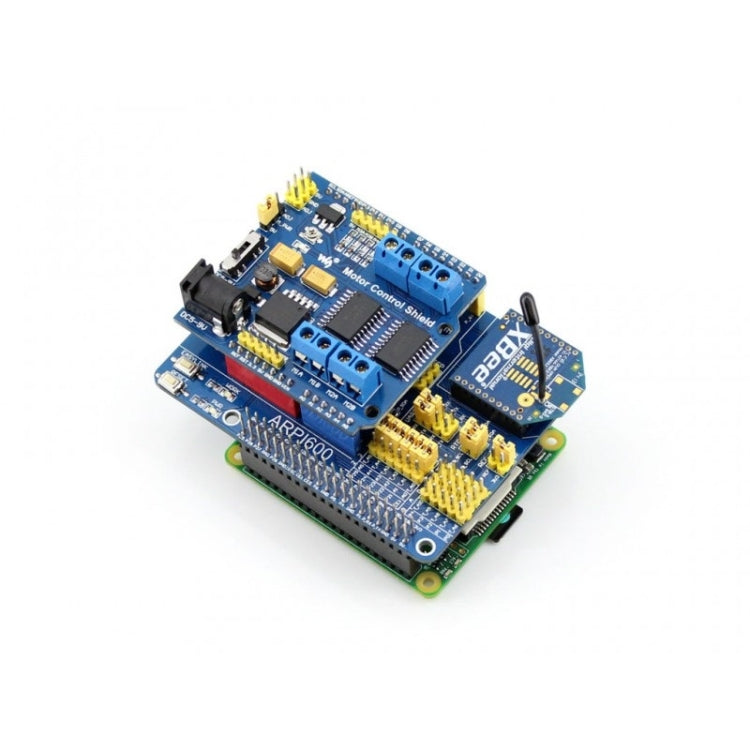

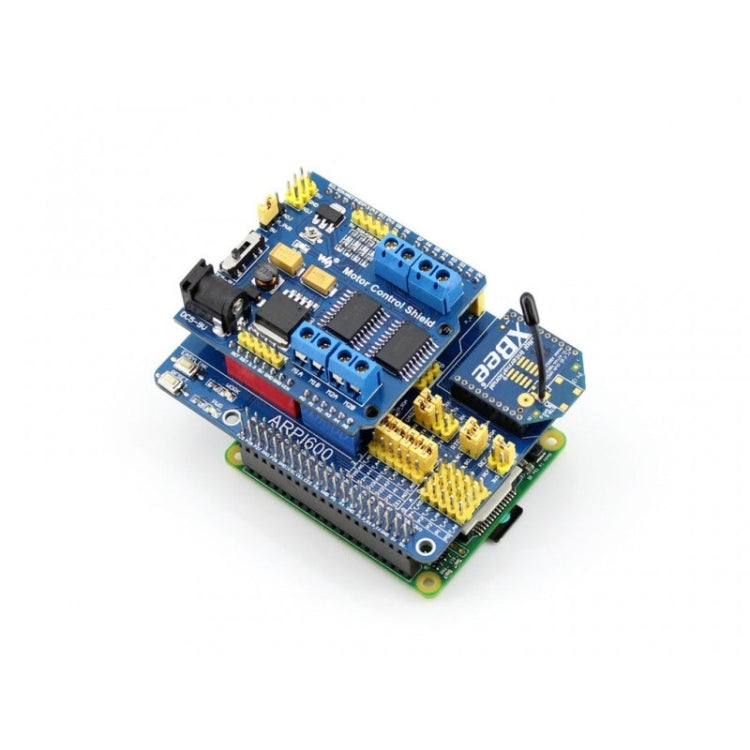

• 1. Compatible with Arduino UNO, Leonardo, easy to connect with various Arduino shields
• XBee connector for connecting various XBee modules
• Sensor interface for connecting various sensors
• Onboard USB TO UART for serial port debugging, also can be configured as XBee USB adapter
• Onboard ADC, 10 bit, 38KSPS, 11 channels (6 channels for Arduino interface, 5 channels for sensors)
• Onboard RTC

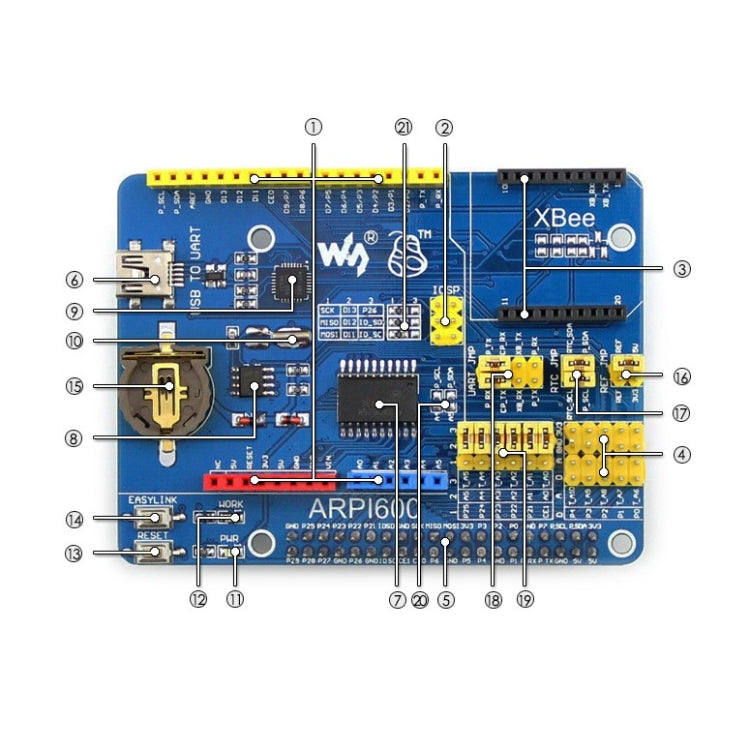

• What is on the ARPI600

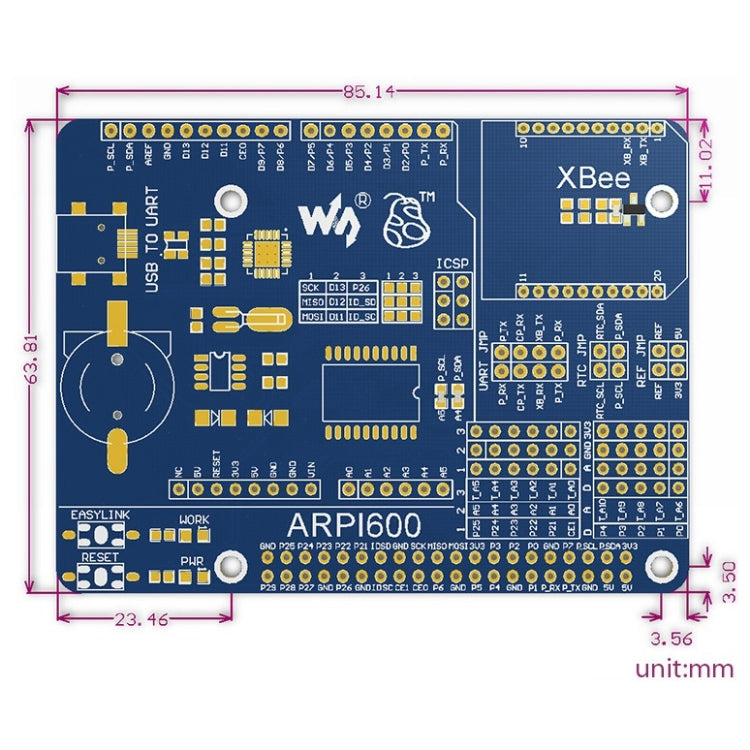

• 1. Arduino connector: For connecting Arduino shields
• ICSP interface: Arduino ICSP
• XBee connector: For connecting XBee communication modules
• Sensor interface: For connecting sensors
• Raspberry Pi connector: For connecting Raspberry Pi
• USB TO UART
• TLC1543: AD converter
• PCF8563: RTC
• CP2102
• 32.768KHz crystal: For RTC
• Power indicator
• XBee state LED
• XBee and Arduino interface RESET button
• XBee EASYLINK button
• RTC battery holder: For CR1220 button battery
• TLC1543 reference voltage configuration jumper
• RTC jumper
• UART jumper
• - When connecting P_RX and CP_TX, P_TX and CP_RX respectively, USB TO UART is connected to Raspberry Pi serial port
• - When connecting XB_RX and CP_TX, XB_TX and CP_RX respectively, USB TO UART is connected to XBee serial port
• - When connecting XB_RX and P_TX, XB_TX and P_RX respectively, Raspberry Pi serial port is connected to XBee serial port
• Arduino AD selection jumper
• - Short 2 and 3: Arduino A0-A5 as AD input
• - Short 1 and 2: Arduino A0-A5 as digital control
• Arduino I2C selection jumper
• - Short the jumper : Arduino A4-A5 as I2C control (the A4-A5 of Arduino AD selection jumper should be opened)
• Arduino SPI selection jumper
• - Short 1 and 2: Arduino D11-D13 as SPI control (default)
• - Short 2 and 3: Arduino D11-D13 as digital control
• Package Contents
• 1. ARPI600 x 1
• USB type A plug to mini-B plug cable x 1
• RPi screws pack (2pcs) x 1

Package Info: Weight: 0.12kgs / 0.26lb, Size: 10cm * 7cm * 3cm / 3.94inch * 2.76inch * 1.18inch
