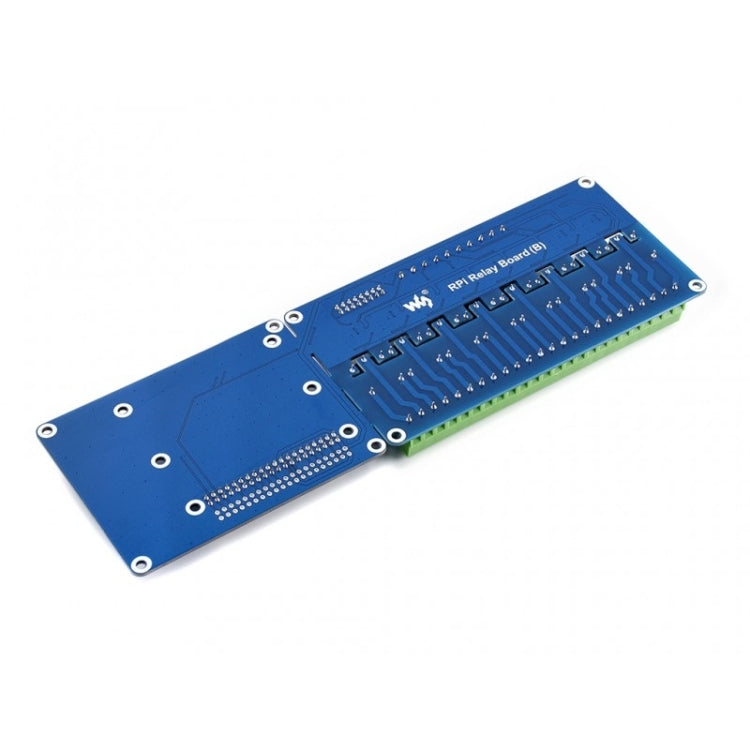

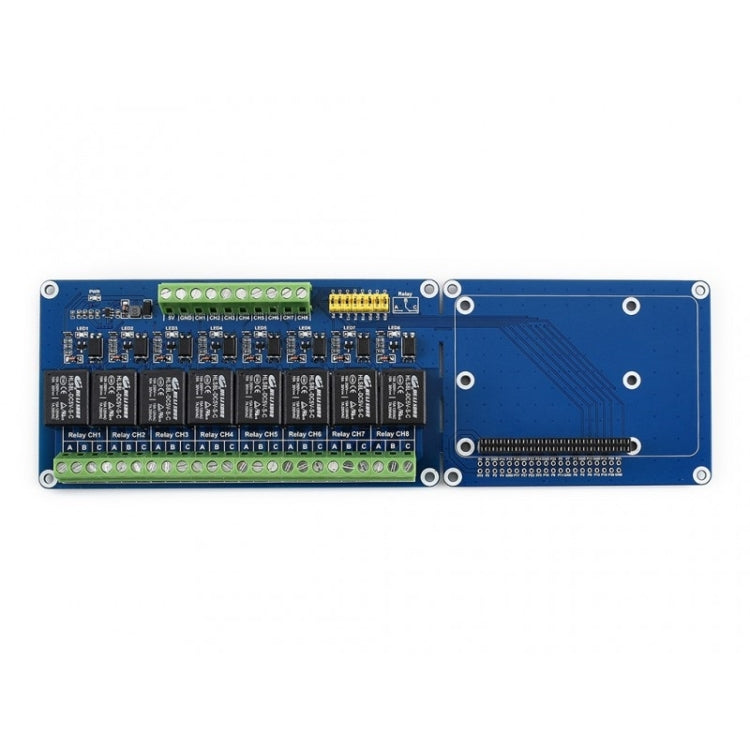

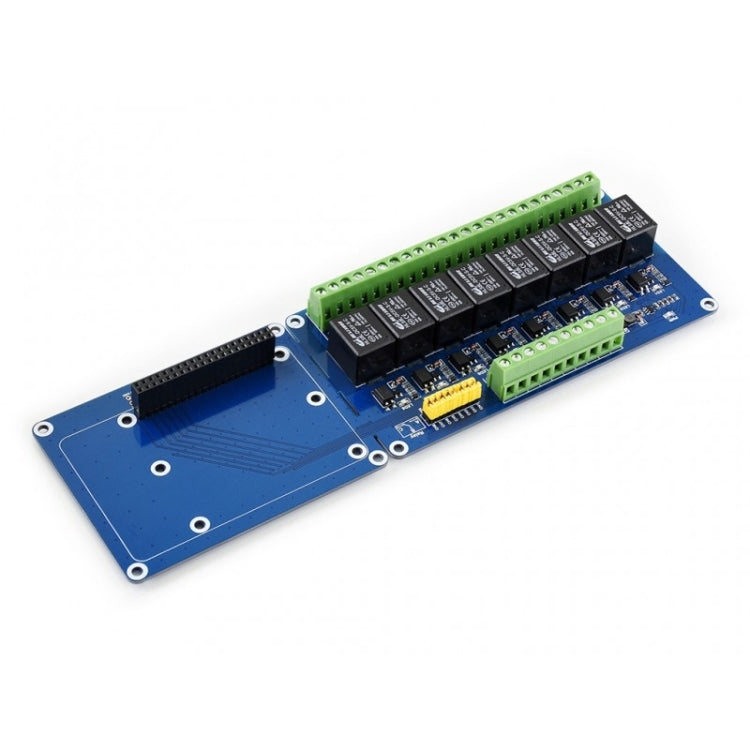

Waveshare 8-ch Relay Expansion Board for Raspberry Pi, Raspberry Pi 8-ch Relay – Durable Build, Easy to Use

Waveshare 8-ch Relay Expansion Board for Raspberry Pi, Raspberry Pi 8-ch Relay – Durable Build, Easy to Use.

Key Features:

• Overview
• The RPi Relay Board (B) is an expansion board with 8-ch relays for Raspberry Pi. It gives your Pi the ability to control high voltage products such as home...
• Features
• 1. Supports Raspberry Pi A+/B+/2B/3B/3B+
• High quality relays, loads up to 5A 250V AC or 5A 30V DC
• Photo coupling isolation, prevent interference from high voltage circuit

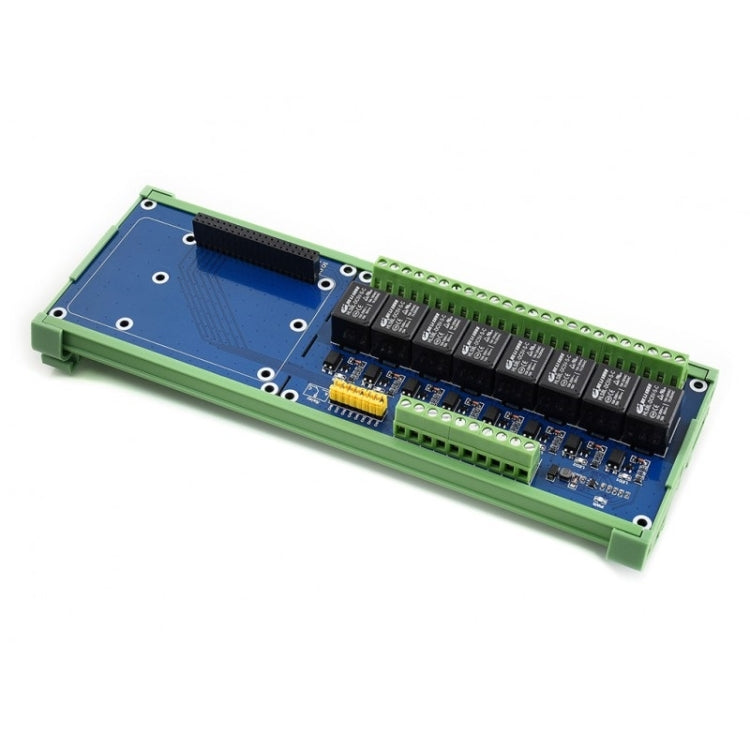

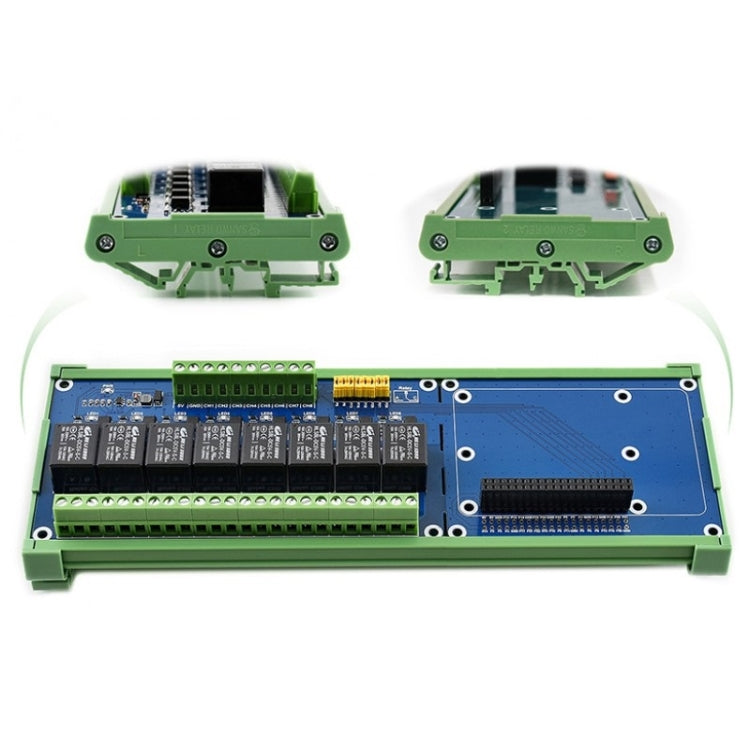

• Standard rail mount bottom case
• Onboard LEDs for indicating relays status
• Relay control pin selection jumper, allows to control the relays by custom pins other than the default pins
• Reserved control Interface, allows to work with controllers like PLC
• Comes with development resources, including examples in wiringPi, bcm2835, python, python-bottle (webpage control), and crontab (cron job)
• Specifications
• 1. Power supply voltage: 5V
• Trigger signal: 3.3V/5V
• Relay channels: 8-ch
• Contact form: SPDT-NO,NC
• Closed current: 6mA (per channel)
• Connector: screw terminal block
• Dimension: 232 × 72 (mm)
• Mounting hole size: 3.0mm

Package Info: Weight: 0.33kgs / 0.73lb, Size: 25cm * 9cm * 2cm / 9.84inch * 3.54inch * 0.79inch
