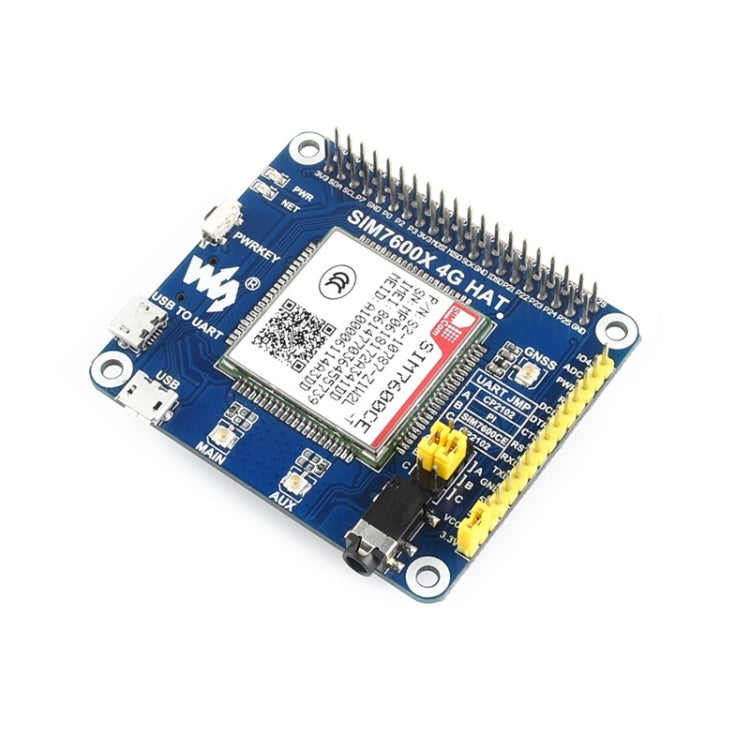

Waveshare 4G / 3G / 2G / GSM / GPRS / GNSS HAT for Raspberry Pi, LTE CAT4, for China – Card Slot, 4K

Waveshare 4G / 3G / 2G / GSM / GPRS / GNSS HAT for Raspberry Pi, LTE CAT4, for China – Card Slot, 4K.

Key Features:

• Overview
• The SIM7600A-H 4G HAT is a 4G communication and GNSS positioning module, which supports LTE CAT4 up to 150Mbps for downlink data transfer. it is pretty low...

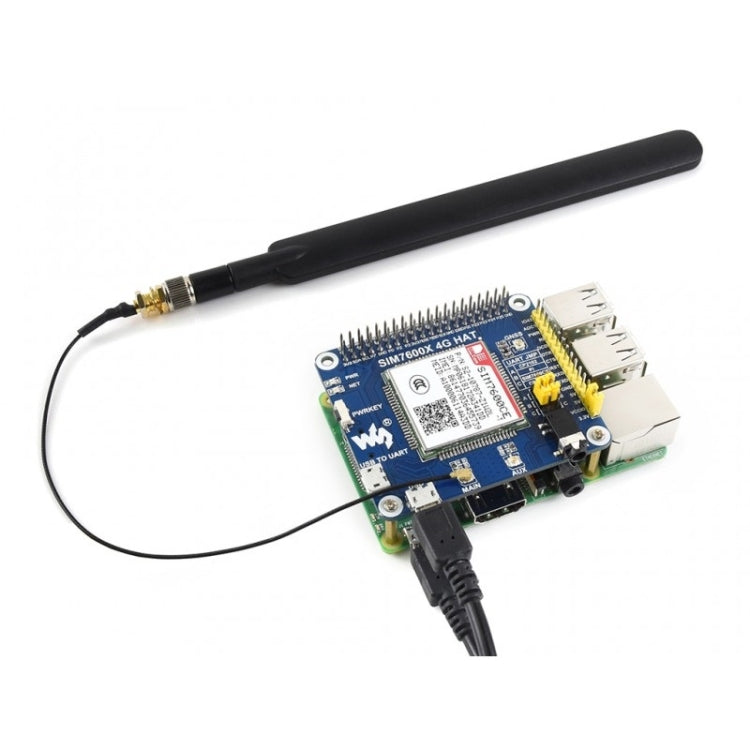

• You can connect this 4G module with computer to surf the Internet, or attach it onto Raspberry Pi to enable functions like 4G high speed connection,...
• Applicable Region
• SIM7600A-H is mainly applicable in North America (US, CA, MX), SIM7600E-H is mainly applicable in Southeast Asia, West Asia, Europe, Africa, SIM7600CE-T is...
• Please check the supported bands according to your local service provider, select the proper one when placing order.
• Features
• Raspberry Pi connectivity, compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+
• Support dial-up, telephone call, SMS, MMS, mail, TCP, UDP, DTMF, HTTP, FTP, etc.
• Support GPS, BeiDou, Glonass, LBS base station positioning
• Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
• Onboard CP2102 USB to UART converter, for serial debugging
• Breakout UART control pins, to connect with host boards like Arduino/STM32
• SIM card slot, supports 1.8V/3V SIM card
• Onboard audio jack and audio decoder for making telephone call
• 2x LED indicators, easy to monitor the working status
• Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumper
• Baudrate: 300bps-4Mbps (default: 115200bps)
• Autobauding baudrate: 9600bps-115200bps
• Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set)
• Support SIM application toolkit: SAT Class 3, USAT
• Come with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
• Communications Specifications
• Band:
• A. LTE:
• - SIM7600A-H: LTE-FDD B2/B4/B12
• - SIM7600E-H: LTE-FDD B1/B3/B5/B7/B8/B20, LTE-TDD B38/B40/B41
• - SIM7600CE-T: LTE-TDD B38/B39/B40/B41, LTE-FDD B1/B3/B8
• B. WCDMA / TD-SCDMA/ CDMA 2000
• - SIM7600A-H: UMTS/HSPA+ B2/B5
• - SIM7600E-H: UMTS/HSPA+ B1/B5/B8
• - SIM7600CE-T: UMTS/HSDPA/HSPA+ B1/B8, TD-SCDMA B34/B39, CDMA 1X/EVDO BC0
• C. GSM/GPRS/EDGE 900/1800 MHz
• Generation: 4G, 3G, 2.5G, 2G
• Emitting power: 0.25W, 0.5W/EGSM900, 0.4W/DCS1800, 2W/GSM900, 1W/DCS1800
• Data Speed
• - LTE CAT 4: Uplink=<50 Mbps, Downlink=<150 Mbps
• - UMTS: Uplink=<384Kbps, Downlink=<384Kbps
• - EDGE: Uplink=<236.8kbps, Downlink=<236.8kbps
• - GPRS: Uplink=<85.6kbps, Downlink=<85.6kbps
• - HSPA+: Uplink=<5.76Mbps, Downlink=<42Mbps
• GNSS Specifications
• Receiver type
• - 16-channel
• - C/A code
• Sensitivity
• - Tracking: -159 dBm (GPS) / -158 dBm (GLONASS) / TBD (BD)
• - Cold starts: -148 dBm
• Time-To-First-Fix (open air)
• - Cold starts: <35s
• - Hot starts: <1s
• Accuracy
• - Position: <2.5m CEP
• SMS and Audio Specifications
• SMS
• - Support types: MT, MO, CB, Text, PDU
• - Storage: USIM card and ME (default)
• Audio feature
• - Support echo cancellation
• - Support noise reduction
• Other Specifications
• Power supply: 5V
• Operating voltage: 5V/3.3V (configured via jumper)
• Operating temperature: -30 degree C ~ 80 degree C
• Storage temperature: -45 degree C - 90 degree C

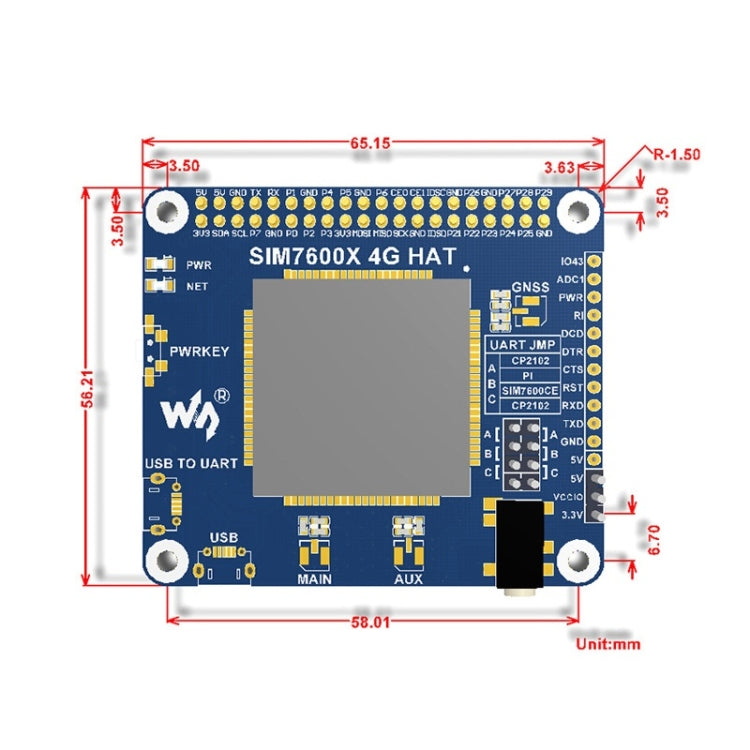

• Dimension: 56.21mm x 65.15mm

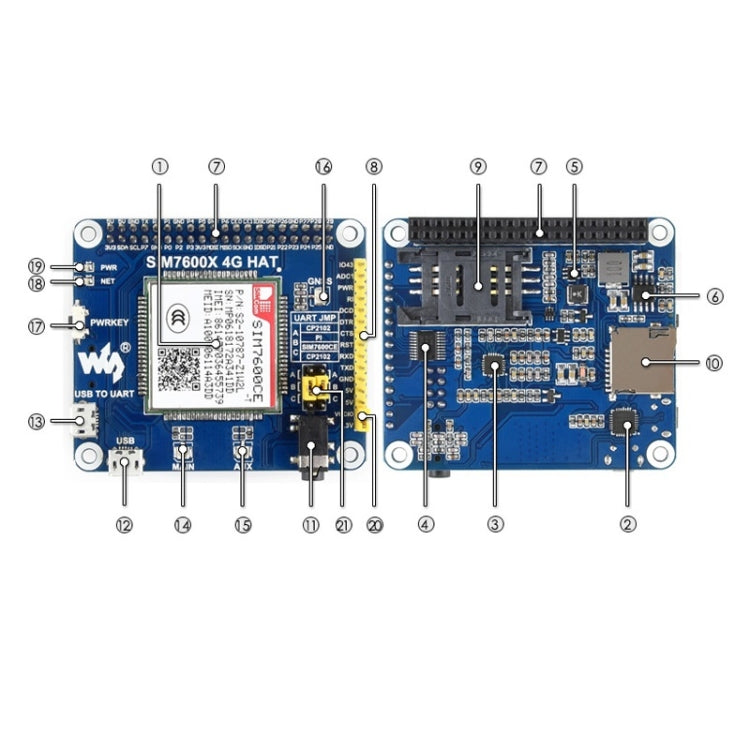

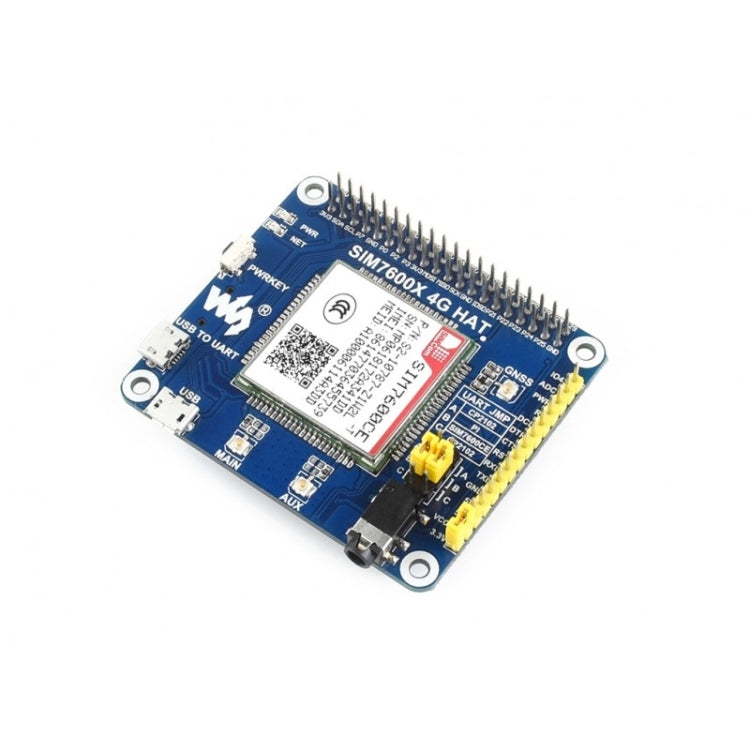

• What is on Board
• SIM7600CE-T
• CP2102 USB to UART converter
• NAU8810 audio decoder
• TXS0108EPWR voltage translator: Translates 3.3V/5V into 1.8V
• MP2128DT power chip
• MP1482 power chip
• Raspberry Pi GPIO header: For connecting with Raspberry Pi
• SIM7600 control interface: For connecting with host boards like Arduino/STM32

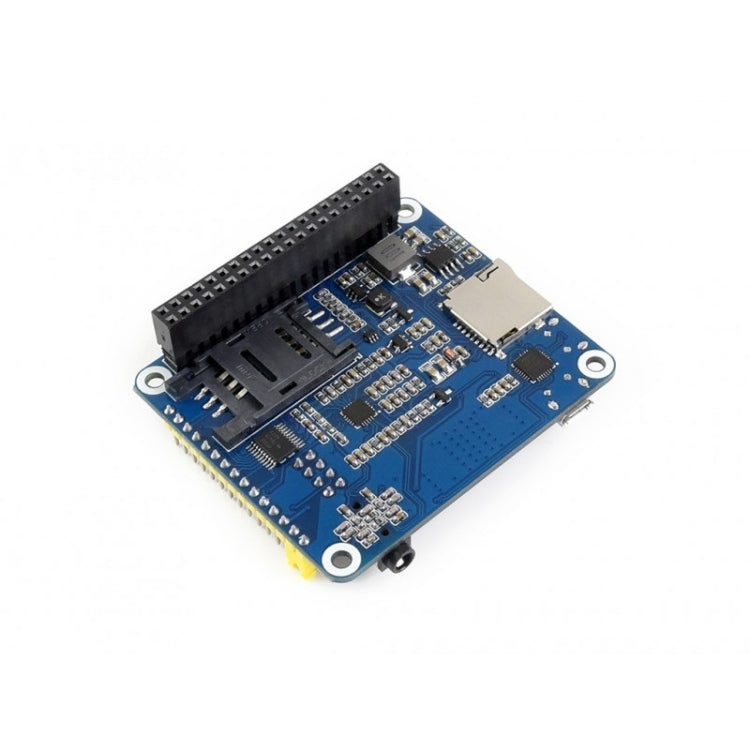

• SIM card slot: Supports 1.8V/3V SIM card
• TF card slot: Allows file/SMS/...storage
• 3.5mm earphone/mic jack
• USB interface: For testing AT Commands, getting GPS positioning data, etc.
• USB to UART interface: For serial debugging, or login to Raspberry Pi

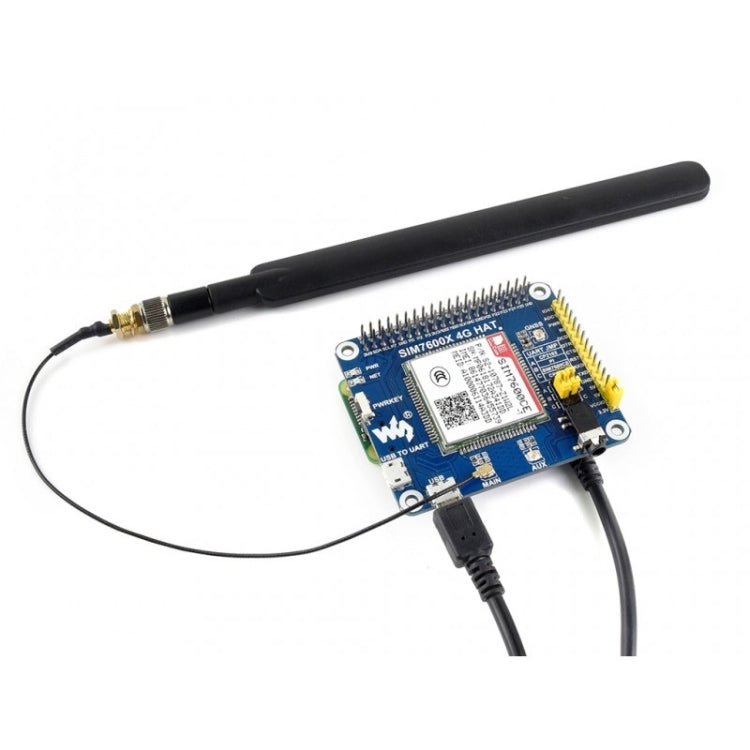

• MAIN antenna connector
• AUX antenna connector

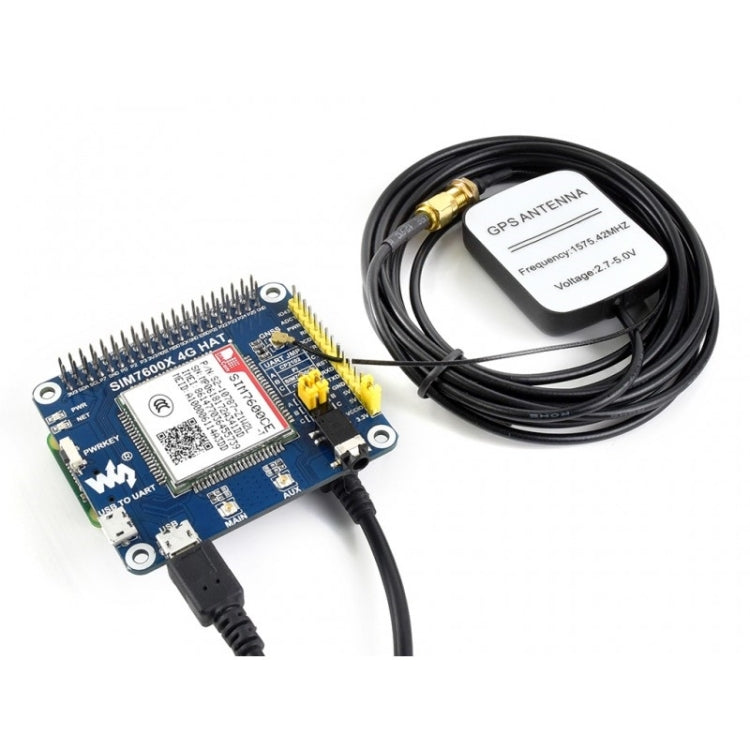

• GNSS antenna connector
• Power switch
• Network status indicator
• Power indicator
• Operating voltage selection jumper:
• - VCCIO-3.3V: set operating voltage as 3.3V
• - VCCIO-5V: set operating voltage as 5V
• UART selection jumper:
• - A: Access Raspberry Pi via USB to UART
• - B: Control the SIM7600 by Raspberry Pi
• - C: Control the SIM7600 via USB to UART

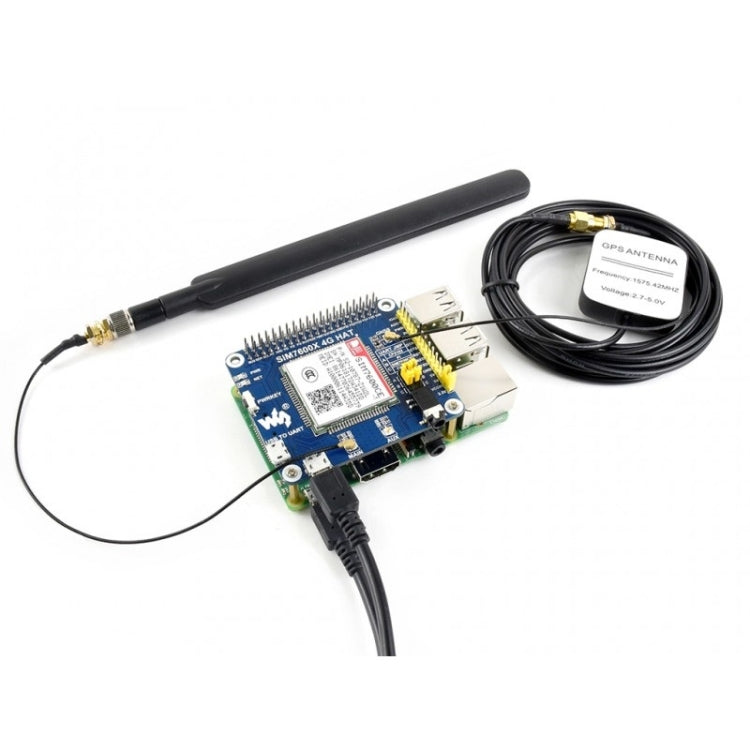

• Package List
• SIM7600CE 4G HAT x1
• LTE Antenna x1
• GPS External Antenna (B) x1
• USB type A plug to micro plug cable x2
• RPi screws pack (2pcs) x1

Package Info: Weight: 0.25kgs / 0.56lb, Size: 15cm * 8cm * 3cm / 5.91inch * 3.15inch * 1.18inch
