Waveshare 4.3 inch 800x600 Pixel Serial Interface Electronic Paper Display UART Module, 10628 – Durable Build, Easy to Use.

Key Features:

  • Overview

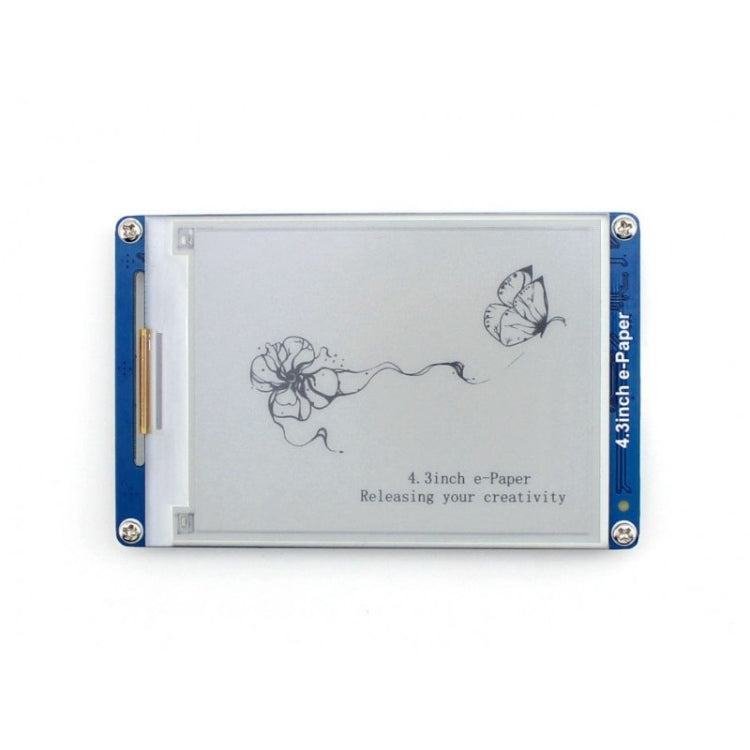

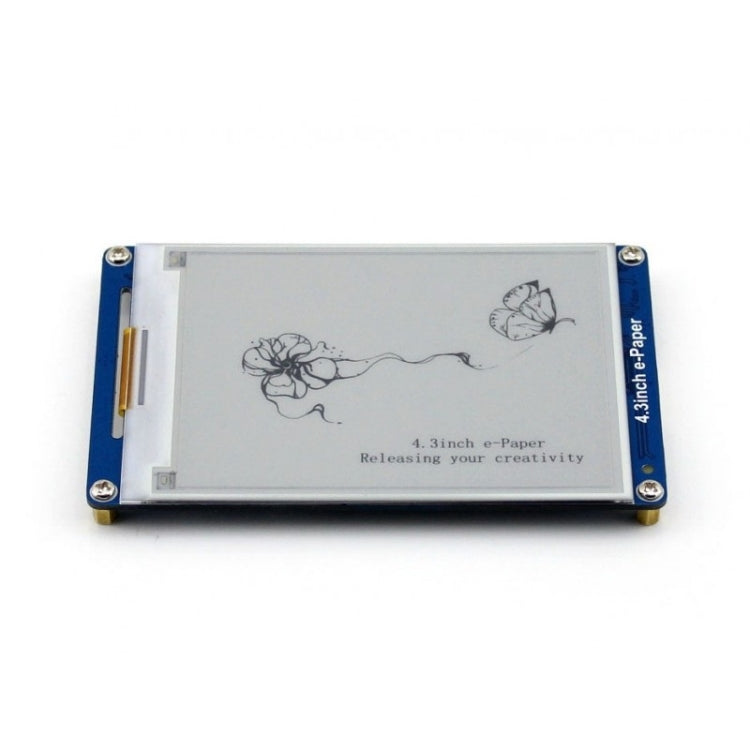

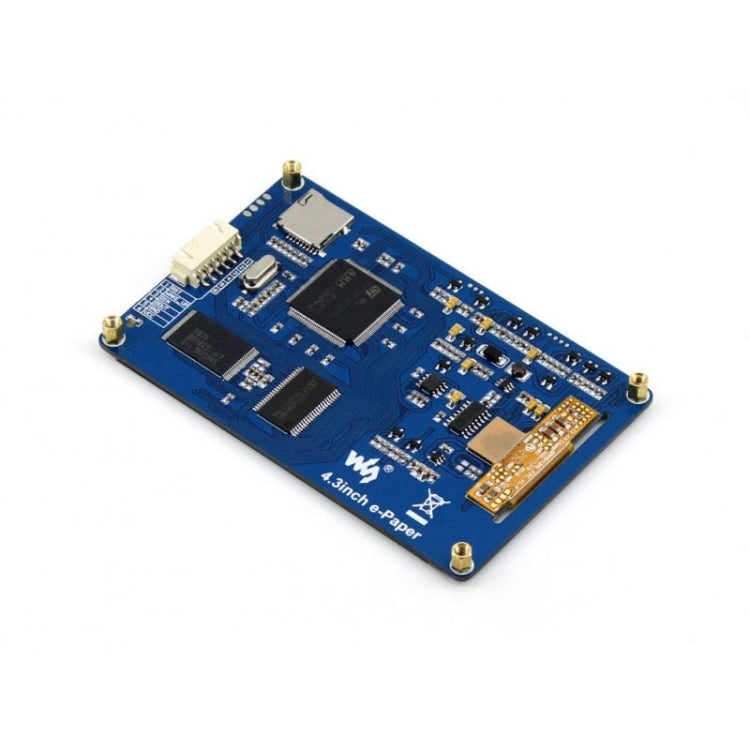

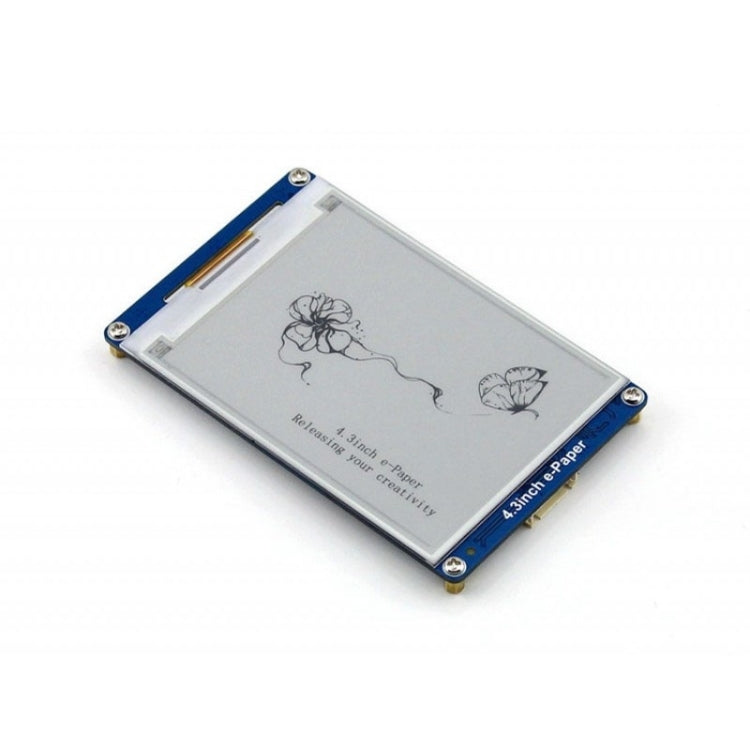

  • This is a serial interface E-Ink display module, 4.3 inch, 800×600 resolution, with embedded font libraries, ultra low power consumption.
  • You do not have to know anything about the complex underlying details of e-Paper, nor the specific algorithms of displaying graphics, texts, and images. All...
  • Features
  • Easy to use, displays any contents via one serial interface, including geometric graphics, texts, and images
  • Embedded font libraries, supports 32, 48 and 64 dot matrix GBK Chinese fonts and English fonts
  • Built-in 128MB NandFlash, allows the font/image data to be stored in either an external TF card or the internal NandFlash
  • 4 grey level displaying, 800×600 resolution
  • Adjustable serial interface baud rate, 115200 by default when power up
  • Powered from 3.3V to 5V, compatible with logic level
  • Ultra low power consumption, sleeping current lower than 5mA
  • Comes with host computer software, control it directly on your computer
  • Applications
  • e book
  • Shopping mall POS
  • Price label
  • Industry instrument

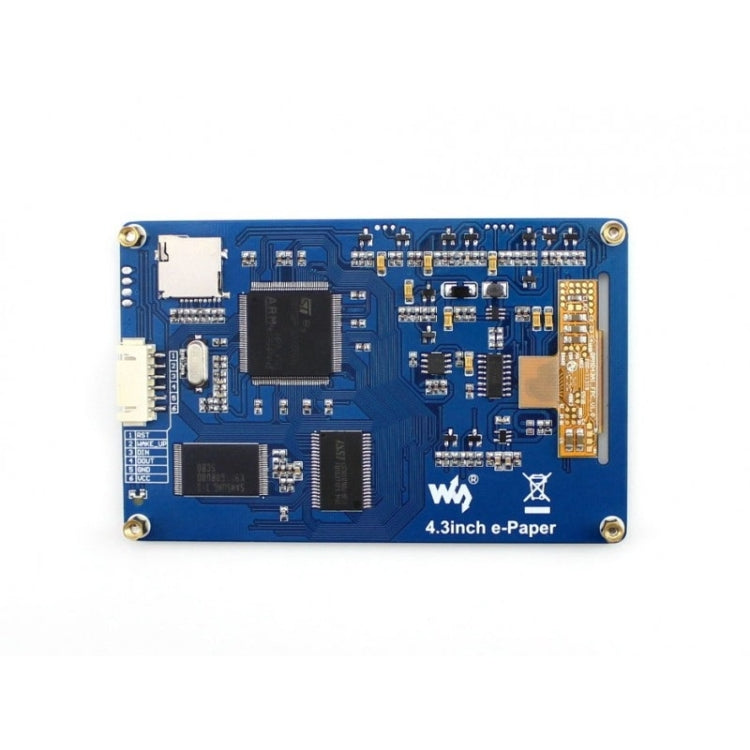

  • Pin Definitions
  • VCC: 3.3V~5.5V
  • GND: GND
  • DOU : Serial data out
  • DIN: Serial data in
  • WAKE_UP: External wake up
  • RST: External reset
  • Package Contents
  • 4.3inch e-Paper UART Module x1
  • XH2.54 6-pin cable ×1

Package Info: Weight: 0.08kgs / 0.18lb, Size: 10cm * 14cm * 2cm / 3.94inch * 5.51inch * 0.79inch
