Waveshare 4-DOF Metal Robot Arm Kit for micro:bit, Support Bluetooth, US Plug – Bluetooth, TPU

Waveshare 4-DOF Metal Robot Arm Kit for micro:bit, Support Bluetooth, US Plug – Bluetooth, TPU.

Key Features:

• Overview
• Equip your micro:bit with this 4-DOF metal robot arm, and get started to explore the world of artificial intelligent robotic.
• This starter robotic arm kit includes: servo driver board, metal mechanical arm structure, and 4x metal gear servos. When used with the micro:bit, it is...
• The Servo Driver
• Adopts Servo Driver for micro:bit:
• Micro:bit edge connector, directly pluggable
• I2C controlled, using only 2 pins
• Up to 16-Channel servo/PWM outputs, 12-bit resolution for each channel (4096 scales)
• Integrates 5V regulator, up to 3A output current, can be powered from battery through VIN terminal
• Standard servo interface, supports common used servo such as SG90, MG90S, MG996R, etc.
• Reserved I2C control pins, allows to work with other control boards
• Comes with development resources and manual (micro:bit graphical examples like Bluetooth/2.4G wir eless remote control)
• The Robot Arm Structure
• 4-DOF, large solid base, metal mechanical grasper
• Full aluminium alloy body, sandblasting oxidation surface, strong & durable
• Clever mechanical structure and mounting design, agile to control, easy to build
• Fitted with 4x metal gear servos (1x MG996R, 3x MG90S), large torque force, smooth moving

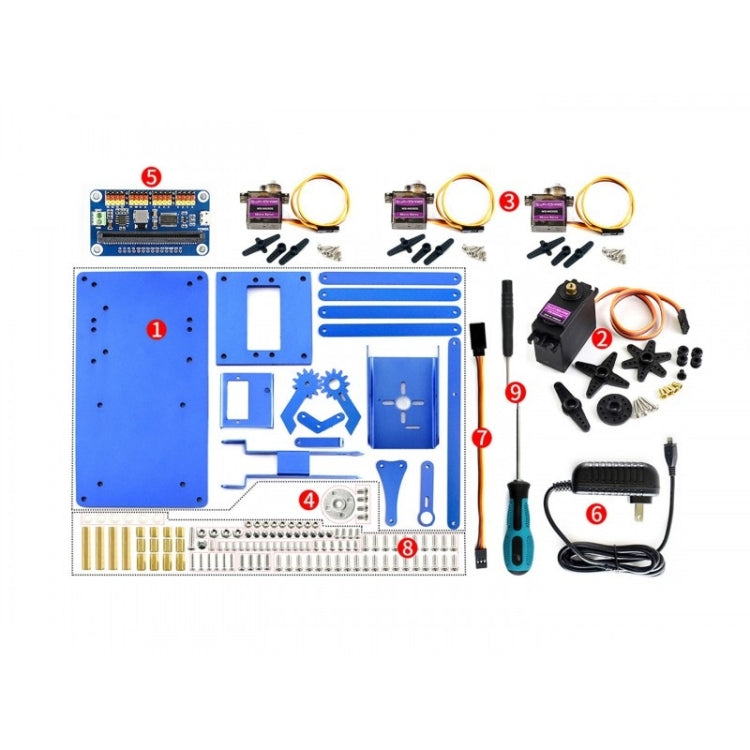

• Package Include
• Note: micro:bit is NOT included.
• Metal arm parts x1
• MG996R Servo x1
• MG90S Servo x3
• MG996R servo wheel x1
• Servo Driver for micro:bit x1
• Power adapter US plug 5V 3A Micro x1
• Servo extension wire 150mm x1
• Screws pack x1
• Screwdrivers 2PCS x1

Package Info: Weight: 0.55kgs / 1.21lb, Size: 25cm * 15cm * 8cm / 9.84inch * 5.91inch * 3.15inch
