Waveshare 2.13 inch 212x104 Pixel Three-color E-Ink Display HAT (B) for Raspberry Pi, 13448 – Durable Build, Easy to Use

Waveshare 2.13 inch 212x104 Pixel Three-color E-Ink Display HAT (B) for Raspberry Pi, 13448 – Durable Build, Easy to Use.

Key Features:

• Overview
• This is an E-Ink display HAT for Raspberry Pi, 2.13inch, 212x104 resolution, with embedded controller, communicating via SPI interface, supports red, black,...
• Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such...
• Features
• No backlight, keeps displaying last content for a long time even when power down
• Ultra low power consumption, basically power is only required for refreshing

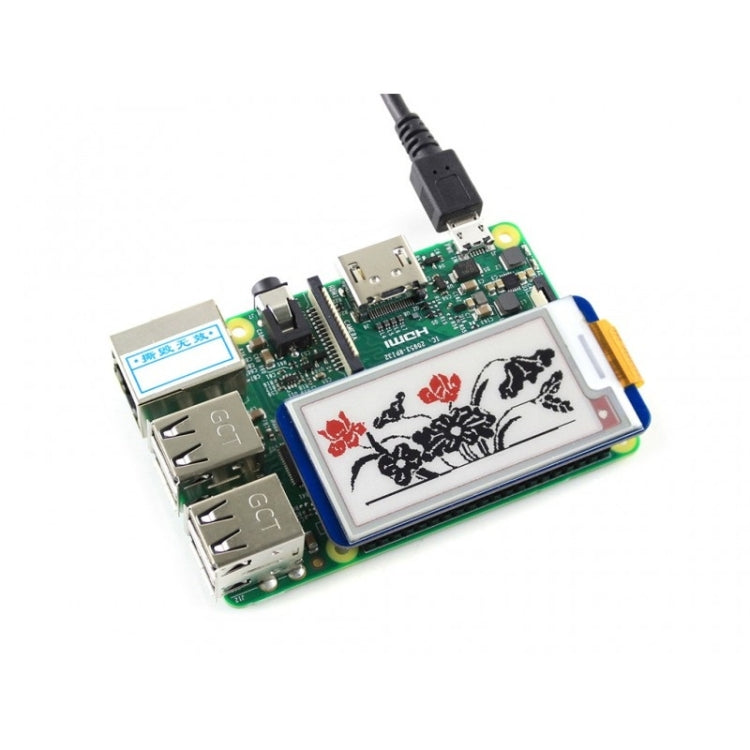

• Compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+

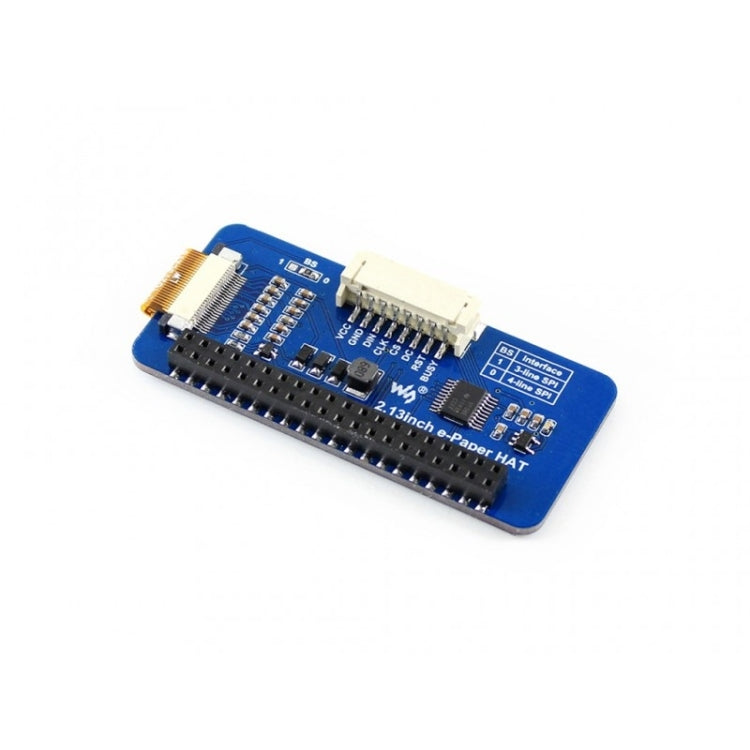

• Preserved solder pads for SPI interface, for connecting with other controller boards like Arduino/Nucleo, etc.
• Onboard voltage translator, compatible with 3.3V/5V MCUs
• Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
• Specifications
• Operating voltage: 3.3V/5V
• Interface: 3-wire SPI, 4-wire SPI
• Outline dimension: 65mm x 30.2mm
• Display size: 23.71mm x 48.55mm
• Dot pitch: 0.229 x 0.228
• Resolution: 212 x 104
• Display color: red, black, white
• Grey level: 2
• Full refresh time: 15s
• Refresh power: 26.4mW(typ.)
• Standby power: <0.017mW
• Viewing angle: >170 degree
• Package Contents
• 2.13 inch e-Paper HAT (B) x1
• RPi screws pack (2pcs) x1
• PH2.0 20cm 8 Pin x1

Package Info: Weight: 0.03kgs / 0.07lb, Size: 8cm * 6cm * 2cm / 3.15inch * 2.36inch * 0.79inch
