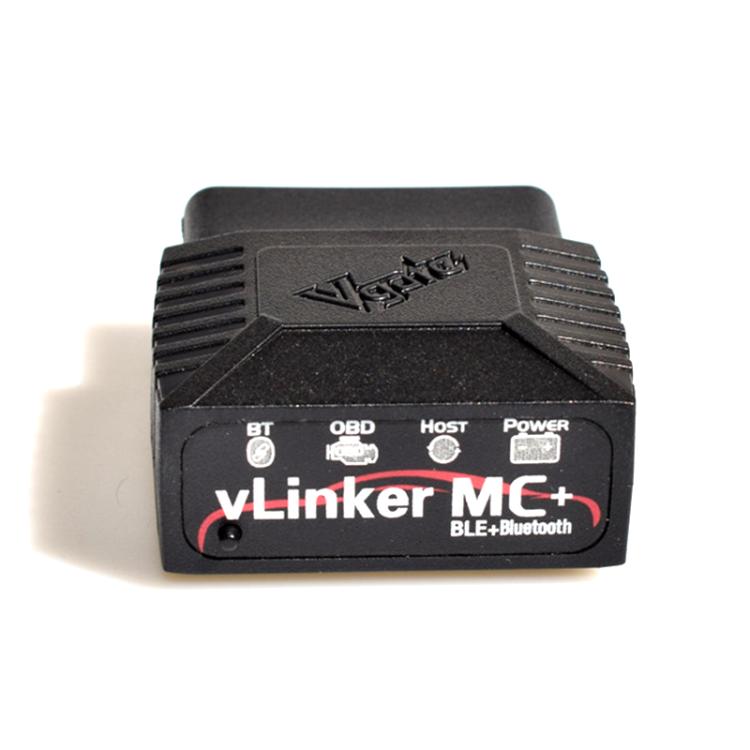

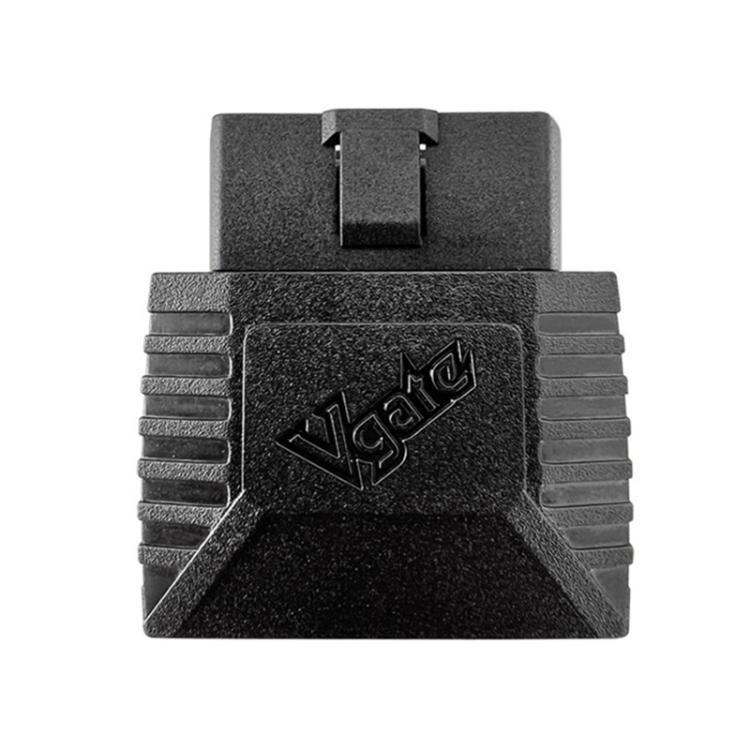

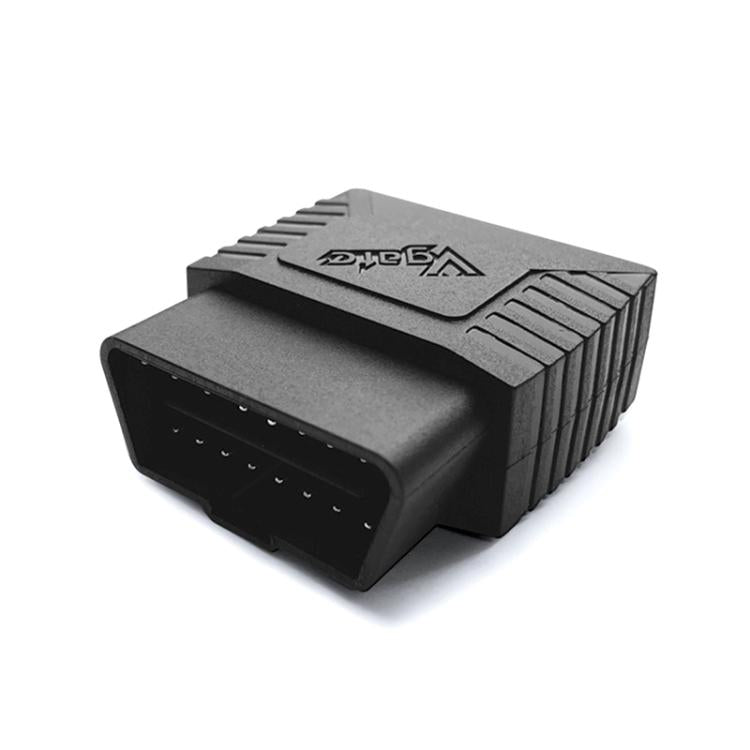

Vgate VLINKER MC+ V2.2 Bluetooth 4.0 Car OBD Fault Diagnosis Detector, MC+ V2.2 Bluetooth 4.0 – Bluetooth, 4K

Vgate VLINKER MC+ V2.2 Bluetooth 4.0 Car OBD Fault Diagnosis Detector, MC+ V2.2 Bluetooth 4.0 – Bluetooth, 4K.

Key Features:

• Rich instruction set, compatible with more APP software.
• Fully compatible with ELMs AT command set;
• Fully compatible with STNs ST command set;
• Expanded 7 AT commands for HS-CAN, MS-CAN, SW-CAN;
• 39 VT macro commands, some instructions are equivalent to the effect of several AT and ST instructions, simplifying the communication steps.
• Multiple protocols:
• 15 ELM format protocols;
• 23 STN format protocols;
• Up to 64 user-defined protocols.
• Multiple fieldbus.
• SAE J1850 VPW
• SAE J1850 PWM
• ISO 9141-2
• ISO 14230-4
• ISO 15765-4 CAN
• SAE J1939 CAN
• ISO 11898 (raw CAN)
• forGMLAN Single Wire CAN (forGMW3089)
• forFord Medium Speed CAN (MS CAN)
• Multiple power management solutions:
• Compatible with ELM and STN power management solutions.
• Support for instructions, UART silence, battery low voltage, OBD bus silence, etc. Up to 5 ways to go to sleep;
• Support UART active, battery voltage drop, OBD bus active, key, etc. Up to 5 ways to wake up from sleep mode.
• Device sleep power consumption is less than 2 mA.
• OBD request byte up to 48 bytes, can meet the needs of some special long frame communication.
• UART data buffer up to 2K bytes, baudrate increased to 230.4Kbps.
• User-operated storage area
• 256-byte storage unit
• More than 100,000 erasable times
• Read and write operations on any unit in the storage area by using the VT command
• Mix ID Sending mode of CAN protocol.
• Optional formatted send data according to protocol
• Multiple WM sequence settings
• Support AT command to manually set WM sequence
• Support for specifying a protocol or a full protocol-wide temporary WM sequence
• Support for a permanent link between a protocol and a private WM sequence
• Secure bootloader for easy firmware updates
• Typical Applications:
• Vehicle telematics
• Fleet management and tracking applications
• Usage-based insurance (UBI)
• OBD data loggers
• Automotive diagnostic scan tools and code readers
• Digital dashboards

Package Info: Weight: 0.11kgs / 0.24lb, Size: 14cm * 8cm * 4cm / 5.51inch * 3.15inch * 1.57inch
