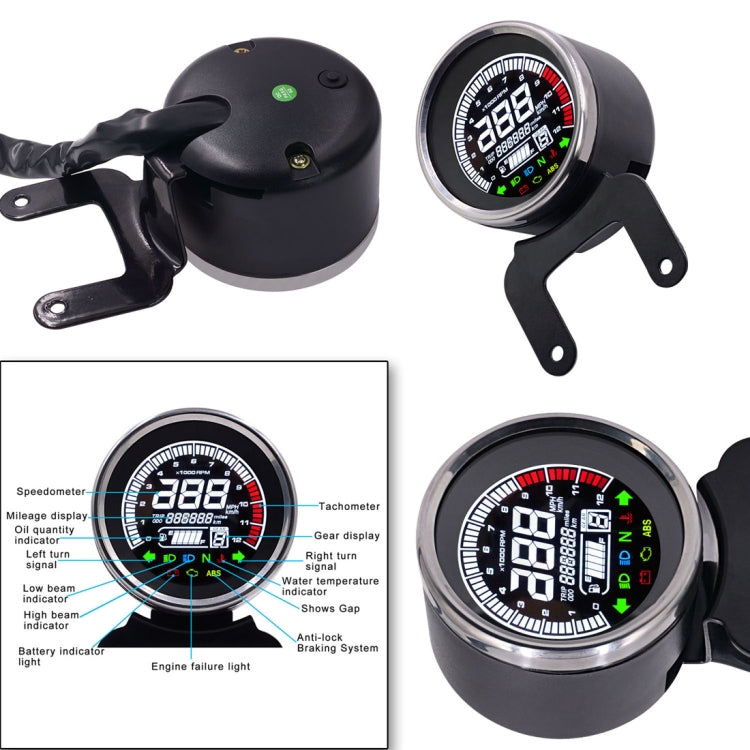

Universal Motorcycle Modified Multi-functional LED Digital Meter Indicator Light Tachometer Odometer Speedometer Oil Meter, LED Digital Meter – Durable Build, Easy to Use

Universal Motorcycle Modified Multi-functional LED Digital Meter Indicator Light Tachometer Odometer Speedometer Oil Meter, LED Digital Meter – Durable Build, Easy to Use.

Key Features:

• Feature:

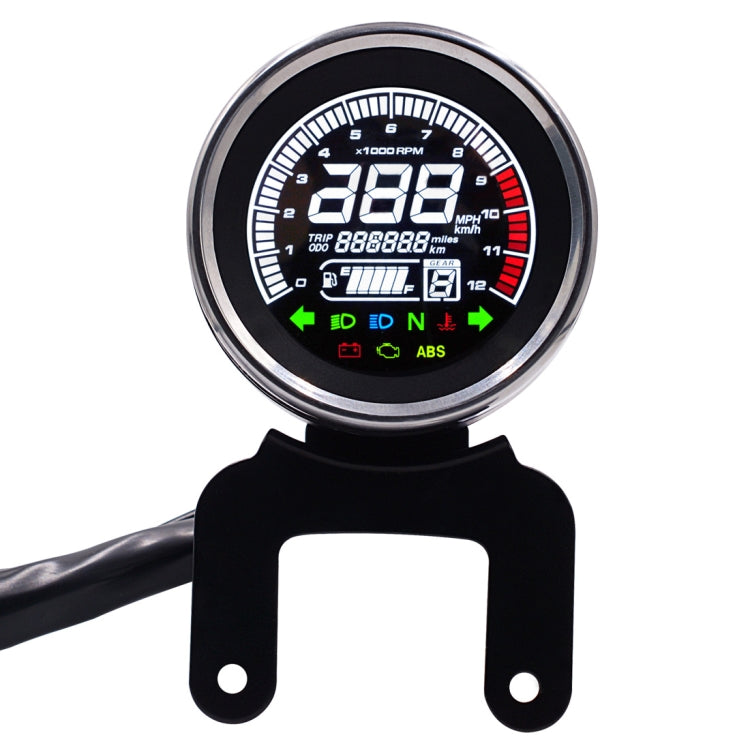

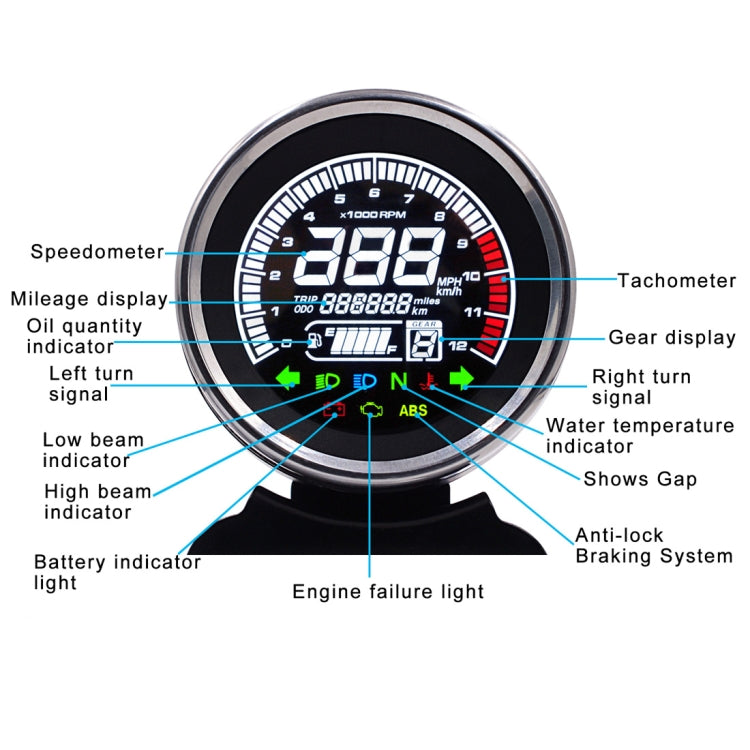

• Complete functions: the function includes (speedometer, tachometer, fuel gauge, water temperature gauge), the LCD screen is very clear, the viewing angle is...
• Left and right turn signals: show where the turn signals of vehicle are located. Usually in the flameout state, when the owner lights the turn signal, the...
• Gear position (N, 1-6 gear position display function, and there is no need to add another gear positioner)
• Oil quantity indicator: shows the amount of oil stored in the vehicle. When the electric door is opened and the meter performs self-test, the fuel gauge...
• High beam: display the status of the vehicle high beam, usually extinguished, when the owner turns on the high beam, the indicator light indicates that the...
• KM / H to MPH (metric system display switch)
• Speedometer: Tire model 120/80/17, 34Hz means 60km/h, speed up 5%, 34Hz means 63km/h
• Fuel gauge: LCD display F point 8 Ohm-E point 98 Ohm
• Water temperature is lower than 165??, long indicator display
• The main switch is disconnected, the standby power consumption is less than 4ma
• Button Function:
• Short press the button to switch between total and subtotal.
• In the total interface, press and hold the button for 4 seconds, the metric system switches, the default is in metric system; after switching, it can be...
• In the subtotal interface, press and hold the button for 4 seconds, and the subtotal is cleared.

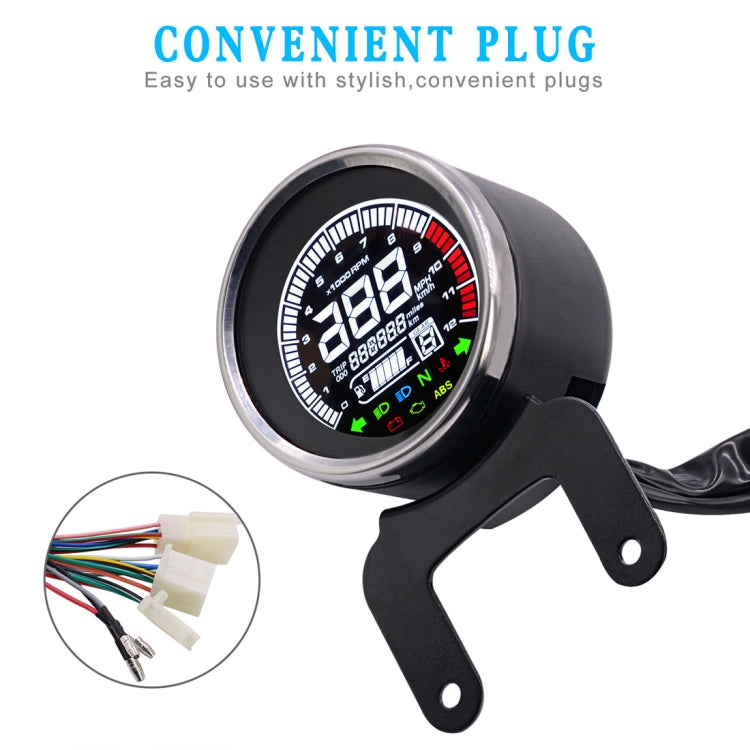

• Wiring method:
• (round head line):
• Black: electric switch positive pole
• Red: battery positive (normally 12V positive)
• Gray: 6 gear 12 Negative control, LCD display
• Green: 12V negative
• Blue/white: oil signal
• Orange: left turn, 12V positive control, LCD display
• Light blue: turn right, 12V positive control, LCD display
• Black/red: speed signal input
• Blue: headlights high beam, 12V positive control, liquid crystal display
• Blue/yellow: ABS, liquid crystal display
• Gear line group (6 line group)
• Green / Red: N file, 12 negative control, LCD display
• Pink: 1st gear, 12 negative control, LCD display
• Blue/red: 2 files, 12 negative controls, LCD display
• Green/Black: 3 files, 12 negative controls, LCD display
• Yellow / red: 4 files, 12 negative control, LCD display
• Yellow / white: 5 files, 12 negative control, LCD display
• Brown/red: engine fault light, 12V negative control, liquid crystal display
• Green/White: Water temperature signal
• Sensor wiring method (3-wire group):
• Red/White: sensor positive
• Green: sensor negative
• Black/white: sensor signal

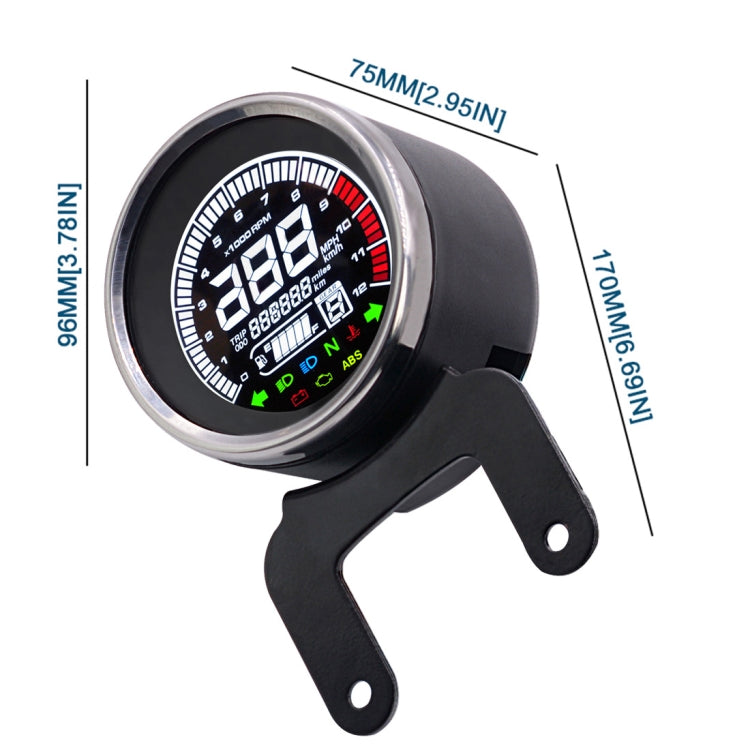

Package Info: Weight: 0.59kgs / 1.30lb, Size: 22cm * 14cm * 10cm / 8.66inch * 5.51inch * 3.94inch
