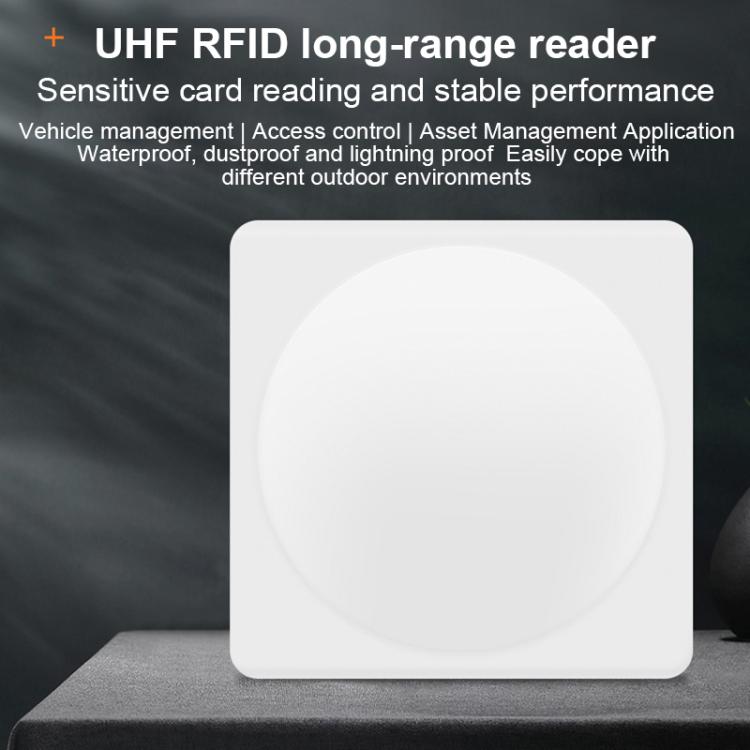

UHF RFID Long Range 9dBi Integrated Reader with E710 Chip, Style: Add 4G Network, Add 4G Network – Waterproof, TPU

UHF RFID Long Range 9dBi Integrated Reader with E710 Chip, Style: Add 4G Network, Add 4G Network – Waterproof, TPU.

Key Features:

• Equipped with the Impinj E710 chip, it boasts a peak read rate exceeding 700 tags per second and a long read distance.
• Built-in high-gain 9dBi antenna provides wide coverage, sensitive card reading, and stable performance.

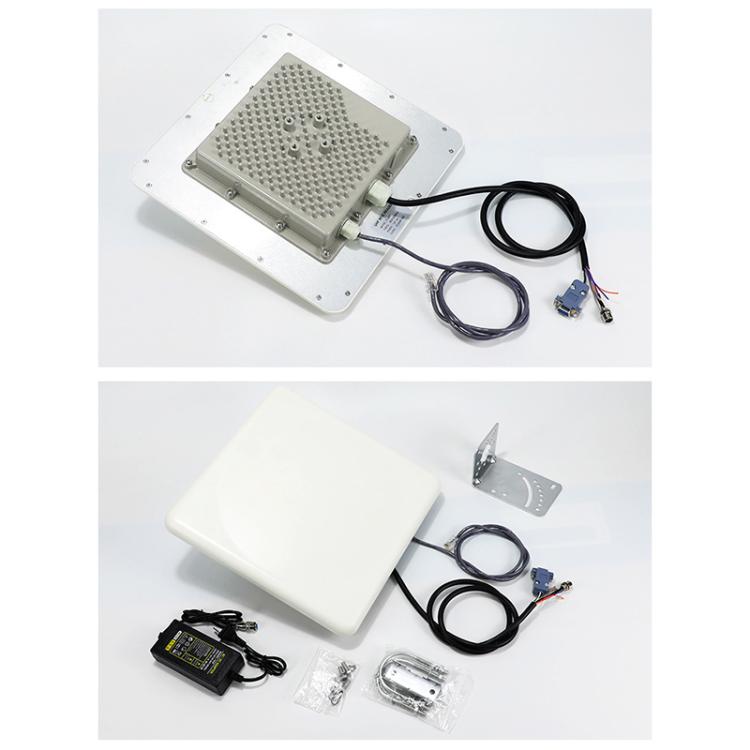

• Multiple communication interfaces and a separate cable design for ease of use.

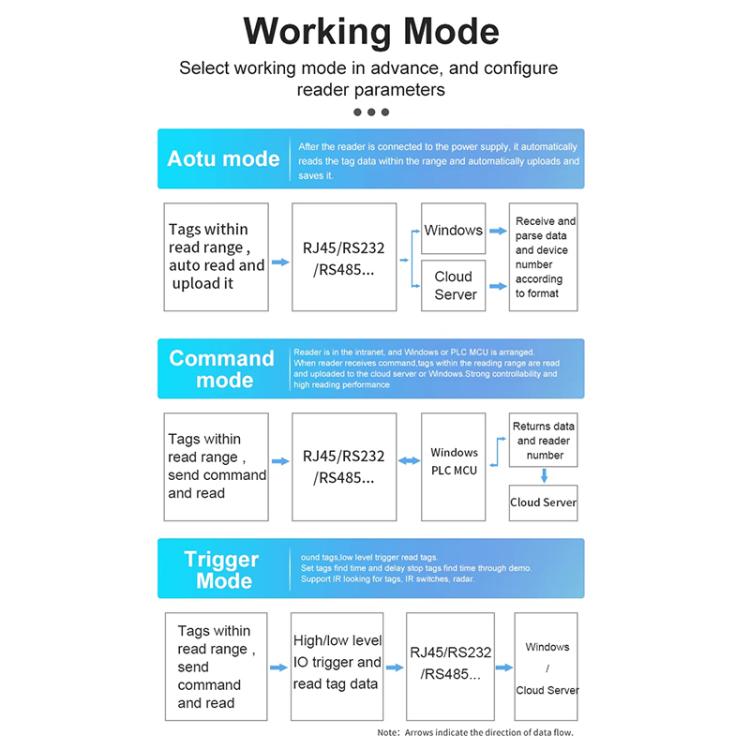

• Flexible operating mode selection: Active, Passive, and Trigger.

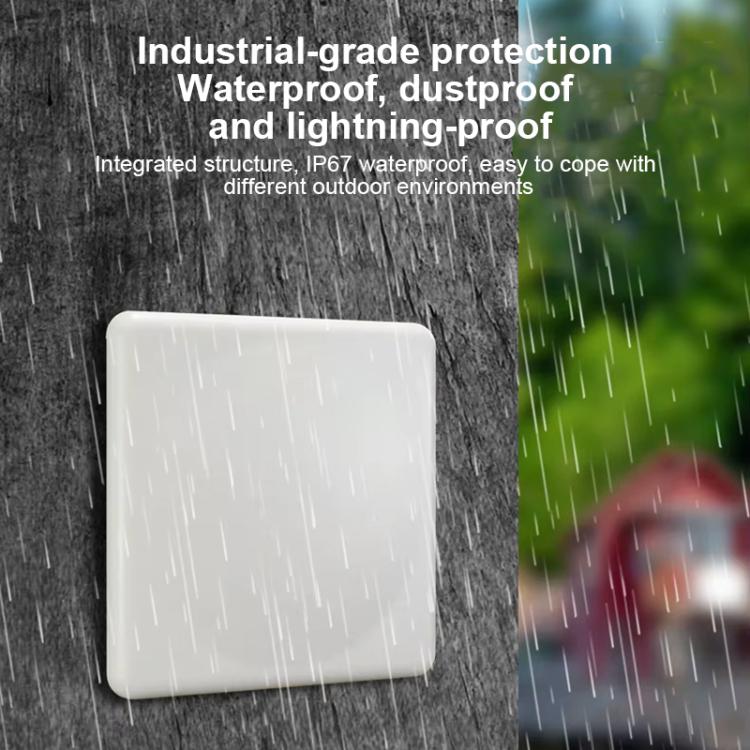

• Integrated structure with IP67-rated waterproof, dustproof, and lightning protection, making it easily adaptable to diverse outdoor environments.
• Wide range of applications: Suitable for warehousing and logistics, production line tracking, intelligent asset management, and access control systems.
• Product Specifications:
• Model: FI-807

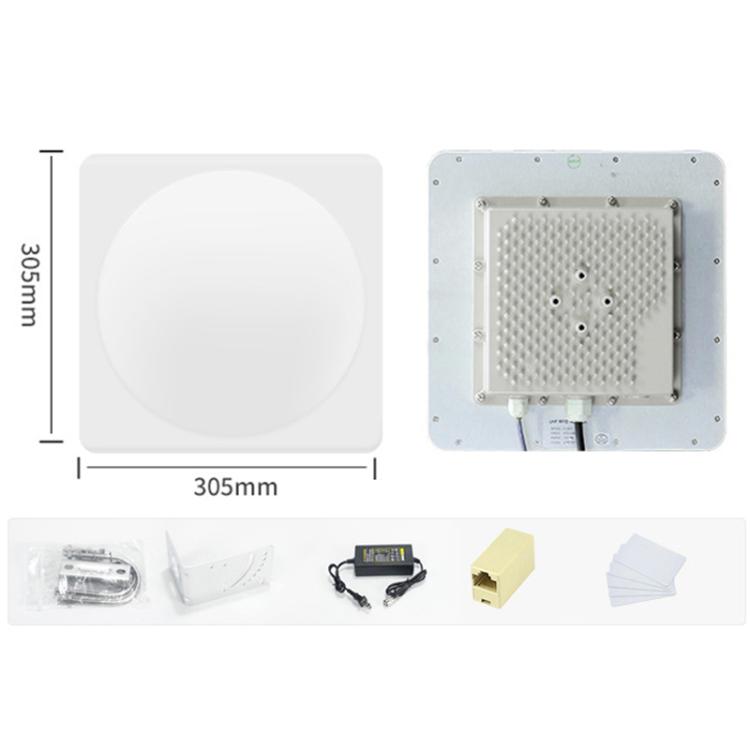

• Dimensions: 305mm x 305mm x 75mm
• Operating Frequency: Standard: ISM 902-928MHz and ISM 865-868MHz, optional.
• Operating Protocols: ISO18000-6C (EPC GEN2), ISO18000-6B

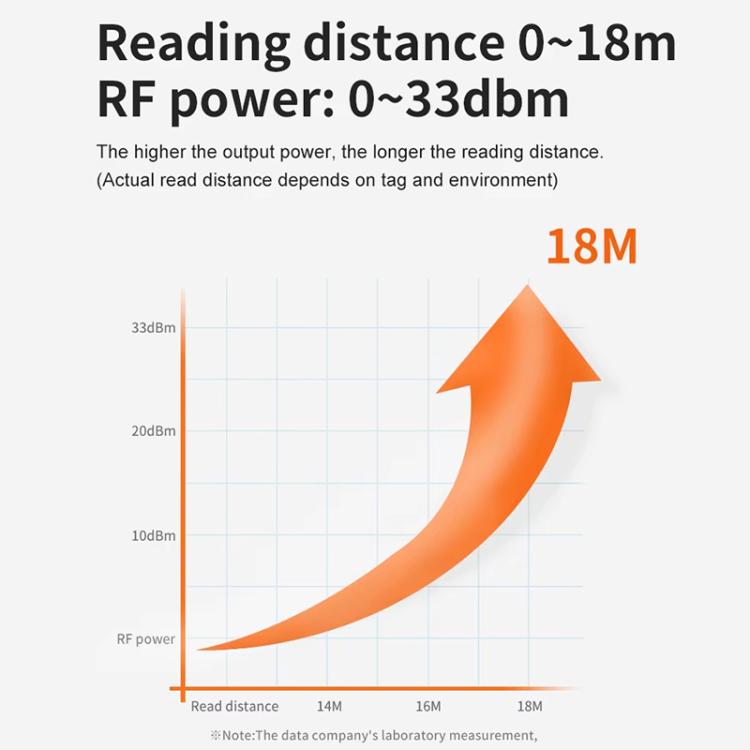

• Reading distance: 0-18m
• Output power: 0-33dBm, software-adjustable
• Operating mode: Wide-spectrum frequency hopping (FHSS)

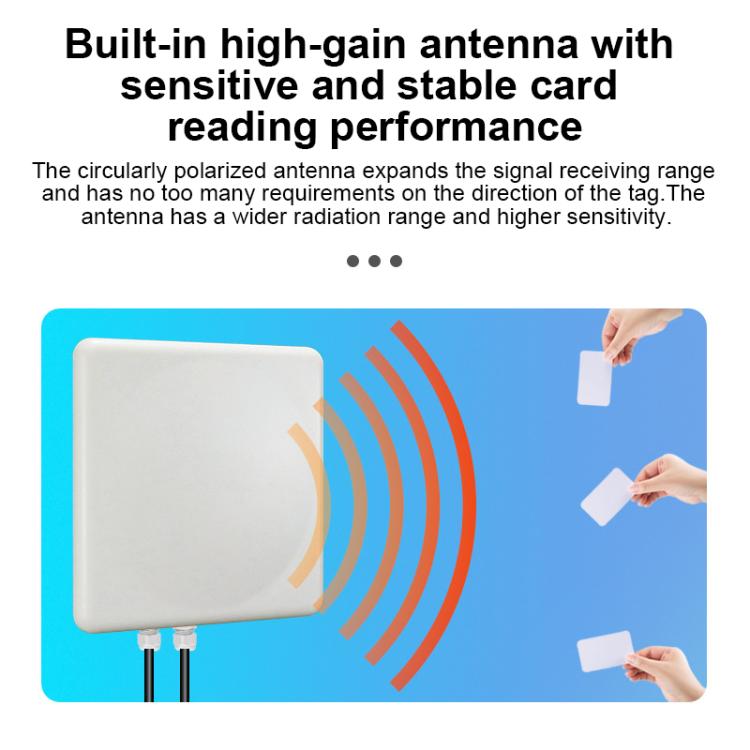

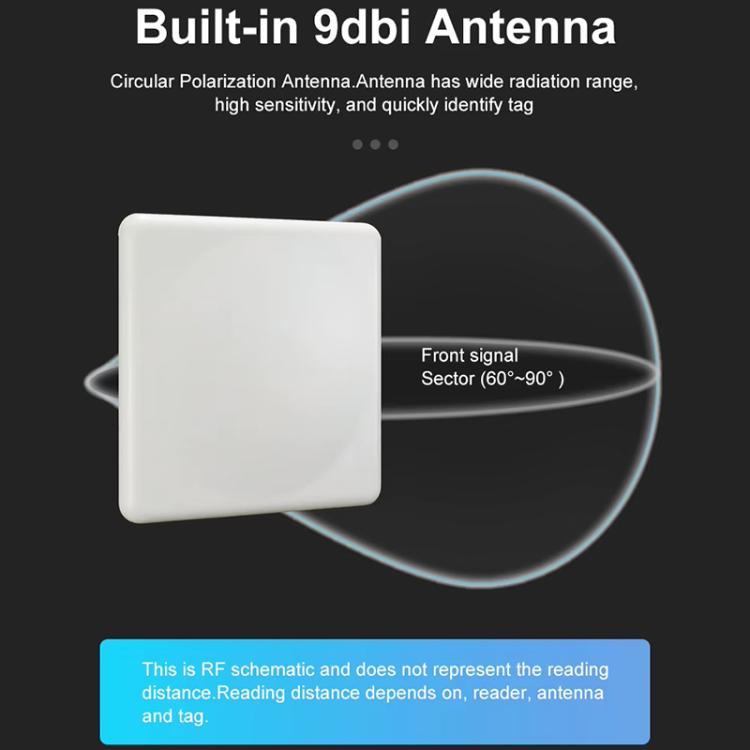

• Antenna gain: Built-in circularly polarized antenna, 9dBi gain

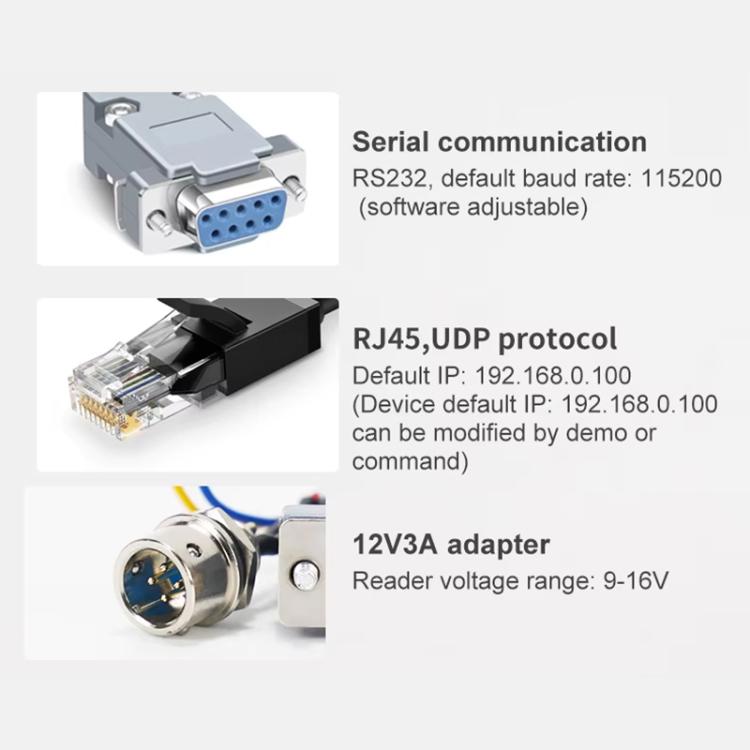

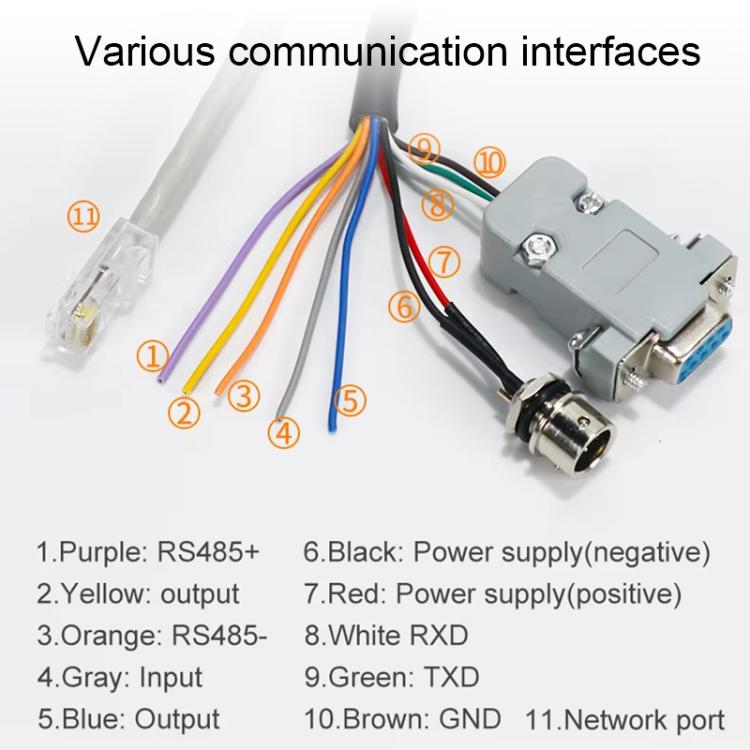

• Communication interfaces: RS232, RS485, RJ45, Wiegand 26/34, one trigger output, one relay output (optional WiFi, 4G, and other communication options, PoE...
• Operating indicator: Buzzer
• Power supply: DC+12V (with power adapter), voltage range: 9-16V
• Operating temperature: -20 degrees Celsius to +80 degrees Celsius

Package Info: Weight: 3.06kgs / 6.75lb, Size: 56cm * 56cm * 12cm / 22.05inch * 22.05inch * 4.72inch
