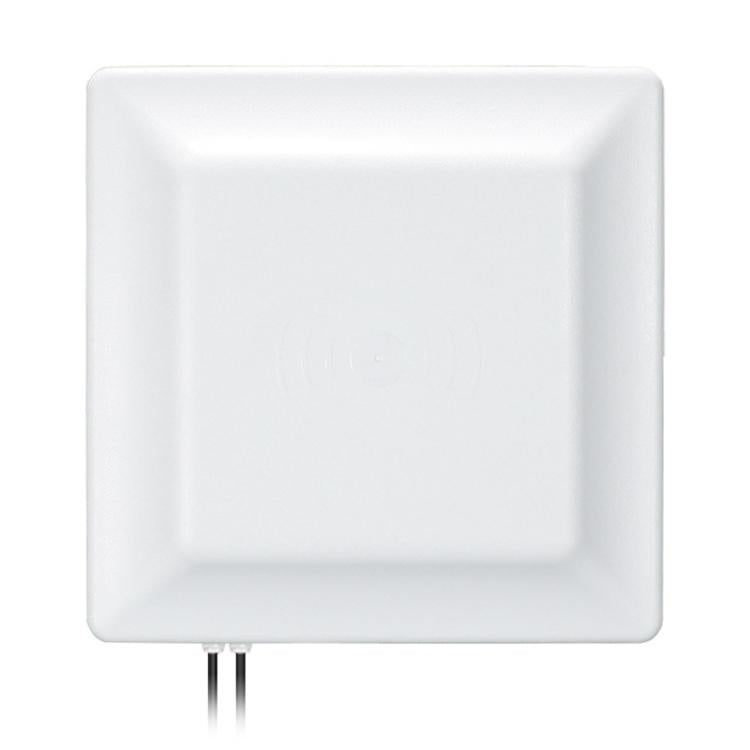

UHF Middle Range RFID Integrated Reader Identification Distance 0-5m, Style: Standard, Standard – Waterproof, TPU

UHF Middle Range RFID Integrated Reader Identification Distance 0-5m, Style: Standard, Standard – Waterproof, TPU.

Key Features:

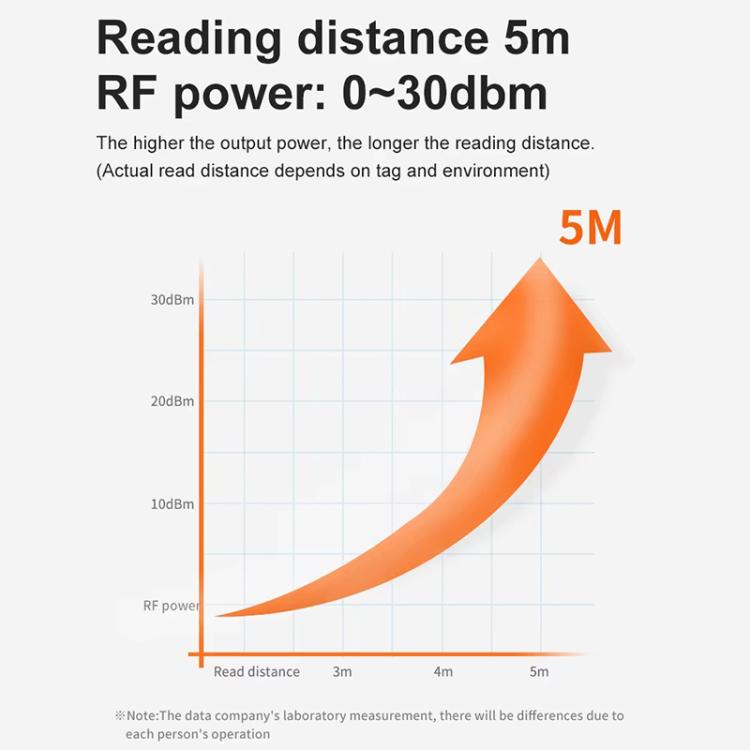

• Card reading distance 0-5m, power adjustable from 0 to 30dBm.

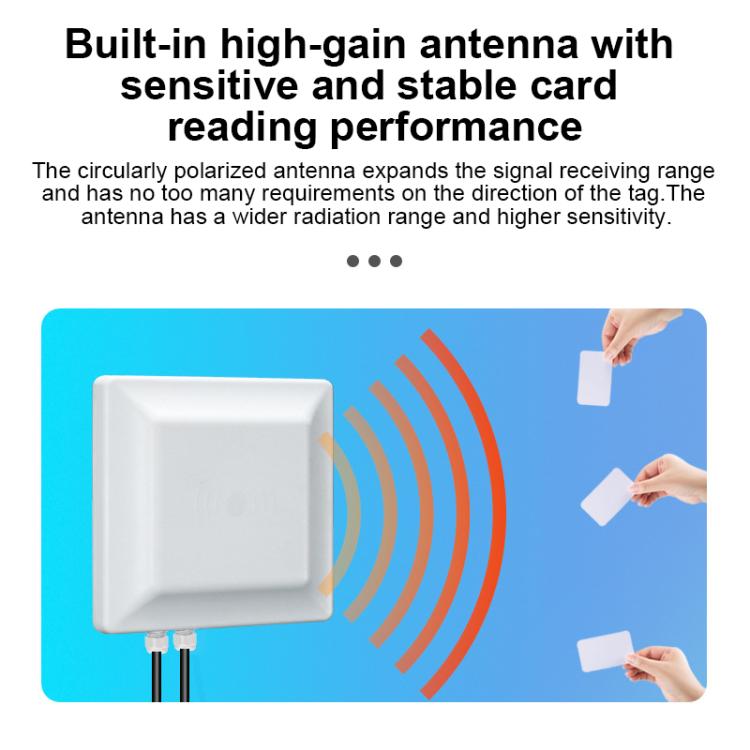

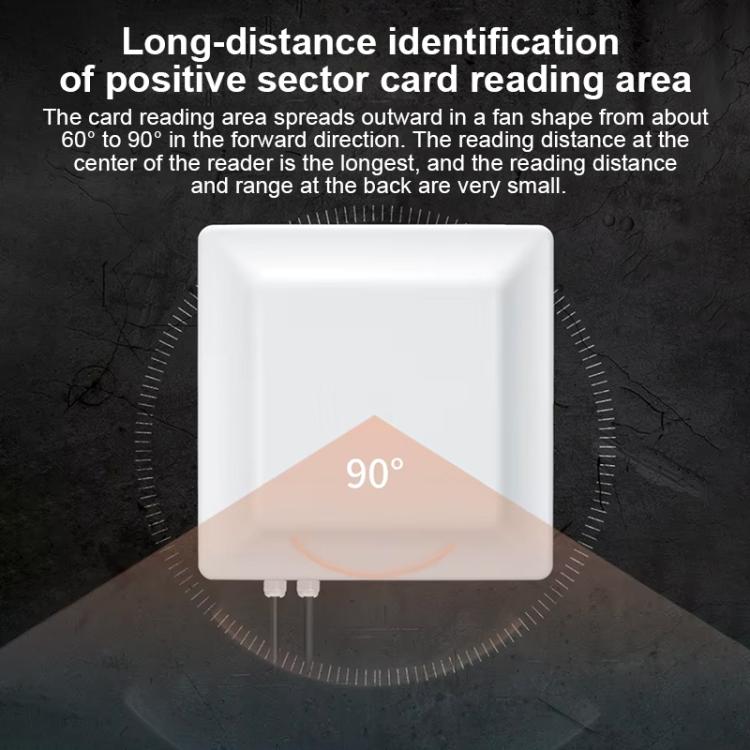

• Built-in high-gain 7dBi antenna for wide coverage, sensitive card reading, and stable performance.

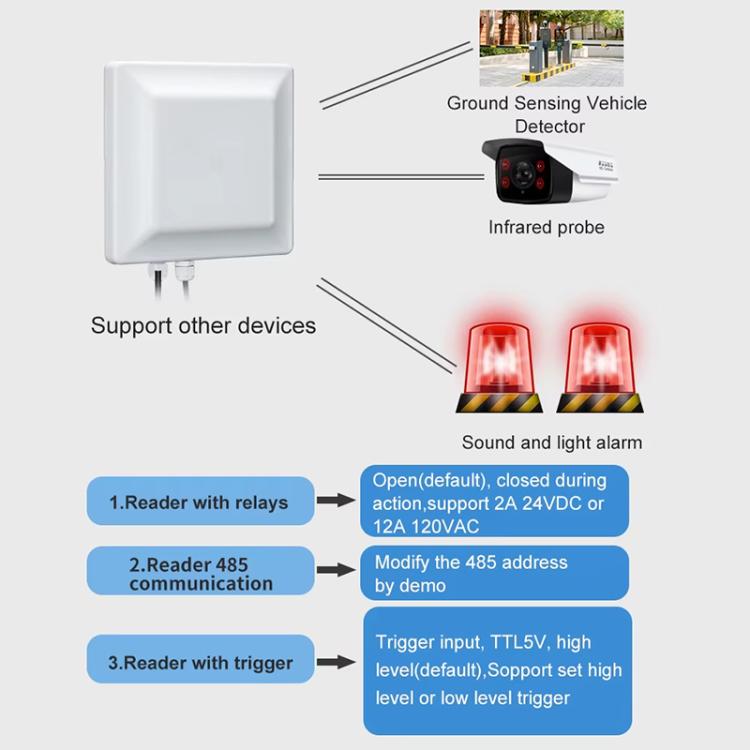

• Multiple communication interfaces and a separate cable design allow for connection to various devices, such as parking sensors and infrared detectors.

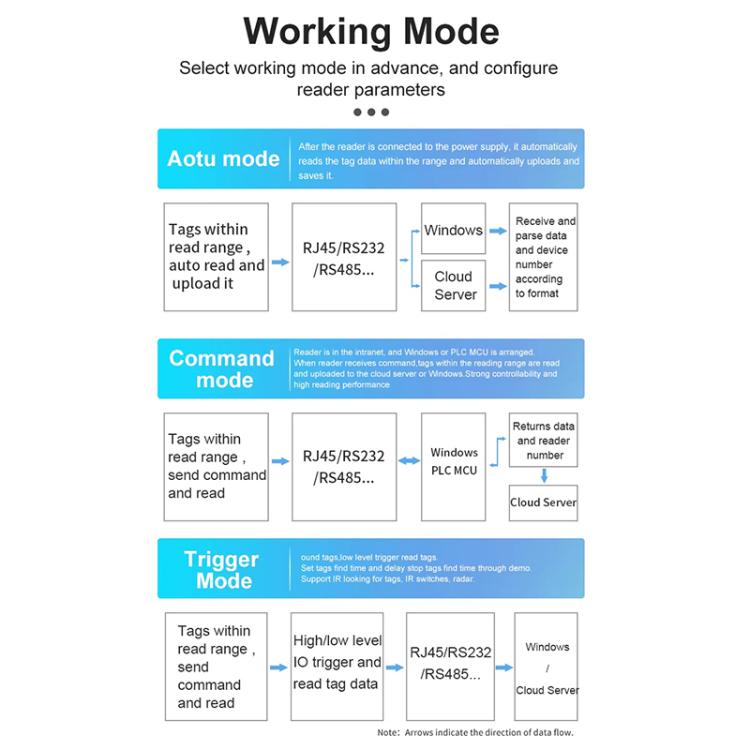

• Flexible operating mode selection: Active, Passive, and Trigger.

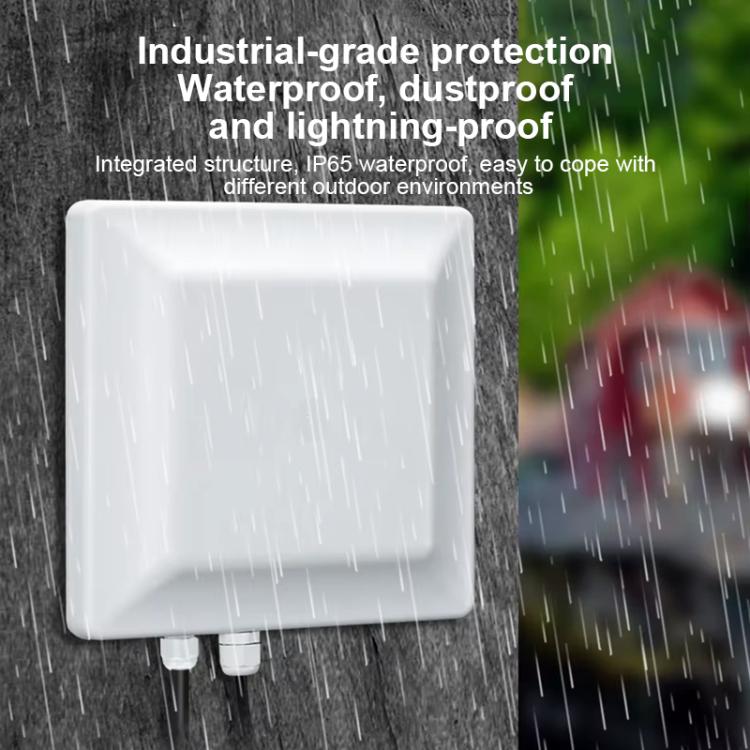

• Integrated structure with IP65-rated waterproof and dustproof protection, easily adaptable to various outdoor environments.
• Wide range of applications: Suitable for warehousing and logistics, production line tracking, intelligent asset management, and access control systems.
• Specifications:
• Model: FI-803C

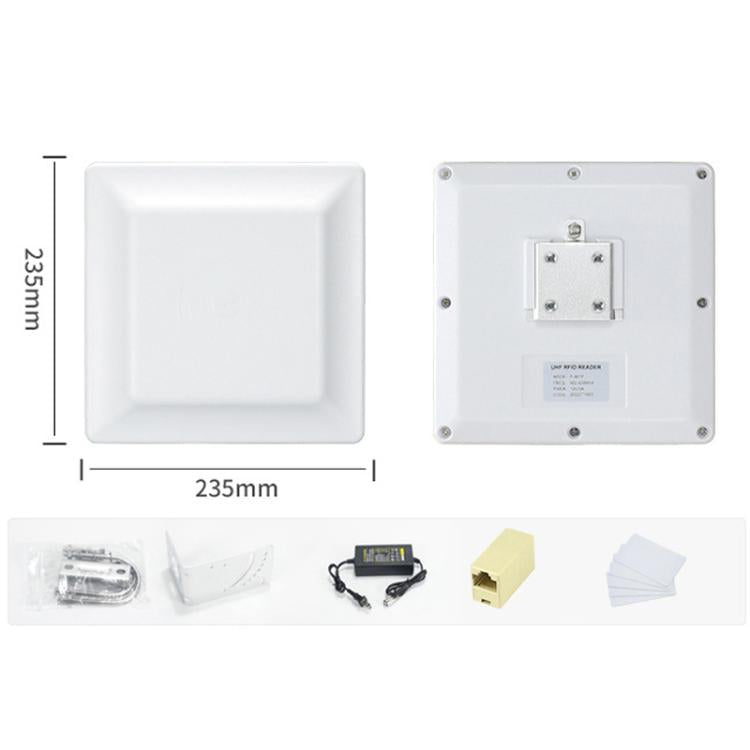

• Dimensions: 235mm x 235mm x 58mm
• Weight: Approximately 1000g
• Operating frequency: Standard: ISM 902-928MHz and ISM 865-868MHz, optional.
• Working Protocols: ISO18000-6B, ISO18000-6C (EPC GEN2)
• Card Reading Distance: 0-5m
• Card Reading Speed: Software-configured, average single-card reading speed of less than 6ms per 64 bits
• Card Reading Mode: Timed automatic reading, external trigger-controlled reading, command-based interactive reading, software-configured
• RF Power: 0 to 30dBm, software-adjustable
• Operating Mode: Wide-Spectrum Frequency Hopping Span (FHSS)
• Antenna Gain: Built-in circularly polarized antenna, 7dBi gain

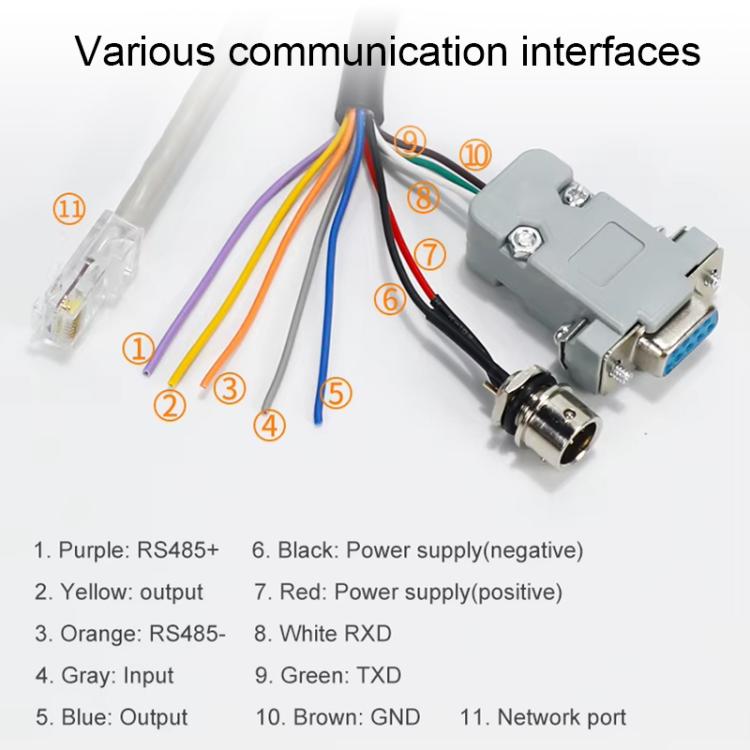

• Communication Interfaces: RS232, RS485, RJ45, Wiegand 26/34, one trigger output, one relay output, WiFi
• Card Reading Indicator: Buzzer
• Power Supply: DC+12V (with power adapter), voltage range 9-16V, powered by POE
• Operating Temperature: -20 degrees Celsius to +80 degrees Celsius

Package Info: Weight: 2.03kgs / 4.48lb, Size: 42cm * 32cm * 12cm / 16.54inch * 12.6inch * 4.72inch
