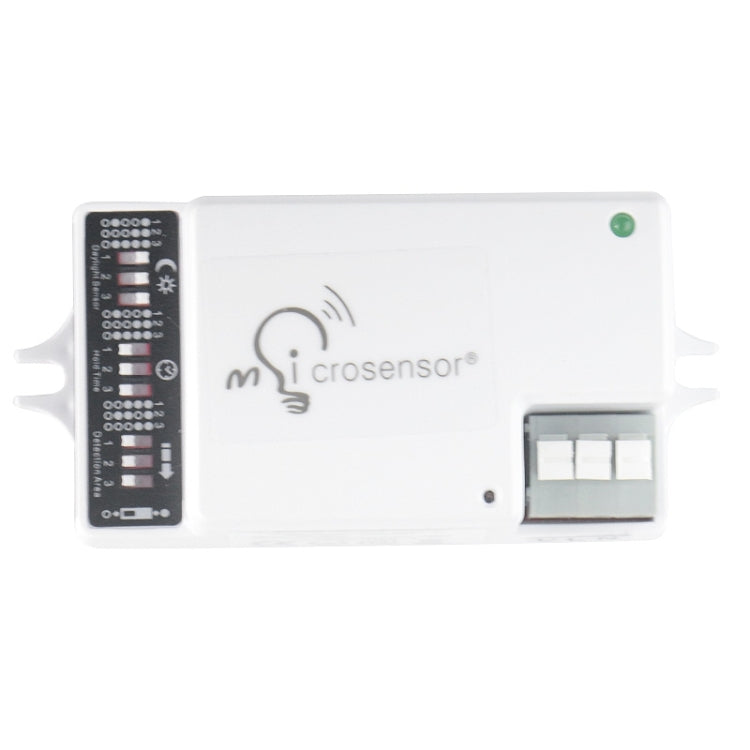

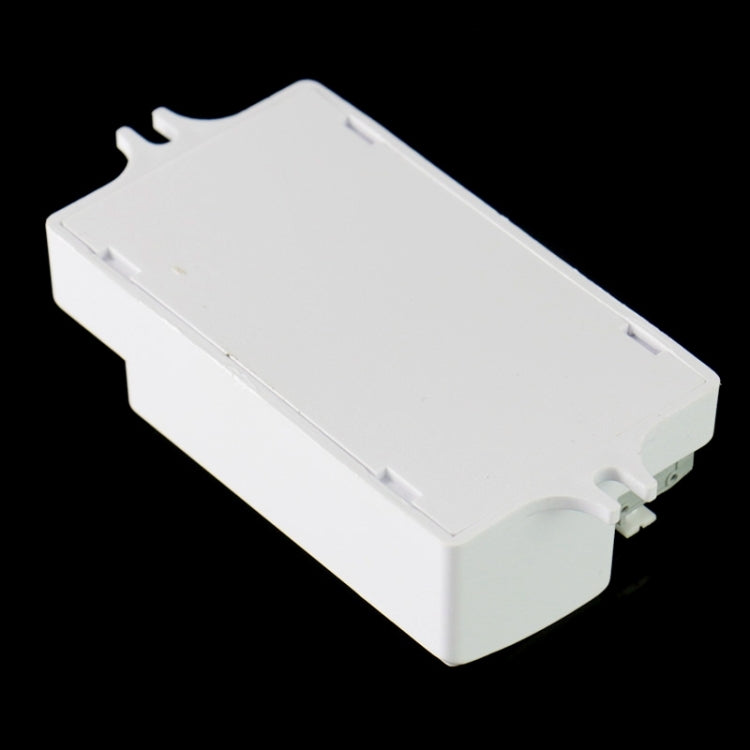

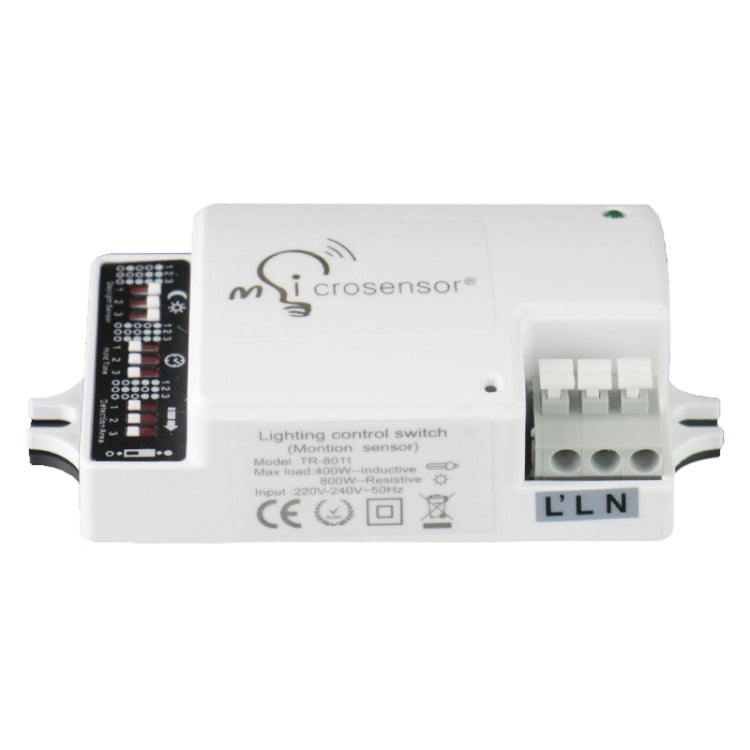

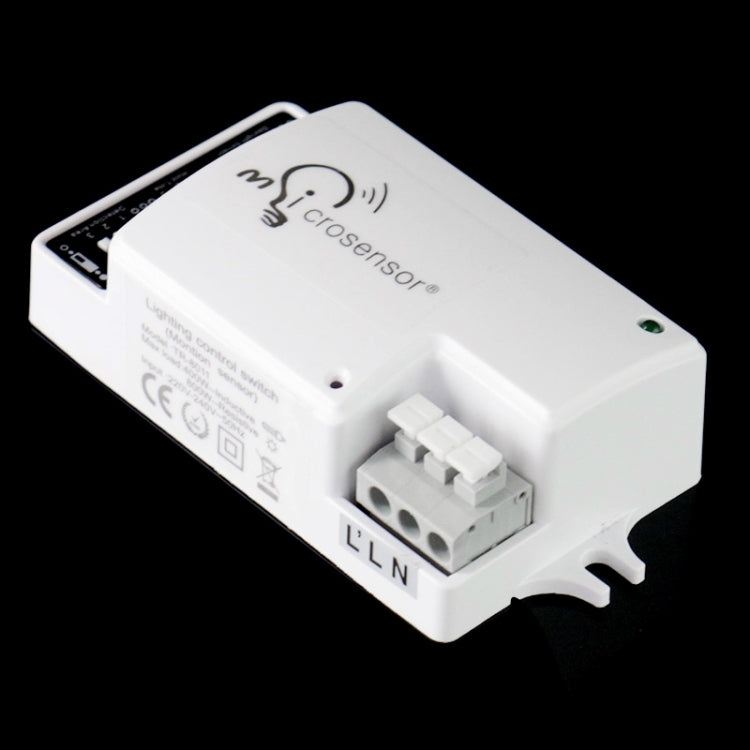

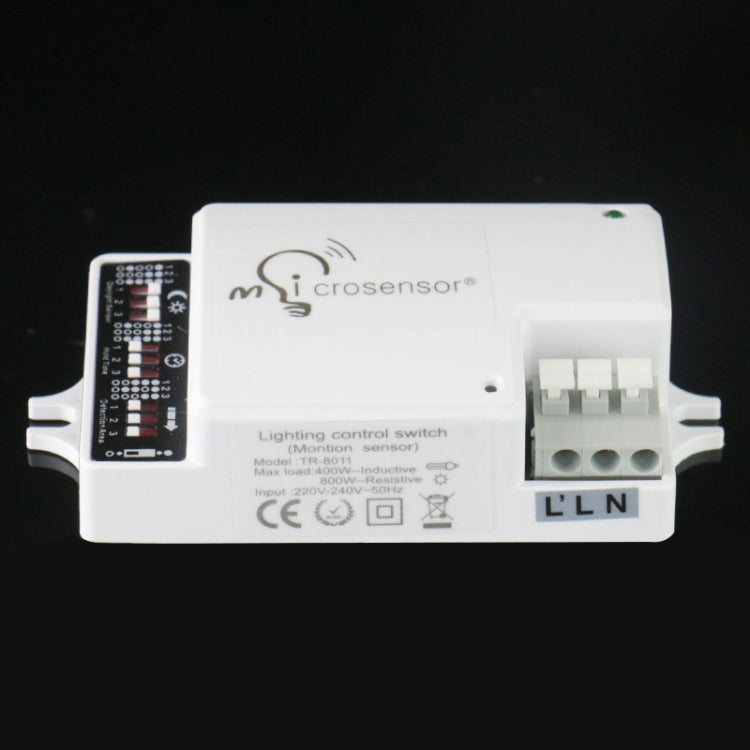

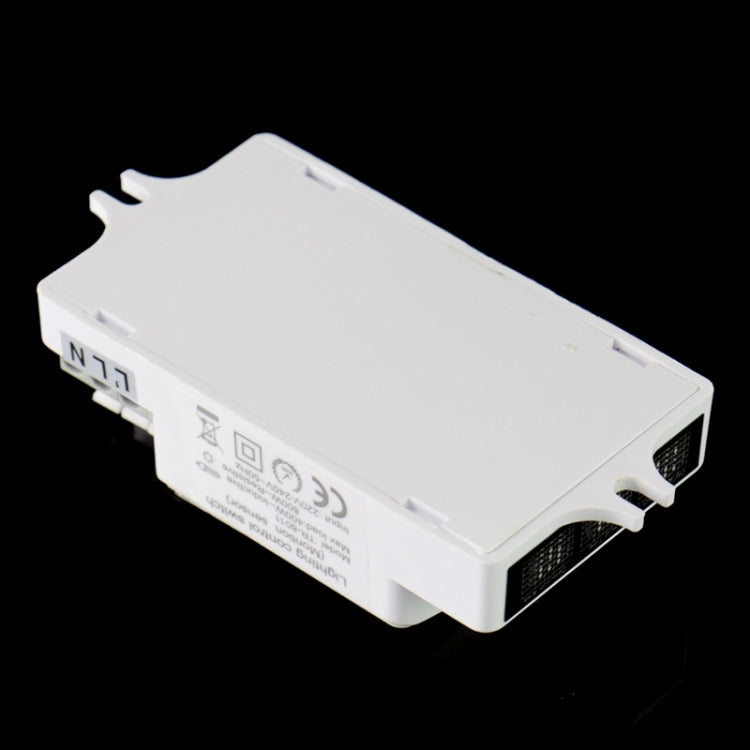

TR-8011 AC 220-240V Light Control Sensor Automatic Light DIP Switch, Detection Range: 10m – TPU

TR-8011 AC 220-240V Light Control Sensor Automatic Light DIP Switch, Detection Range: 10m – TPU.

Key Features:

• Features
• The product can turn on or turn off light according to ambient-light.
• Ambient-temperature and humidity can not affect it.
• It is not only convenient but also practical.
• Detection range: 10m (10%/30%/50%/80%/100%).
• Delay time: 5s/15s/3min/5min/10min.
• Light control: 5/10/30/100/disable.
• Microwave frequency: 5.8GHz +/-75MHz.
• Transmit power: <0.2mW.

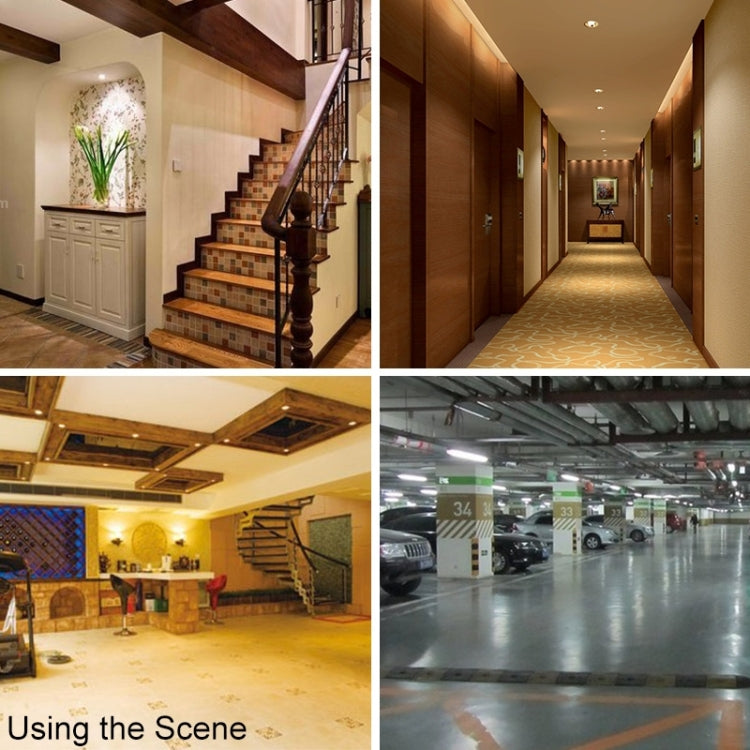

• Installation: Ceiling installation, wall hangings.
• Detection angle: 180 degrees.
• Installation height: Max. 2.5m.
• IP rating: IP20.
• It can control the load working only at night.
• For instance road light, garden light etc.
• Dial Switch Instructions
• Light control setting
• Light response threshold 5 stalls to choose from, 5Lux,10Lux,30Lux,100Luxand disable, respectively, optical control of a brightness sensor to setthe...
• Delay setting
• Delay setting with 5 stalls to choose from, namely 5S,15S,180S,300S,600S;after induction, the output signal will remain within a preset time,detected during...
• Sets the distance
• Distance setting with 5 stalls to choose from, namely10%,30%,50%,80%,100%; based on actual usage, choose a different distance.

Package Info: Weight: 0.09kgs / 0.20lb, Size: 9cm * 5cm * 3cm / 3.54inch * 1.97inch * 1.18inch
