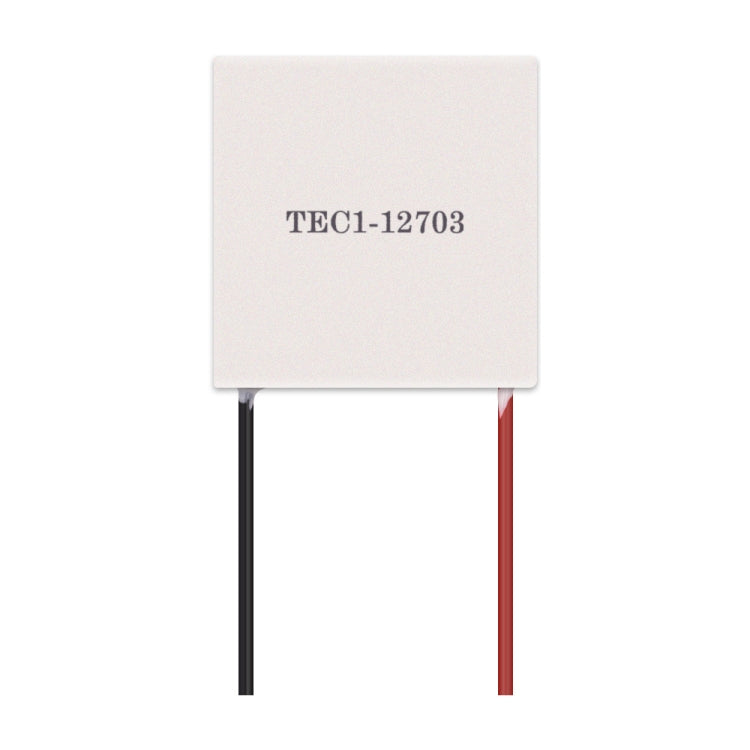

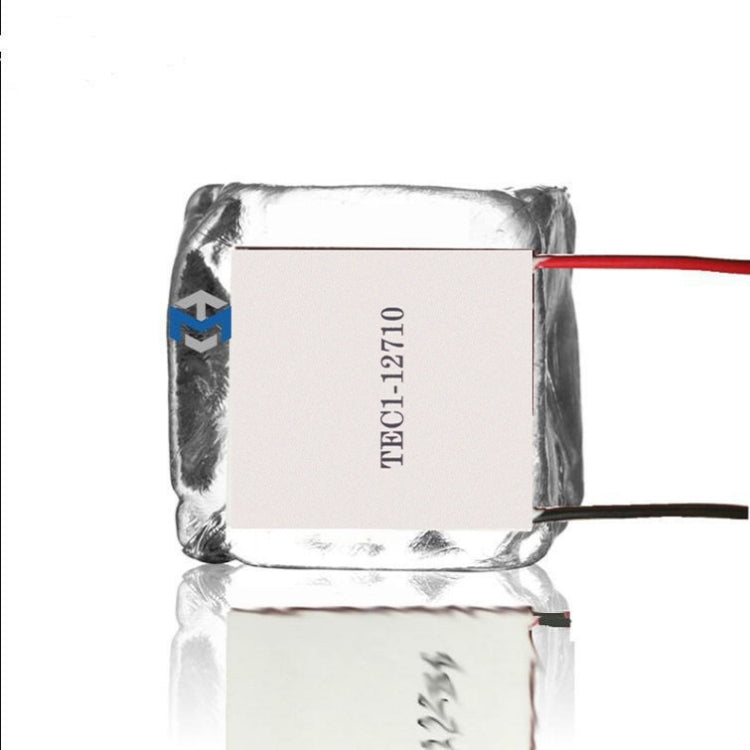

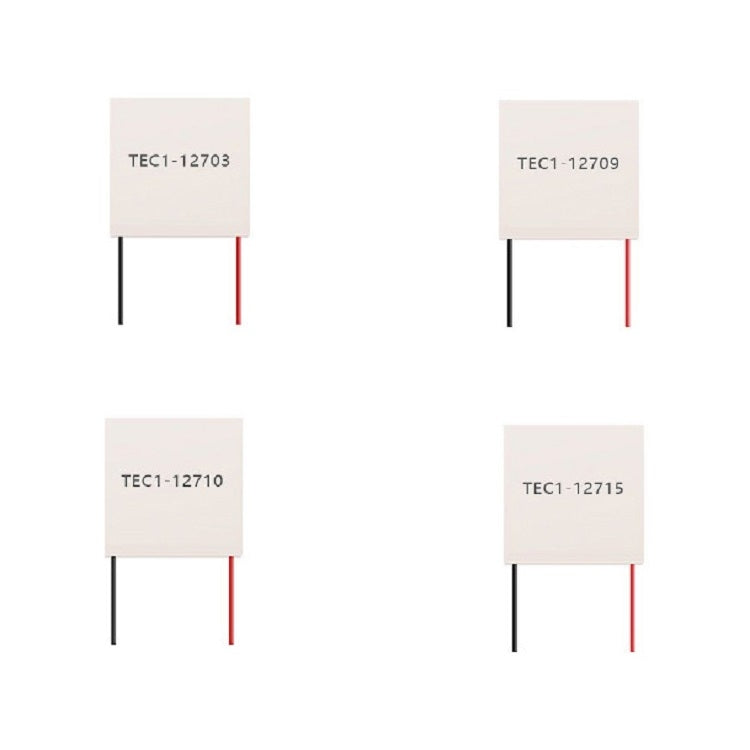

Thermoelectric Cooler Peltier Element Module, TEC1-12703 40x40x4mm, TEC1-12709, TEC1-12710, TEC1-12715 – TPU

Thermoelectric Cooler Peltier Element Module, TEC1-12703 40x40x4mm, TEC1-12709, TEC1-12710, TEC1-12715 – TPU.

Key Features:

• Number of component pairs: 127
• Assembly pressure: 85N/cm2
• Be sure to apply thermal grease when installing the radiator
• The literal is cold side, and the non-literal is hot side
• Packaging process: standard 704 silicone rubber seal around
• Packaging standard: foam box packaging, storage conditions ambient temperature -10 ~ 40 degrees Celsius
• Working environment: temperature range -55～83 degrees Celsius (excessive ambient temperature will directly affect the cooling efficiency)

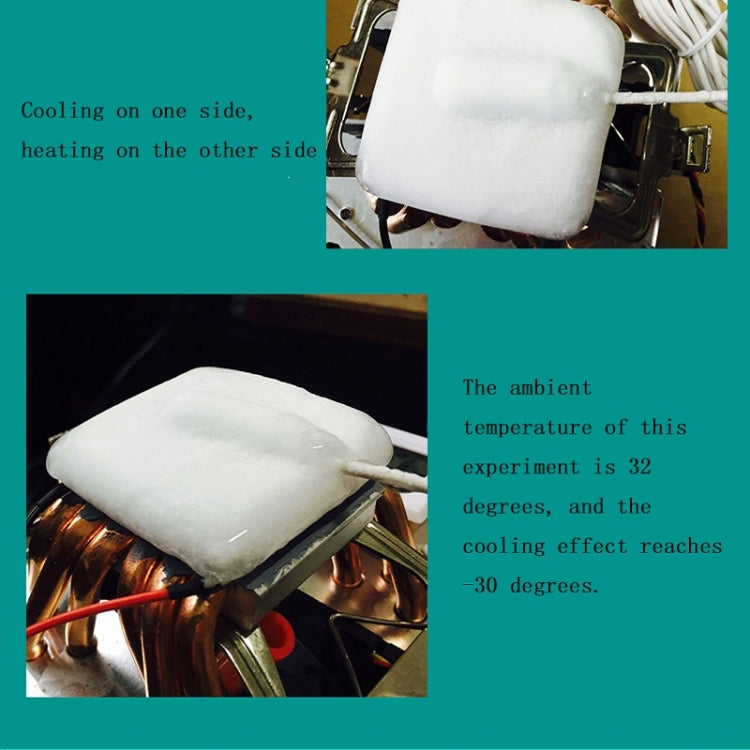

• The working state of the cooling plate is that one side is cooling and the other side is heating, and the heating surface must be well dissipated during...
• Dimensions: 12703: 40x40x4.0mm, 12709: 40x40x3.4mm, 12710: 40x40x3.4mm, 12715: 40x40x3 .3mm
• Other parameters:
• - 12703: Wire specification: lead length 310+/-5mm, RV standard wire, single head 5mm tin-plated, internal resistance: 4.0~4.3 ohms (ambient temperature...
• - 12709: Current: less than or equal to 9A, temperature difference: less than or equal to 68 degrees Celsius, voltage: less than or equal to 15.2V, hot end...
• - 12710: Wire specification: lead length 300+/-5mm, RV standard wire, single head 5mm tin plated, internal resistance: 1.2~1.5 ohms (ambient temperature...
• - 12715: Voltage: less than or equal to 15.4V, current: less than or equal to 15A, cold output: 134W

Package Info: Weight: 0.02kgs / 0.05lb, Size: 12cm * 12cm * 1cm / 4.72inch * 4.72inch * 0.39inch
