TDA7850 Amplifier Board 2.1 Channel 2x80W Car AB Type Amplifier Module DIY High Power 120W Bass, TDA7850 – Bluetooth, TPU

TDA7850 Amplifier Board 2.1 Channel 2x80W Car AB Type Amplifier Module DIY High Power 120W Bass, TDA7850 – Bluetooth, TPU.

Key Features:

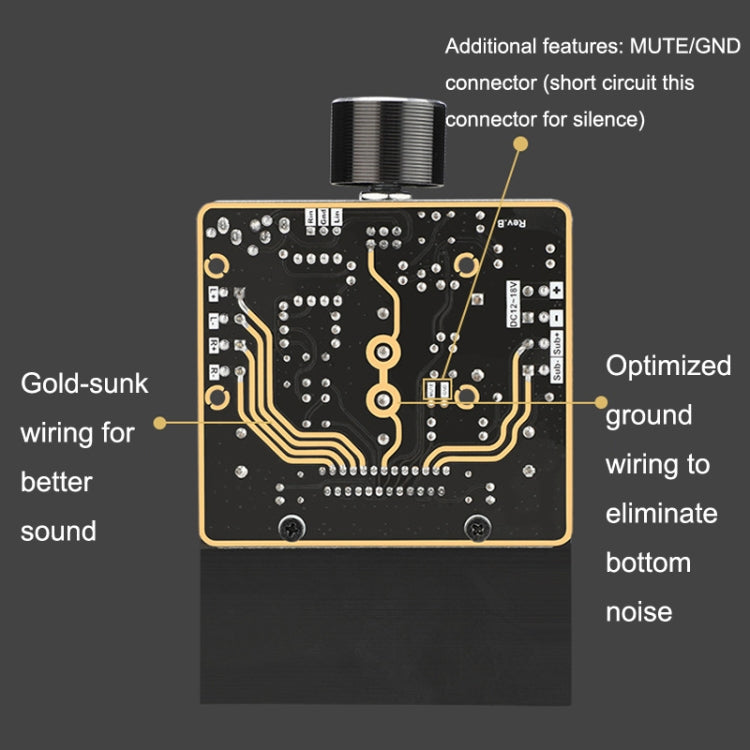

• Gold-sunk wiring for better sound
• Optimized ground wiring to eliminate bottom noise

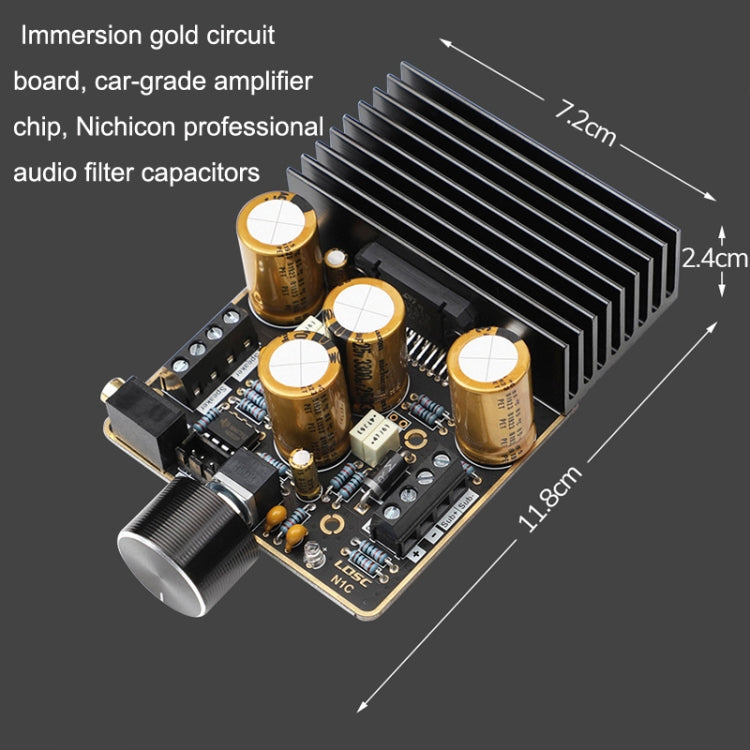

• Immersion gold circuit board, car-grade amplifier chip, Nichicon professional audio filter capacitors

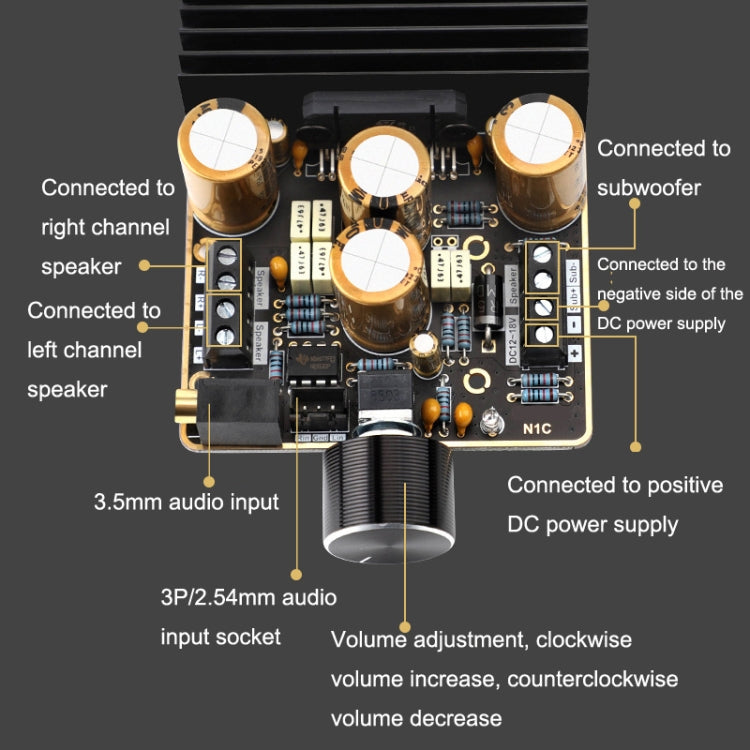

• Input mode: 3.5mm audio cable input or 3P 2.54mm terminal input
• Can be connected to 2/4/6/8 ohm speakers
• Protection function: reverse power input protection, short circuit protection, over-current protection, overheat protection
• Supply voltage: DC12-18V
• Output power: 2x80W stereo (18V / 4 ohms) and 1x120W pure bass (18V / 2 ohms)
• Potentiometer knob opening: 7mm
• Mounting hole spacing: 25.4x48.26mm (Bluetooth module spacing compatible)
• PCB size: 72.36 x 66.65mm
• Overall (including heat sink):: 72.36 x 96 x 27mm
• Weight: 170g

Package Info: Weight: 0.24kgs / 0.52lb, Size: 15cm * 10cm * 4cm / 5.91inch * 3.94inch * 1.57inch
