ST-LINK/V2 (mini), STM Programmers & Debuggers – TPU

ST-LINK/V2 (mini), STM Programmers & Debuggers – TPU.

Key Features:

• Description

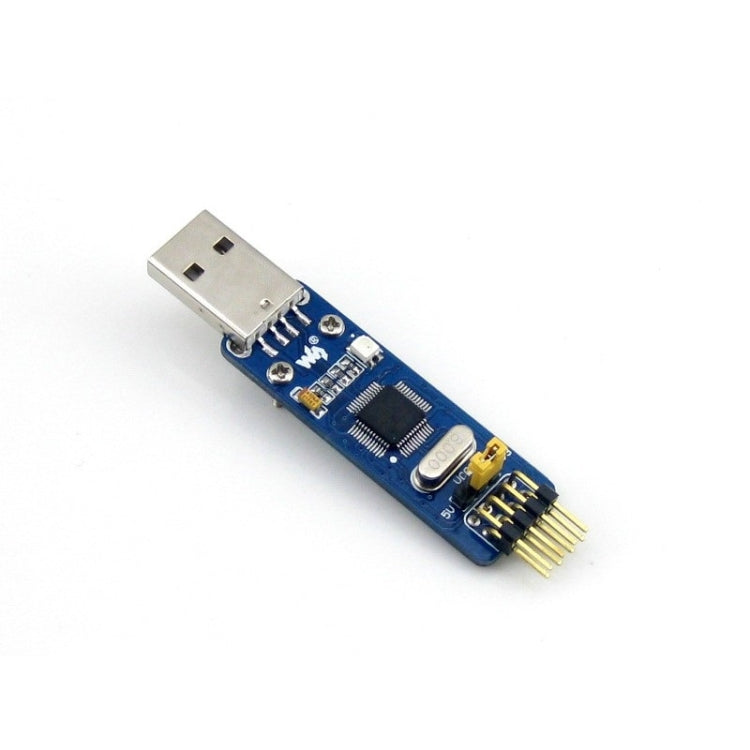

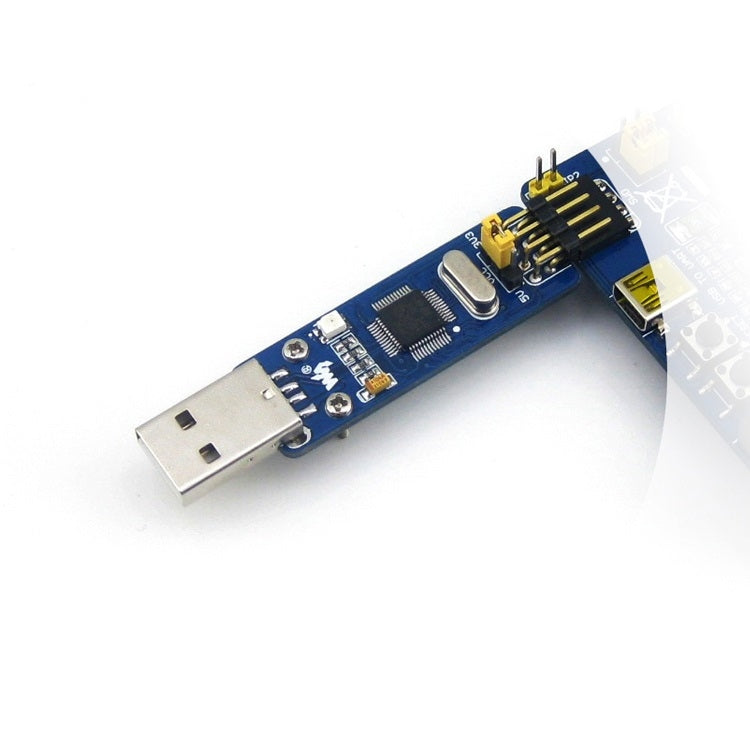

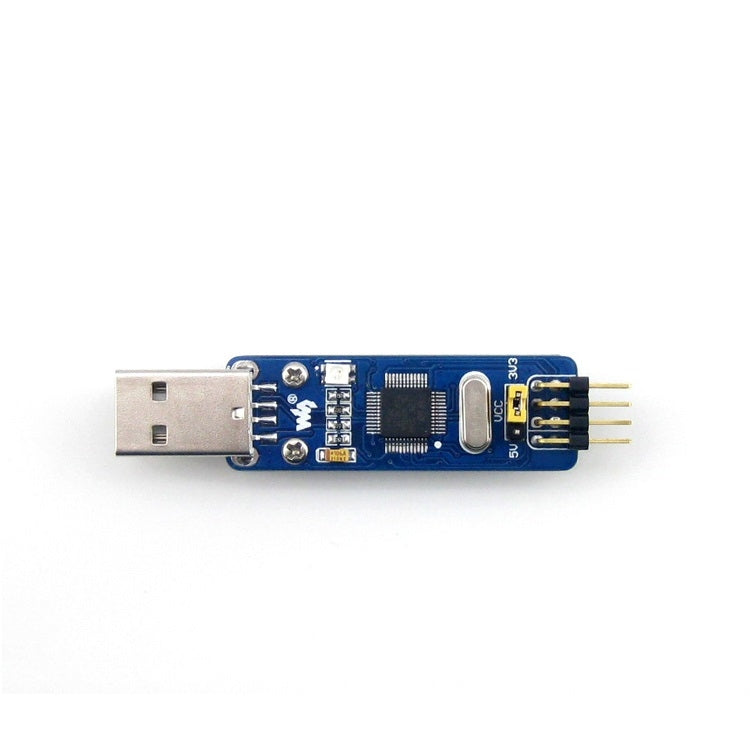

• Mini ST-LINK/V2 on a small single board, an extreme low cost solution for in-circuit debugger/programmer for STM8 and STM32.
• Features
• 1. Onboard 500mA self-recovery fuse to avoid harming by short circuit
• Dual voltage output (3.3V/5V), easy for debugging/programming
• Standard USB interface for direct connection to PC
• Debugging/Programing performance
• - Debugging : run at full-speed, single-stepped, breakpoints, viewing variables and registers, etc.
• - Programming : supports FLASH ROM, EEPROM, AFR, etc.
• - USB2.0 combined with SWIM/SWD interfaces : quick response for debugging & fast speed for programming
• Upgradable firmware
• - The firmware is upgradable to support more devices in the future
• - Automatically upgraded
• Supported software
• - ST-LINK Utility v2.0 (or higher ver.)
• - STVD Version 4.2.1 (or higher ver.)
• - STVP Version 3.2.3 (or higher ver.)
• - IAR EWARM Revision v6.20 (or higher ver.)
• - IAR EWSTM8 Revision v1.30 (or higher ver.)
• - KEIL RVMDK Revision v4.21 (or higher ver.)
• - ATOLLIC
• - TASKING
• Supported devices
• - All the STM8 devices with SWIM interface
• - All the STM32 devices with SWD interface
• Package Contents
• 1. ST-LINK/V2 (mini) × 1
• 4-pin custom connector cable × 1
• USB type A plug to receptacle cable × 1

Package Info: Weight: 0.02kgs / 0.04lb, Size: 8cm * 4cm * 1cm / 3.15inch * 1.57inch * 0.39inch
