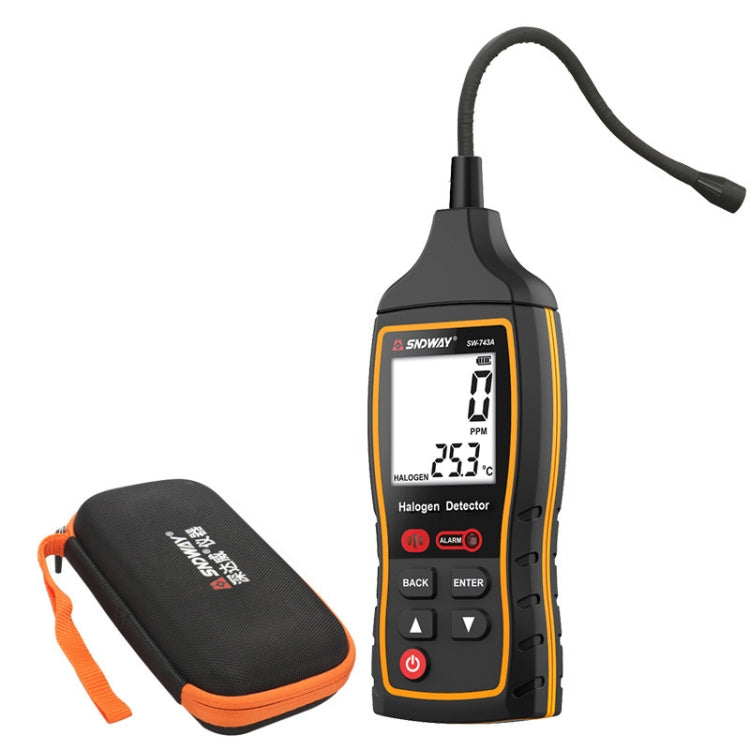

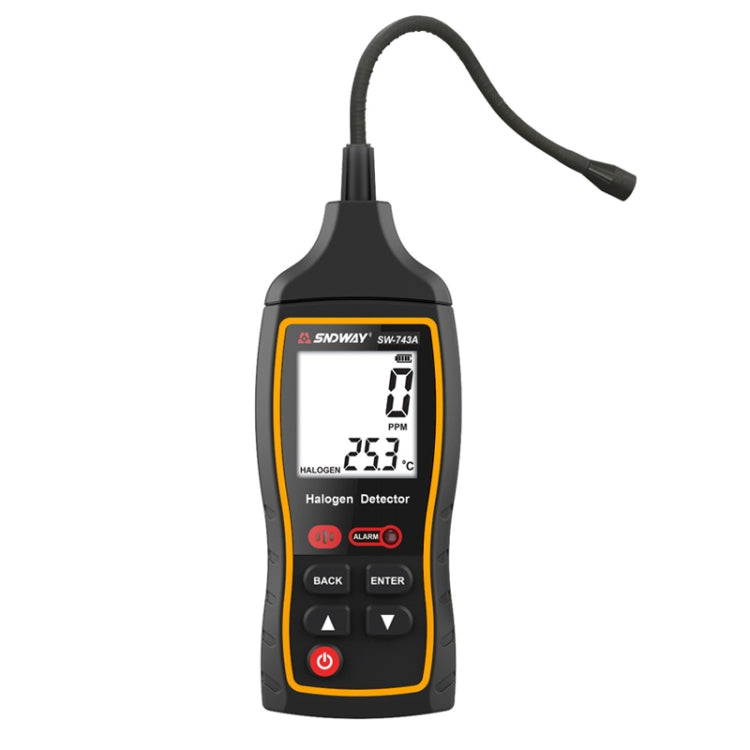

SNDWAY SW743A Halogen Gas Detector Automotive Electronic Air Conditioning Refrigerant Freon Maintenance Leak Detector, SW743A – Durable Build, Easy to Use

SNDWAY SW743A Halogen Gas Detector Automotive Electronic Air Conditioning Refrigerant Freon Maintenance Leak Detector, SW743A – Durable Build, Easy to Use.

Key Features:

• Features:
• Fast response, low power consumption, simple detection circuit, good stability, long life
• Split universal flexible probe, easy to touch all kinds of environment

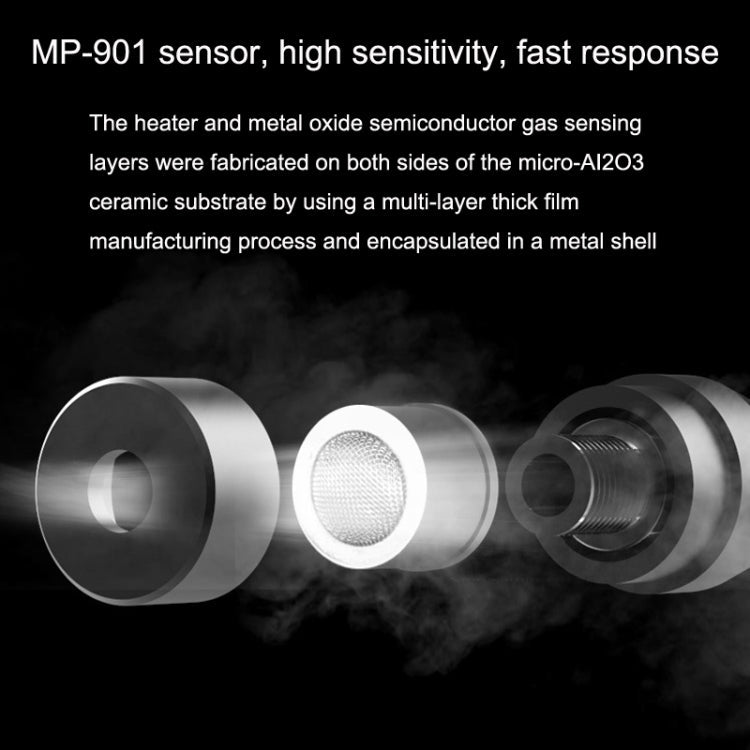

• MP-901 sensor, high sensitivity, fast response
• The heater and metal oxide semiconductor gas sensing layers were fabricated on both sides of the micro-AI2O3 ceramic substrate by using a multi-layer thick...

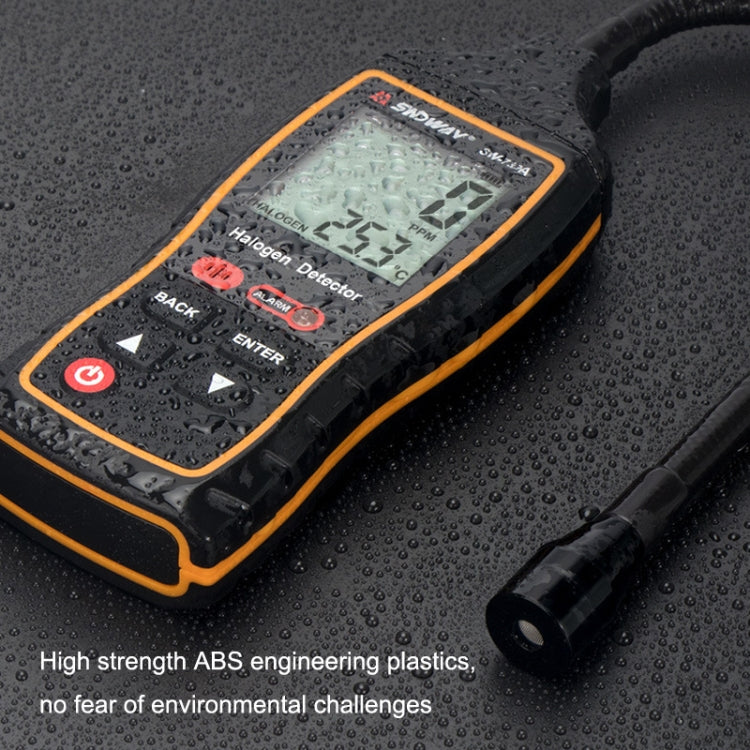

• High strength ABS engineering plastics, no fear of environmental challenges

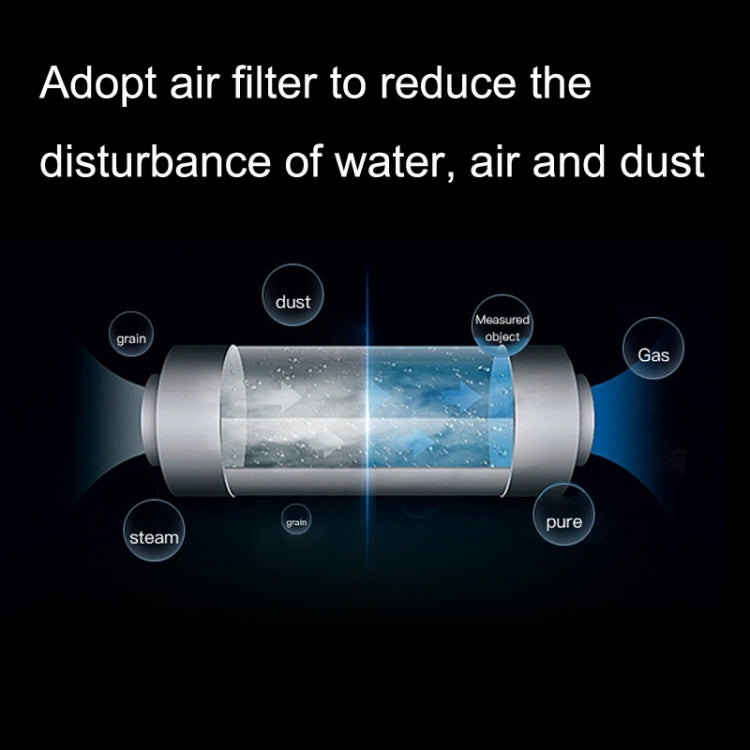

• Adopt air filter to reduce the disturbance of water, air and dust

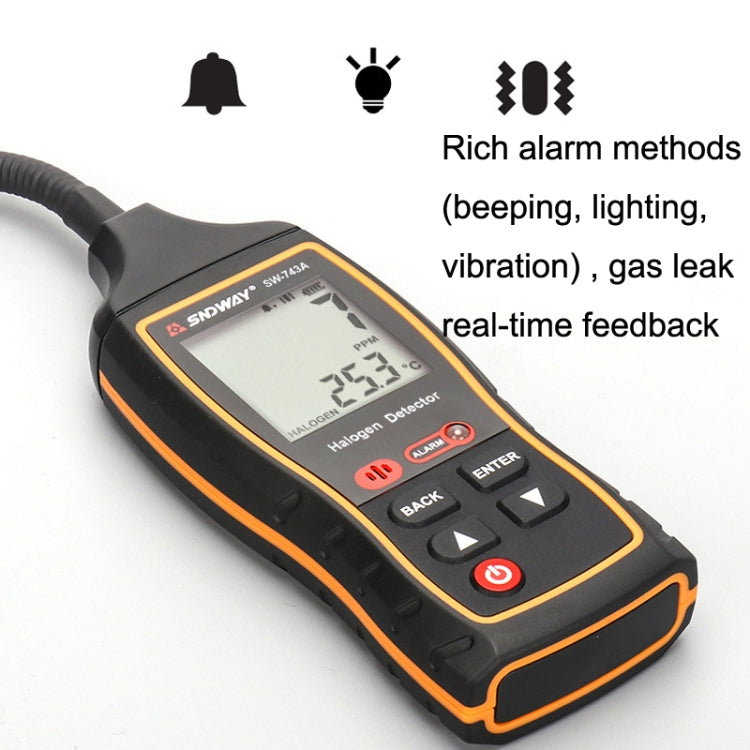

• Rich alarm methods (beeping, lighting, vibration) , gas leak real-time feedback
• Parameters:
• Detection gases: CFCs: R11, R12, R500, R503, etc; HCFCs: R22, R123, R124, R502, etc; HCFCs: R134a, R404a, R125, etc.
• Operating voltage: DC4.5 V
• Power mode: 3 x AAA alkaline dry cells (not included)
• Run time: more than 6 hours
• Display: LCD liquid crystal display with automatic backlighting
• Direct reading: sensor Concentration Reading, battery charge, concentration unit, temperature
• Alarm settings: low-alarm function, high-alarm function settings
• Warm-up time: 30 seconds
• Response time: less than 10 seconds
• Measurement range: 0-1000 ppm
• Resolution: 1 ppm
• Sampling mode: diffusion mode
• Alarm: sound, light-emitting diode, vibration indication alarm, voltage under-voltage indication
• Audio tip: the higher the frequency of beeps, the higher the concentration
• Service temperature range: -10-50 degrees celsius
• Size: 156 x 64 x 27mm
• Weight: about 200g
• Applicable to the following gases and occasions:
• Detection of halogen gases (including chlorine and fluorine)
• Detecting ethylene oxide and ethanol gas for medical use
• Detect Halon gas in the fire extinguishing system
• Testing of air-conditioning, refrigeration systems and refrigerant recovery equipment

Package Info: Weight: 0.30kgs / 0.67lb, Size: 18cm * 8cm * 4cm / 7.09inch * 3.15inch * 1.57inch
