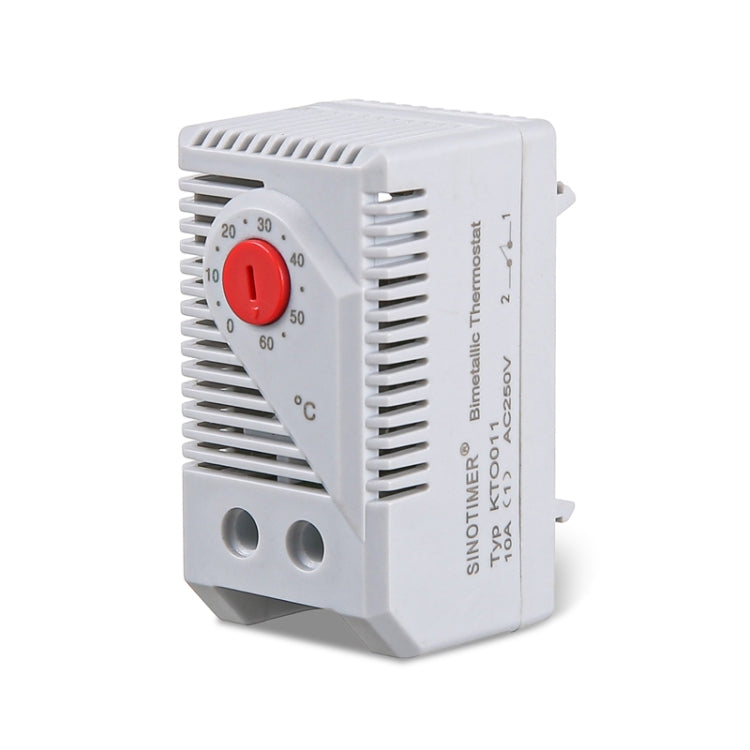

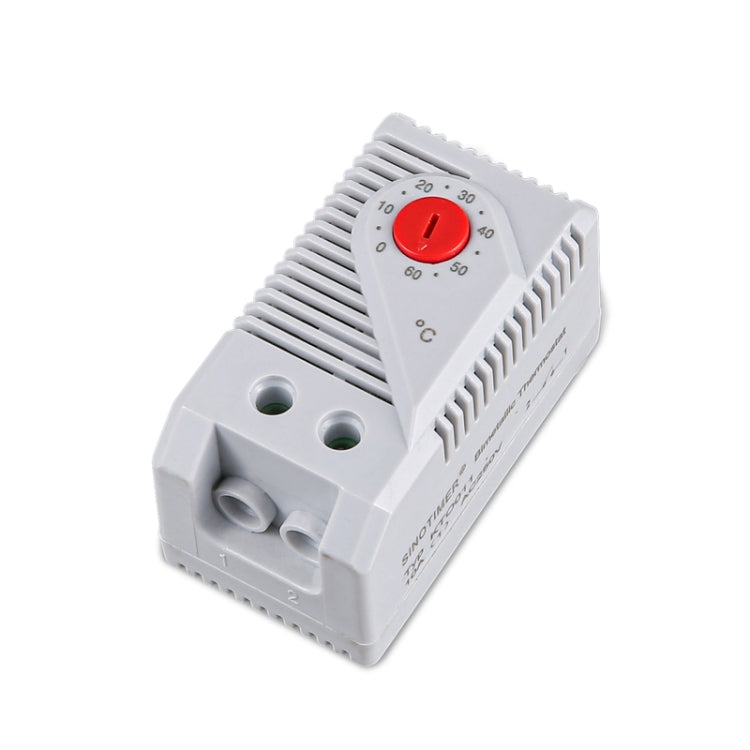

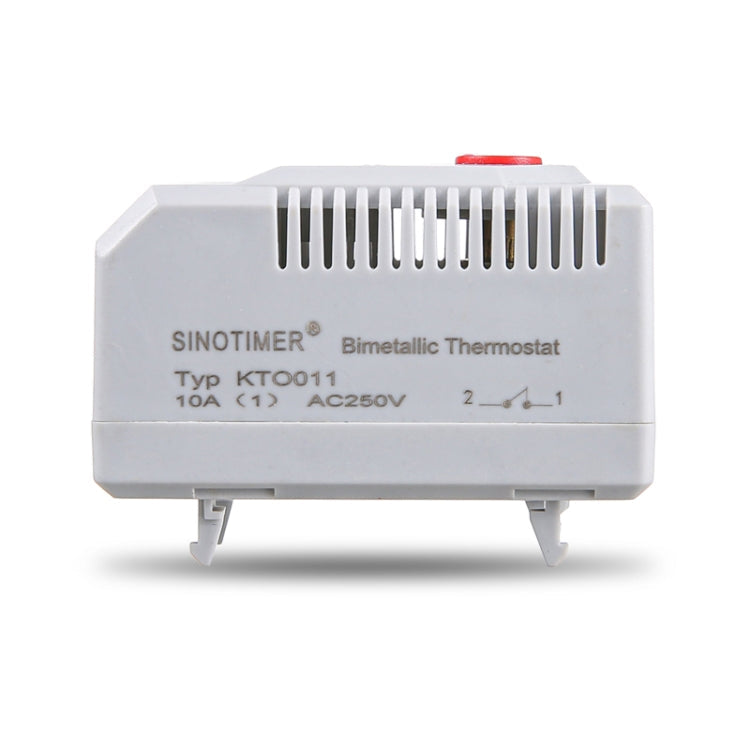

SINOTIMER Small Mechanical Temperature Regulator Control Panel Thermostat, KTO011, KTS011 – 4K

SINOTIMER Small Mechanical Temperature Regulator Control Panel Thermostat, KTO011, KTS011 – 4K.

Key Features:

• Widely used in communication, wind power generation, fire-fighting equipment, ships, petrochemical industry, large-scale factories, coastal factories,...
• Mini size, simple and convenient installation
• Long service life, good durability
• High switching performance, high sensitivity

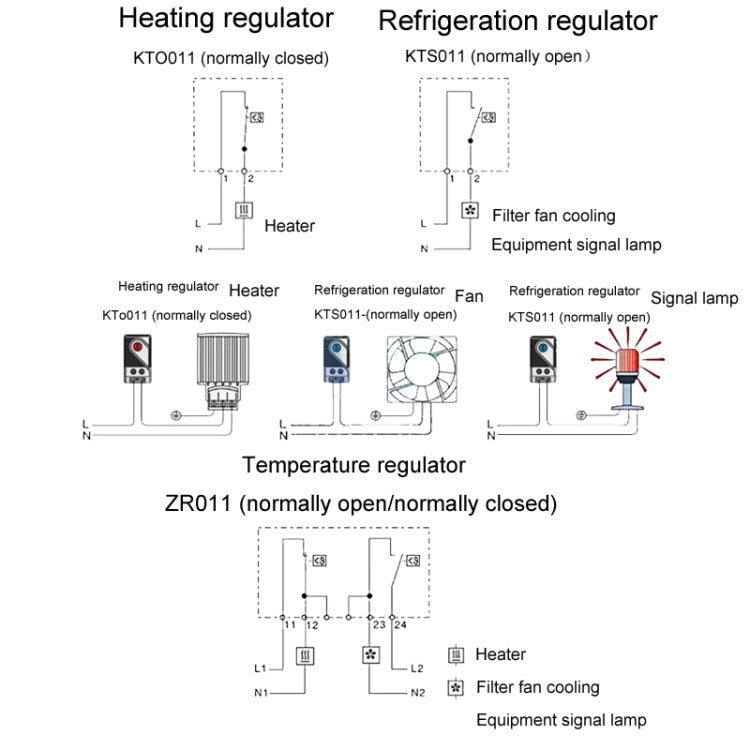

• Function:
• - KTO011: red, thermostat (normally closed), for controlling heaters
• - KTS011: blue, thermostat (normally open), for controlling fans or switching signaling devices

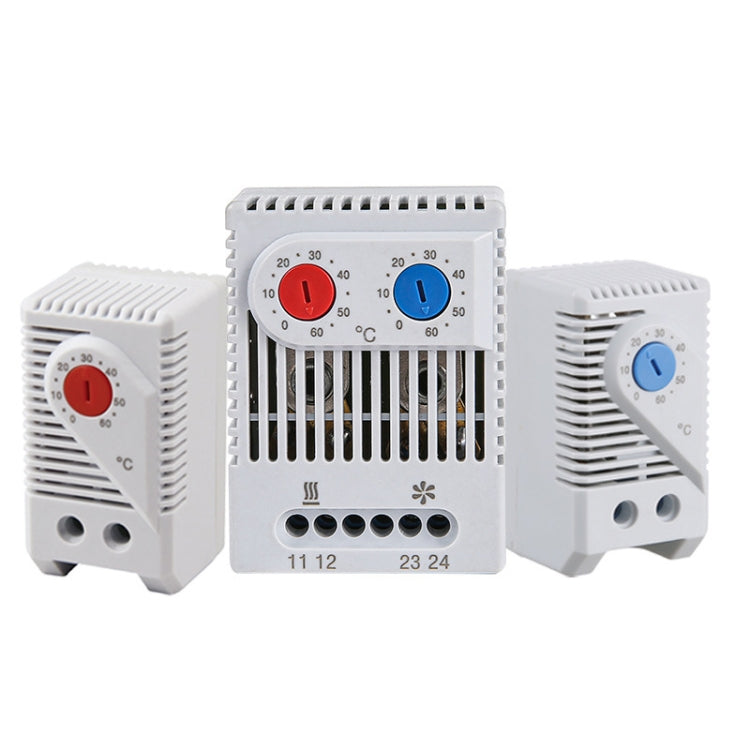

• - ZR011: thermostat (normally open and normally closed integrated design), dual-use heating and cooling
• Working principle: due to different coefficients of thermal expansion, bimetal in the temperature change, the two sides of the thermal expansion and...
• The thermostat is divided into normally open and normally closed two kinds:
• - Normally closed: when the temperature is set, the thermostat is in the normally closed state, when the actual ambient temperature drops to or near the set...
• - Normally open: when the temperature is set, the thermostat is in normally open state, when the actual ambient temperature is greater than or close to the...
• Parameters:
• Switching temperature control: +/-7K (+/-4K tolerance)
• Sensing element: temperature-sensitive material
• Contact type: quick action contact
• Contact resistance: less than 10 milliohms
• Service life: more than 100000 cycles
• Switch: AC250V, 10(2)A; AC120V, 15(2)A; DC 30W
• EMC: EN 55014-1-2; EN 61000-3-2; EN 61000-3-3
• Wiring: 2.5 square millimeter wire
• Mounting: 35mm DIN rail
• Shell material: plastic
• Operating/storage temperature: -80-80 degrees celsius
• Protection class: IP20
• Dimensions:
• - KTO011/KTS011: 60 x 33 x 43mm
• - ZR011: 67 x 50 x 46mm

Package Info: Weight: 0.05kgs / 0.12lb, Size: 7cm * 6cm * 6cm / 2.76inch * 2.36inch * 2.36inch

Shipping: Shipping charges and final delivery dates are shown at checkout.
