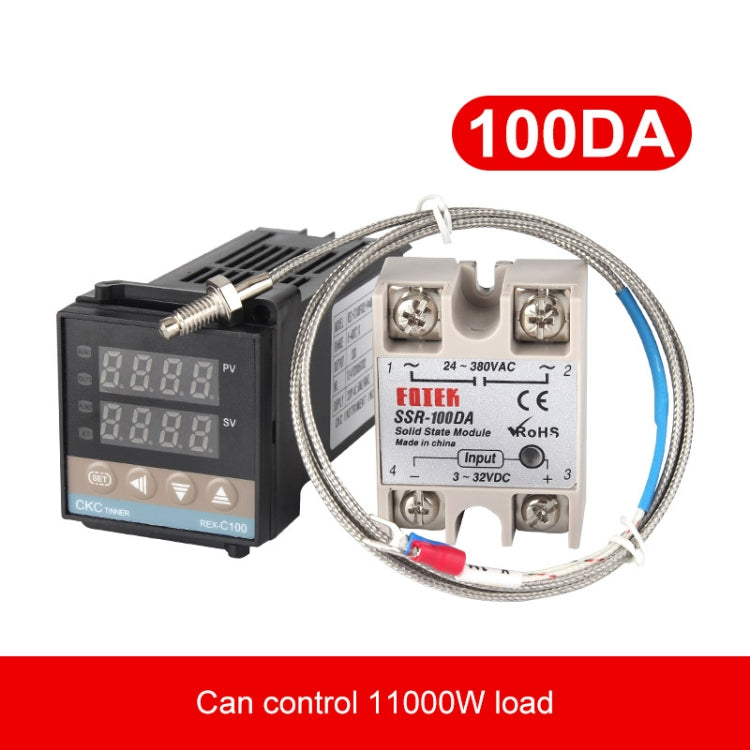

REX-C100 Thermostat + Thermocouple + SSR-100 DA Solid State Module Intelligent Temperature Control Kit, 100DA – TPU

REX-C100 Thermostat + Thermocouple + SSR-100 DA Solid State Module Intelligent Temperature Control Kit, 100DA – TPU.

Key Features:

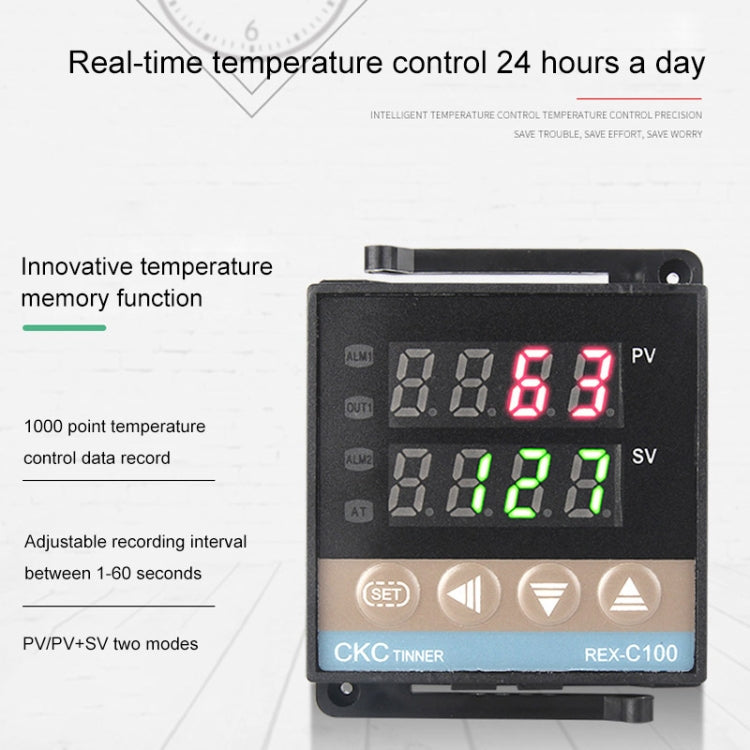

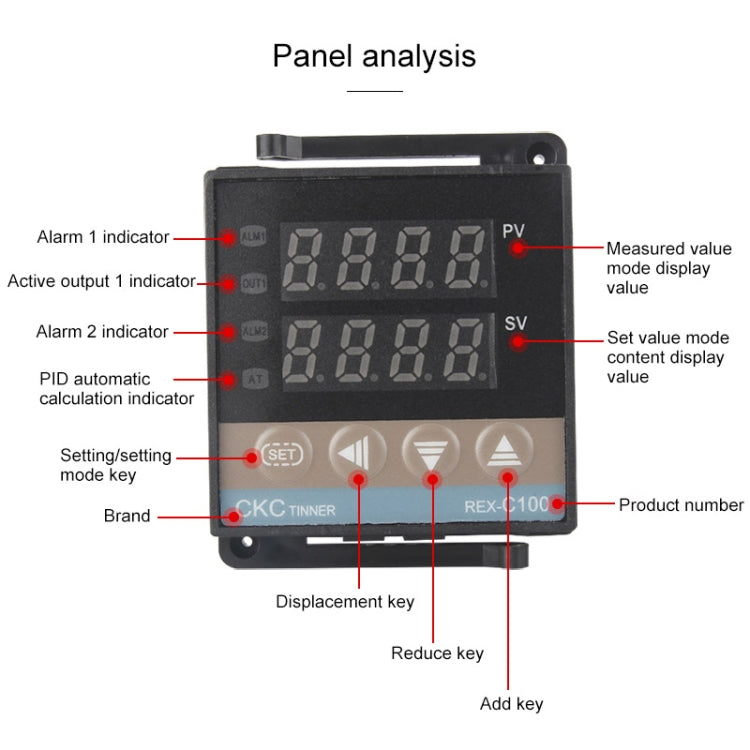

• Thermostat parameters:
• Voltage: 220V
• Opening size: 45x45mm
• Control method: PID control
• Input method: K/EPT100 (optional)
• Output mode: SSR solid state relay

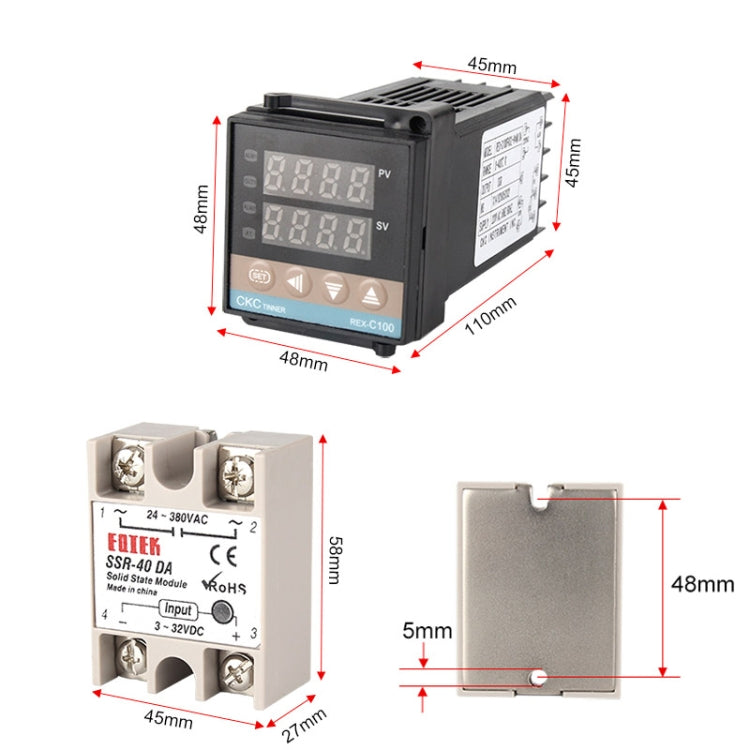

• Product size: 48x48x110mm

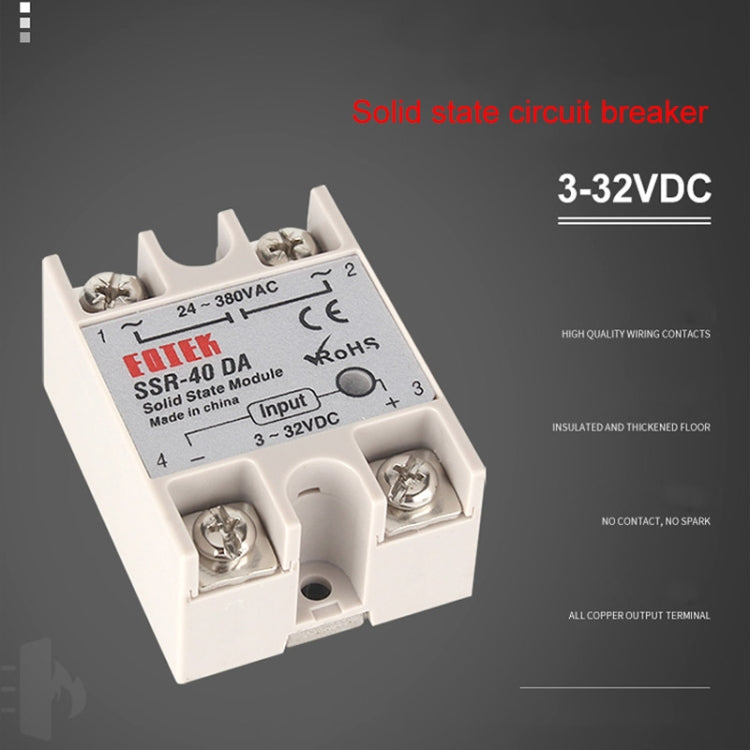

• Solid state module parameters:
• Control method: DC control AC
• Input voltage: 3-32V DC
• Ambient temperature: -30 degrees Celsius to +70 degrees Celsius
• Working frequency: 50-60Hz
• Control current: 3-35mADC
• Product size: 45x27x58mm
• Product weight: 81g

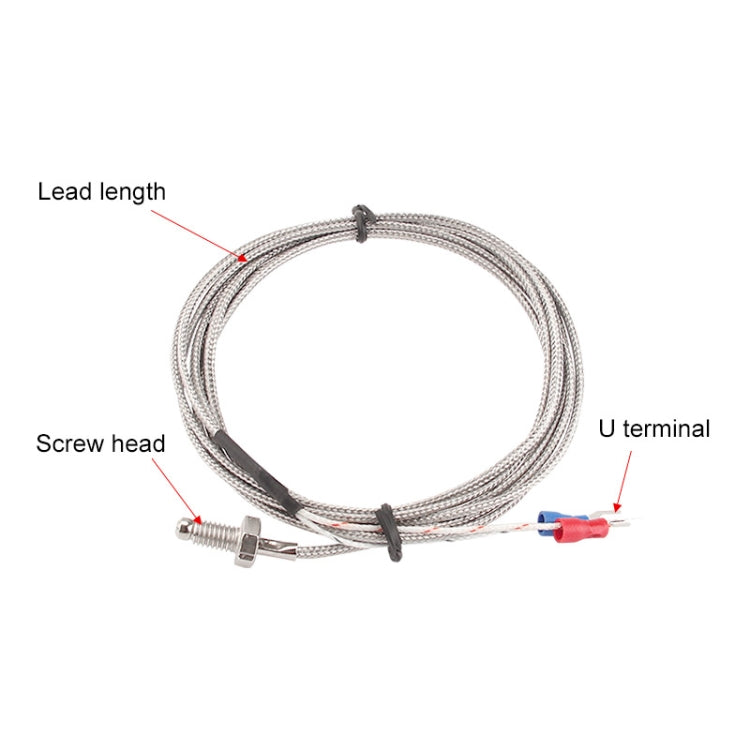

• Screw type thermocouple parameters:
• Model: K type
• Screw specification: M6 inch
• Lead length: 1 meter
• Measuring range: 0-400 degrees Celsius
• Wiring terminal: U-shaped terminal
• Product weight: 16g

Package Info: Weight: 0.43kgs / 0.95lb, Size: 13cm * 9cm * 6cm / 5.12inch * 3.54inch * 2.36inch
