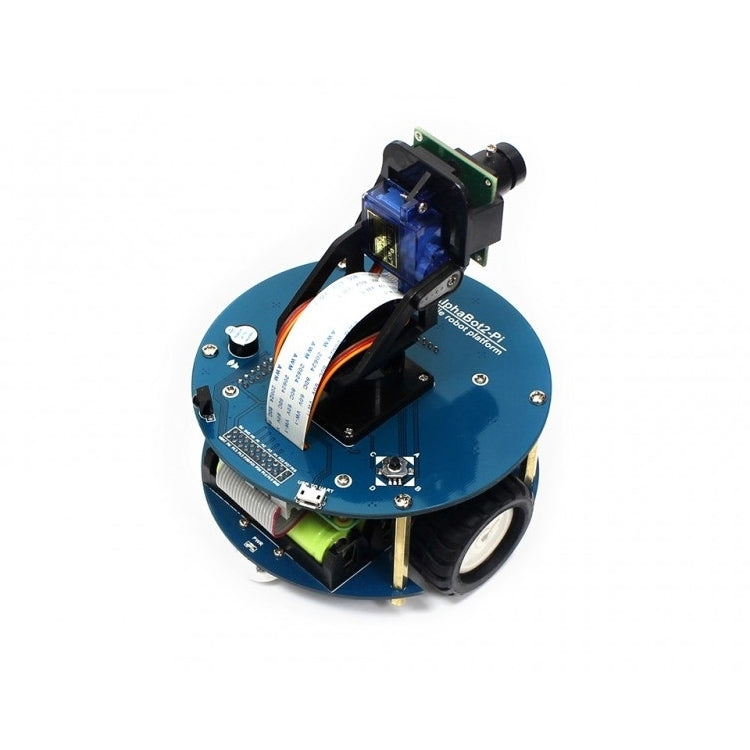

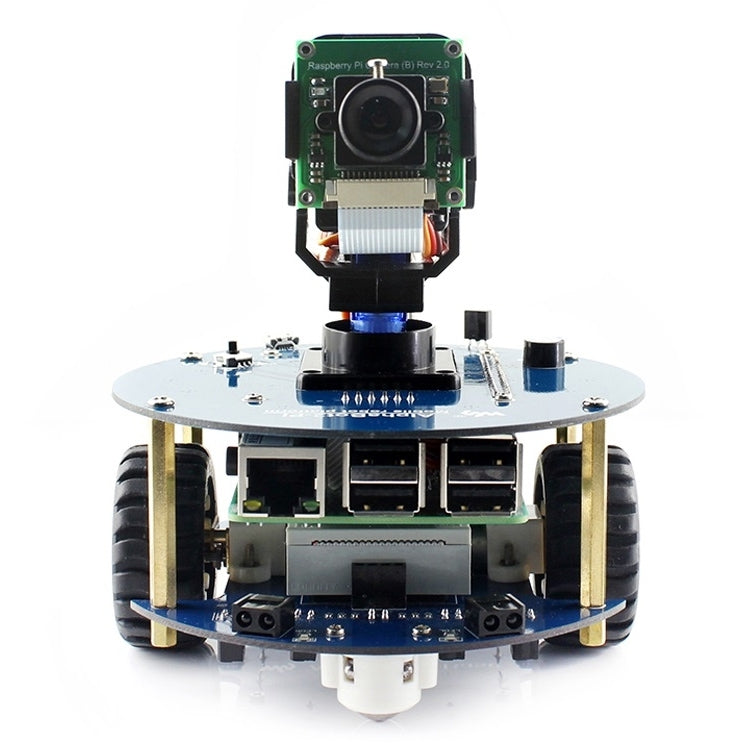

Waveshare AlphaBot2 Robot Building Kit For Raspberry Pi 3 Model B (No Pi) – TPU, For Raspberry Pi 3 Model B (No Pi)

Waveshare AlphaBot2 Robot Building Kit For Raspberry Pi 3 Model B (No Pi) – TPU.

Key Features:

• Overview
• This AlphaBot2 robot kit is designed to use with Raspberry Pi 3 Model B (not included). It features rich common robot functions including line tracking,...
• Thanks to the highly integrated modular design, it is fairly easy to assemble by a snap, no soldering, no wiring. After a few minutes spent on hardware...
• AlphaBot2 Features

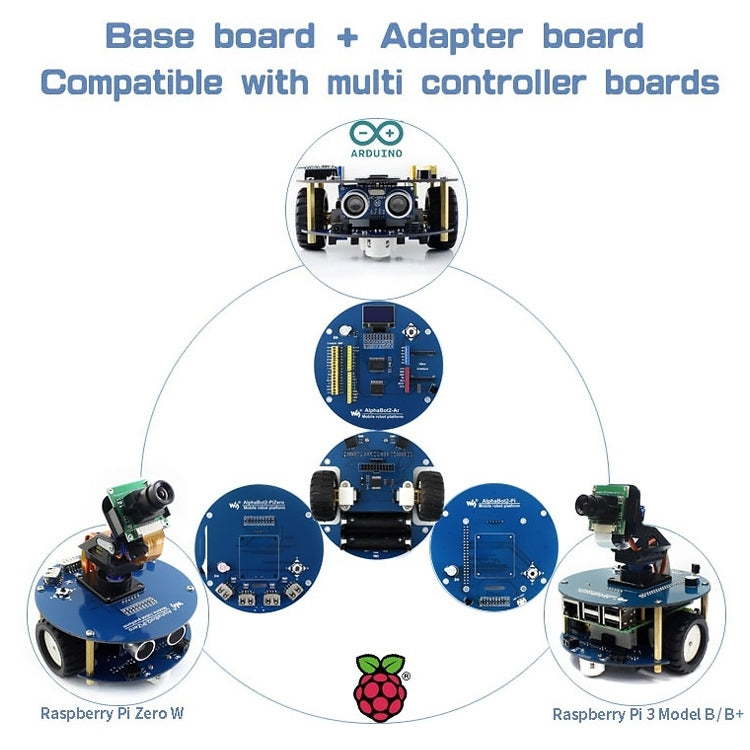

• AlphaBot2 employs a 2-layer structure to provide excellent stability and compatibility.
• AlphaBot2-Base, the lower base chassis:

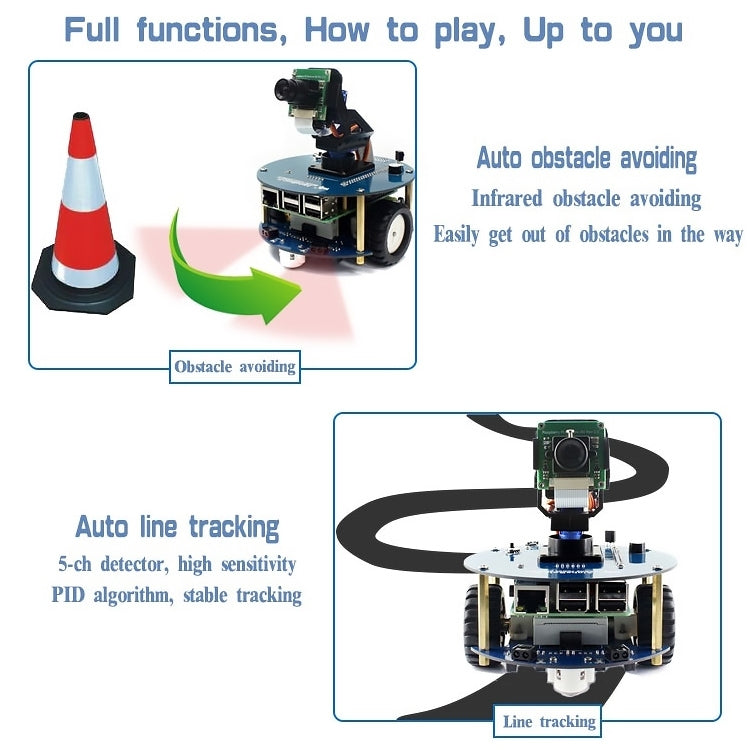

• 5-ch infrared sensor, analog output, combined with PID algorithm, stable line tracking

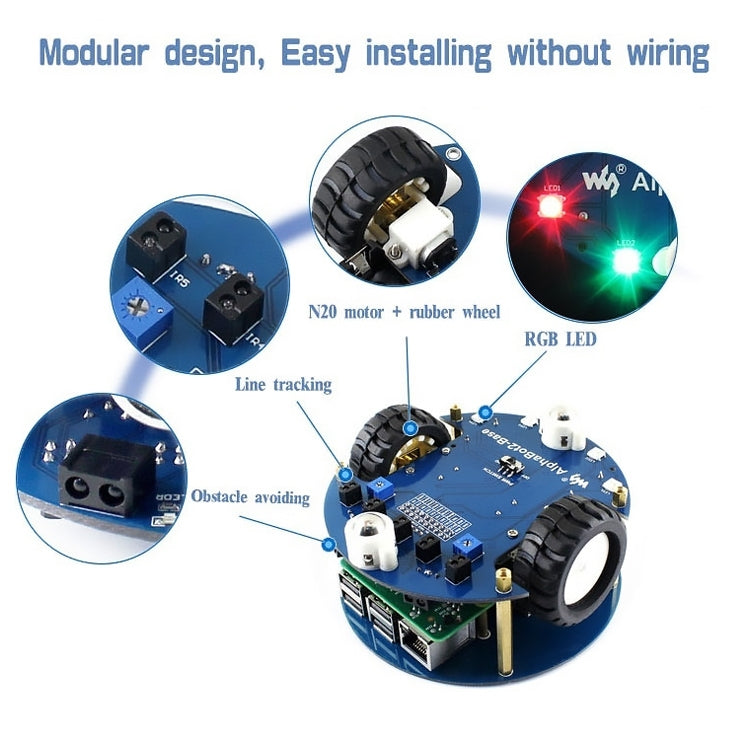

• Onboard modules like line tracking, obstacle avoiding, needs no messy wiring
• TB6612FNG dual H-bridge motor driver, compared with L298P, its more efficient, more compact, and less heating
• 5Onboard RGB LEDs, true color lighting, pretty cool

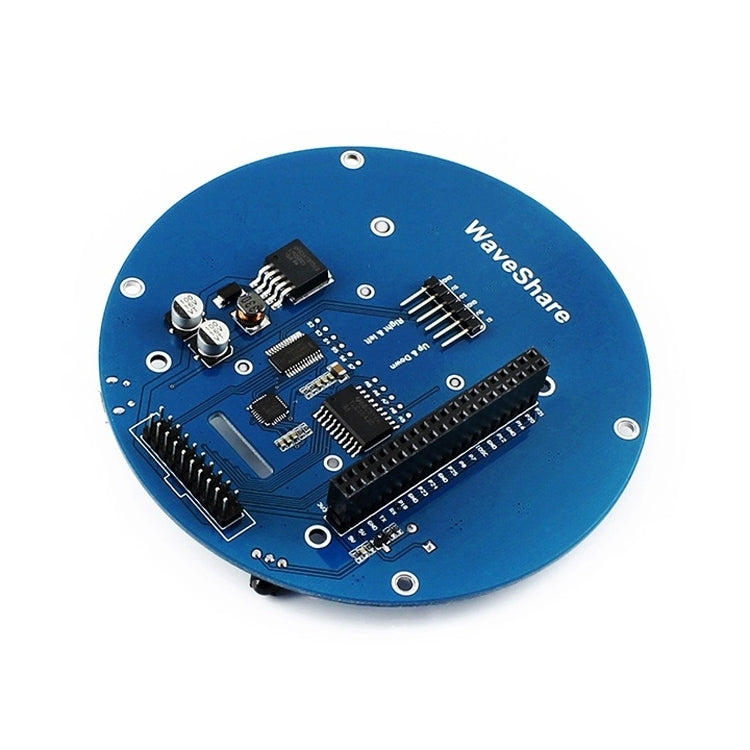

• AlphaBot2-Pi, the upper adapter board for controller:
• LM2596 voltage regulator, provides the Pi with stable 5V power
• TLC1543 AD acquisition chip, allows the Pi to use analog sensors
• PCA9685 servo controller, make it more smoothly to rotate the pan head
• CP2102 UART converter, easy for controlling the Pi via UART

Compatibility: Raspberry Pi 3 Model B (No Pi)

Package Info: Weight: 0.05kgs / 0.12lb, Size: 18cm * 6cm * 15cm / 7.09inch * 2.36inch * 5.91inch
