QDB-3A Drive Detector High Voltage Ignition Coil Injector Solenoid Valve – TPU

QDB-3A Drive Detector High Voltage Ignition Coil Injector Solenoid Valve – TPU.

Key Features:

• Feature:

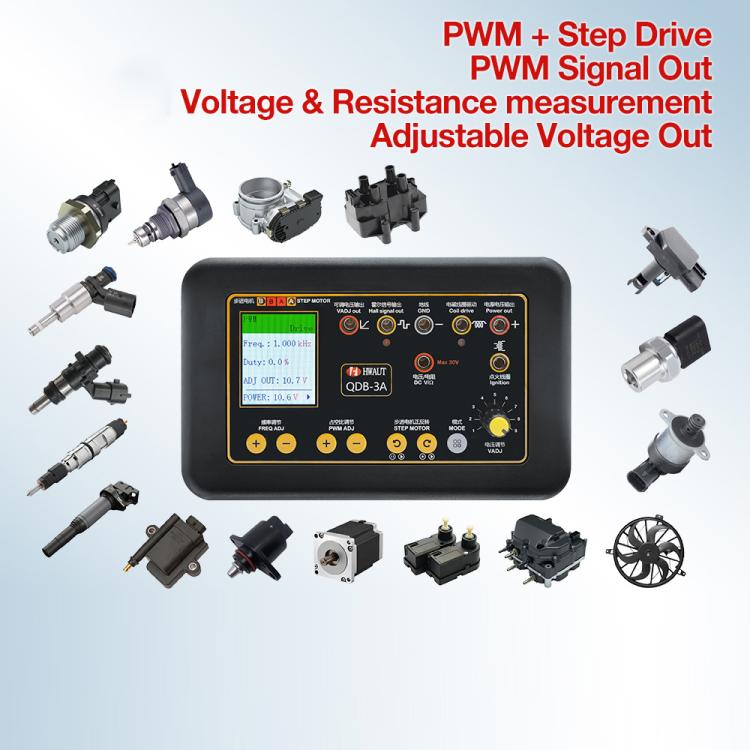

• This diagnostic tool serves as an ignition coil tester, injector tester, and stepper motor tester, catering to a wide range of automotive diagnostic needs.

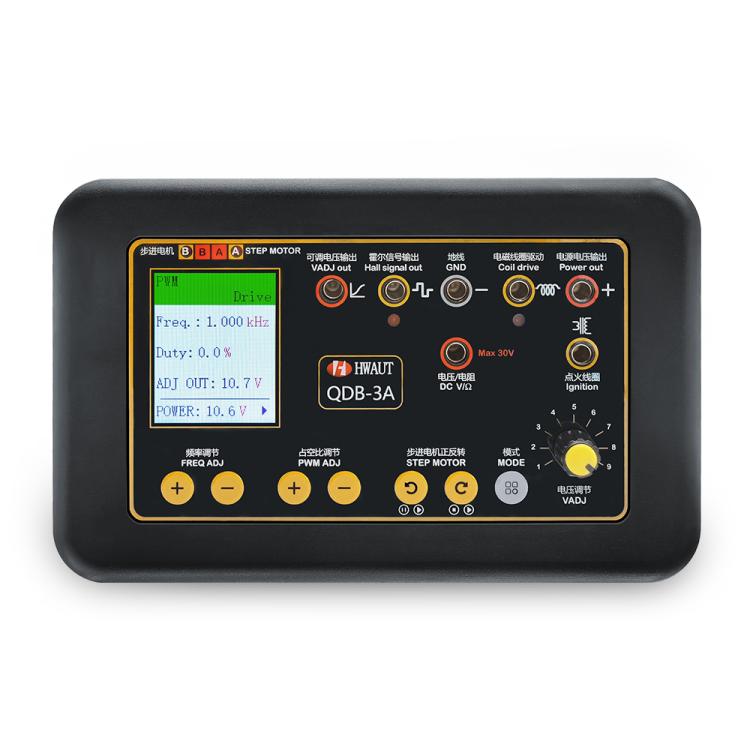

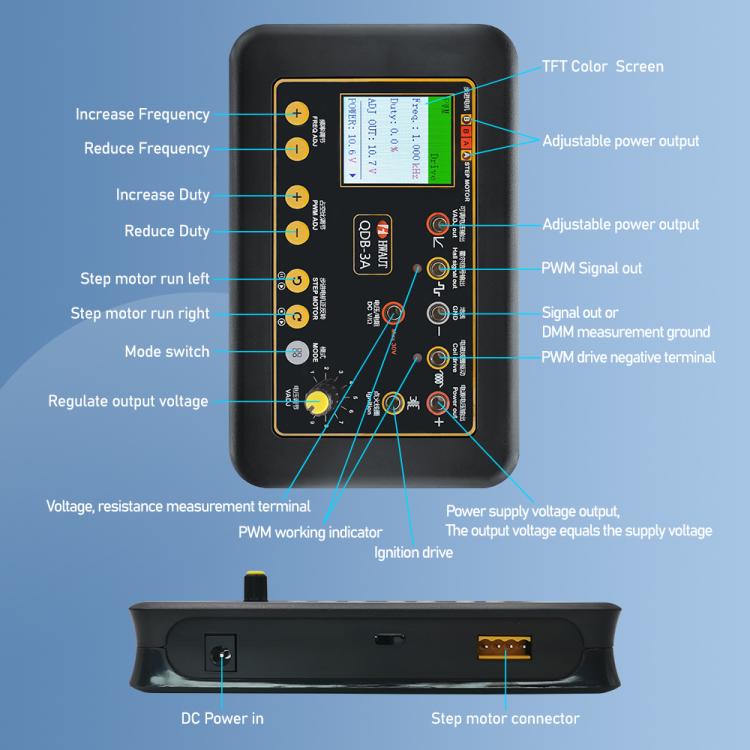

• 1.8 inch Color display: Multiple functions can be fully displayed on one screen, and the color screen can display various parameters more humanely.
• Adds a multimeter function that can measure resistance and voltage, which is helpful for judg-ing the quality of components.
• The step motor drive current increases. Improve PWM driving to avoid damage to test components. DC/DC power supply to reduce heat generation.

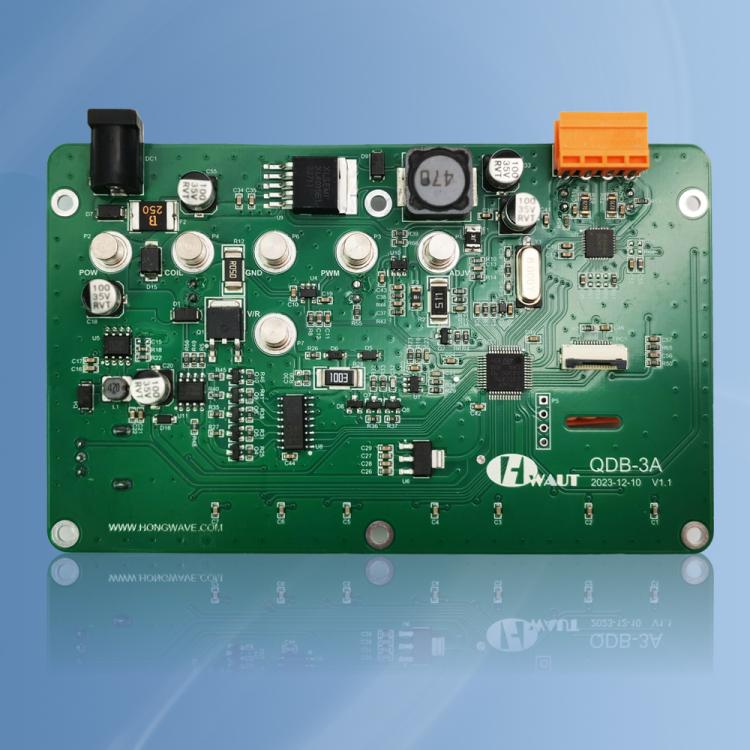

• The new solution uses a 32-bit ARM chip, which can control all function outputs and collect various parameters.Output can be shut down in case of overcurrent.
• Parameter:
• Power In: DC 9~24V /100W
• Power Out: Current: Max 2.5A
• VADJ Out: Voltage:1.25V~14.5V, Current: Max 1.5A
• DMM: DCV:0~30V, DCR:0~1M ohm
• PWM Signal: Frequency:1~100KHz, Duty:0.0~100%, VPP:1.25V~14.5V
• PWM Drive: Frequency:1~100KHz, Duty:0.0~100%, Current: Max 3A
• Step Motor: Max 1.5A
• Operating Temperature: 0~55 degree Celsius

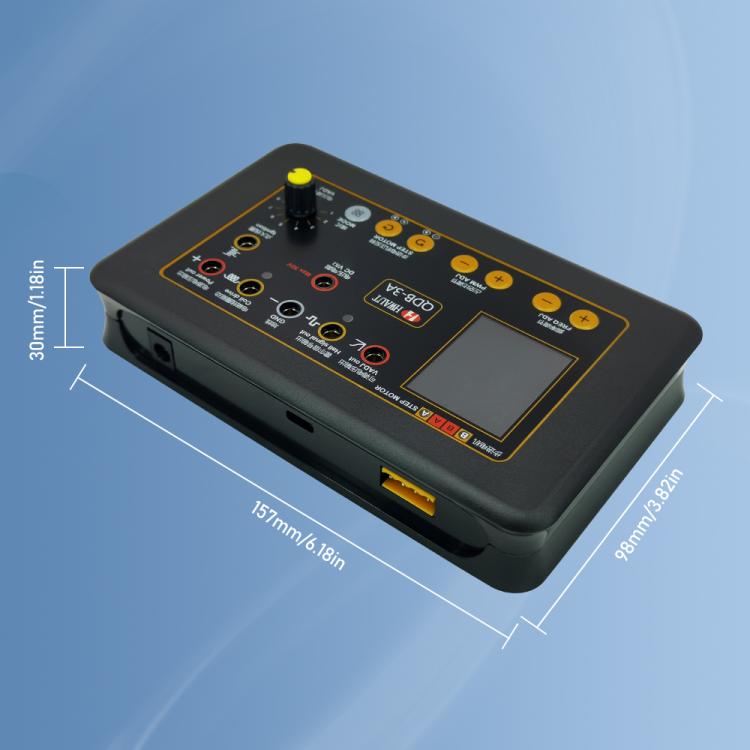

Package Info: Weight: 0.40kgs / 0.89lb, Size: 19cm * 17cm * 2cm / 7.48inch * 6.69inch * 0.79inch
