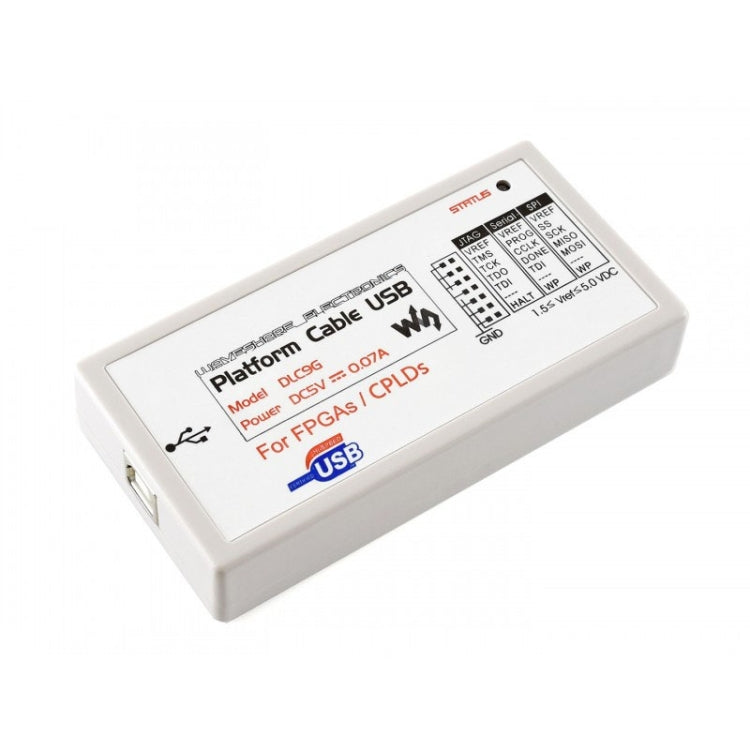

Platform Cable USB, Programmer & Debugger for Xilinx Devices – Durable Build, Easy to Use

Platform Cable USB, Programmer & Debugger for Xilinx Devices – Durable Build, Easy to Use.

Key Features:

• USB compatible cable for in-circuit configuration and programming of all Xilinx devices
• Overview
• The Platform Cable USB a USB compatible cable for in-circuit configuration and programming of all Xilinx devices. It is compatible with the original XILINX...
• Features
• - Performance
• Using CY7C68013A+FPGA solution, fully compatible with the original XILINX Platform Cable USB
• Programs all Xilinx devices, including FPGAs / CPLDs / ISP Configuration PROMs
• Supports JTAG, Slave-Serial and SPI programming, to config all Xilinx devices
• Interfaces to devices operating at 5V / 3.3V / 2.5V / 1.8V / 1.5V
• Optional target clock frequency, supports XILINX software automatic frequency adjustment
• Firmware auto upgrade, its possible to support more new released software and devices
• Anti-static and multi-layers signal isolation, to protect the target and the programmer itself
• - Supported software
• Xilinx ISE
• iMPACT
• ChipScope
• Vivado
• - Supported devices
• Xilinx FPGA devices: UltraScale / 7 series / Zynq / Kintex / Virtex / Artix / Spartan, etc.
• Xilinx CPLD devices: XC9500 / XC9500XL / XC9500XV / CoolRunner XPLA3 / CoolRunner-II, etc.
• Xilinx PROM devices: Platform Flash XCF00S / XCF00P / XL, etc.
• LED Status
• 1. Red: USB connected
• Yellow: USB connected, and Vref (the target board) is powered
• How to Connect
• 1. Connects to PC: Via USB interface
• Connects to target board: Platform Cable USB provides 3 different interfaces to connect with the target board: JTAG, Slave Serial, and SPI. The figure below...

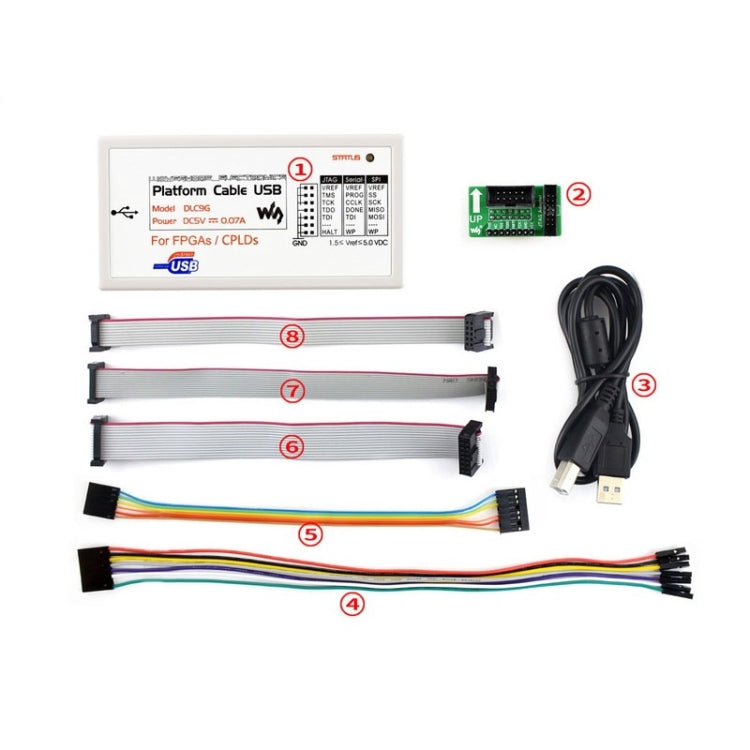

• Package contents
• 1. Platform Cable USB main unit x1
• JTAG adapter x1
• USB cable x1
• 8-pin header to 7-pin separated cable x1
• 8-pin header to 6-pin header cable x1
• 14-pin (2.54mm pitch) JTAG cable x1
• 14-pin (2mm pitch) JTAG cable x1
• 10-pin (2.54mm pitch) JTAG cable x1

Package Info: Weight: 0.22kgs / 0.49lb, Size: 15cm * 8cm * 2cm / 5.91inch * 3.15inch * 0.79inch
