Orange5 V1.34 Professional Programming Device Main Unit, Professional Programming Device – Durable Build, Easy to Use

Orange5 V1.34 Professional Programming Device Main Unit, Professional Programming Device – Durable Build, Easy to Use.

Key Features:

• Supports any COM ports, incuding virtual ones from 1 to 20
• Works with text (ASCII) and HEX mode
• Creating a list of commands that allows editing and fast sending
• Fine-tuning the exchange rate
• Saving files including command and port settings.
• Saving incoming data in binary files
• File transfer via serial port.
• Delay settings for bytes and blocks
• Echo mode
• Delay settings between incoming data
• Managment of DTR, RTS chains, visualising DSR, CTS, CD, RI
• Program does not need to be installed
• Supports Orange5 programmer in emulation mode.
• Software License:
• MTRK (Included in Orange-5 base)
• TMS (Included in Orange-5 base)
• M08V NEW
• Immo HPX 9V0
• NEC V850ES/SJ3 V850ES/SG3 UART
• NEC V850E2 NEW
• Technical Info:
• USB power supply (USB2.0/3.0)
• Universal easy to plug panel ZIF16 for EEPROM
• Control of contacts in the sockets
• Two expansions compatible with Orange4 and Omega MTRK
• Protection against overcurrent
• Overload voltage protection
• Two types of power supply: Standart (USB) and enhanced (USB + external power supply)
• Three 3 adjustable voltage and current control: Voltage of power supply ( 2.0...5.0V ), programming voltage (2.0...21.0V), additional static 10V for...
• High-speed bidirectional pin drivers with adjustable voltage (2.0...5.0V)
• Wave cycle generator with frequency ( up to 24 Mhz) and out voltage(2.0...5.0V) adjustment
• Capability of functional emulation of class CDC USB devices
• Built-in 32-bit virtual machine
• Supported interface: I2C, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN (via adapter)
• Programmer is encolsed in a functional box. Supported working under Windows XP/7 32bit. [Win8.1]
• Installation and Work with Orange-5 under Windwos 7 and Windows 8.1
• CnCterm - Terminal program for work with COM ports.
• Software Version: V1.34
• Language: Chinese, English and Russian
• Systems: XP WIN7 WIN8

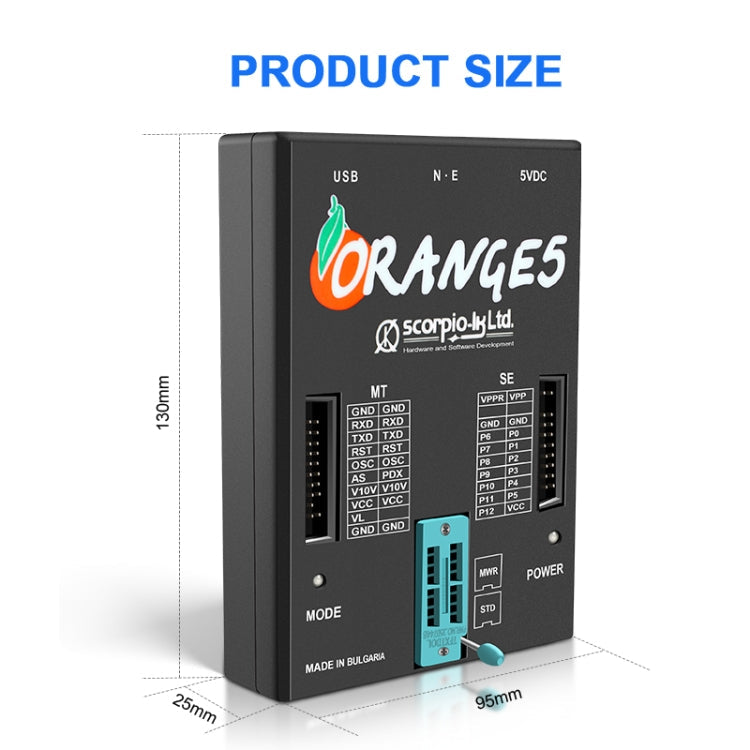

Package Info: Weight: 0.36kgs / 0.79lb, Size: 24cm * 20cm * 8cm / 9.45inch * 7.87inch * 3.15inch

Shipping: Shipping charges and final delivery dates are shown at checkout.
