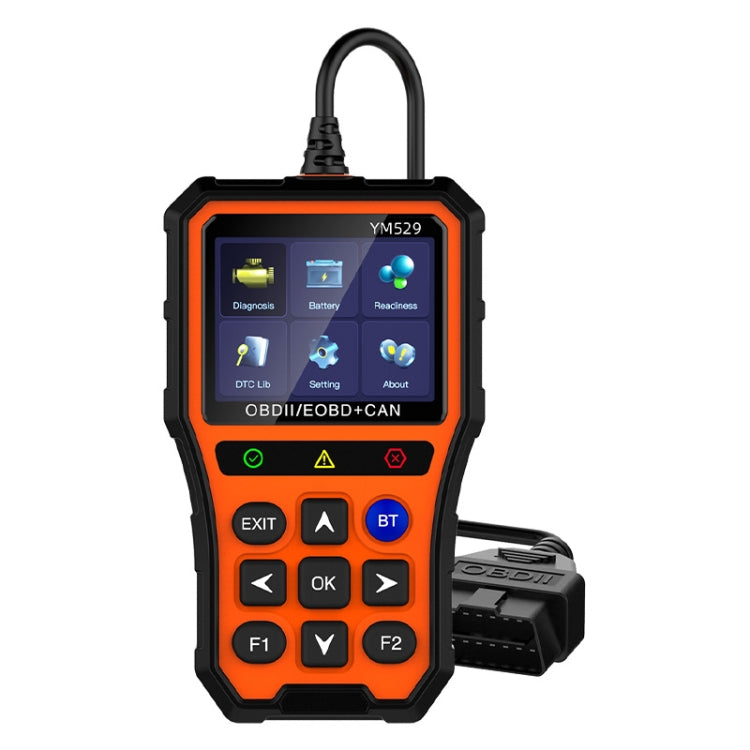

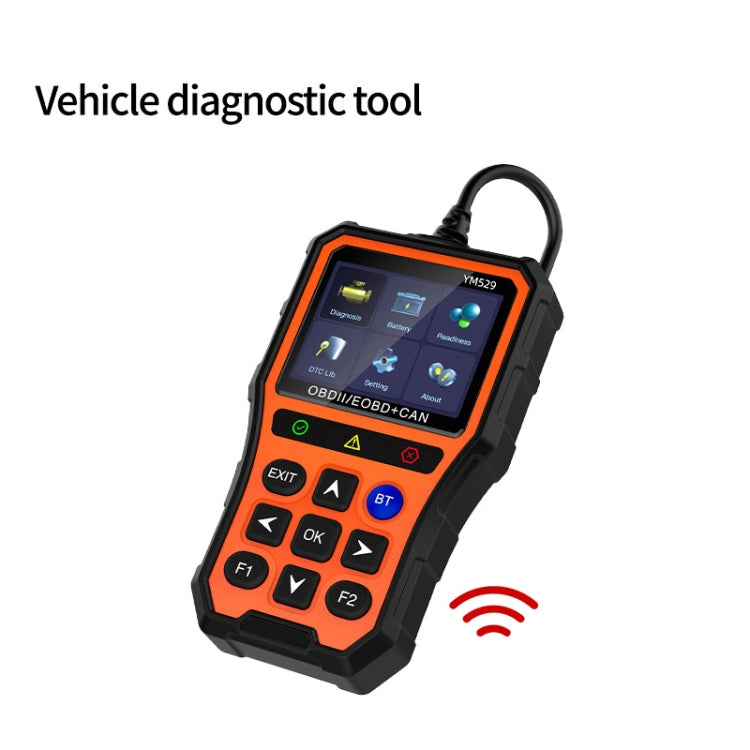

OBD Car Battery Fault Scanning Diagnostic Instrument – Bluetooth, 4K

OBD Car Battery Fault Scanning Diagnostic Instrument – Bluetooth, 4K.

Key Features:

• Working voltage: 5-24V
• Working current: 50mA
• Diagnostic method: (OBD line/Bluetooth)

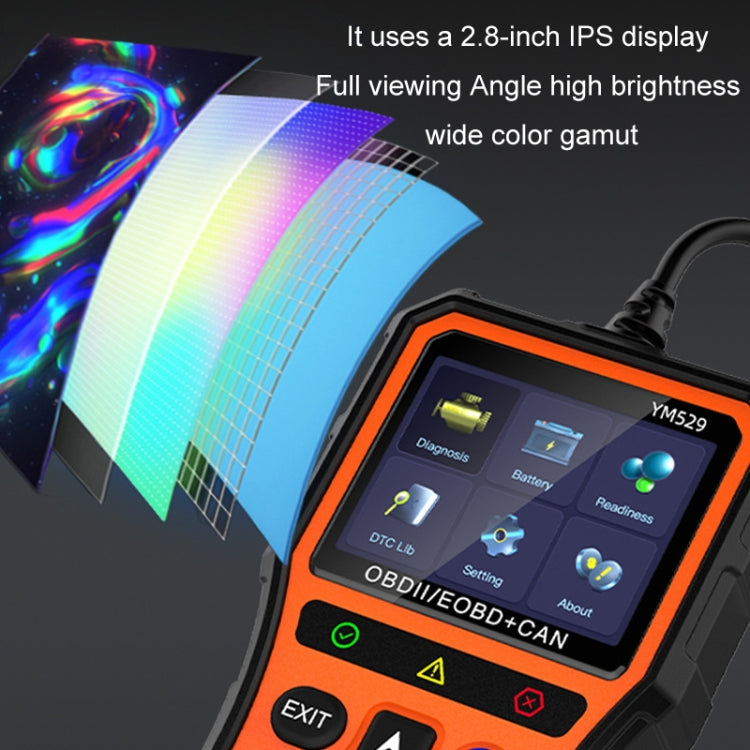

• Screen size: 2.8 color screen iPS (high brightness full viewing angle)

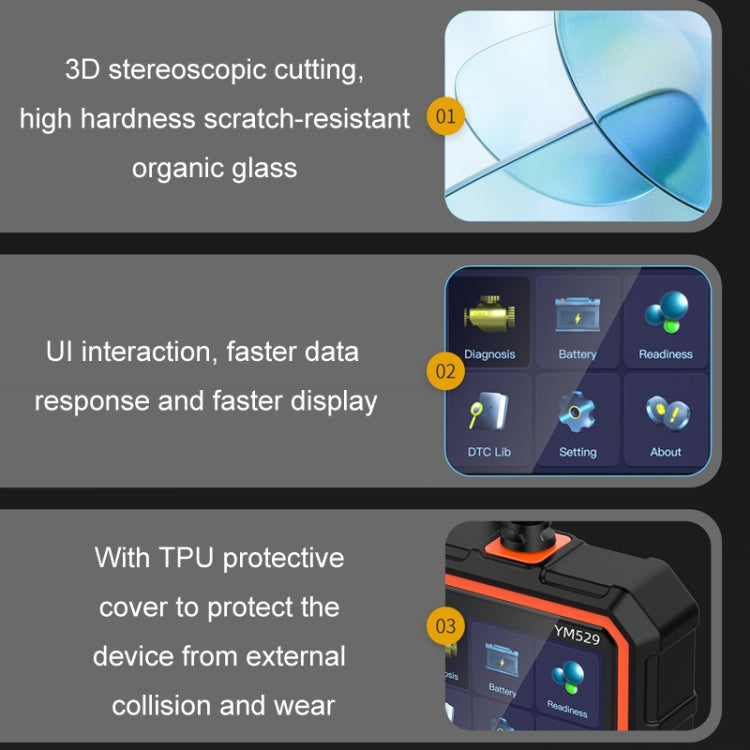

• UI interaction (picture overlay + changeable theme + GPU Turbo for faster response and faster display)
• Support nine standard protocols of OBDII/EO to read car engine fault codes
• The product has 13 built-in languages ??(Chinese, English, Korean, Japanese, Russian, Polish, Portuguese, Finnish, Italian, French, Spanish, Dutch, German)
• Dashboard: vehicle speed, engine speed, driving fuel consumption, cooling temperature, battery voltage, fuel consumption meter, custom dashboard

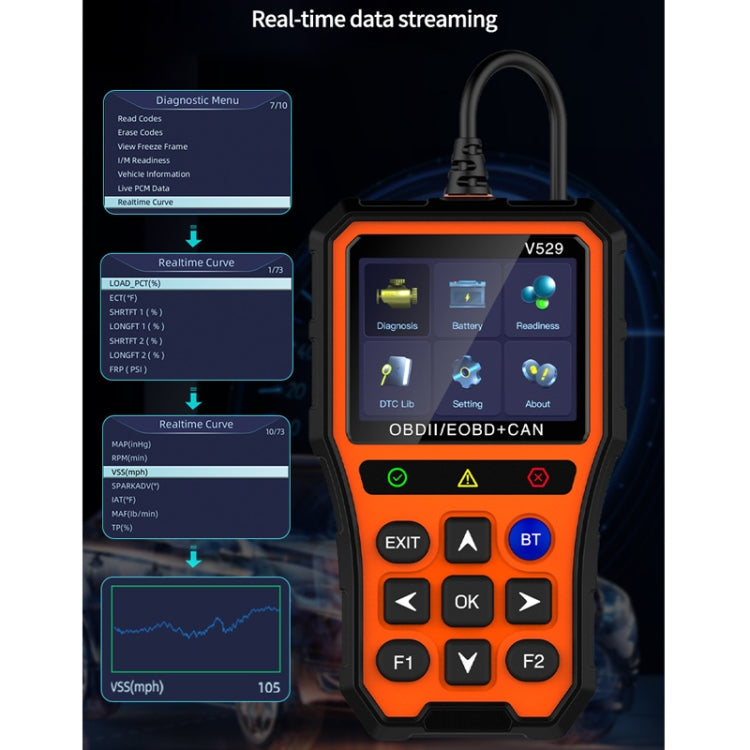

• Real-time data stream (freeze frame fault code, engine speed, oxygen sensor, etc., including 88 data streams), storage and playback of real-time data stream

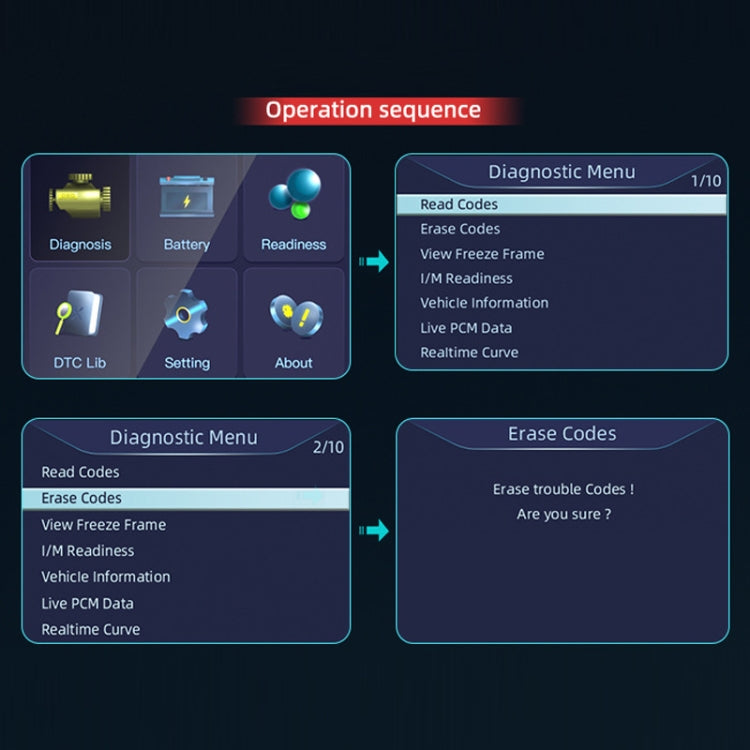

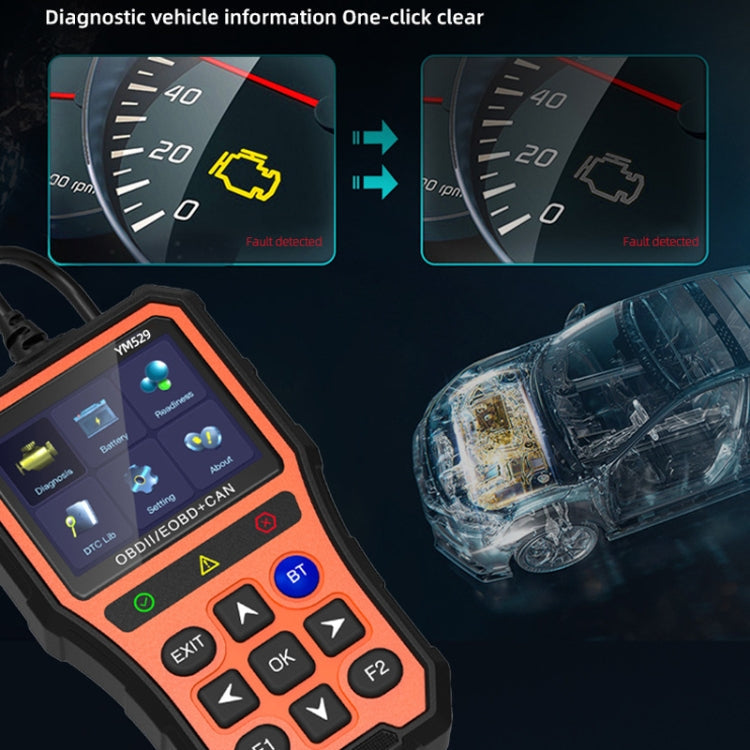

• Fault code detection: support vehicle DTC fault code reading and clearing, fault code query
• Vehicle information: basic vehicle information VIN (also called vehicle identification number or frame number), CALID, CVN and other parameters are read,...
• Trip analysis (total mileage, time, average speed, start time, total fuel consumption, average fuel consumption)
• Provide real-time monitoring of the battery, start test and charging test
• Supported models: Support most models in Europe after 2003 and in the United States after 1996
• Product size: 145x85x28mm
• Product net weight: 228g
• Supported protocols:
• SAE J1850 PWM (41.6Kbaud)
• SAE J1850 VPW (10.4Kbaud)
• ISO9141-2 (5 baud init, 10.4Kbaud)
• ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
• ISO14230-4 KWP (fast init, 10.4 Kbaud) 6. ISO15765-4 CAN (11bit ID, 500 Kbaud) 7. ISO15765-4 CAN (29bit ID, 500 Kbaud) 8. ISO15765-4 CAN (11bit ID, 250...

Package Info: Weight: 0.25kgs / 0.56lb, Size: 27cm * 15cm * 5cm / 10.63inch * 5.91inch * 1.97inch
