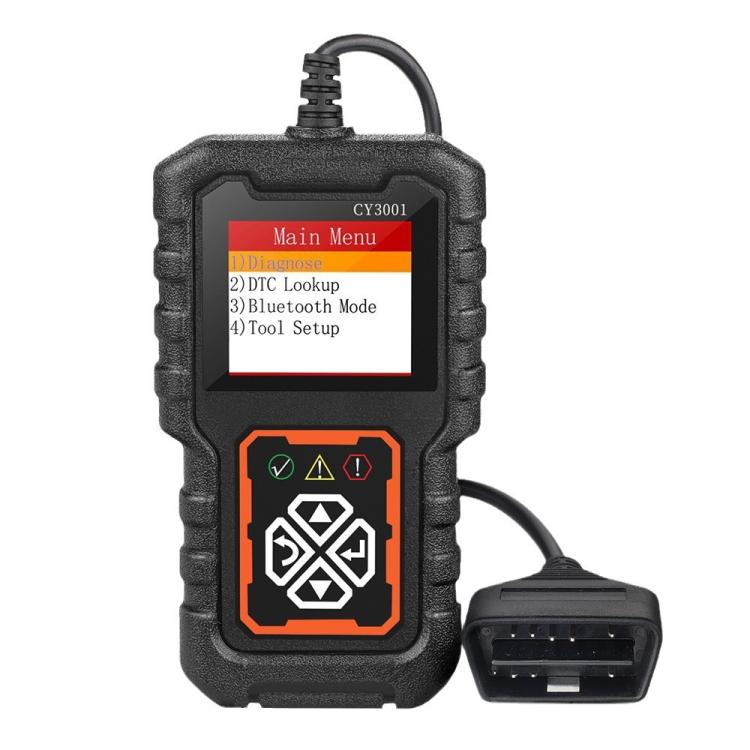

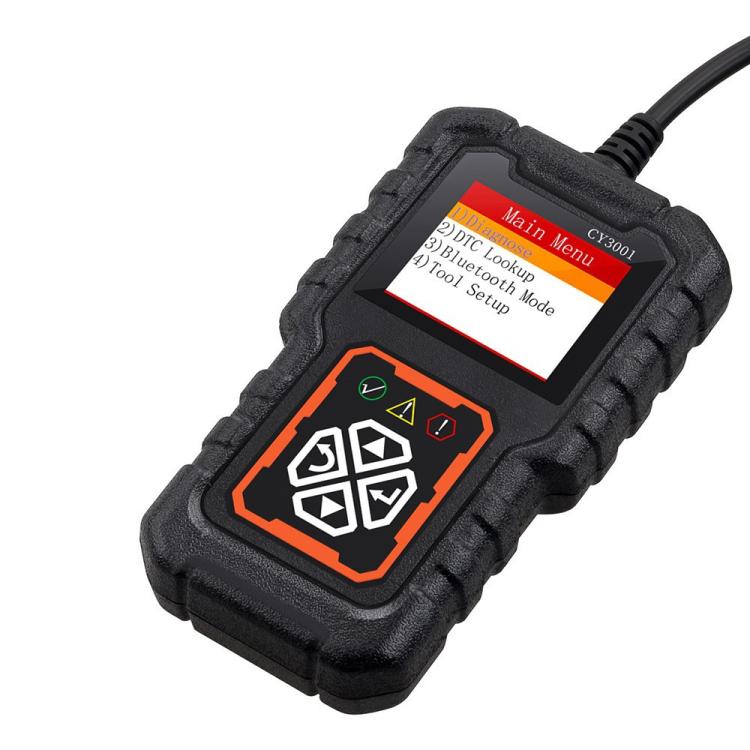

OBD 2 Car Fault Detection Diagnostic Scanner With Color Screen Display, CY3001 – Bluetooth

OBD 2 Car Fault Detection Diagnostic Scanner With Color Screen Display, CY3001 – Bluetooth.

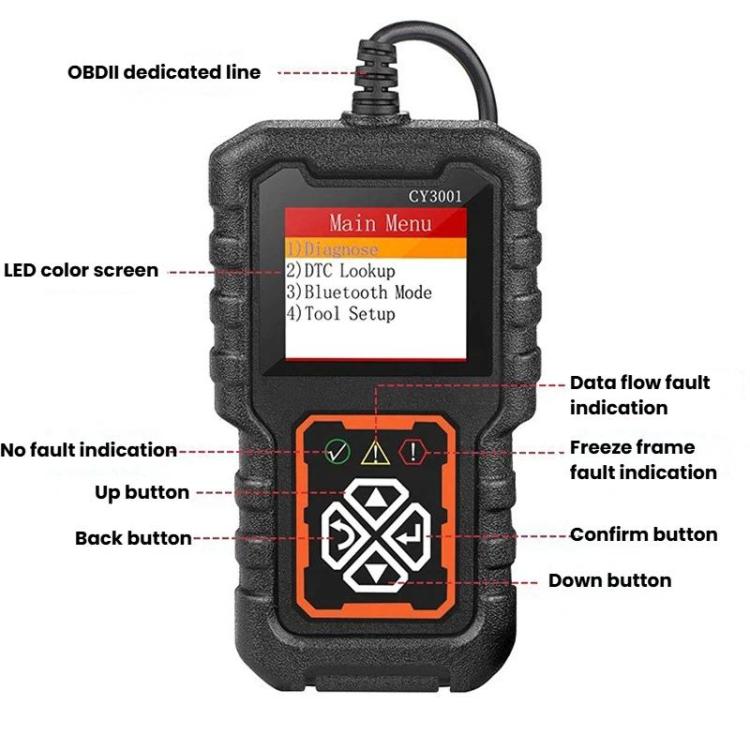

Key Features:

• Rapid diagnostics: quickly reads vehicle fault codes, saving diagnostic time

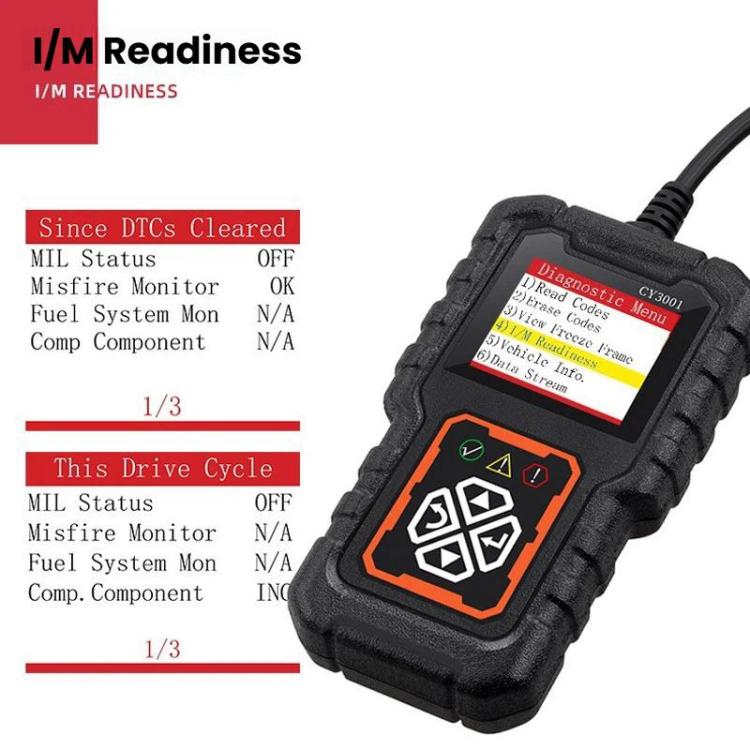

• Real-time data monitoring: displays vehicle operating data live, helping users track vehicle status
• High precision: delivers accurate measurements and analysis, ensuring reliable diagnostic results
• Strong compatibility: suitable for various vehicle models and series, offering broad applicability
• User-friendly operation: intuitive interface, easy to operate, simple to master
• Specifications
• Connection method: OBD II dedicated cable / bluetooth connection
• Working temperature: -40 degrees Celsius to -65 degrees Celsius
• Voltage: DC 9-16V
• Operating status: three-colour indicator light
• Supported languages: British English, American English, Spanish, French, German, Russian, Chinese, Italian, Portuguese
• Size: about 7 x 12 x 2.3cm
• Communication protocols
• SAE J1850 PWM (41.6 Kbaud)
• SAE J1850 VPW (10.4 Kbaud)
• ISO 9141-2 (5 baud init, 10.4 Kbaud)
• ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
• ISO14230-4 KWP (fast init, 10.4 Kbaud)
• ISO15765-4 CAN (1-bit ID, 500 Kbaud)
• IS015765-4 CAN (29-bit ID, 500 Kbaud)
• IS015765-4 CAN (11-bit ID, 250 Kbaud)
• IS015765-4 CAN (29-bit ID, 250 Kbaud)

Package Info: Weight: 0.19kgs / 0.43lb, Size: 18cm * 10cm * 8cm / 7.09inch * 3.94inch * 3.15inch

Shipping: Shipping charges and final delivery dates are shown at checkout.
