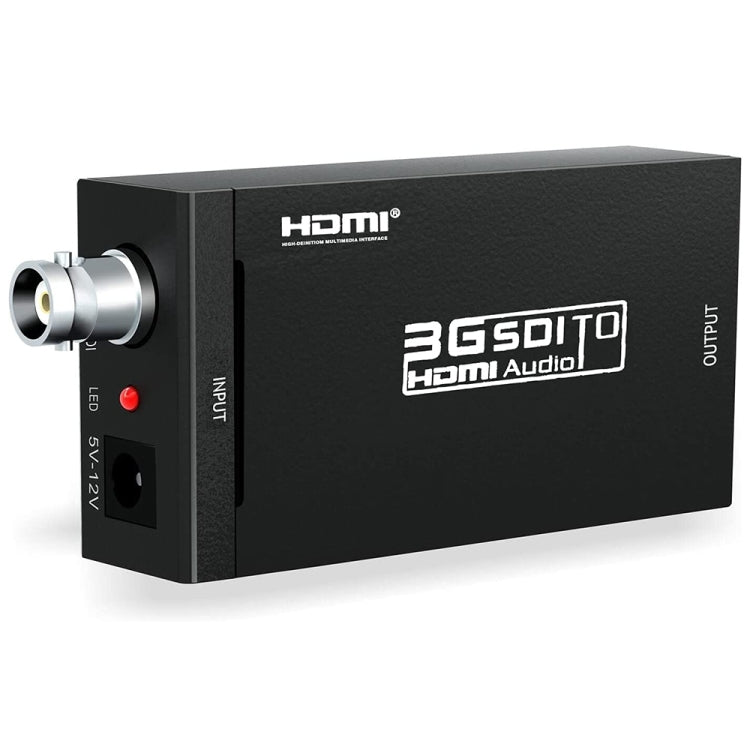

NEWKENG S008 Mini SD-SDI / HD-SDI / 3G-SDI to HDMI Video Converter, S008 Mini SD-SDI / HD-SDI / 3G-SDI to HDMI – TPU

NEWKENG S008 Mini SD-SDI / HD-SDI / 3G-SDI to HDMI Video Converter, S008 Mini SD-SDI / HD-SDI / 3G-SDI to HDMI – TPU.

Key Features:

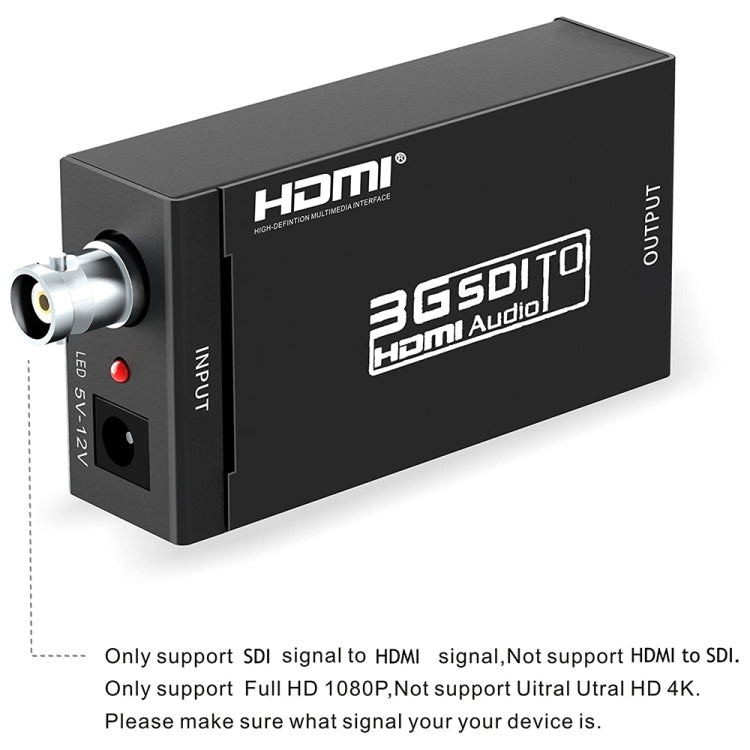

• Converts SD-SDI / HD-SDI / 3G-SDI video input to HDMI output
• Supports video format: SD-SDI (270Mb/s) / HD-SDI (1.485Gb/s) / 3G-SDI (2.97Gb/s)
• Supports SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C
• Equalized and re-clocked loop output integrated audio de-embedder for a maximum of 8 channels, 48KHz audio
• Input / output resolution: 480, 576i, 720p@50/59.94/60Hz, 1080i@50/59.94/60Hz, 1080p@23.91/24/25/29.97/30/50/59.94/60Hz
• Parameter
• Video input signal: HD digital component serial interface (HD-SDI and 3G-SDI) signal
• Video output signal: one HDMI signal output (1080P @ 60Hz)
• Input audio signal: SDI embedded
• Maximum working current: 500mA
• Power adapter specifications: AC input (50HZ, 60HZ) 100V-240V; output DC 12V / 1A
• Working temperature: -15-55 degrees celsius
• Dimensions: 80x 41x25mm
• Weight: 150g

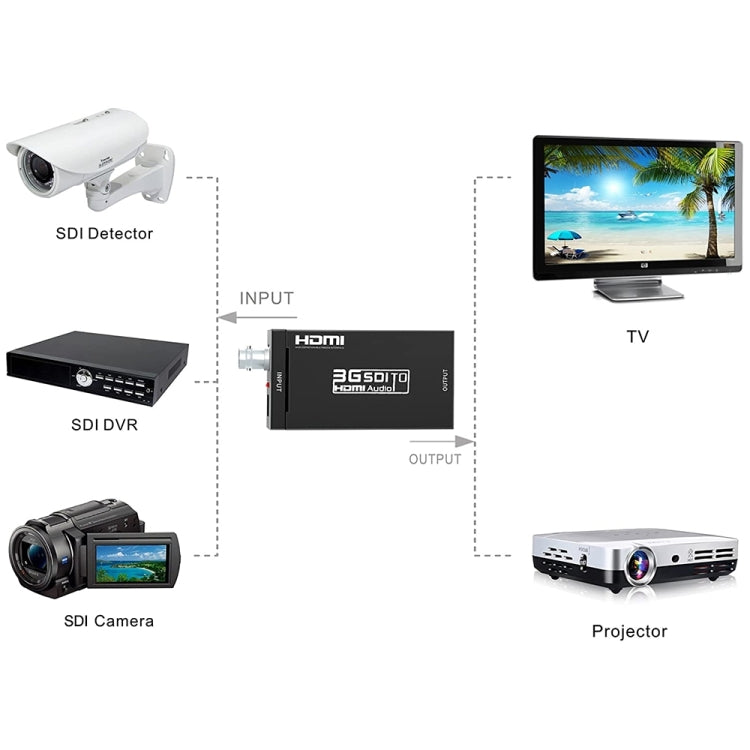

• Connection and operation:

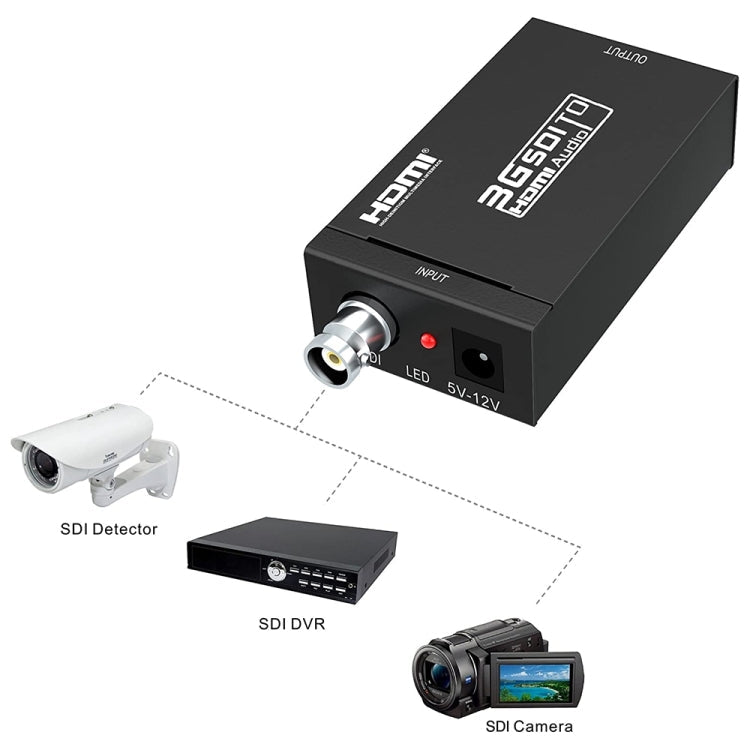

• Connect the signal source with SDI connector to the SDI connector input of the device

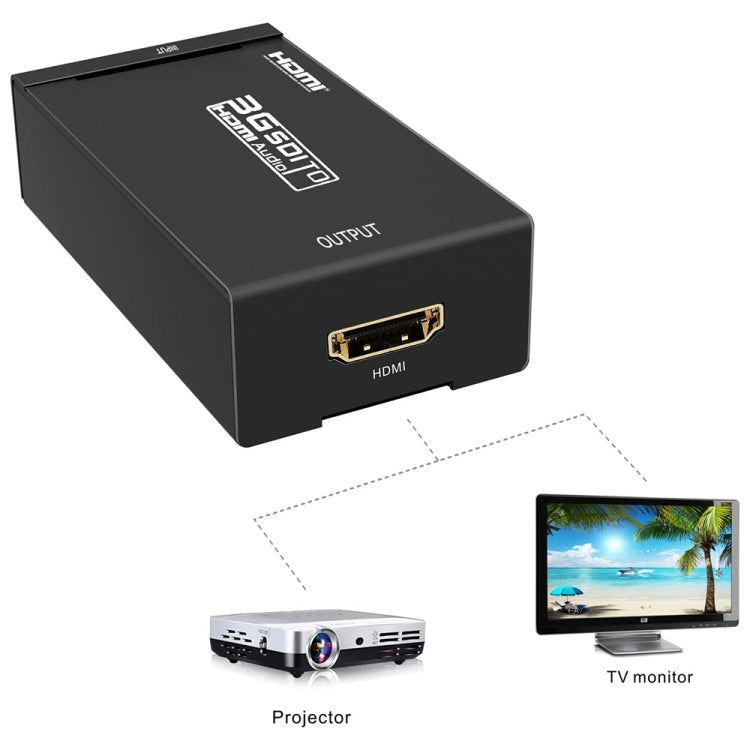

• Connect the converter output to the terminal display via HDMI cable
• Connect DC 5V/1A power supply or 12V power supply to the converter

Package Info: Weight: 0.22kgs / 0.48lb, Size: 13.5cm * 9cm * 8cm / 5.31inch * 3.54inch * 3.15inch
