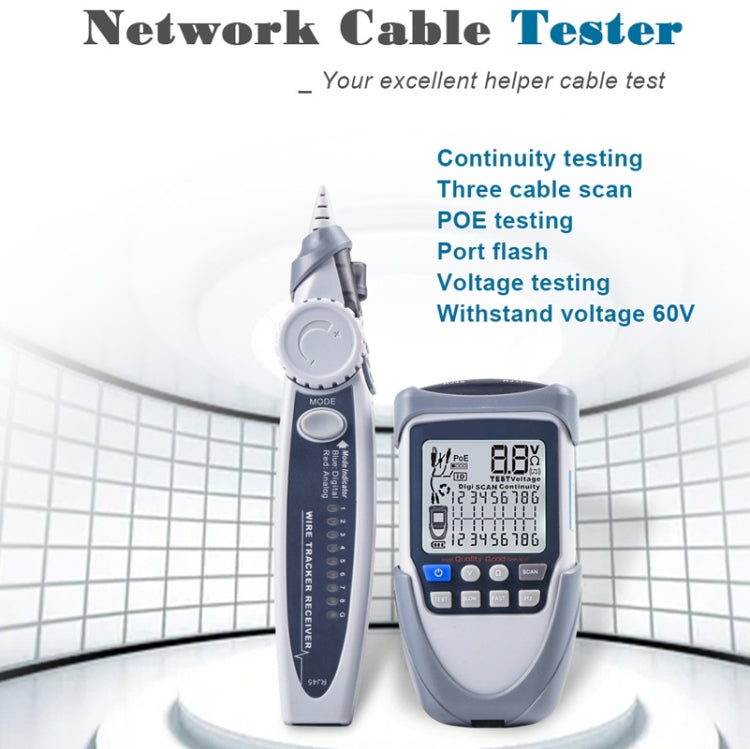

Network Cable Tester Wire Tracker Battery Voltage POE Test Multi-function Cable Tester, ET612, ET613 – TPU

Network Cable Tester Wire Tracker Battery Voltage POE Test Multi-function Cable Tester, ET612, ET613 – TPU.

Key Features:

• Widely used in metal wire line occasions such as telephone system, computer network, video network, optical communication engineering and so on.

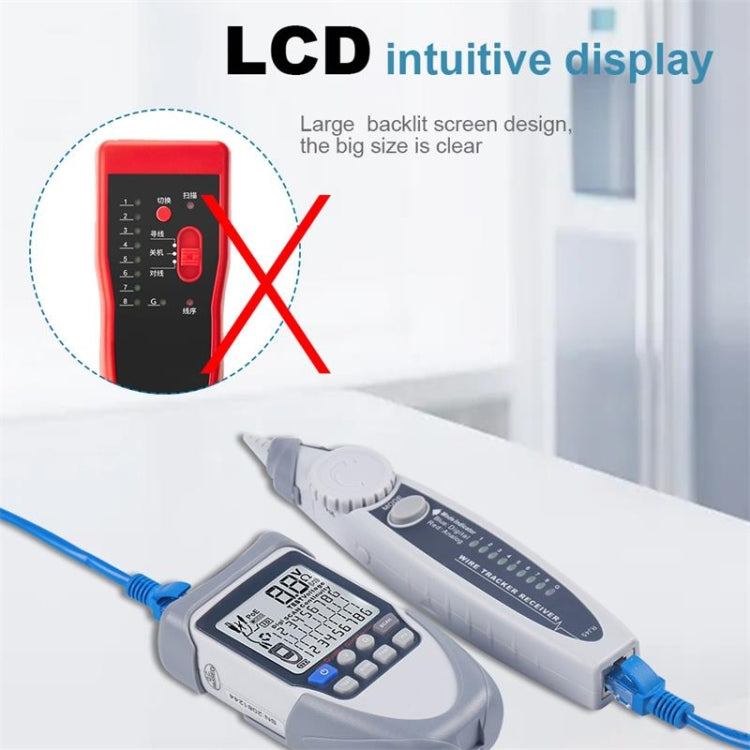

• Adopt LCD intuitive display screen, data display is clearer, POE mode, digital mode, analog mode can be switched freely.
• POE test function: This tool can be used to test standard and non-standard POE equipment, as well as POE voltage, power supply polarity and power supply mode.

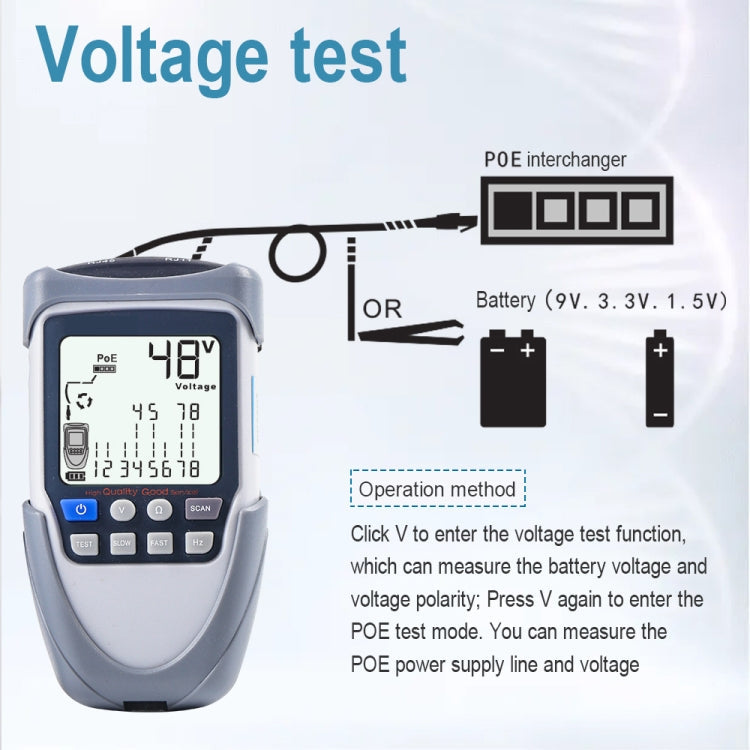

• Voltage test function: You can click "V" to enter the voltage test function, you can measure the battery voltage and voltage polarity, and then press "V" to...

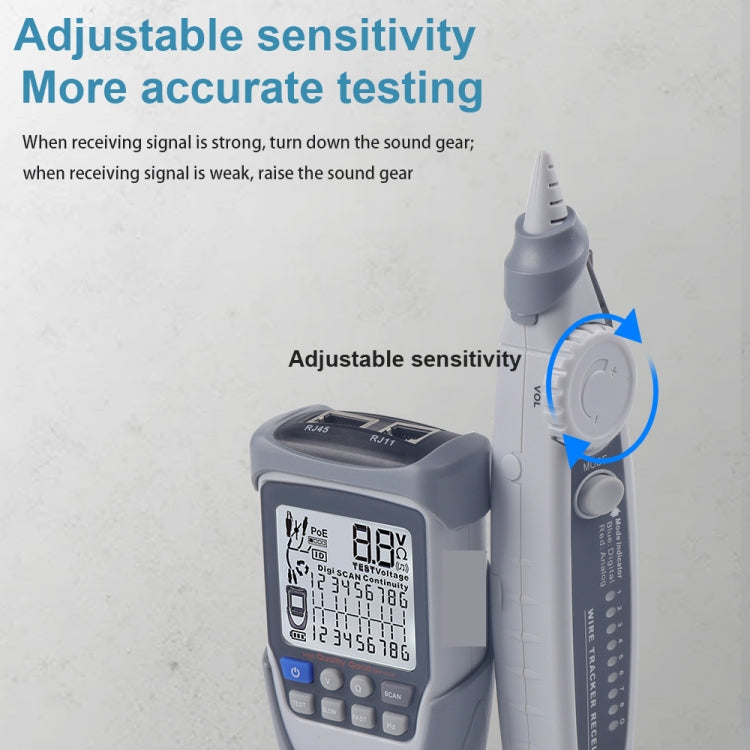

• Adjustable sensitivity: when you receive a strong signal, turn down the stereo; when you receive a weak signal, please pick up the audio equipment, it can...
• With the LED flashlight function, the flashlight can be turned on when the light is weak or used at night, so that you can use it normally in the dark...
• parameter:
• Material: ABS
• Power supply: Transmitter: 3 AA batteries (not included) Receiver: 9V (not included)
• Analog cable trace: yes
• Digitized Cable Tracing: Yes
• Tracking cable that supports PoE: Yes
• Identify cable pairs and connection quality: yes
• Battery Voltage Polarity Check: Yes
• Battery voltage measurement (for reference only): Yes
• PoE voltage polarity check: yes
• PoE voltage measurement (for reference only): Yes
• Check breakpoints: yes
• Continuity Test: Yes
• Trace signal transmission distance: 3Km
• Output signal level: ~ 15Vp-p
• Vibration indication: ET613 only
• Flashlight: Yes
• Adjustable volume: yes
• Low battery indicator: yes

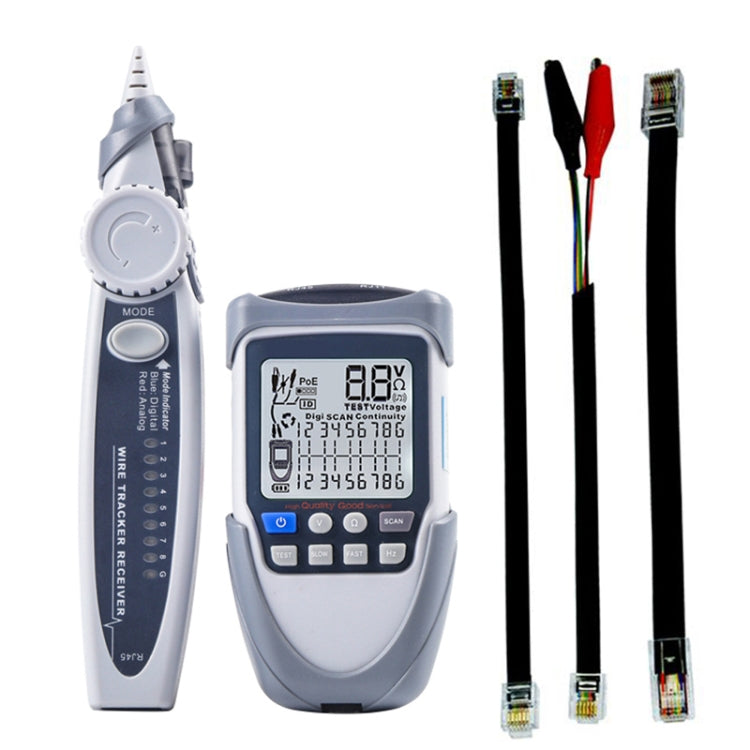

• Packing list:
• 1 x Transmitter
• 1 x Receiver
• 3 x wires

Package Info: Weight: 0.42kgs / 0.93lb, Size: 22cm * 15cm * 5cm / 8.66inch * 5.91inch * 1.97inch

Shipping: Shipping charges and final delivery dates are shown at checkout.
