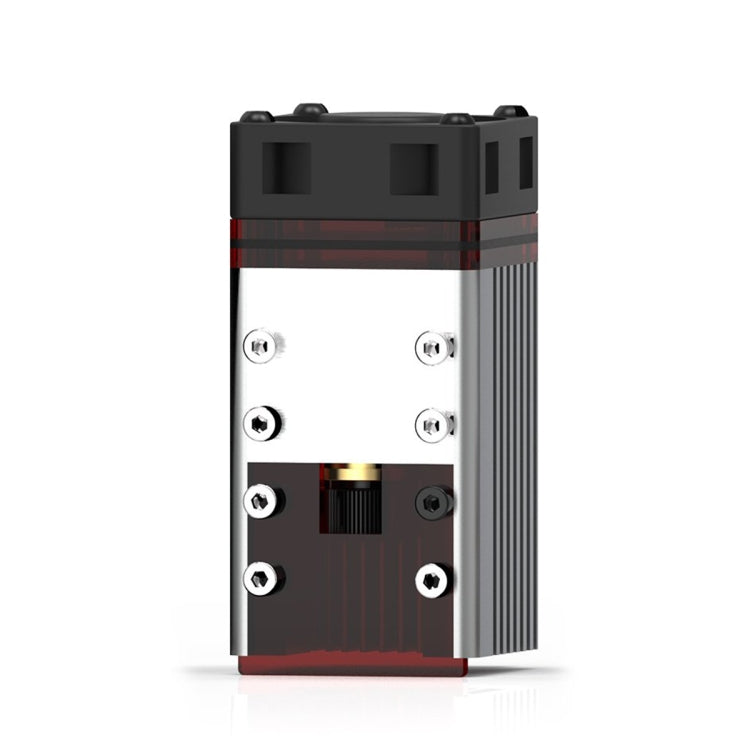

NEJE N40630 7.5W 450nm Laser Engraver Module Kits, N40630 – Leather, TPU

NEJE N40630 7.5W 450nm Laser Engraver Module Kits, N40630 – Leather, TPU.

Key Features:

• Designed for laser engraver, 3D printer, CNC mill, arduino project.

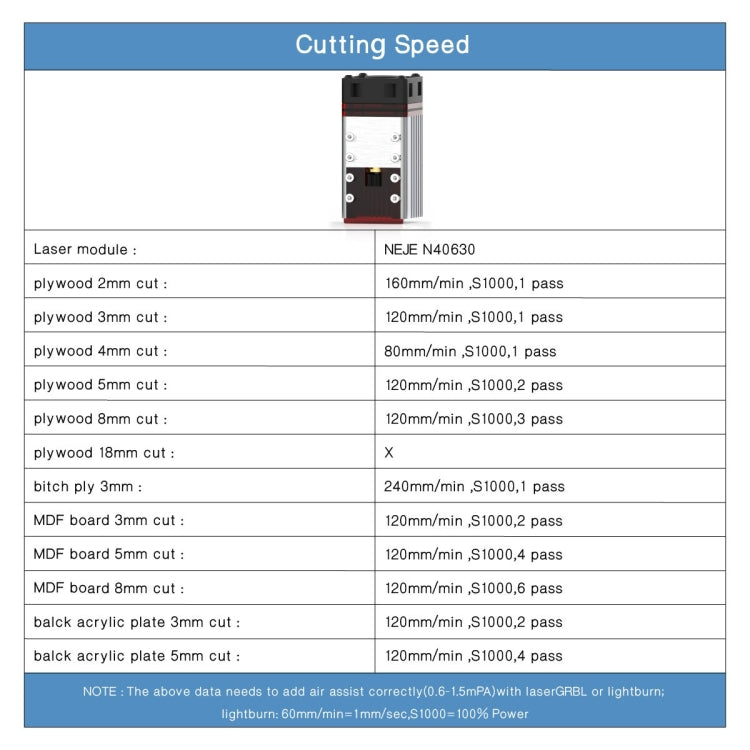

• 7.5W Optical power output, 4mm plywood from 1 pass(speed 100).
• More Safety, Built-in protective glass to protect eyes! Even without wearing protective glasses, the operation is more comfortable.
• More Quiet, Intelligent drive adjust the cooling fan speed according to laser temperature.
• Easy use, Digital PWM wave pulse signal generator adjustable frequency duty cycle board for NEJE laser module.

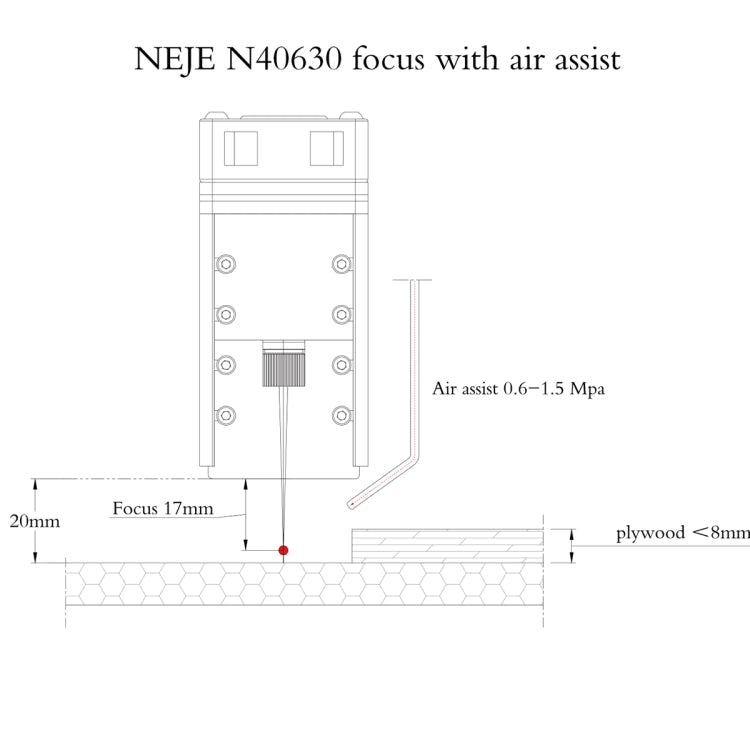

• The slidable mounting fixture is provided for easy adjustment of focus.

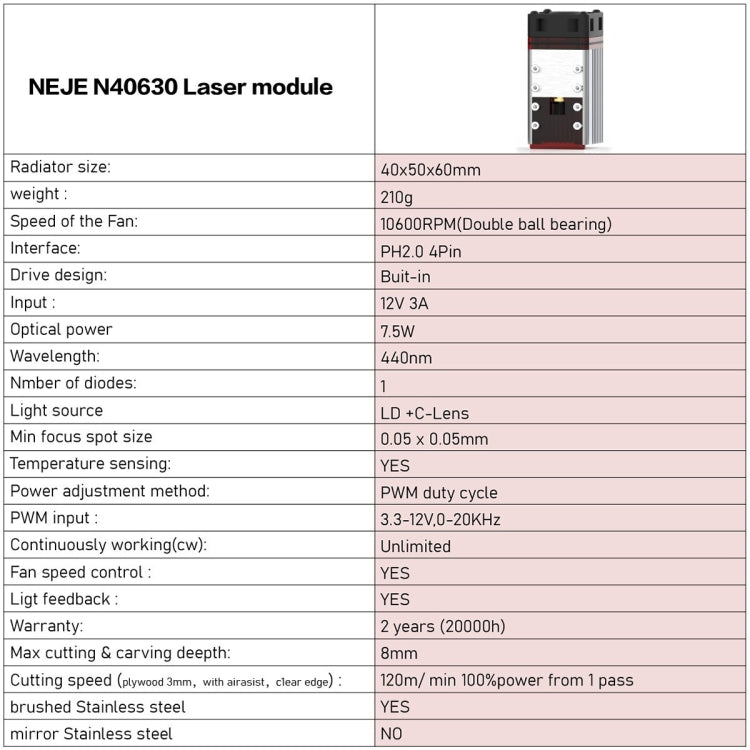

• Specification
• Heatsink Material: Aircraft Aluminum + Brass Shell
• Luminous Color: Blue
• Section Size: 40mm x 40mm
• Cooling Mode: Temperature sensor intelligent control + 10000 rpm 40mm cooling fan
• Dimension: 60 x 40 x 40mm
• Adapter Plug: 5.5 2.1 port
• Can Engrave: MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum
• Can Not Engrave: Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent Material
• Technical Parameters
• Optical power output: 5.5W~7.5W
• Wavelength: 445-450nm
• Beam Shape: Dot (Focusable)
• Working Voltage: DC 12V
• TTL&PWM Modulation: YES, compatible with both TTL & PWM Modulation
• Input Voltage: DC12V 3A
• PWM/TTL Input: DC3.3V-12V
• Input Interface: PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)
• Drive Mode: External ACC
• Safe temperature range: <60 degrees Celsius
• Module weight: 202g (The lighter the weight, the smaller the move inertia, the better the performance)
• Life Time: 10000-20,000 hours

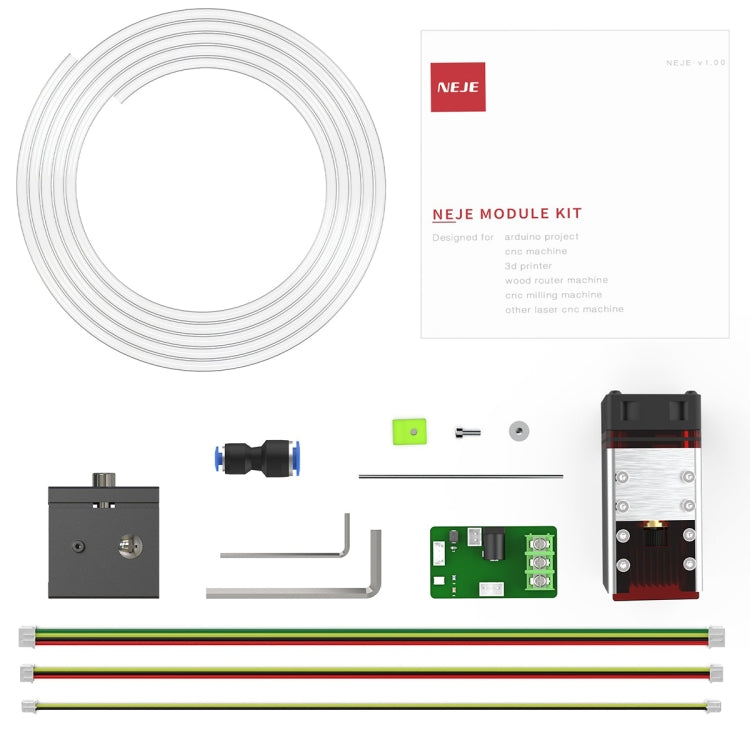

• Package Included
• - 1 x Laser Engraving Module
• - 1 x Laser Module Sliding slot
• - 1 x 4 Pin Cable(32cm Cable)

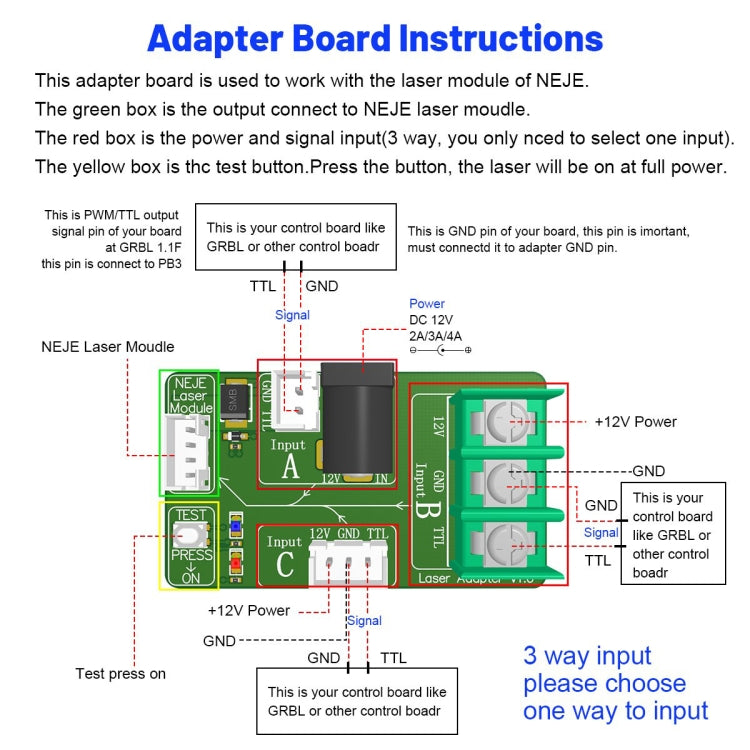

• - 1 x NEJE interface tranfer board
• - 1 x 2.5mm L-shaped wrench
• - 1 x 5mm L-shaped wrench
• - 1 x 3pin input cable

Package Info: Weight: 0.50kgs / 1.11lb, Size: 16cm * 10cm * 6cm / 6.3inch * 3.94inch * 2.36inch
