MPPT P60 60A 12V/24V Automatic Identification Solar Charge Controller – TPU

MPPT P60 60A 12V/24V Automatic Identification Solar Charge Controller – TPU.

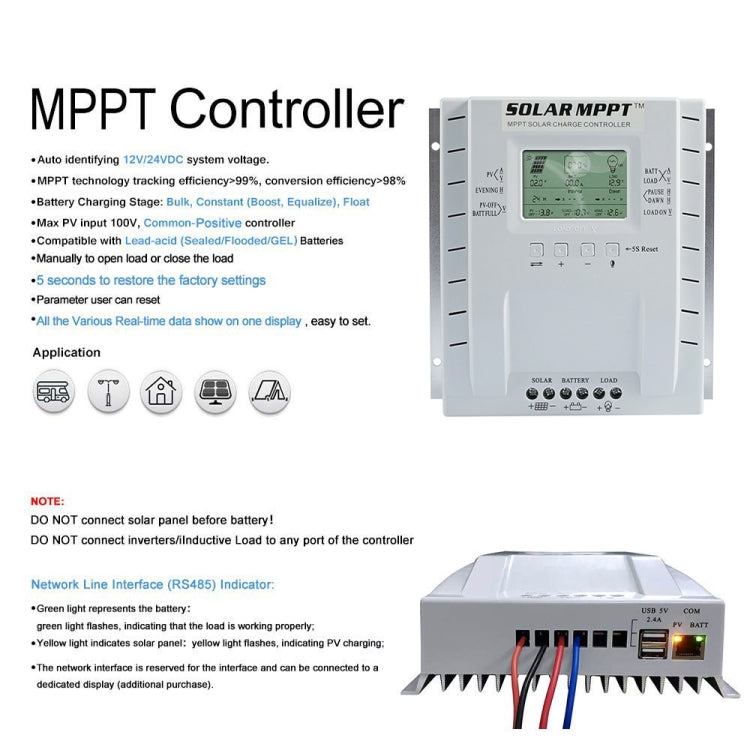

Key Features:

• Features:
• The 12V/24V voltage can be automatically identified and intelligentized, providing more convenience for your life.

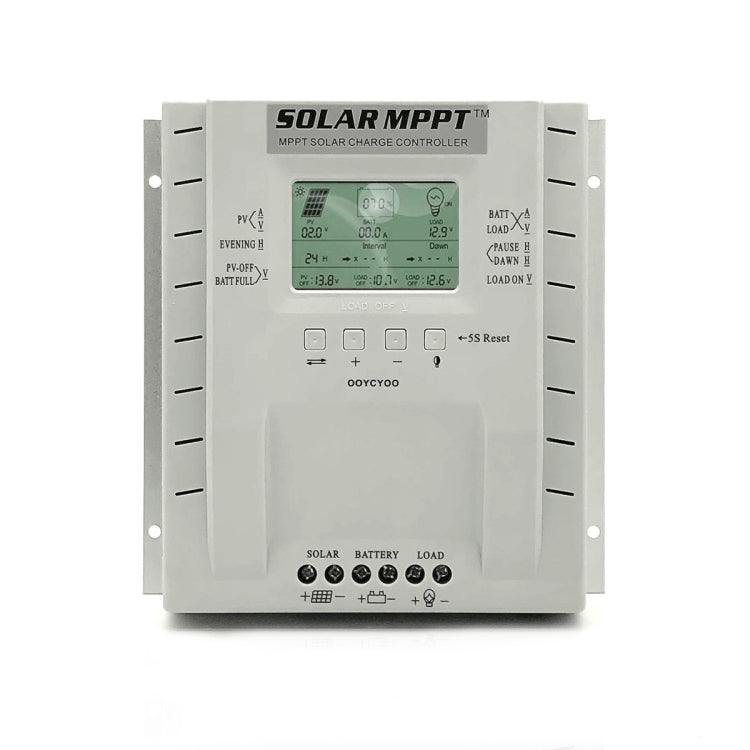

• Large LCD display: to ensure simple and intuitive operation.
• The input voltage of the solar panel is up to 100V, which is suitable for various specifications of solar panels
• The power supply adopts ultra-low power consumption chips to reduce static standby power consumption and reduce energy consumption
• USB 5V output for charging mobile phones and fans
• Dual time control mode
• Comprehensive protection: provide overcharge, overdischarge, overload protection and short circuit and reverse connection protection.
• Wide range of applications: used for solar green light, solar billboards, solar insecticidal lights, solar power systems, ship solar power systems, solar...
• parameter:
• Rated charging current: 60A
• Working voltage: 12V / 24V
• Floating charge voltage: 13.8V / 27.6V
• Undervoltage protection: 10.6V / 21.2V
• Over-discharge recovery voltage: 12.6V/25.2V
• Working temperature: -10-60 degrees Celsius
• Storage temperature: -30 -70 degrees Celsius
• Wiring specification: less than or equal to No. 10 AWG (10 square millimeters)
• Weight: 1400 grams

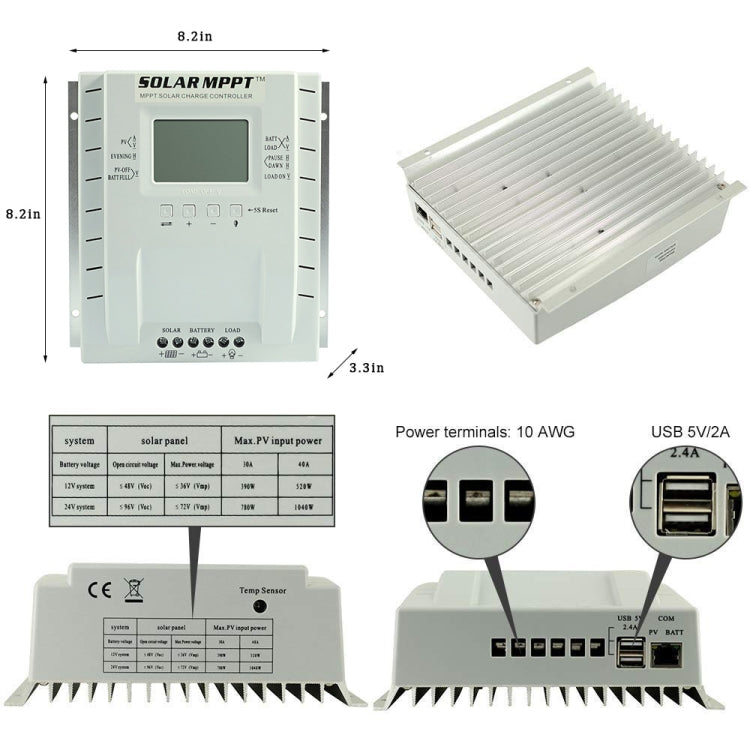

• Dimensions: 195x195x80 mm

Package Info: Weight: 1.34kgs / 2.95lb, Size: 25cm * 25cm * 10cm / 9.84inch * 9.84inch * 3.94inch
